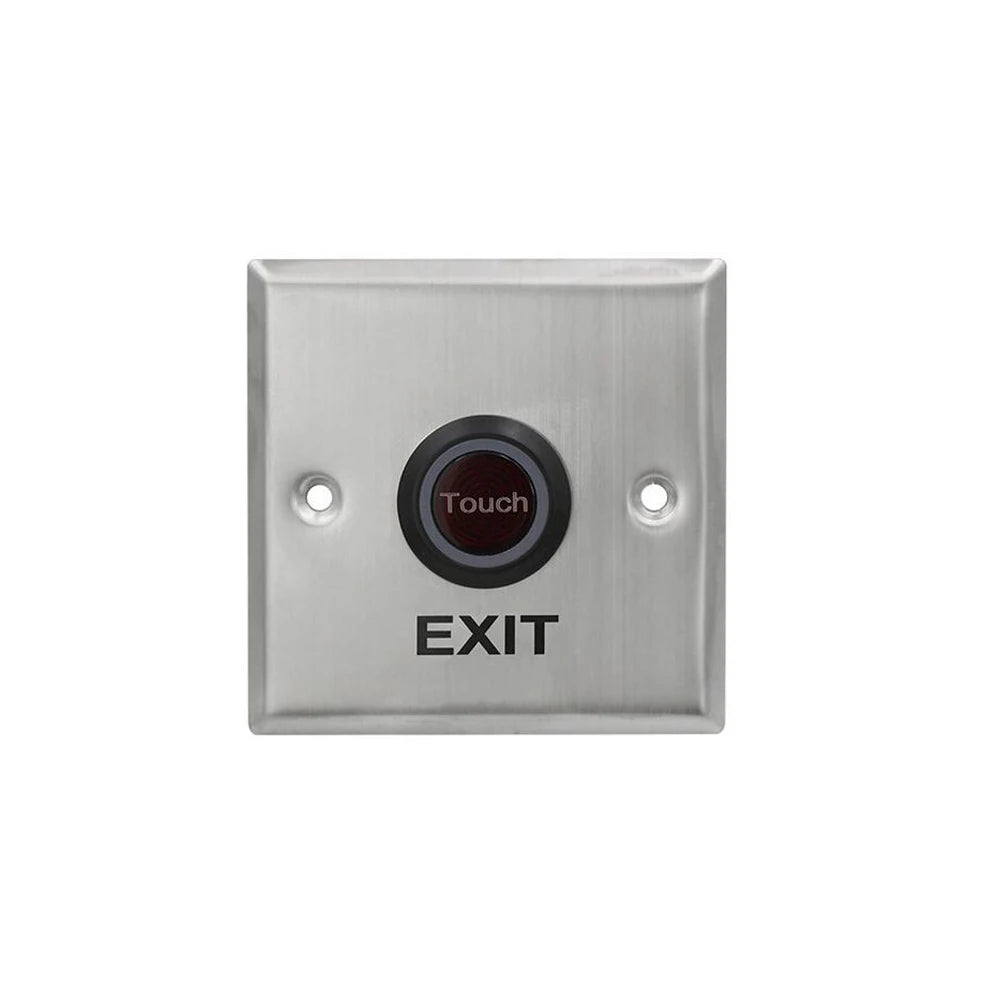

Asia-Teco ST86 Zinc Alloy Touch Panel Exit Button for Access Control Systems
Upgrade your door access control setup with the Asia-Teco ST86 Stainless Steel Touch Panel Exit Button. Built from high-hardness zinc alloy with a sleek matte finish, this push-release button delivers high-sensitivity capacitive touch sensing for smooth, reliable door release every time. Ideal for office buildings, apartments, warehouses, and any secured entryway, the ST86 integrates seamlessly with electric locks, magnetic locks, and access control systems.
Key Features
- High-Sensitivity Touch Sensing: Instant response with a simple touch — no mechanical press required.
- Durable Zinc Alloy Construction: High-hardness matte panel resists scratching, corrosion, and everyday wear.
- Dual LED Indicators: Blue LED (standby) and Green LED (touch activated) for clear status visibility at a glance.

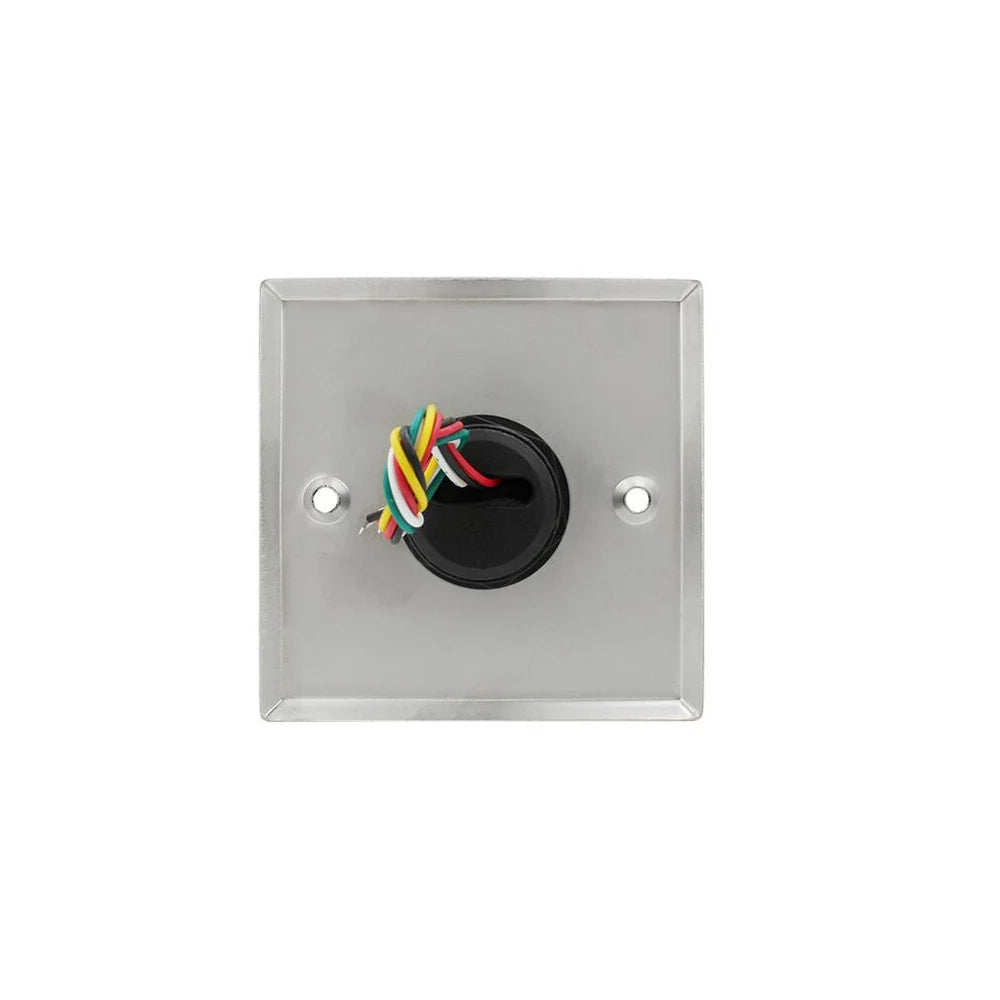

- Flexible Output Options: Supports NO (Normally Open), NC (Normally Closed), and COM configurations to suit virtually any security wiring setup.
- Robust Electrical Performance: Rated at 3A @ 36VDC — compatible with a wide range of electric lock and access control systems.

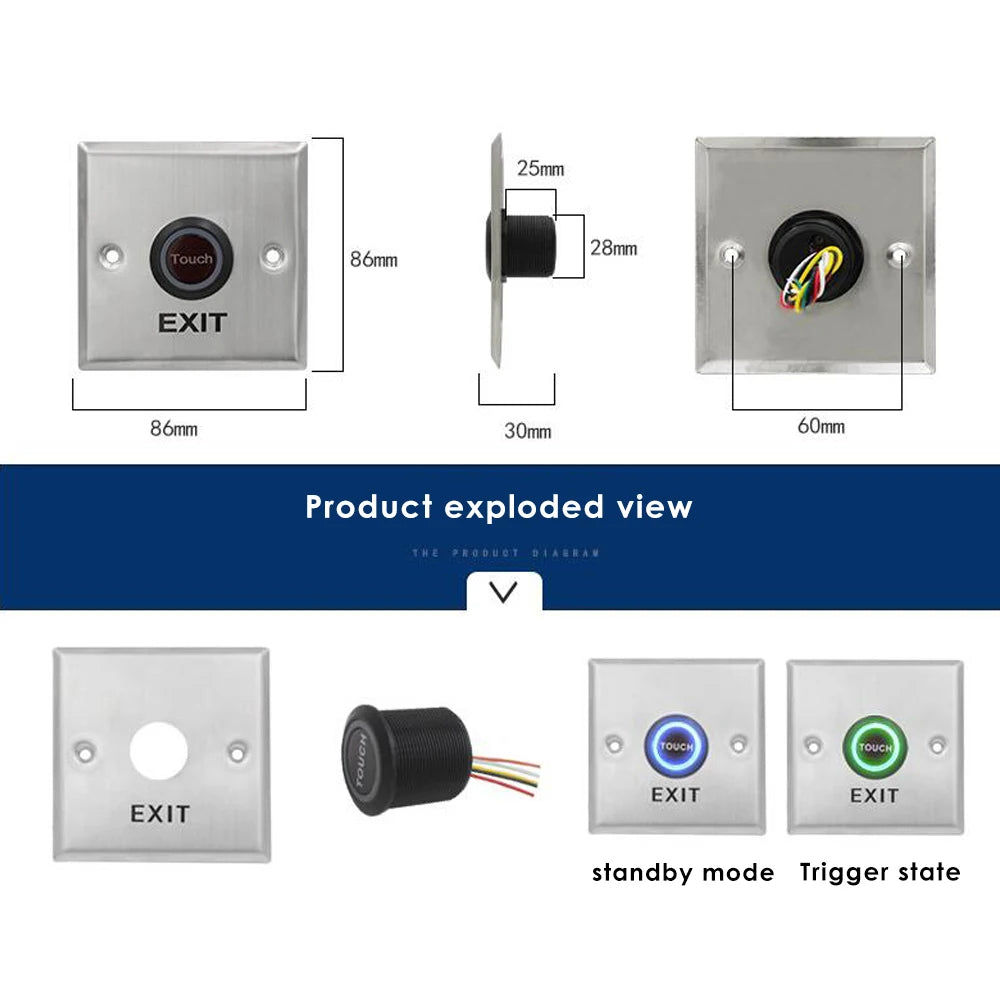

- Standard 86-Box Fit: 86 × 86 × 30 mm form factor fits standard electrical gang boxes for a clean, professional installation.
- Lightweight: Only 0.15 kg — easy to handle and install.
- Made in Mainland China.
Specifications
| Brand | Asia-Teco |
| Model | ST86 |
| Material | High-hardness zinc alloy matte panel |
| Output | NO / NC / COM |
| LED Indicators | Blue (standby) / Green (activated) |
| Electrical Rating | 3A @ 36VDC |
| Dimensions | 86 × 86 × 30 mm |
| Weight | 0.15 kg |
| Origin | Mainland China |
Where to Use It
- Office buildings and corporate reception areas
- Apartment complexes and residential entry points
- Warehouses, server rooms, and restricted-access zones
- Schools, hospitals, and retail back-of-house doors
- Any door fitted with a magnetic or electric strike lock
Safety & Installation Resources
For guidance on electrical safety standards when installing access control hardware, refer to the U.S. Consumer Product Safety Commission (CPSC) and OSHA's Electrical Safety guidelines. Always have wiring work performed by a qualified electrician.
Frequently Asked Questions
Q: What type of access control systems is the ST86 touch exit button compatible with?
A: The Asia-Teco ST86 exit button is compatible with most standard access control systems that support NO (Normally Open), NC (Normally Closed), and COM wiring configurations. It works with magnetic locks, electric strike locks, and other 36VDC-rated electric locking hardware commonly used in residential, commercial, and industrial settings.
Q: Is this exit button difficult to install?
A: Installation is straightforward for anyone familiar with basic electrical wiring. The ST86 fits standard 86-series gang boxes (86 × 86 mm), making it a drop-in replacement for most existing switches. Three output options (NO/NC/COM) provide flexibility for different wiring needs. We recommend having a licensed electrician perform or verify the installation.
Q: What do the LED indicator colors mean on the ST86 exit button?
A: The ST86 features two LED indicators: a Blue LED that illuminates during standby mode (system armed and ready), and a Green LED that lights up when the touch panel is activated, confirming the exit signal has been sent to the lock or access control panel.
Q: Is the zinc alloy panel durable enough for high-traffic areas?
A: Yes. The ST86 is constructed from high-hardness zinc alloy with a matte surface finish, offering excellent resistance to scratches, impact, and everyday wear. This makes it well-suited for high-traffic commercial and industrial environments where durability is essential.
