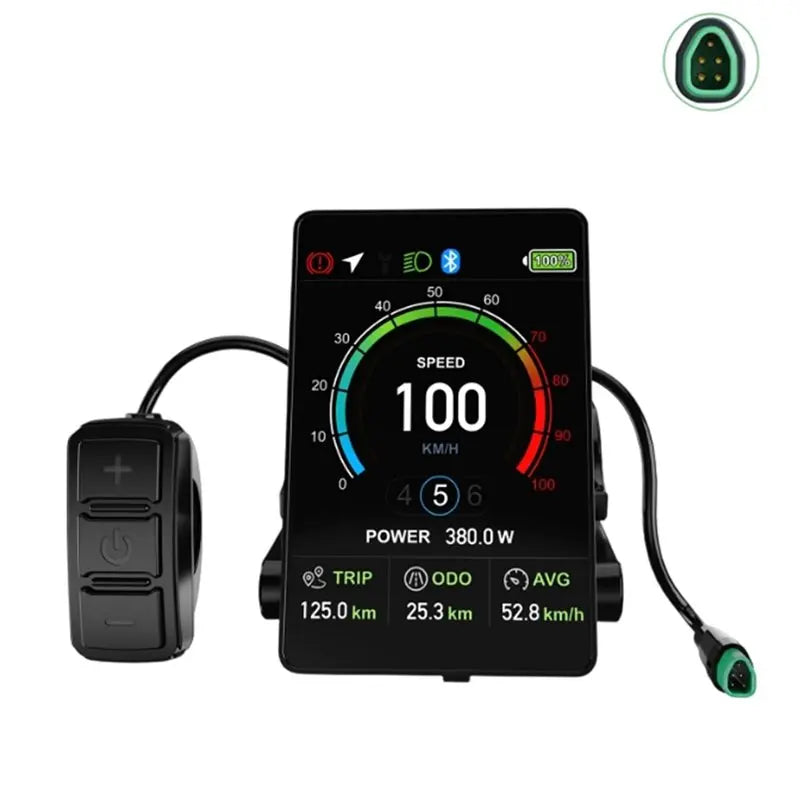

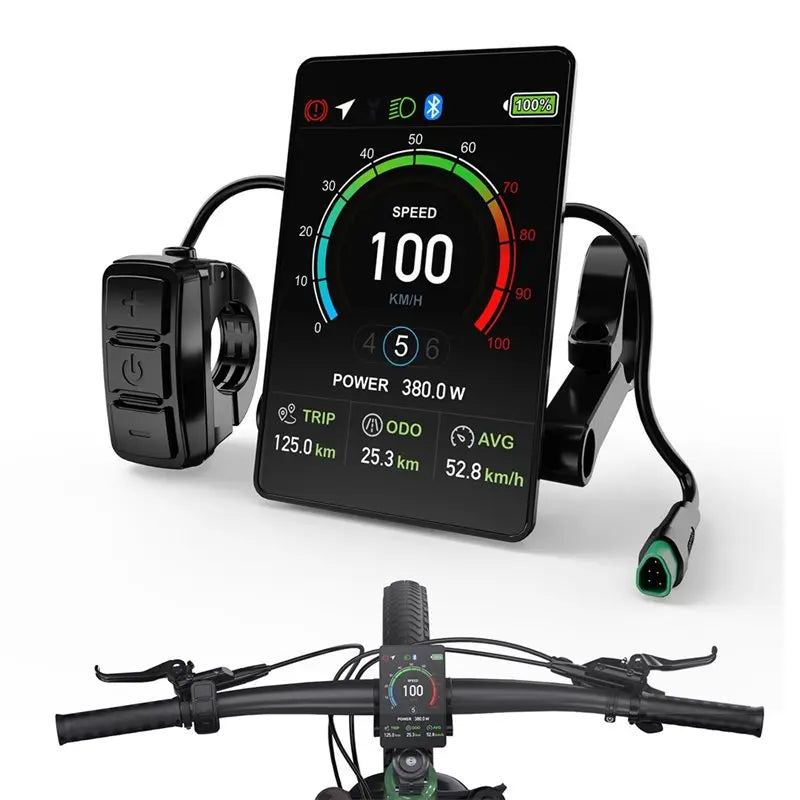

Tongsheng VD04 Bluetooth E-Bike Control Display – 5-Pin CAN Protocol
Upgrade your electric bike with the Tongsheng VD04 Bluetooth E-Bike Display — a feature-packed, waterproof control panel designed specifically for Tongsheng motor systems using the CAN protocol. Whether you're commuting daily or tackling rugged trails year-round, this display delivers reliable performance and crystal-clear readability in any condition.
Key Features
- Bluetooth Connectivity: Wirelessly connect to compatible apps for advanced ride monitoring and customization.
- Waterproof Design: Durable weatherproof casing keeps the electronics safe in rain, mud, and all-season riding conditions.
- High-Resolution Color Screen: Vivid, bright display ensures easy readability in both bright sunlight and low-light environments.

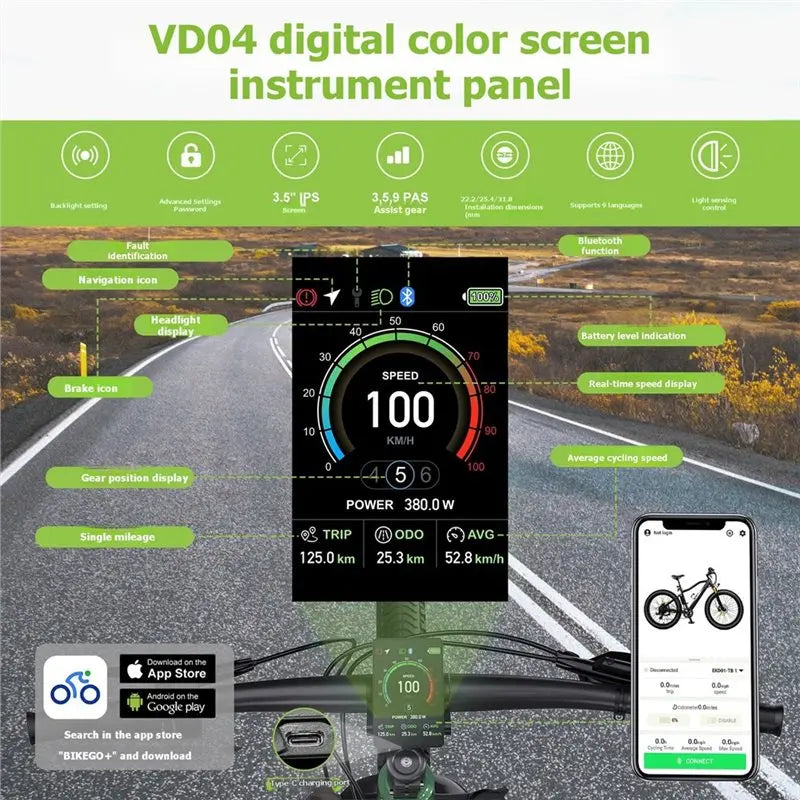

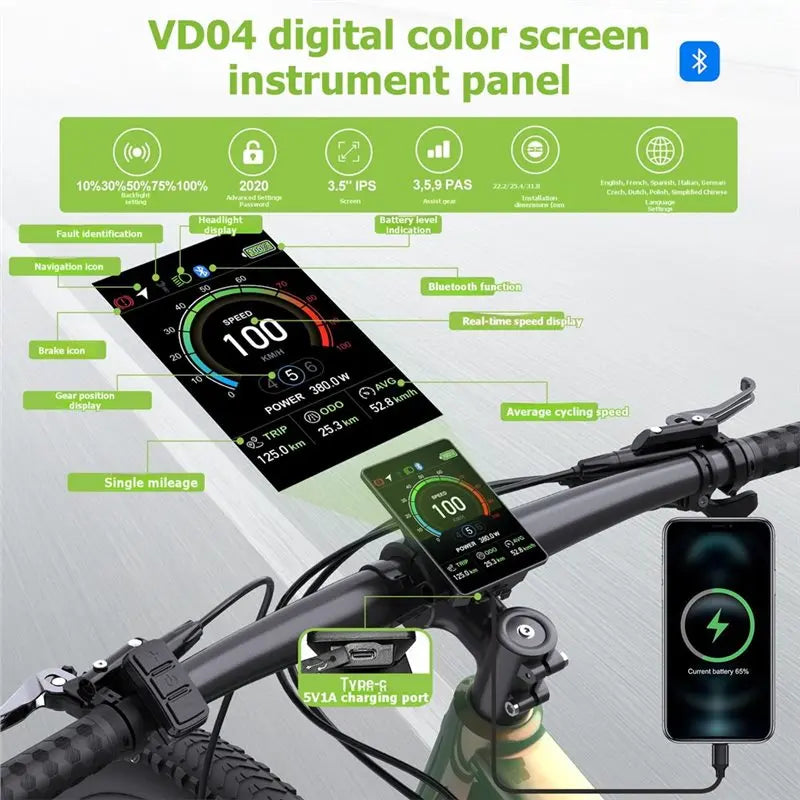

- At-a-Glance Metrics: Instantly monitor speed, battery level, assist mode, distance, and other critical ride data.
- 5-Pin Connector: Plug-and-play compatibility with Tongsheng 5-pin motor systems for a seamless fit.
- CAN Protocol Support: Advanced CAN bus communication ensures fast, stable, and accurate data transfer between the motor controller and display.
- ABS Construction: Lightweight yet impact-resistant ABS housing stands up to everyday wear and tear.
- Easy Installation: Comes with a straightforward mounting kit — no professional tools or technical expertise required.
Specifications
- Color: Black
- Material: ABS
- Protocol: CAN Protocol (UART protocol also available)
- Connector: 5-Pin
- Compatibility: Tongsheng motor systems
What's in the Box?
- 1 × Tongsheng VD04 Electric Bike Display
Note: Only the listed item is included. Color may vary slightly due to display differences and lighting. Measurement tolerance: ±1–3 cm.
Made in Mainland China.
For general e-bike safety guidelines and regulations, visit the U.S. Consumer Product Safety Commission – Bicycle Safety Resource.
Frequently Asked Questions
Q: Is the Tongsheng VD04 display compatible with all Tongsheng motors?
A: The VD04 display is designed for Tongsheng motor systems that use the CAN protocol with a 5-pin connector. It is not universally compatible with all Tongsheng motors — please verify your motor's protocol (CAN or UART) and connector type before purchasing to ensure a proper match.
Q: Does the VD04 display work in wet or rainy weather?
A: Yes. The Tongsheng VD04 features a waterproof enclosure engineered to withstand rain and moisture, making it suitable for all-season riding. However, it should not be submerged in water or used in extreme flooding conditions.
Q: What information does the VD04 Bluetooth e-bike display show?
A: The VD04 displays key ride metrics including current speed, battery level, assist mode, trip distance, and more. The high-resolution color screen ensures these readings are clearly visible in various lighting conditions, from direct sunlight to evening rides.
Q: Is any special installation knowledge needed to fit the VD04 display?
A: No specialized skills are required. The VD04 comes with a standard installation kit and uses a simple 5-pin plug-and-play connection, making it easy for most e-bike owners to install at home without professional assistance.
