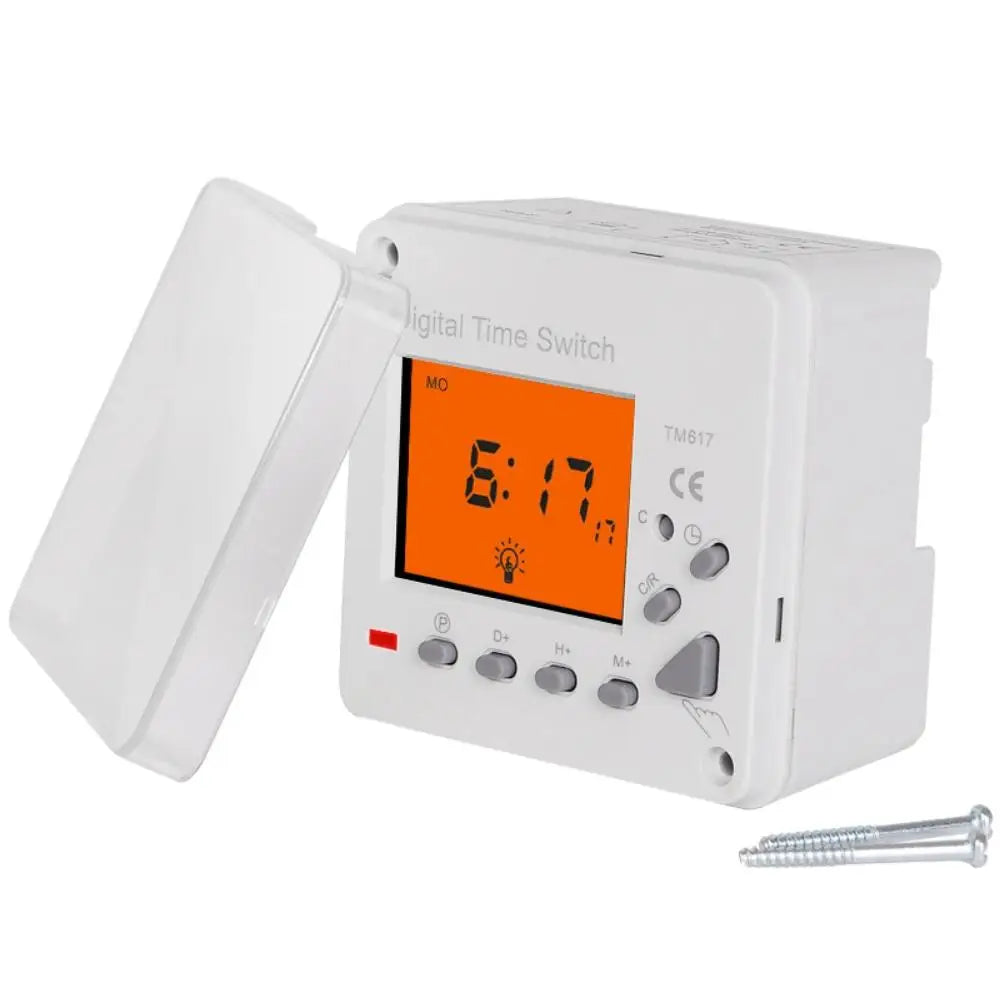

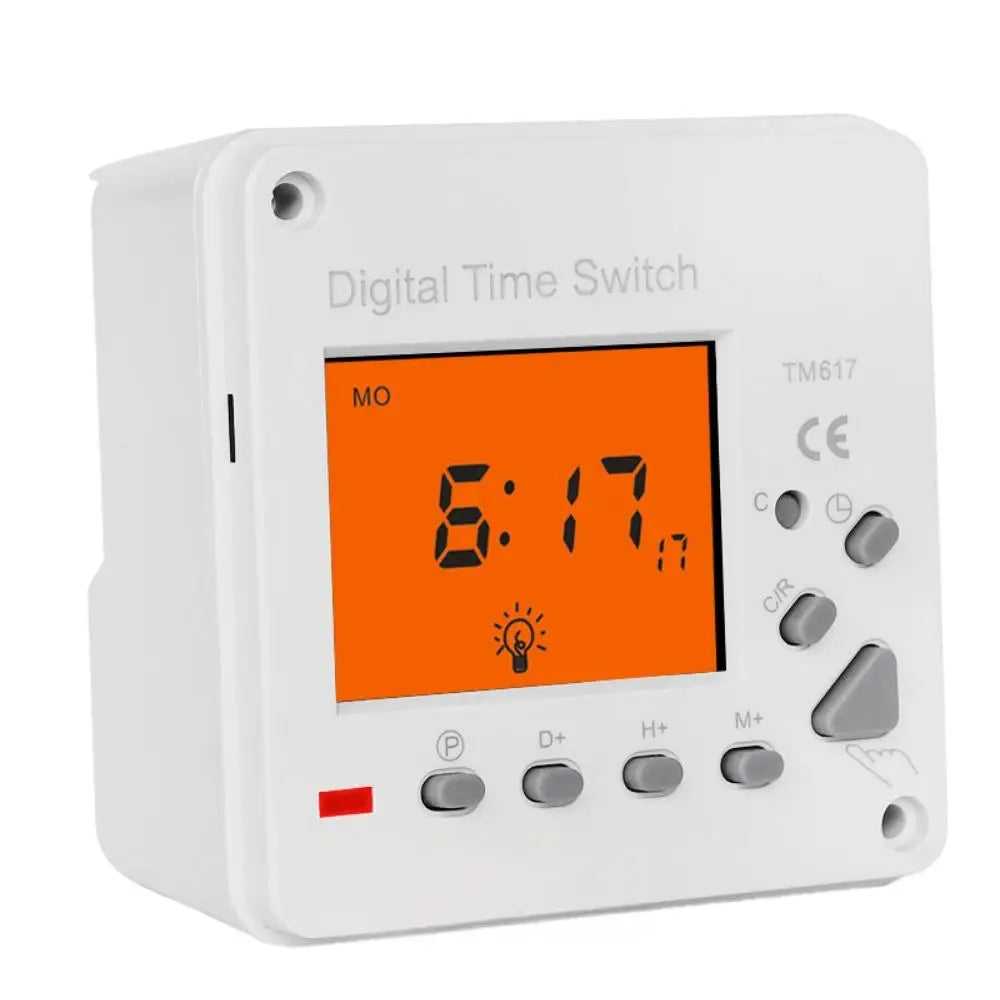

TM617 Intelligent Digital Time Control Switch – 110V/220V
Take full control of your electrical appliances with the TM617 Digital Time Switch. Featuring a large backlit LCD screen and an intuitive interface, this programmable timer lets you schedule up to 28 on/off switching cycles per week — perfect for automating advertising light boxes, broadcasting equipment, irrigation systems, and other electrical devices. Dual-voltage support (110V/220V) makes it versatile across different electrical setups, while flexible mounting options (72×72mm panel cutout or DIN rail) ensure easy integration into existing control cabinets or enclosures.
Made in Mainland China.
Key Features
- Large Backlit LCD Screen — Easy to read in any lighting condition
- 28 Programmable Schedules — Set daily or weekly on/off cycles with precision
- Wide Voltage Compatibility — Works on 110V or 220V / 50–60Hz systems
- High-Load Output — Controls loads up to 16A (8) at 250V AC
- 180-Day Power-Outage Memory — Retains all programmed schedules even after extended power loss
- Accurate Timekeeping — Travel time error of only 1 second per 24 hours
- Flexible Mounting — Fits 72×72mm panel cutouts or standard DIN rail installations
- Compact Design — 72×72×48mm footprint for space-saving installation
Specifications
| Working Voltage | 110V / 220V, 50–60Hz |
| Control Output | 16A (8) 250V AC |
| Programmable Schedules | 28 switches (daily/weekly) |
| Minimum Set Time | 1 minute |
| Maximum Set Time | 168 hours |
| Time Accuracy | ≤1 second / 24 hours |
| Power-Outage Memory | 180 days |
| Dimensions | 72 × 72 × 48mm |
| Mounting | 72×72mm panel cutout or DIN rail |
| Typical Applications | Advertising light boxes, broadcasting equipment, general electrical appliances |
What's in the Box
- 1× TM617 Time Control Switch
Note: Due to screen and lighting differences, the actual product color may vary slightly from images. Please allow a 1mm–1cm tolerance due to manual measurement.
For general electrical safety guidelines, refer to the U.S. Consumer Product Safety Commission – Electrical Safety.
Frequently Asked Questions
Q: Can the TM617 time switch be used on both 110V and 220V systems?
A: Yes. The TM617 digital timer switch supports both 110V and 220V AC at 50–60Hz, making it suitable for a wide range of residential and commercial electrical systems.
Q: How many on/off schedules can I program on the TM617?
A: You can program up to 28 independent switching cycles (on/off pairs) per week, giving you precise daily or weekly automation control over any connected appliance.
Q: Will my programmed schedules be lost during a power outage?
A: No. The TM617 features a built-in 180-day power-outage memory, so all your programmed schedules are retained even after an extended loss of power.
Q: What mounting options are available for the TM617?
A: The TM617 supports two installation methods: a standard 72×72mm panel cutout mount and DIN rail mount, making it compatible with most control panels and electrical enclosures.
