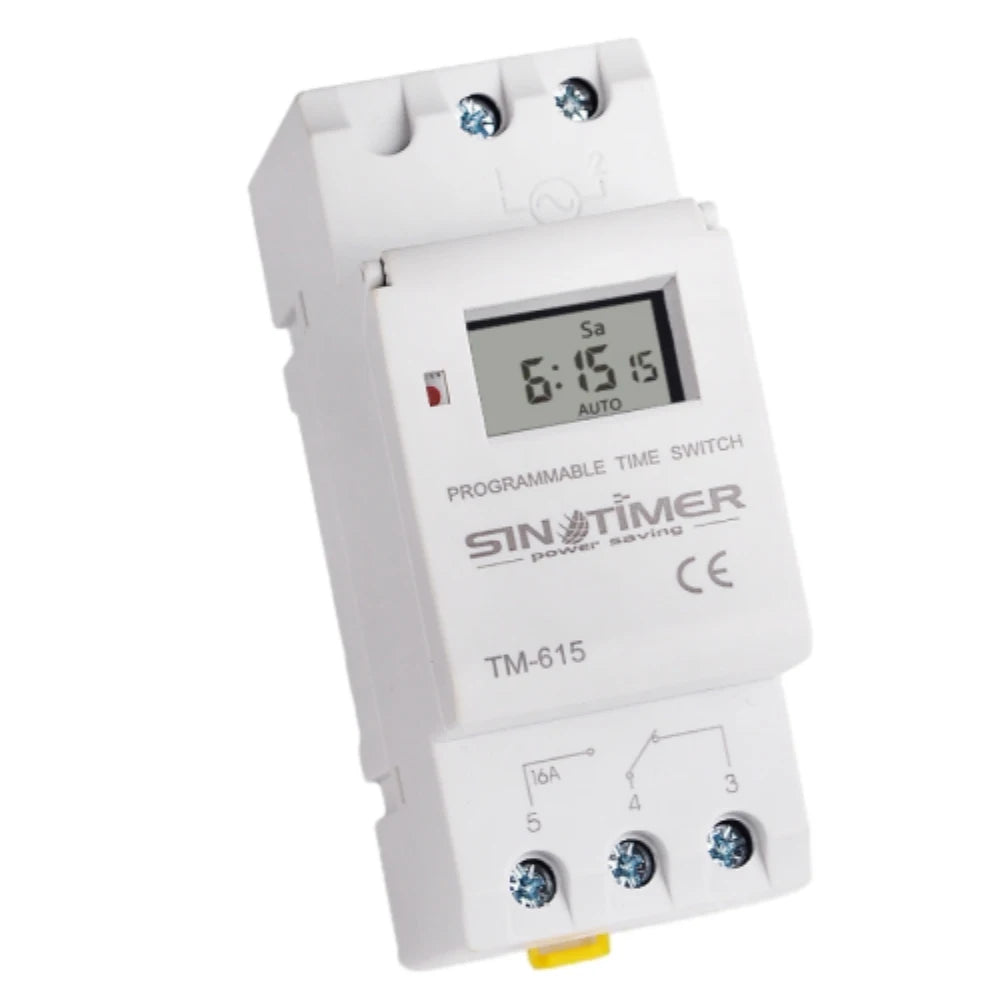

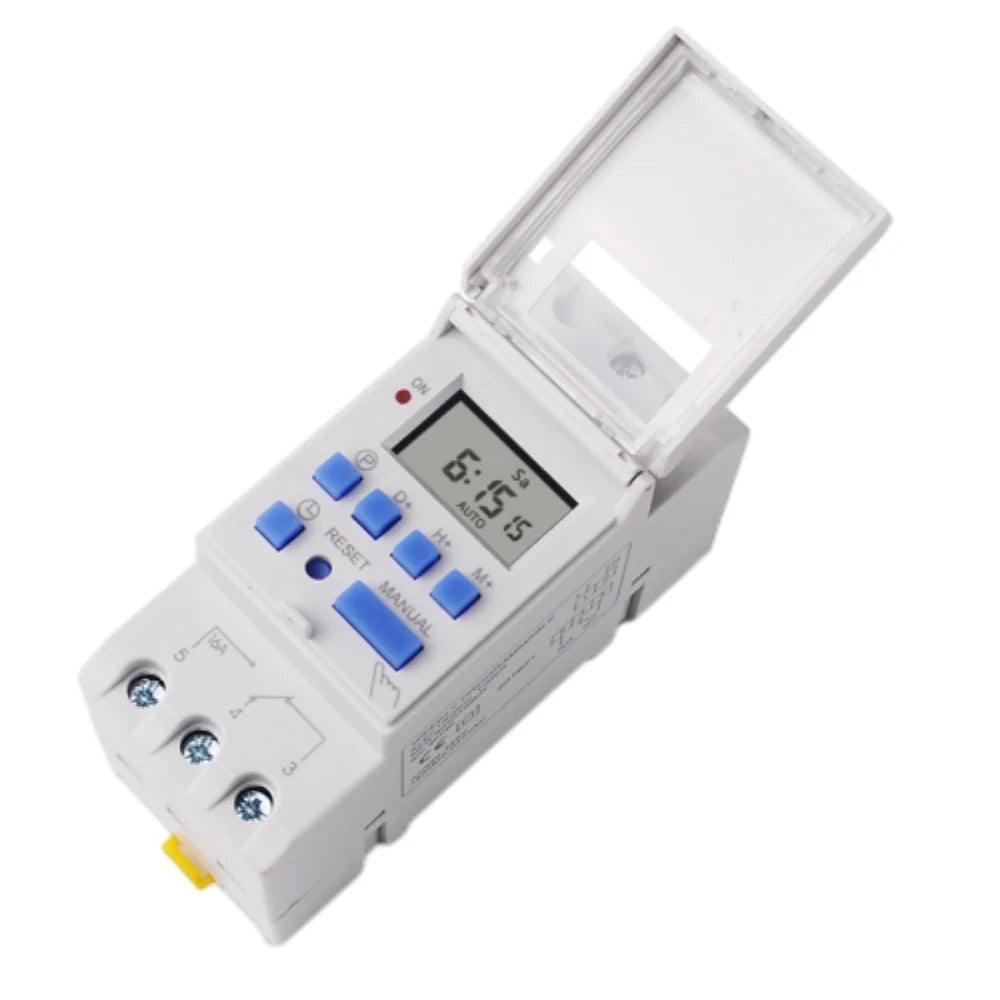

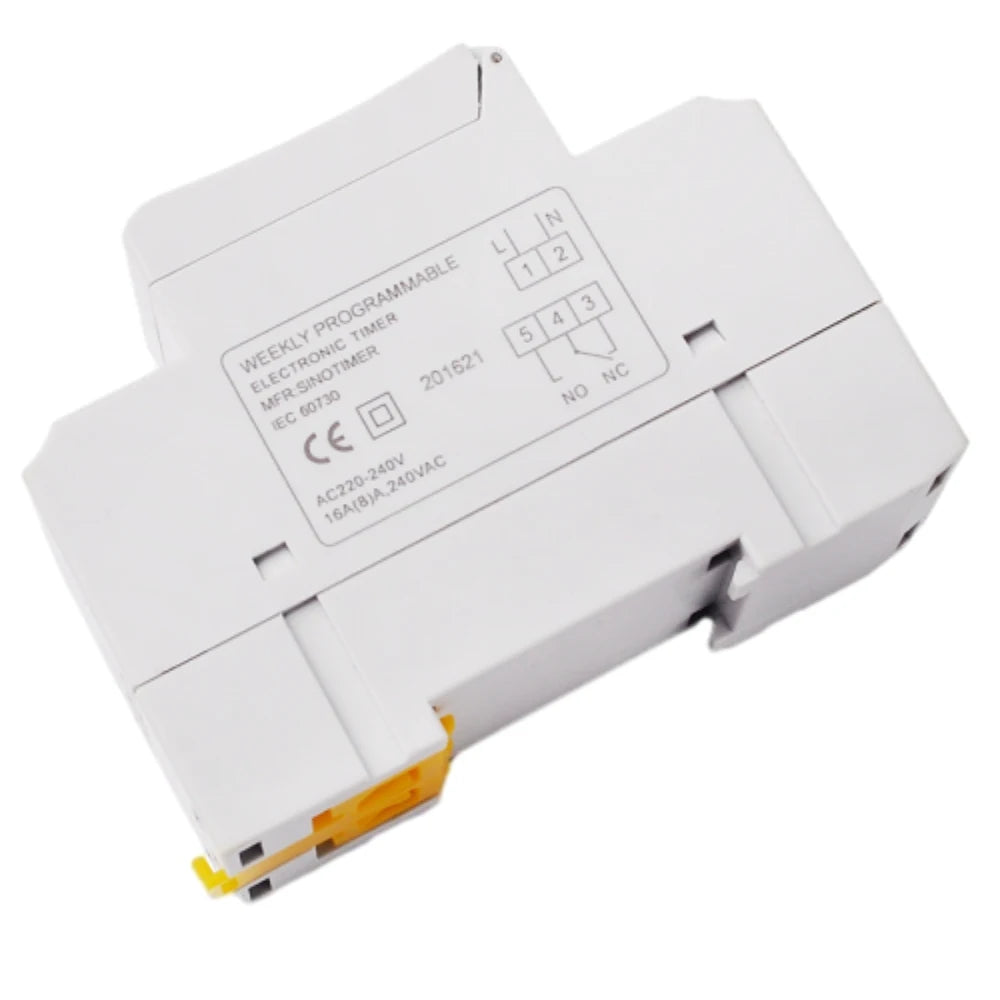

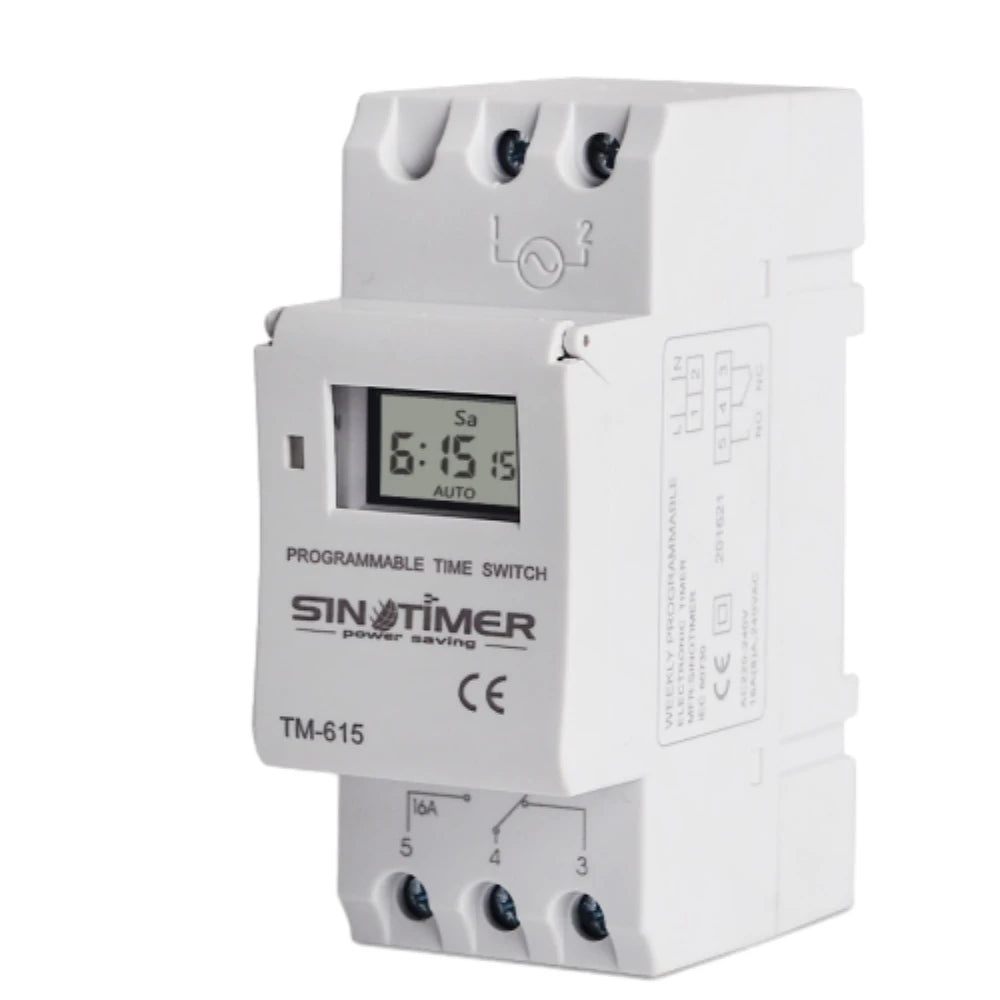

TM615 AC220V 7-Day Programmable DIN Rail Timer Switch 16A/30A

TM615 AC220V Digital 7-Day Programmable Timer Switch

Take full control of your electrical equipment with the TM615 DIN Rail Programmable Timer Switch. Designed for both household and commercial applications, this smart timer automatically switches connected devices on and off according to your pre-set schedule — up to 16 ON/OFF programs per day, across a full 7-day weekly cycle. Save energy, automate routines, and never worry about leaving devices running unattended.

Made in Mainland China.

Key Features

• 16 ON/OFF Programs Daily: Set up to 16 independent on/off events each day or across the week for maximum scheduling flexibility.
• 15 Intelligent Group Combinations: Combine program groups for complex, customized automation scenarios.
• High Capacity Output: Supports up to 16A / 3,500W (standard) or 30A / 5,000W — suitable for a wide range of appliances and equipment.
• Battery Backup (CR2032): Replaceable CR2032 battery retains all programmed settings for up to 60 days during a power outage.
• High-Accuracy CMOS Chip: Average time error of just ±1 second per 24 hours (at 25°C), with automatic weekly correction of ±30 seconds.
• LCD Display: Clear, easy-to-read screen for straightforward programming and monitoring.
• Manual Override: Instantly override programmed schedules with a simple manual ON/OFF toggle.
• Wide Operating Temperature: Functions reliably from -20°C to +50°C (-4°F to 122°F).
• DIN Rail Mount: Standard DIN rail mounting for neat, professional panel installation.
• Anti-Jamming Design: High-quality CMOS circuitry with strong electromagnetic interference resistance.

Common Applications

• Street lighting & neon/signage displays
• Water heaters & air conditioning units
• Garden sprinklers & irrigation systems
• Billboards & advertising lighting
• Electric cookers & kitchen appliances
• Agricultural facilities & greenhouse equipment
• Broadcasting equipment & industrial machinery

Specifications

What's in the Box

• 1× TM615 Programmable Timer Switch

Note: Colors may vary slightly due to lighting and screen differences. Please allow 1–10mm variance due to manual measurement.

For general electrical safety guidance when installing timer switches, visit the U.S. Consumer Product Safety Commission – Electrical Safety.

Frequently Asked Questions

Q: What types of devices can I control with the TM615 programmable timer switch?

A: The TM615 timer switch is compatible with a broad range of electrical equipment including street lights, neon signs, water heaters, air conditioners, electric cookers, garden sprinklers, agricultural equipment, and broadcasting devices — anything rated up to 16A (3,500W) on the standard contact, or 30A (5,000W) on the high-capacity setting.

Q: Will my programmed schedule be lost during a power outage?

A: No. The TM615 includes a replaceable CR2032 backup battery that preserves all your programmed settings for up to 60 days during a power failure. Once power is restored, the timer resumes exactly where it left off.

Q: How many on/off schedules can I program on the TM615 timer switch?

A: You can set up to 16 individual ON/OFF events per day, applicable across a full 7-day week. Additionally, 15 intelligent group combination settings allow for advanced, flexible scheduling for more complex automation needs.

Q: How is the TM615 timer switch installed?

A: The TM615 features a standard DIN rail mount, making it ideal for installation inside electrical distribution panels or enclosures. It is designed for professional panel mounting and should be installed by a qualified electrician in compliance with local electrical codes.
