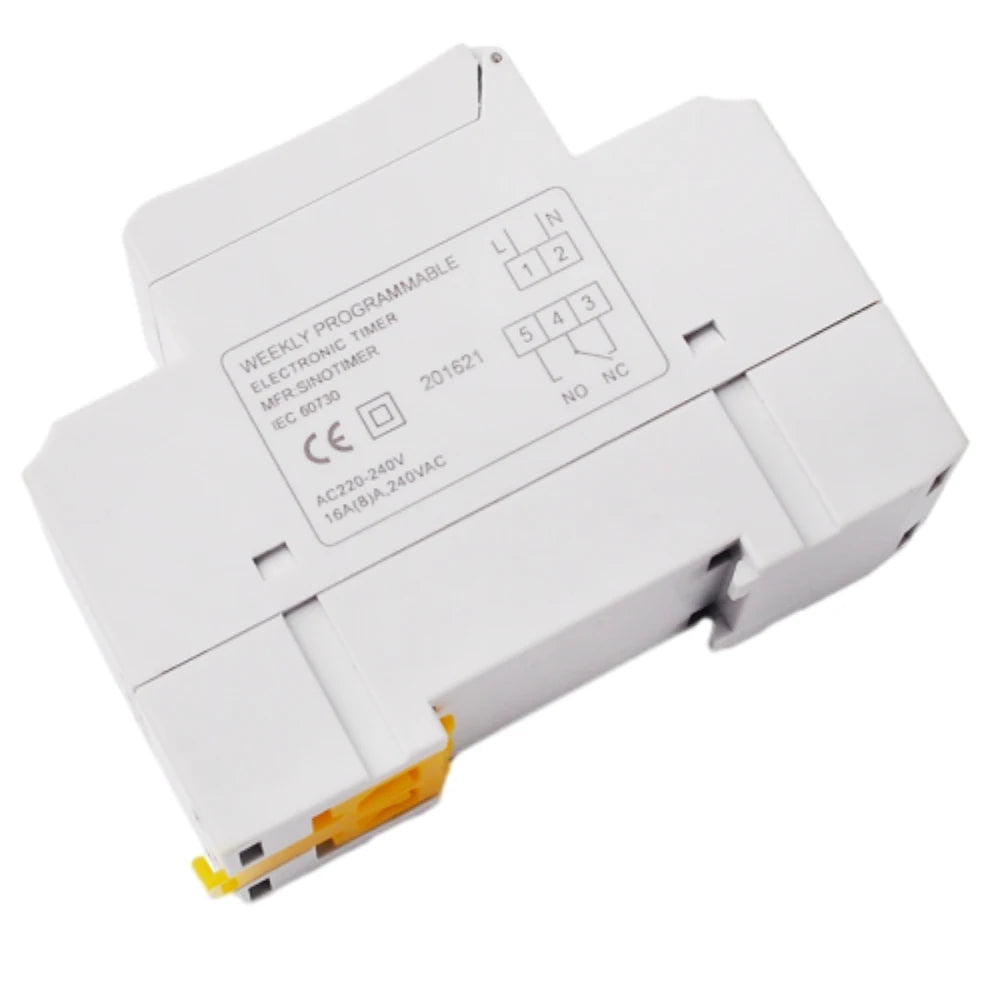

TM615 AC220V Digital 7-Day Programmable Timer Switch
Take full control of your electrical equipment with the TM615 DIN Rail Programmable Timer Switch. Designed for both household panels and commercial installations, this versatile digital timer lets you schedule up to 16 ON/OFF programs per day, seven days a week — automating everything from lighting and water heaters to agricultural equipment and signage.
Why Choose the TM615 Timer Switch?
- Flexible Weekly Scheduling: Program up to 16 ON/OFF cycles each day across a full 7-day week, with 15 intelligent group combination settings for maximum flexibility.
- High-Capacity Switching: Supports 16A / 3500W standard load or up to 30A / 5000W for heavier applications — suitable for a wide range of appliances and equipment.
- LCD Display: Clear, easy-to-read screen makes programming and monitoring straightforward, even for first-time users.
- Memory Backup: Equipped with a replaceable CR2032 battery that retains all your programmed settings for up to 60 days during power outages — no reprogramming required.
- High Accuracy CMOS Chip: Average time error of just ±1 second per 24 hours, with auto-correction of ±30 seconds per week, ensuring precise scheduling at all times.
- Wide Temperature Range: Operates reliably from -20°C to +50°C, making it suitable for indoor and outdoor panel installations.
- Anti-Jamming Design: High-accuracy CMOS chip with strong anti-interference performance for stable operation in demanding environments.
- DIN Rail Mount: Standard panel-mount design for clean, secure installation inside electrical enclosures.
- Manual Override: Instantly toggle ON/OFF manually without disrupting your programmed schedule.
Wide Range of Applications
The TM615 is ideal for automating a broad variety of devices and systems, including:
- Street lighting & neon/sign lighting
- Water heaters & boilers
- Air conditioners & ventilation
- Electric cookers & kitchen appliances
- Irrigation sprayers & agricultural equipment
- Billboards & commercial signage
- Broadcasting equipment & preheaters
Full Specifications
| Model | TM615 |
| Display | LCD |
| Voltage | AC 220V |
| Power Consumption | 4.5 VA (MAX) |
| Switching Contact | 1 Changeover Switch (1NO + 1NC) |
| Programs | 16 ON/OFF per day or per week |
| Capacity | 16A / 30A, 250V AC |
| Minimum Interval | 1 minute |
| Timer Range | 1 min – 168 hours |
| Hysteresis | 2 sec/day @ 25°C |
| Average Error | 1 sec/24h @ 25°C |
| Auto Correction | ±30 seconds/week |
| Backup Battery | CR2032 (replaceable) |
| Blackout Retention | Up to 60 days |
| Operating Temperature | -20°C to +50°C |
| Mount Type | DIN Rail (Panel Mount) |
| Country of Origin | Made in Mainland China |
Package Includes
- 1× TM615 Programmable Timer Switch
Important Notes
- Color may vary slightly from images due to screen and lighting differences.
- Please allow 1mm–1cm measurement tolerance due to manual measuring.
For guidance on electrical safety standards and best practices for timer switch installation, refer to the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: How many ON/OFF programs can I set on the TM615 programmable timer switch?
A: The TM615 supports up to 16 ON/OFF programs per day, with scheduling available across a full 7-day week. It also offers 15 intelligent combination group settings, giving you exceptional flexibility for complex automation routines.
Q: Will the TM615 timer switch lose its settings during a power outage?
A: No. The TM615 includes a replaceable CR2032 backup battery that preserves all programmed settings for up to 60 days in the event of a power failure, so your schedules remain intact when power is restored.
Q: What types of devices and loads can the TM615 timer switch control?
A: The TM615 can handle loads up to 16A / 3500W in standard configuration, or up to 30A / 5000W for heavier equipment. It is compatible with street lights, neon signs, water heaters, air conditioners, sprinklers, agricultural machinery, electric cookers, and more.
Q: Is the TM615 easy to install?
A: Yes. The TM615 uses a standard DIN rail panel-mount design, making it straightforward to install inside a standard electrical enclosure. The LCD display and intuitive programming interface make setup simple even for first-time users.
