TM610C 24-Hour Programmable DIN Rail Mechanical Timer Switch 16A

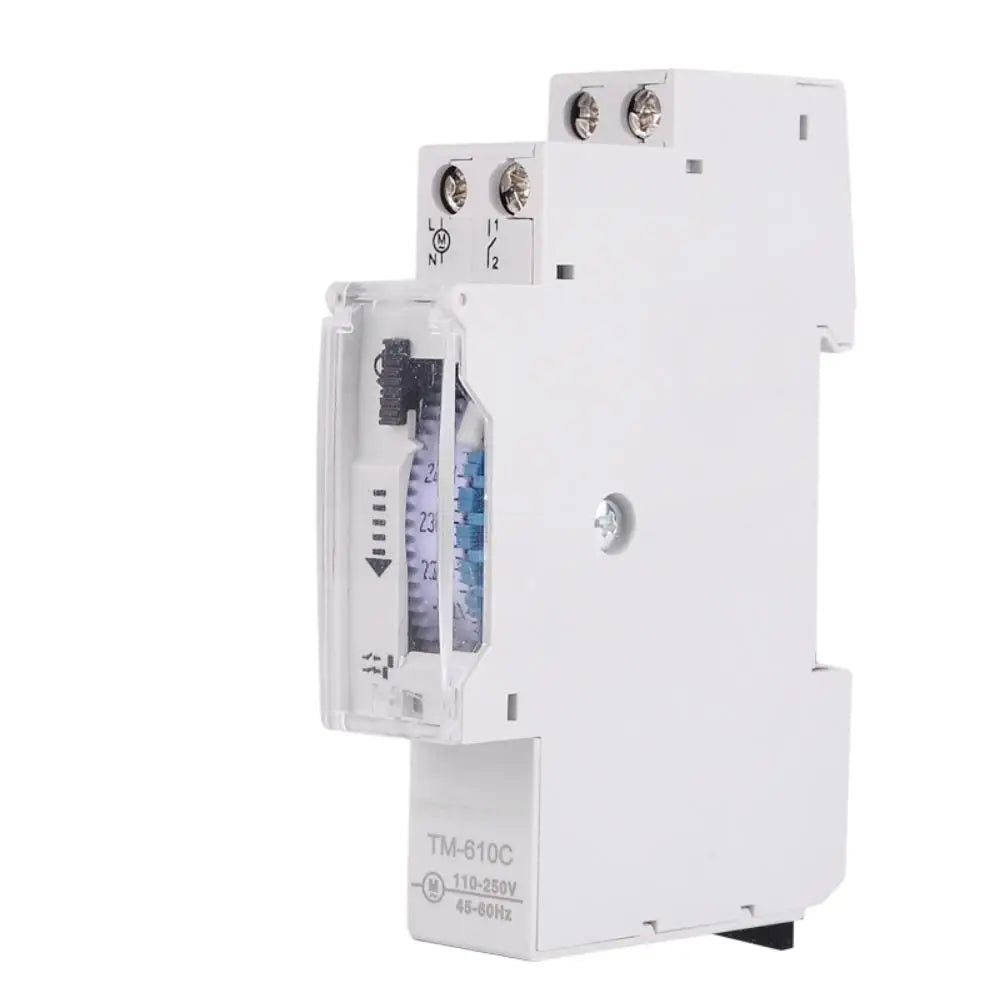

TM610C Quartz Mechanical Timer Switch – 24-Hour Programmable DIN Rail Relay

Take full control of your electrical scheduling with the TM610C Quartz Mechanical Timer Switch. Designed for DIN rail mounting, this 24-hour programmable time switch delivers reliable, precise automation for lighting, HVAC systems, pumps, industrial equipment, and more. With a 15-minute minimum interval, 96 daily programming pins, and a wide 110–250V AC operating range, it's built for both residential and commercial installations.

Key Features

• Wide Voltage Compatibility: Operates on 110–250V AC (45/60Hz), suitable for use around the world.
• High Switching Capacity: Rated at 16(4)A / 240V AC – handles heavy-duty loads with ease.
• Quartz Motor Movement: Ensures precise, consistent timekeeping with ±3 sec accuracy per 24 hours at 22°C.

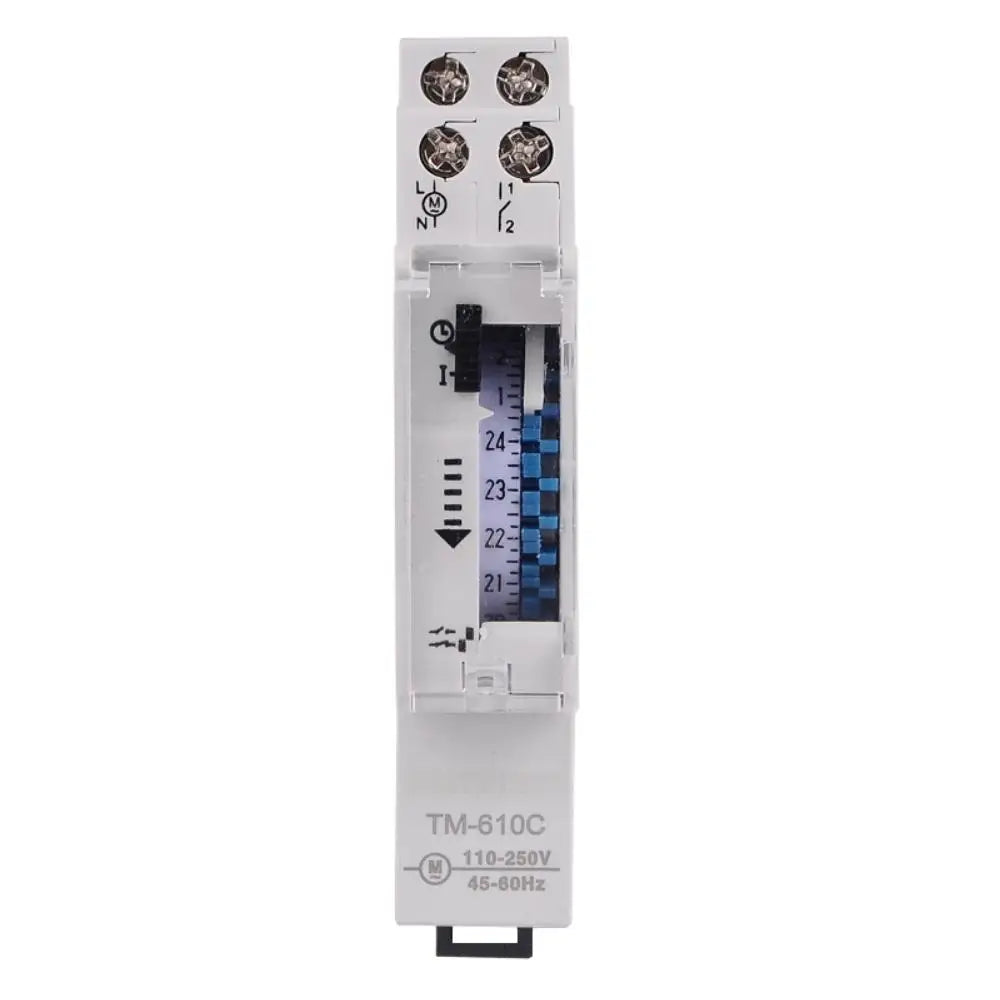

• 96-Pin Daily Dial: Set up to 96 on/off programs per day with a 15-minute minimum interval for flexible scheduling.
• 100-Hour Backup: Built-in power reserve keeps your settings safe during power interruptions for up to 100 hours.
• DIN Rail Mounting: Standard 1-DIN form factor for seamless integration into electrical panels and enclosures.
• IP20 Protection: Rated IP20 per EN60529 for reliable indoor use.

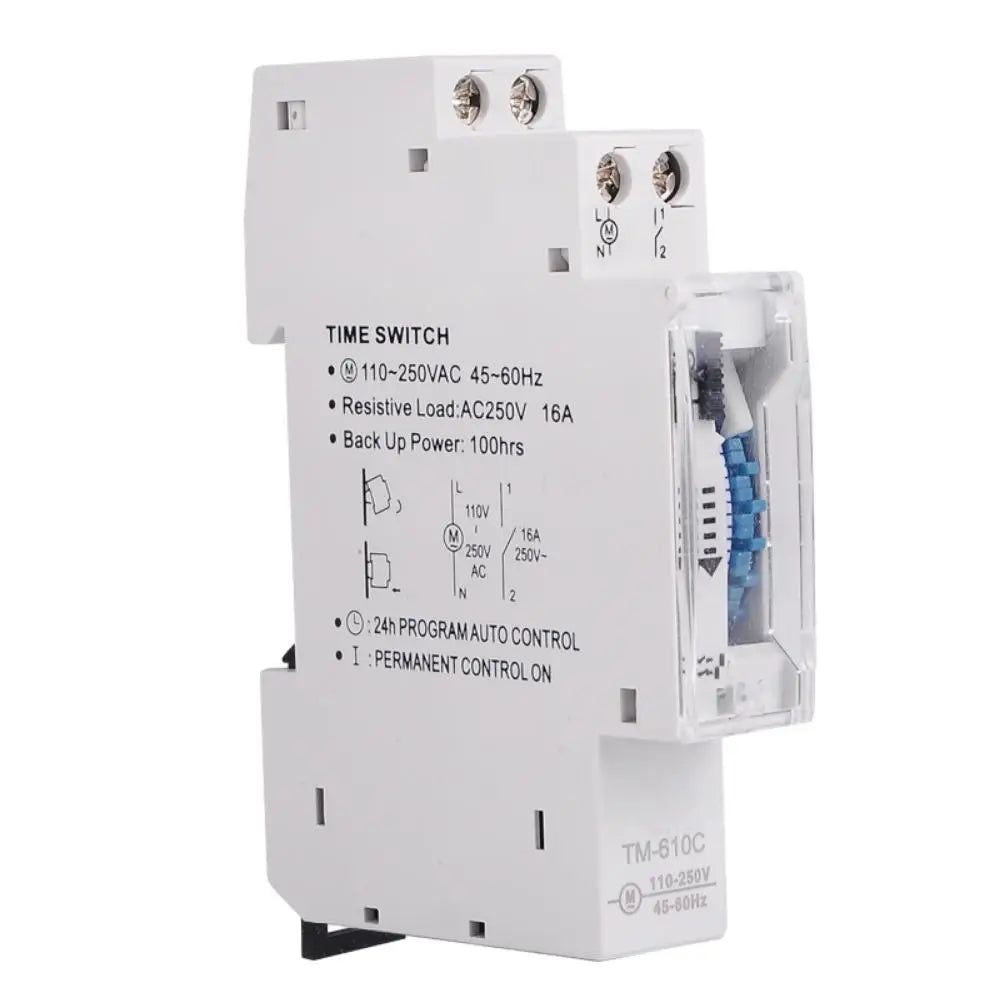

• Manual Override: 2-position switch (ON / Automatic) gives you instant manual control when needed.
• Compact & Lightweight: Measures just 90.4 × 59.2 × 17.7 mm and weighs only 91g.

Technical Specifications

What's in the Box?

• 1× TM610C Time Switch

Made in Mainland China.

For guidance on electrical safety standards and best practices for timer and relay installations, refer to the U.S. Consumer Product Safety Commission (CPSC).

Note: Due to lighting and screen differences, the item's color may vary slightly from the pictures shown. Please allow 1mm–1cm differences due to manual measurement.

Frequently Asked Questions

Q: What voltage range does the TM610C mechanical timer switch support?

A: The TM610C supports a wide voltage range of 110–250V AC at 45/60Hz, making it compatible with both North American and international electrical systems.

Q: How many on/off programs can I set per day with this DIN rail timer?

A: The 96-pin daily dial allows you to set up to 96 individual on/off switching events per day, with a minimum interval of 15 minutes between each event.

Q: Will the timer lose its settings if the power goes out?

A: No — the TM610C features a built-in 100-hour power backup, so your programmed schedule is retained even during extended power outages.

Q: What types of devices can I control with this timer switch?

A: With a 16A switching capacity, this timer is suitable for controlling lights, water pumps, fans, HVAC equipment, and other electrical loads in both residential and commercial settings.
