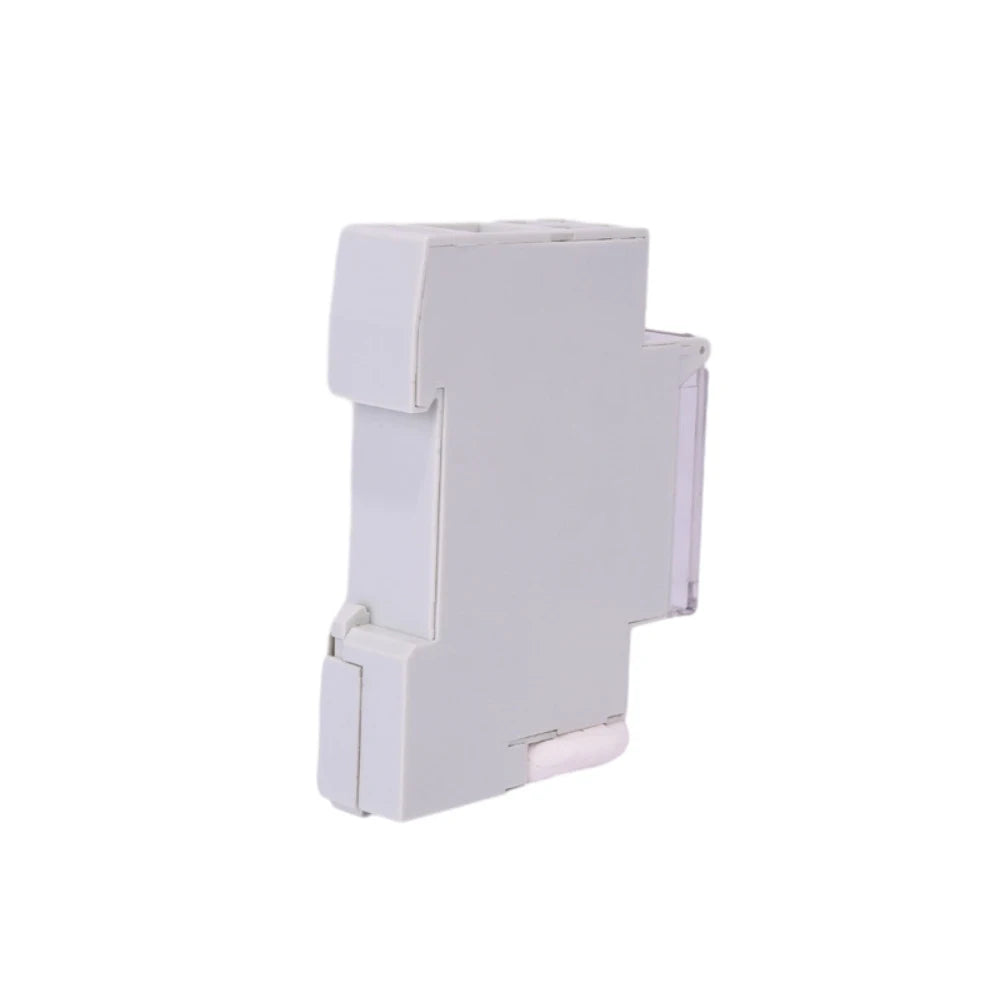

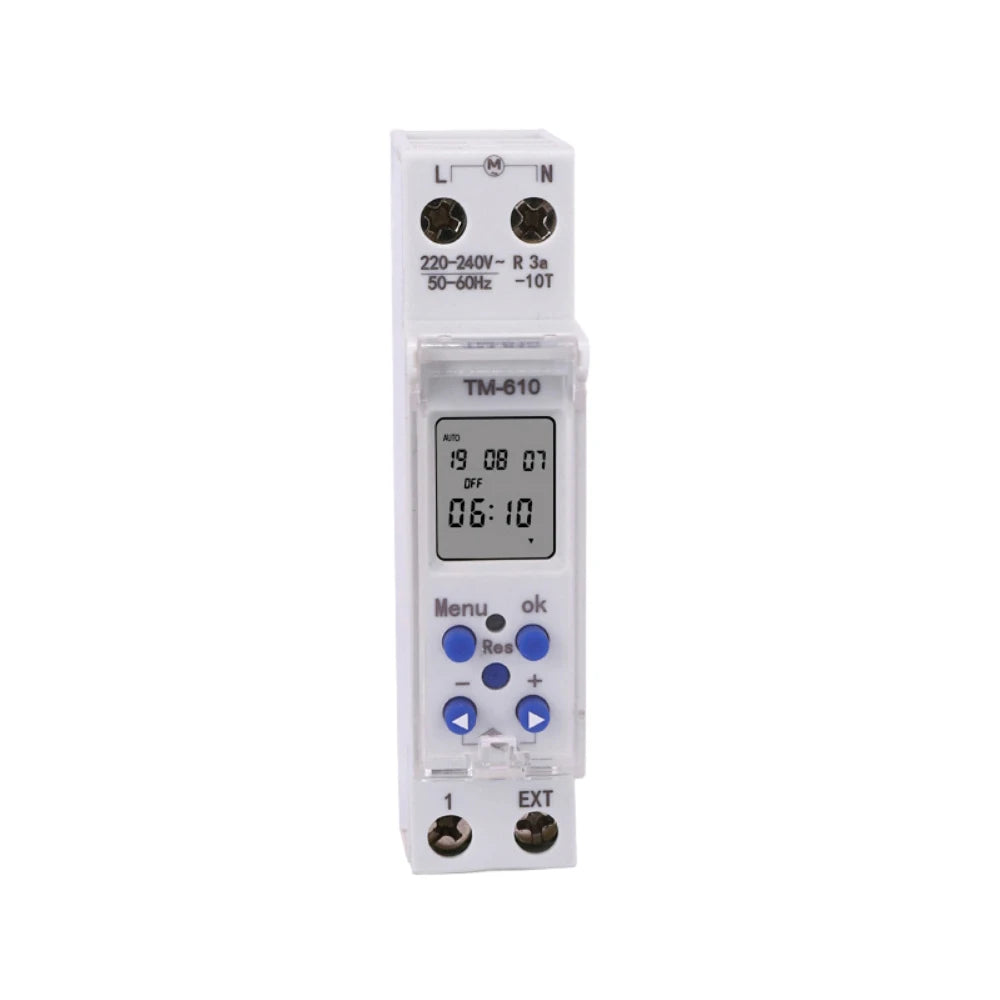

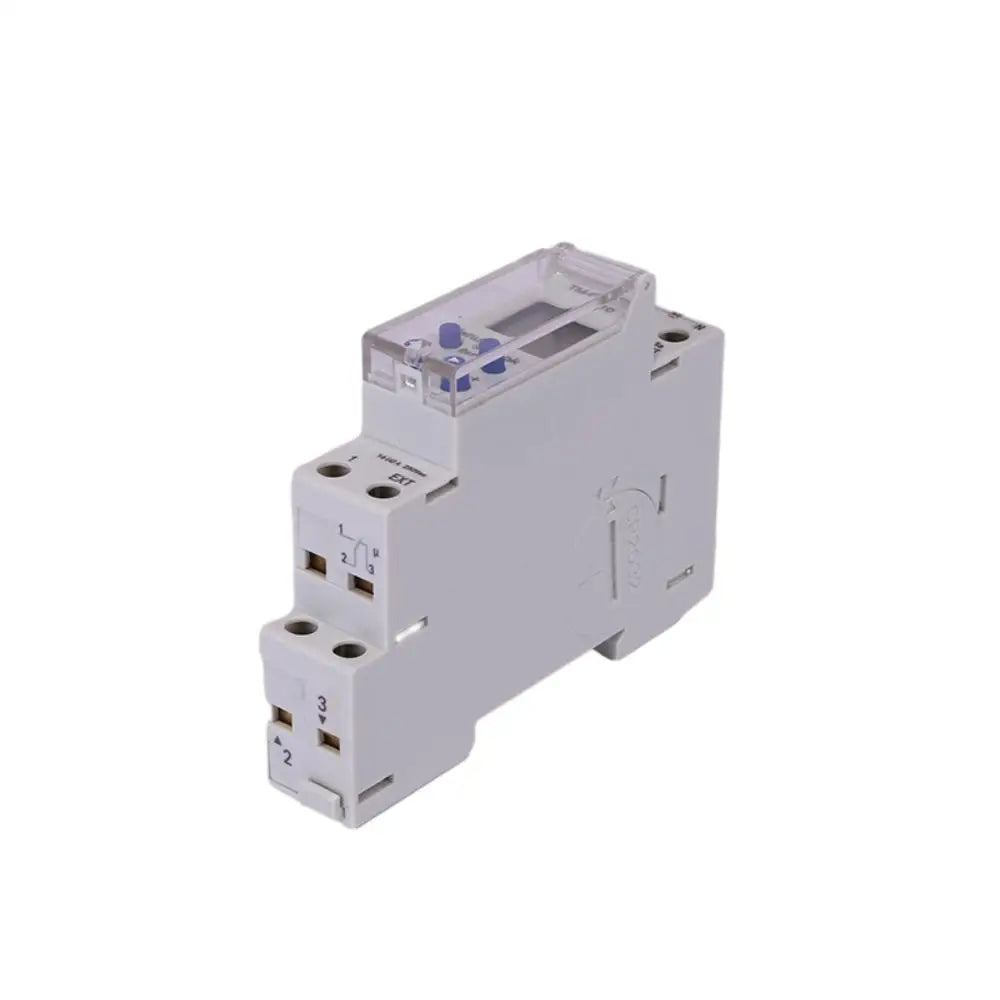

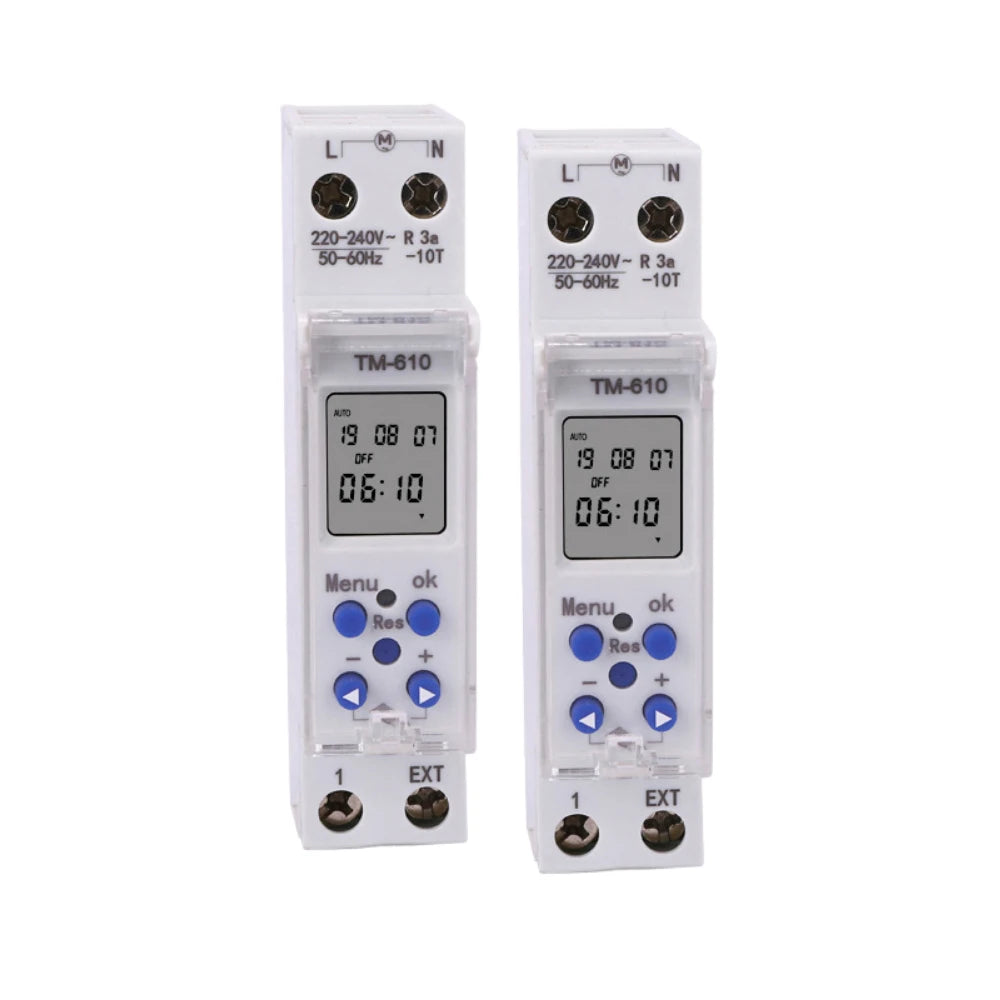

TM610 7-Day Programmable Timer Switch 220V DIN Rail
TM610 7-Day Programmable Timer Switch 220V DIN Rail
TM610 Weekly Programmable Timer Switch — Precision Scheduling on DIN Rail
Take full control of your electrical circuits with the TM610 Programmable Timer Switch. Designed for DIN rail installation, this 7-day weekly timer lets you automate lighting, appliances, HVAC systems, and more — all with separate output control for maximum flexibility. Whether you're managing a home, workshop, or commercial panel, the TM610 delivers reliable, programmable scheduling across every day of the week.
Key Features
- 7-Day Weekly Programming — Set independent ON/OFF schedules for each day of the week with ease
- Separate Output Control — Independently manage connected circuits for greater scheduling flexibility
- Wide Voltage Compatibility — Operates on 220V–240V at 50/60Hz for broad international use
- High Load Capacity — Rated at 16A/250VAC, suitable for most household and light commercial loads
- Built-In Rechargeable Backup Battery — Keeps your programmed schedules intact even during power outages
- DIN Rail Mounting — Quick, secure installation directly into standard electrical distribution boards
- Compact Form Factor — Slim 88 × 66 × 18 mm profile fits neatly in crowded panels
Technical Specifications
| Input Voltage | 220V – 240V AC |
| Frequency | 50/60Hz |
| Maximum Load | 16A / 250VAC |
| Backup Battery | Built-in, rechargeable (for program memory retention) |
| Mounting Type | DIN Rail |
| Dimensions | 88 × 66 × 18 mm |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1× TM610 Programmable Timer Switch
Installation Notes
The TM610 is designed for installation by a qualified electrician within a standard DIN rail enclosure or distribution board. Always ensure power is fully disconnected before installation. Refer to all local electrical codes and safety standards before use. For electrical safety guidelines, visit the U.S. Consumer Product Safety Commission — Electrical Safety Resource.
Note: Due to screen and lighting variations, the product color may appear slightly different from images. Please allow a 1mm–1cm dimensional tolerance due to manual measurement.
Frequently Asked Questions
Q: What is the maximum load the TM610 programmable timer switch can handle?
A: The TM610 timer switch is rated for a maximum load of 16A at 250VAC, making it suitable for controlling lighting circuits, motors, heating elements, and other standard household or light commercial electrical loads.
Q: Will my programmed schedule be lost if there is a power outage?
A: No. The TM610 features a built-in rechargeable backup battery that preserves all programmed schedules even when mains power is interrupted, so your automations resume seamlessly once power is restored.
Q: Is the TM610 timer switch compatible with both 50Hz and 60Hz electrical systems?
A: Yes. The TM610 is designed to work with both 50Hz and 60Hz systems at 220V–240V, offering broad compatibility for use in Europe, Asia, Australia, and other regions using this voltage standard.
Q: How is the TM610 installed?
A: The TM610 uses standard DIN rail mounting, allowing it to snap directly onto a 35mm DIN rail inside a distribution board or electrical enclosure. Professional installation by a licensed electrician is strongly recommended.
