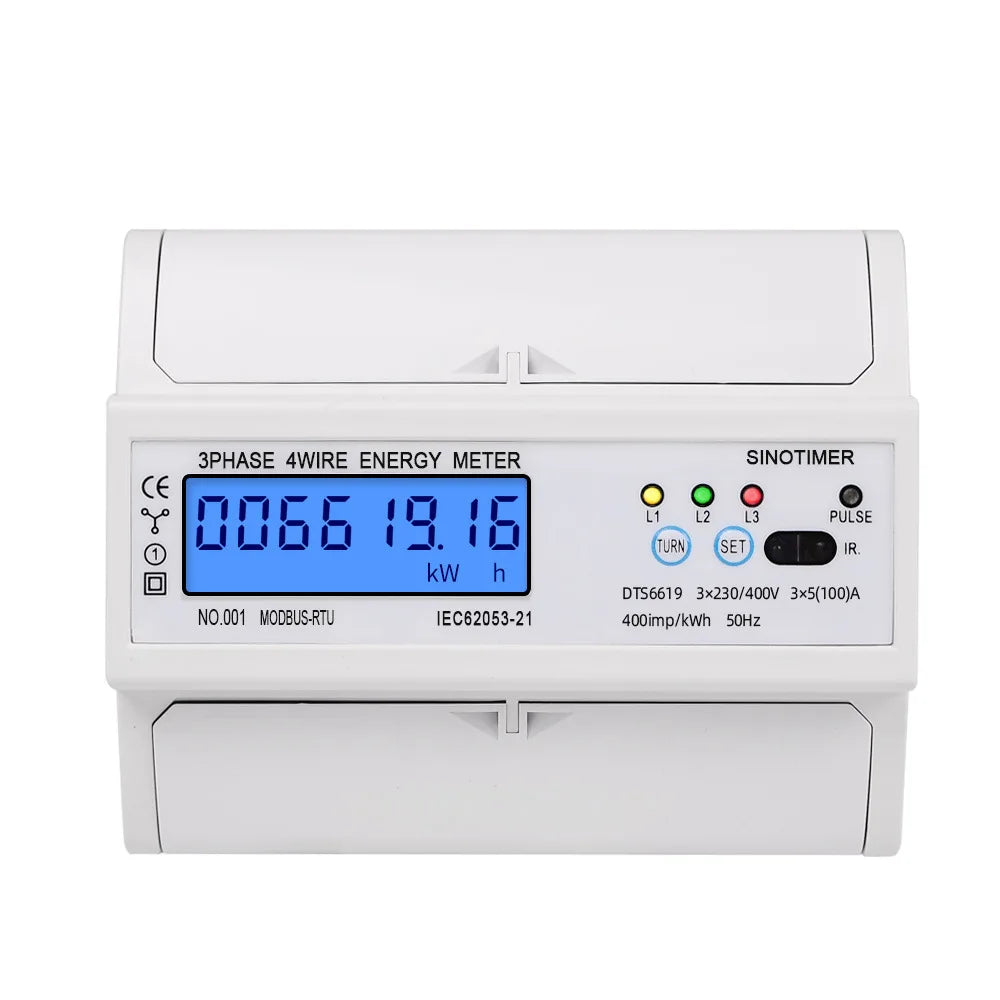

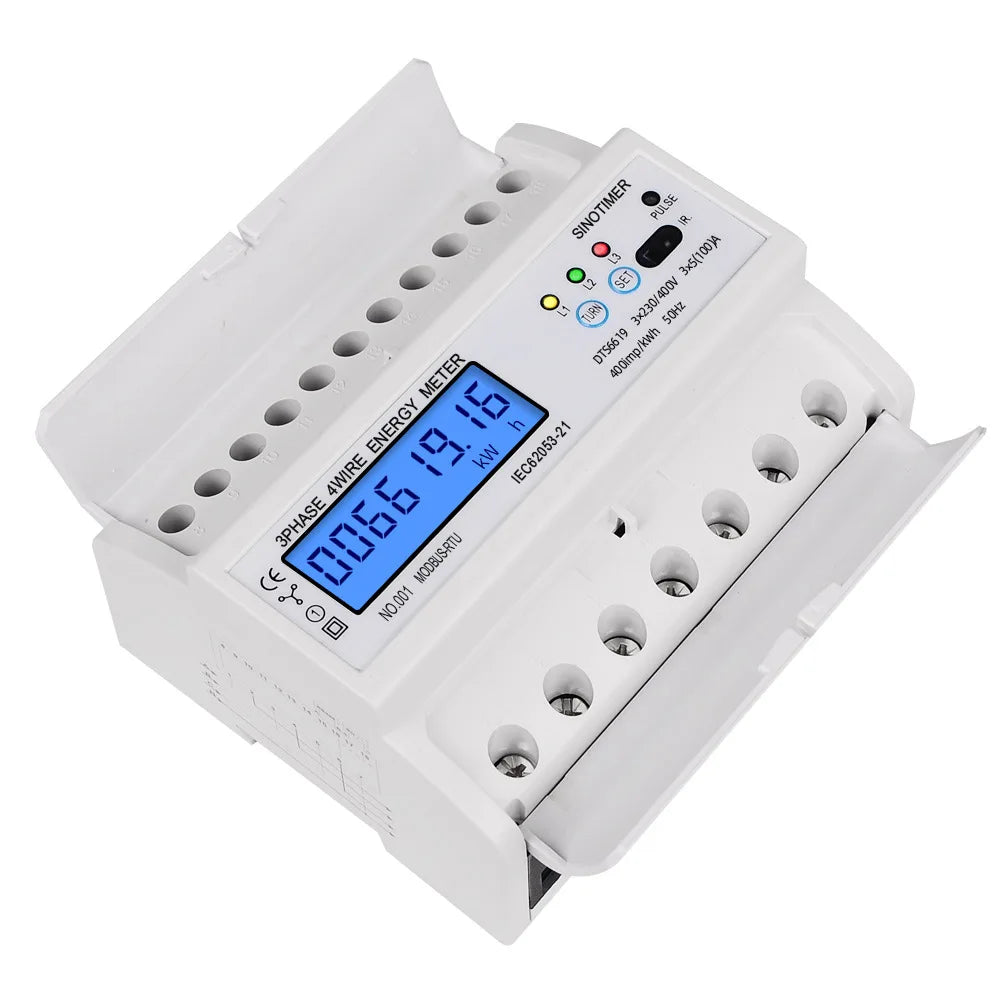

DTS6619-016 Three-Phase Four Wire Energy Meter with LCD Display & RS485 Communication
Monitor your three-phase electrical consumption with precision using the DTS6619-016 Three-Phase Four Wire Energy Meter. Featuring a bright backlit LCD digital display and RS485 communication capability, this meter is ideal for industrial, commercial, and advanced DIY electrical installations where accurate energy measurement and remote data access are essential.
Key Features
- Backlit LCD Digital Display: Easy-to-read energy readings even in low-light environments.
- RS485 Communication: Enables remote monitoring and seamless integration with building management systems (BMS) and SCADA setups.
- Three-Phase Four Wire Design: Suitable for balanced and unbalanced three-phase power systems used in industrial and commercial settings.
- High Accuracy – Level 1: Delivers reliable, precise energy measurement for billing and monitoring applications.
- Wide Current Range: Supports a basic current of 5A and a maximum of 100A, making it versatile across a variety of load types.
- Operating Temperature: Functional across a range of -10°C to +50°C for dependable performance in varied environments.
- 50 Hz Frequency: Designed for standard mains frequency used across Europe, Asia, and other regions.

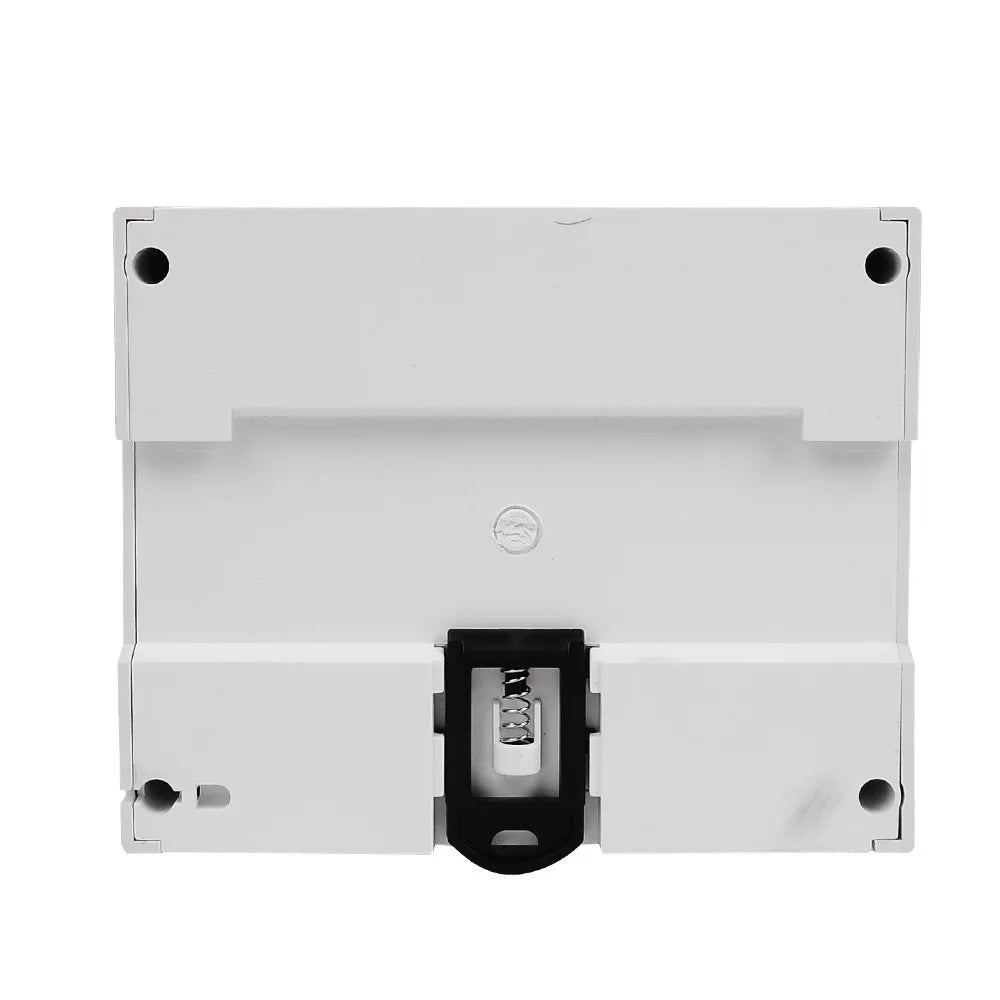

- Compact 7P DIN Rail Form Factor: Fits neatly into standard electrical enclosures and distribution boards.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DTS6619-016 |
| Configuration | Three-Phase Four Wire (7P) |
| Basic Current | 5(100) A |
| Maximum Current | 100 A |
| Accuracy Level | Class 1 |
| Display | LCD Digital Display with Backlight |
| Communication | RS485 |
| Frequency | 50 Hz |
| Operating Temperature | -10°C to +50°C |
| Battery Required | No |
What's in the Box
- 1× DTS6619-016 Three-Phase Four Wire Energy Meter
Made in China.
Note: Due to differences in lighting and screen calibration, the product's color may vary slightly from photos. Please allow 1–10 mm variance due to manual measurement.
For more information on electrical safety standards and energy metering, visit the National Institute of Standards and Technology (NIST) – Electricity.
Frequently Asked Questions
Q: What is RS485 communication used for in this three-phase energy meter?
A: RS485 is a serial communication protocol that allows the DTS6619-016 energy meter to transmit real-time energy data to a central monitoring system, such as a building management system (BMS) or SCADA platform. This enables remote reading, logging, and analysis of electricity consumption without the need to physically inspect the meter.
Q: Is this energy meter suitable for both commercial and industrial use?
A: Yes. The DTS6619-016 three-phase four wire energy meter supports currents up to 100A and operates across a wide temperature range (-10°C to +50°C), making it well-suited for commercial buildings, industrial facilities, and advanced electrical distribution panels where accurate energy tracking is required.
Q: Does the DTS6619-016 require a battery to operate?
A: No, this energy meter does not require a battery. It draws power directly from the electrical circuit it is monitoring, ensuring continuous and uninterrupted operation without the need for battery replacement or maintenance.
Q: What does "Class 1 accuracy" mean for an energy meter?
A: Class 1 accuracy means the meter's measurement error is within ±1% under standard test conditions. This level of accuracy is suitable for billing-grade energy measurement in commercial and light industrial applications, ensuring that readings are reliable and consistent.
