TF9 IP65 Waterproof Smart Access Control Kit — 6 Unlock Methods in One System
Take full command of your door security with the TF9 Smart Access Control Kit — a complete, all-in-one solution that supports six convenient entry methods: Tuya App, NFC tap-to-open, fingerprint scan, RFID IC card, PIN password, and temporary password. Built with an IP65 waterproof rating, this system is designed for both indoor and outdoor installation, standing up to rain, dust, and temperature extremes from -20°C to +60°C.
Seamlessly integrating with the Tuya Smart Home platform via Bluetooth gateway, you can manage users, review up to 10,000 access log entries, issue temporary passwords, and monitor your door status — all from your smartphone. With support for up to 1,000 users and 100 fingerprint profiles, this kit scales effortlessly for homes, offices, and commercial spaces.
Made in Mainland China.
Key Features
- 6-in-1 Unlock Methods: Tuya App / NFC / Fingerprint / RFID IC Card / Password / Temporary Password
- IP65 Waterproof: Suitable for outdoor gates, entrances, and covered doorways
- Tuya Smart App Integration: Remote access, user management, and access log review via smartphone
- Fast Fingerprint Recognition: Semiconductor biometric sensor — reads in ≤0.3 seconds
- Large User Capacity: Up to 1,000 users and 100 fingerprint profiles
- 13.56MHz RFID MF IC Card & Keyfob Support: Reading distance 0–10cm

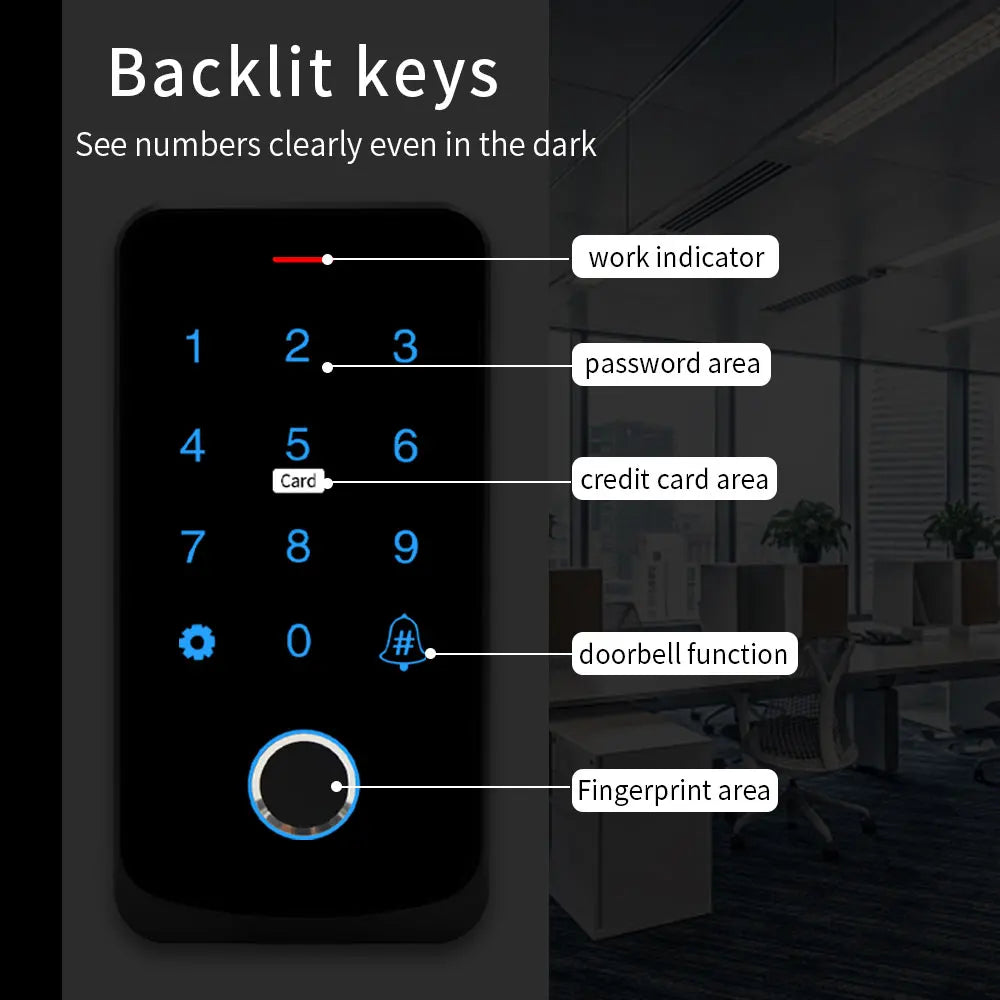

- Touch Screen Keypad with Backlight: Easy to use day or night
- Adjustable Volume: 0–4 levels to suit any environment
- NO/NC/COM Relay Output: Compatible with magnetic locks, drop bolt locks, and electric bolt locks
- NFC Note: NFC smartphone unlock supports most Android devices; only select iPhone models are compatible
Complete Specifications — Access Control Keypad (TF9-MF-W)
| Material | ABS / Acrylic Panel |
| Working Voltage | DC 12V |
| Working Current | ≤30mA |
| Working Frequency | 13.56MHz / RFID M1 |
| Fingerprint Capacity | 100 fingerprint profiles |
| User Capacity | 1,000 users |
| Recognition Speed | ≤0.3 seconds |
| Card Reading Distance | 0–10cm |
| Waterproof Rating | IP65 (outdoor-ready) |
| Working Temperature | -20°C ~ +60°C |
| Working Humidity | 20% ~ 90% |
| Door Open Time | Adjustable: 1 second to 30 minutes |
| Access Log Capacity | 10,000 records (via App) |
| Administrators | Up to 3 |
| Smart Platform | Tuya (via Wi-Fi Bluetooth Gateway) |
| Connectivity | Bluetooth |
| Voice Language | English |
| Dimensions | 140 × 70 × 16mm |
Power Supply Specifications (Model: 5APW)
- Input Voltage: AC 110–260V | Input Frequency: 50–60Hz
- Output: DC 12V / 5A | Output Power: 36W
- Material: Steel | Dimensions: 130 × 68 × 38mm
- Time Delay: 0–15 seconds
- Supports: NC (Fail Safe) and NO (Fail Secure) electric lock modes
RFID Keyfobs
- Operating Frequency: 13.56MHz
- Detection Range: 0–5cm
- Pre-programmed with metal keyring included
- Available in 5 colors (blue, red, yellow, green, black) — mix color sent by default; specify color preference in order notes
Package Options — Choose Your Kit
Kit A: 1× RFID 13.56MHz Access Control Keypad + 1× 5A Power Supply + 1× Doorbell + 1× Exit Switch Button + 10× 13.56MHz Keyfobs
Kit B: 1× RFID 13.56MHz Access Control Keypad + 1× Electric Drop Bolt Lock + 1× 5A Power Supply + 1× Doorbell + 1× Exit Switch Button + 10× 13.56MHz Keyfobs
Kit C: 1× Access Control Keypad + 1× 180KG Electric Magnetic Lock + 1× Power Supply + 1× Doorbell + 1× Exit Button + 10× Keyfobs
Kit D: 1× Access Control Keypad + 1× Electric NO Bolt Lock (B6L-NO) + 1× Power Supply + 1× Doorbell + 1× Exit Button + 10× Keyfobs
Kit E: 1× Access Control Keypad + 1× Electric NC Bolt Lock (B6L-NC) + 1× Power Supply + 1× Doorbell + 1× Exit Button + 10× Keyfobs
Learn More About Smart Access Security
For guidance on electronic and physical access control standards, visit the National Institute of Standards and Technology (NIST) Access Control Guidelines.
Frequently Asked Questions
Q: Is the TF9 access control keypad suitable for outdoor installation?
A: Yes. The TF9 keypad carries an IP65 waterproof rating, meaning it is fully protected against dust ingress and low-pressure water jets from any direction. It operates reliably in temperatures from -20°C to +60°C, making it ideal for outdoor gates, building entrances, and covered doorways.
Q: Does NFC smartphone unlock work with iPhones?
A: NFC unlock is compatible with most Android smartphones. For iPhones, NFC support is limited — only select iPhone models are supported. We recommend using the Tuya App, fingerprint, RFID card/keyfob, or PIN password as your primary unlock method on iOS devices.
Q: How many users and fingerprints can be stored on the TF9 system?
A: The TF9 supports up to 1,000 total users and up to 100 fingerprint profiles. It also stores the last 10,000 access log entries, which you can review remotely via the Tuya Smart App on your smartphone.
Q: Which types of electric locks are compatible with this access control kit?
A: The TF9 keypad features NO/NC/COM relay output, making it compatible with a wide range of electric locks including 180KG magnetic locks, electric drop bolt locks, and NC or NO electric bolt locks. Different kit options (A through E) are available to match your specific lock preference.
Q: What is required to enable remote smartphone control via the Tuya App?
A: You will need a Tuya-compatible Wi-Fi Bluetooth gateway (not included in all kits — please check your selected kit). Once the gateway is connected to your Wi-Fi network, you can manage users, unlock doors remotely, issue temporary passwords, and view access logs from anywhere using the free Tuya Smart app.
