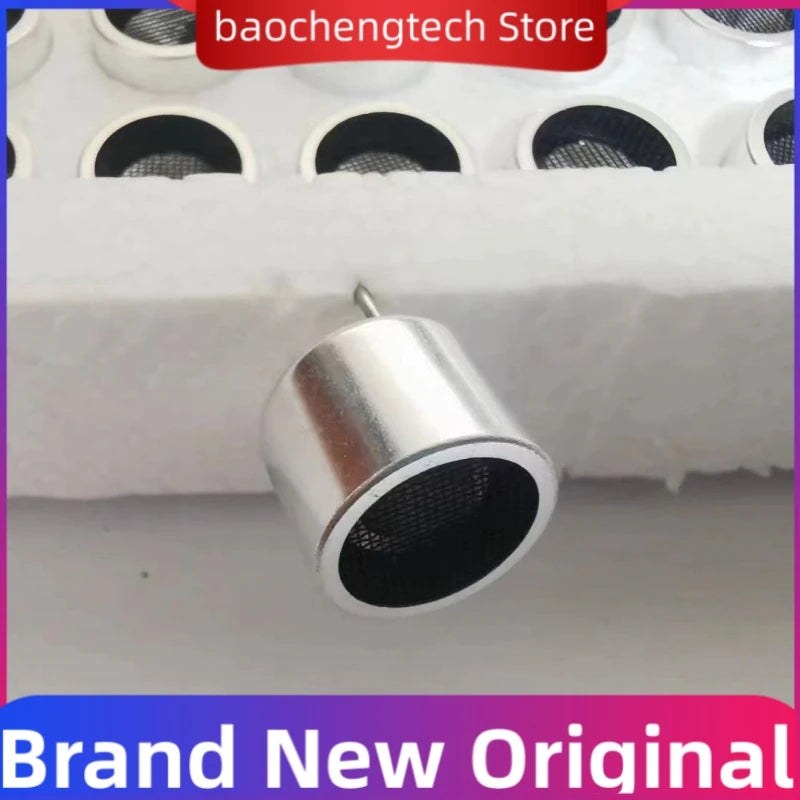

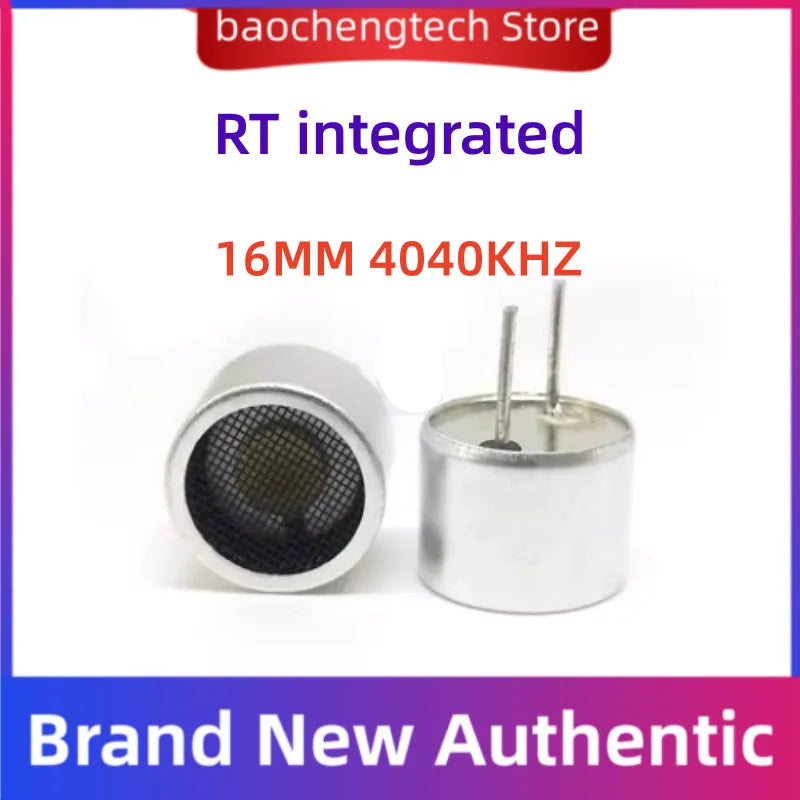

TCT40-16 Integrated Waterproof Ultrasonic Transceiver Sensor Probe — 40KHz
Upgrade your ranging, detection, or automation projects with the TCT40-16 Integrated Ultrasonic Transceiver Sensor. Available in convenient packs of 5 or 10, these compact 40KHz probes combine transmission and reception in a single integrated unit — making wiring simpler and your build cleaner. With a high-sensitivity open ultrasonic ranging design, these sensors deliver reliable performance in both indoor and outdoor environments.
Made in Mainland China.
Key Features
- Integrated Transceiver Design: Combines transmitter and receiver in one compact body — no separate TX/RX modules needed.

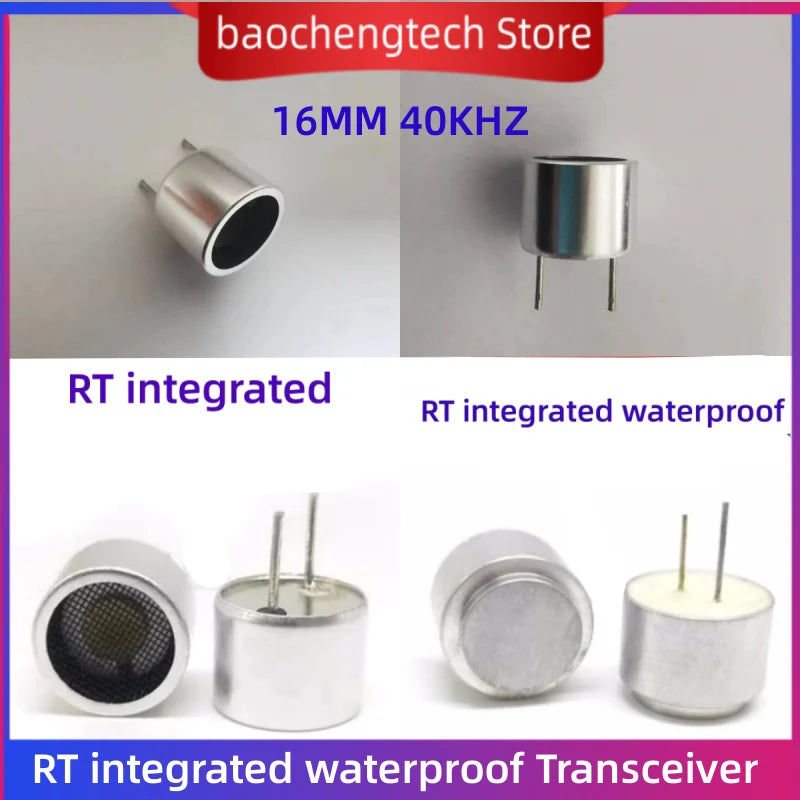

- Waterproof Construction: Suitable for use in moisture-prone or outdoor environments.
- 40KHz Operating Frequency: High-sensitivity ultrasonic ranging ideal for distance measurement and object detection.
- Compact Form Factor: 10mm × 7mm body with 4.5mm foot pitch fits easily into tight PCB layouts.
- Wide Temperature Range: Operates reliably from -20°C to +70°C, suitable for a broad range of conditions.
- High Emission Sound Pressure: Minimum 112 dB for strong signal output.
- Value Packs: Available in 5-piece or 10-piece sets for prototyping and production runs.

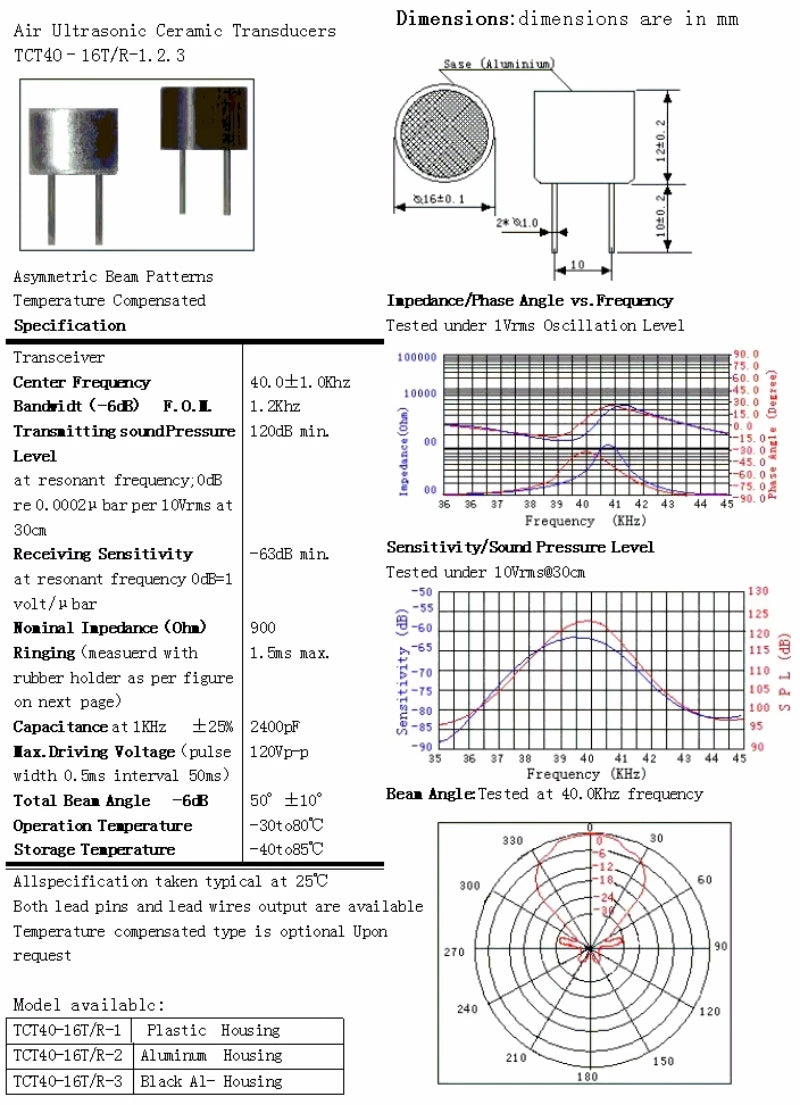

Technical Specifications
| Dimensions | 10mm × 7mm |
| Frequency | 40KHz |
| Foot Pitch | 4.5mm |
| Pin Configuration | 2P |
| Maximum Driving Voltage | 30V |
| Emission Sound Pressure | ≥112 dB |
| Operating Temperature | -20°C to +70°C |
| Type | Integrated Transceiver (RT) |
| Model | TCT40-16 |
| Pack Options | 5PCS / 10PCS |
Common Applications
- DIY distance measurement and ranging systems
- Robotics and autonomous vehicle obstacle detection
- Liquid level sensing
- Smart home automation triggers
- Industrial object detection and proximity sensing
- Arduino, Raspberry Pi, and microcontroller projects
For more technical guidance on ultrasonic sensor technology and electronics standards, visit the NIST Electronics & Electromagnetics page.
Frequently Asked Questions
Q: What is the difference between an integrated transceiver (RT) ultrasonic sensor and a separate TX/RX pair?
A: An integrated transceiver (RT) sensor like the TCT40-16 combines both the transmitting and receiving elements into one single probe. This simplifies circuit design and reduces the number of components needed. Separate TX and RX modules use two distinct probes — one to send and one to receive — which can offer greater range flexibility but require more wiring and mounting space.
Q: Is the TCT40-16 compatible with Arduino and Raspberry Pi projects?
A: Yes. The TCT40-16 40KHz ultrasonic transceiver sensor is compatible with popular microcontroller platforms including Arduino and Raspberry Pi when used with appropriate driver circuitry. Its 2-pin configuration and wide driving voltage (up to 30V) make it versatile for a range of DIY electronics and automation builds.
Q: Can these sensors be used outdoors or in wet environments?
A: Yes. The TCT40-16 features a waterproof construction, making it suitable for outdoor or moisture-exposed installations. Its operating temperature range of -20°C to +70°C also allows reliable use across a wide variety of environmental conditions.
Q: How many sensors come in each pack?
A: These integrated ultrasonic transceiver probes are available in packs of 5 or 10 units, making them cost-effective for both prototyping and small-scale production runs.
