TCT Double-Edged Router Bit | CNC Woodworking Straight Blade
TCT Double-Edged Router Bit | CNC Woodworking Straight Blade

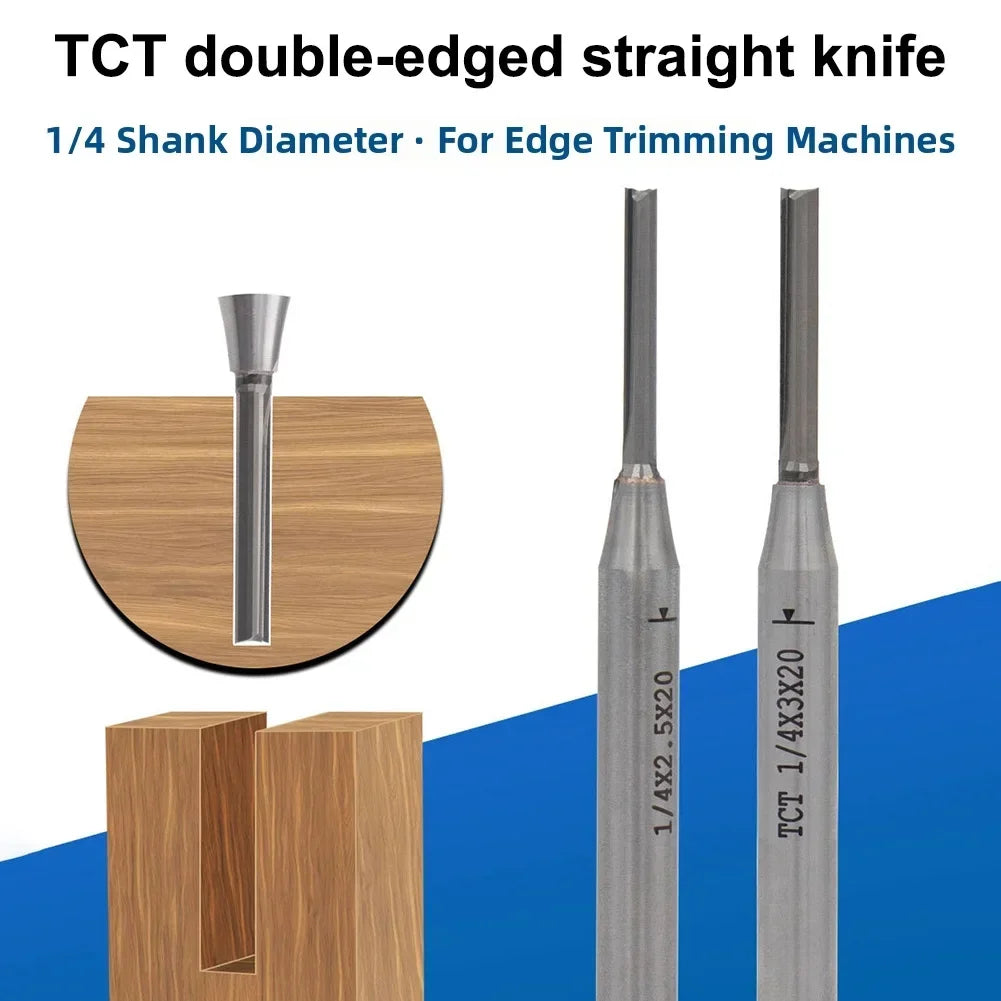

TCT Double-Edged Straight Blade Router Bit for CNC Engraving & Woodworking
Take your woodworking projects to the next level with this professional-grade TCT (Tungsten Carbide-Tipped) Double-Edged Straight Blade Router Bit. Engineered for precision and durability, this router bit delivers clean, accurate cuts through plywood, MDF, solid wood, and more — making it an essential addition to any workshop or CNC engraving setup.
Key Features
- Precision Cutting Performance: The double-edged straight blade design is purpose-built for edge trimmers and CNC machines, producing clean, splinter-free cuts across a wide range of wood-based materials including plywood, MDF, and solid wood.
- Heavy-Duty Carbide Construction: Crafted from high-quality carbide (metal alloy), this router bit features a robust alloy head with 36 finely ground facets — engineered for longevity, reliability, and minimized risk of blade breakage during demanding use.
- Versatile 6.35mm (1/4") Shank: The standard 6.35mm shank design ensures broad compatibility with most edge trimmers and CNC routers, allowing for quick, hassle-free installation and removal.
- Reduced Cutting Resistance: The sharpness and hardness of the premium carbide material allow for smooth cutting with reduced resistance, improving work efficiency and delivering a professional-quality finish.
- Protective Plastic Case Included: Each blade comes packaged in a sturdy, compact plastic case that protects the cutting edge and makes storage and transport easy and convenient.

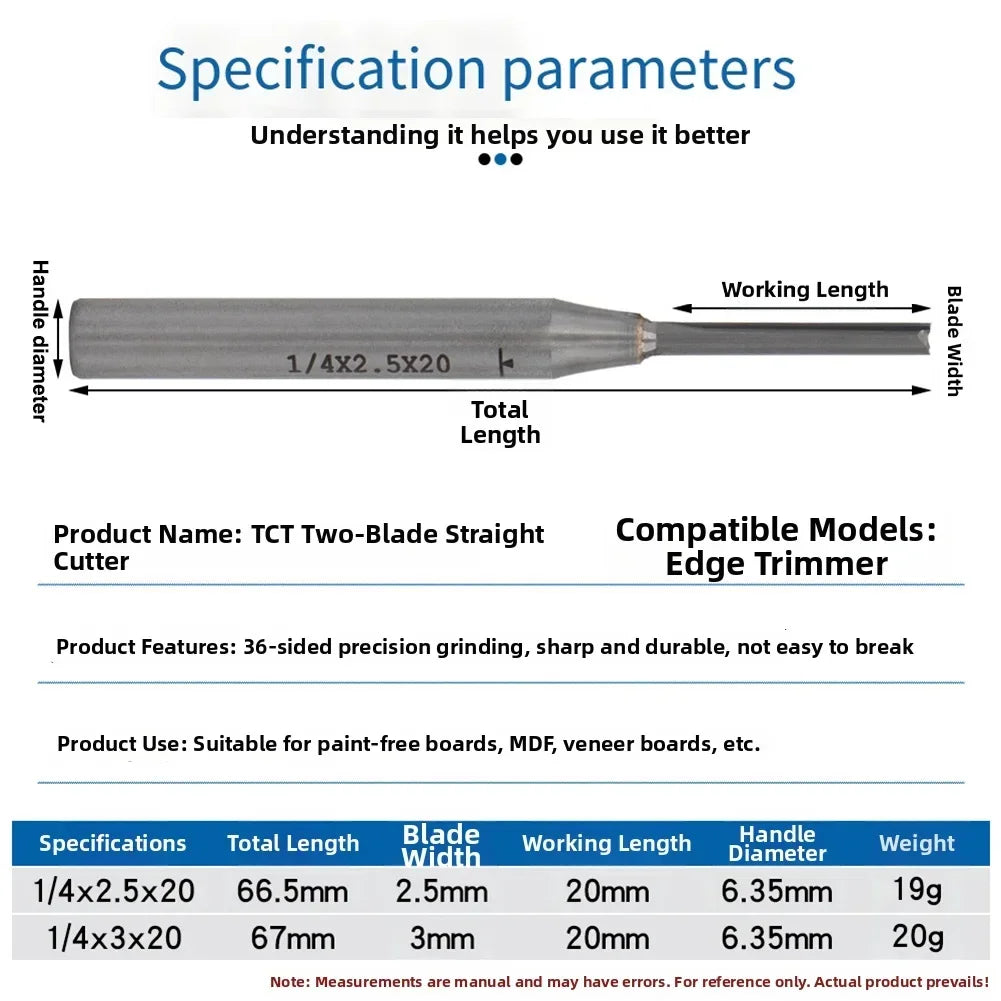

Specifications
- Product Name: TCT Double-Edged Straight Blade Router Bit
- Material: Carbide (Metal Alloy)

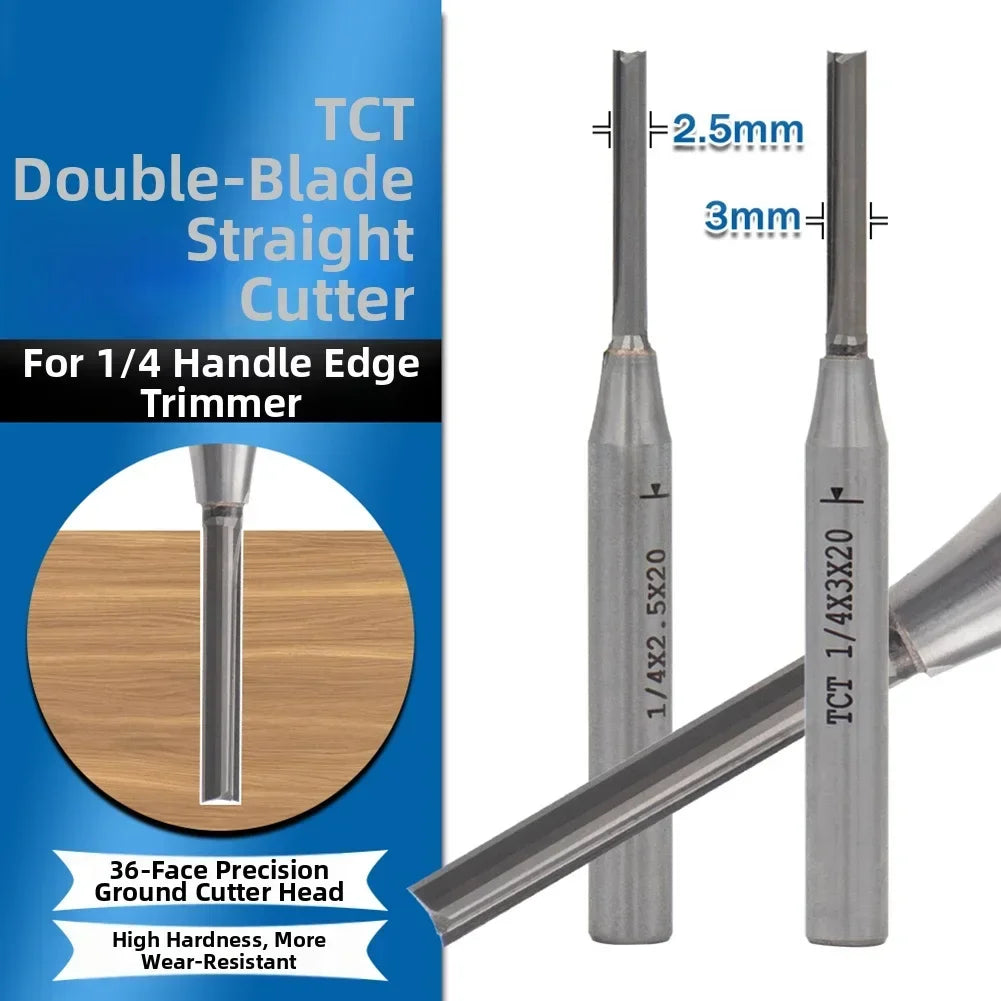

- Sizes Available: 1/4" × 2.5 × 20mm / 1/4" × 3 × 20mm (shank diameter as shown)
- Shank Diameter: 6.35mm (1/4")
- Compatible Materials: Plywood, MDF, Solid Wood
- Compatible Tools: Edge Trimmers, CNC Engraving Machines, Router Tables
- Country of Origin: Made in China
Package Contents
- 1× TCT Double-Edged Straight Blade Router Bit (plastic case included)
Please Note: Actual color may vary slightly from product images due to monitor brightness and lighting conditions. Please allow for minor measurement tolerances in the listed dimensions.
For general woodworking safety guidelines and best practices, visit the OSHA Woodworking Safety Resources.
Frequently Asked Questions
Q: What materials can this TCT double-edged straight blade router bit cut?
A: This TCT router bit is designed to cut plywood, MDF (medium-density fibreboard), and solid wood. Its carbide construction and double-edged straight blade design make it suitable for a wide range of wood-based materials used in furniture making, cabinetry, and CNC engraving projects.
Q: Is this router bit compatible with my edge trimmer or CNC machine?
A: Yes — this straight blade features a standard 6.35mm (1/4") shank diameter, which is compatible with the vast majority of edge trimmers, CNC engraving machines, and router tables available on the market. Always confirm your machine's collet size before installing any router bit.
Q: How do I maintain and store this carbide router bit to extend its lifespan?
A: After each use, clean the bit of any sawdust or resin buildup with a mild solvent and a soft brush. Store it in the included protective plastic case to guard the cutting edges against chips and damage. Avoid dropping the bit, as carbide, while extremely hard, can be brittle under sudden impact.
Q: What does "double-edged" mean for a straight blade router bit?
A: A double-edged (two-flute) straight blade router bit has two cutting edges, which means it removes material on both sides with each pass. This results in a smoother cut finish, better chip clearance, and improved cutting efficiency compared to single-flute designs — especially beneficial for CNC routing and precision woodworking tasks.
