Take full command of your building's vertical and storage security with the Asia-Teco CW20/CW40 TCP/IP RFID Elevator Access Control Unit (ACU). Designed for commercial and multi-story residential buildings, this advanced lift controller uses RFID card authentication and a Wiegand-compatible interface to restrict floor access and manage up to 40 cabinet doors — all from a single, centralized system.
Two Powerful Modes in One Controller
🏢 Elevator / Lift Floor Access Control
Install just one card reader per lift and assign floor privileges to each cardholder. Authorized users can select only the floors they are permitted to visit. Security personnel and administrators can be granted full-floor access via privilege settings. Multi-floor cardholders can choose their destination from their permitted floors — unauthorized floor buttons remain inactive.

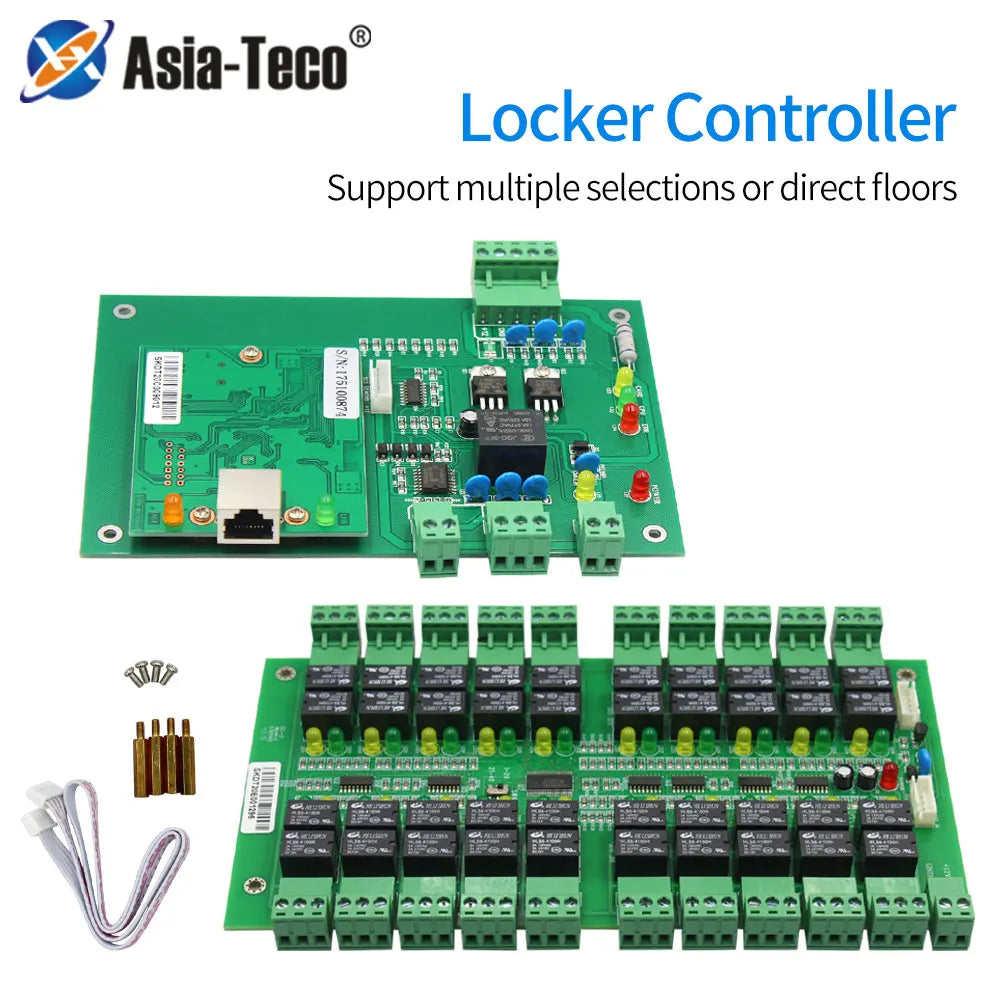

🗄️ Cabinet & Locker Access Control
Pair the controller with Adroitor management software to operate up to 20 doors (CW20) or 40 doors (CW40) simultaneously. A single card swipe opens the assigned cabinet. Administrators can unlock all doors at once from a PC for inspections, and time-based privileges allow cleaning staff access after hours. Compatible with fingerprint readers, face-recognition terminals, and any Wiegand-format biometric device.
Key Features
- TCP/IP Network Connectivity — Manage the system remotely over your existing LAN/WAN infrastructure.
- Wiegand Interface — Works seamlessly with standard RFID card readers and biometric devices (fingerprint, facial recognition).

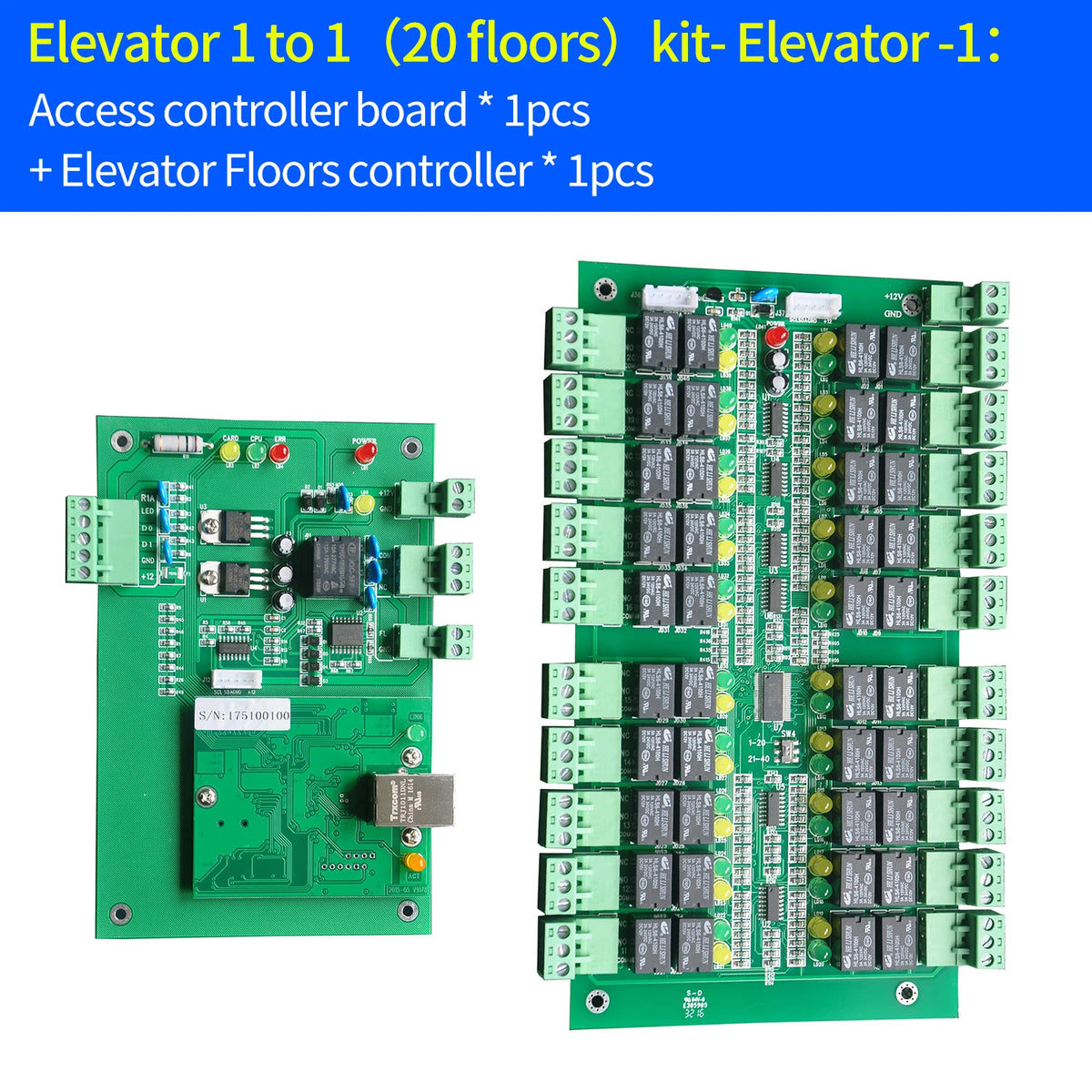

- Up to 40-Floor / 40-Door Support — Cascade a second expansion board to scale from 20 to 40 outputs without replacing the main controller.
- Dual Relay Outputs (Elevator Board) — Each circuit provides Normally Open (NO) and Normally Closed (NC) contacts (NO/NC/COM interface).
- Single Relay Outputs (Cabinet Board) — Each circuit provides a Normally Open (NO) contact plus door-contact signal feedback (NO/GND/S interface).
- Fire-Signal Safety Trigger — In the event of a fire alarm, expansion board relays activate sequentially to release all cabinet doors automatically.
- Fail-Safe Power Design — Expansion board relay NO contacts remain disconnected from the power supply positive pole during power-on or power-off transitions.
- Door Magnet Feedback — Connect door magnets to the S input and GND of each expansion board channel for real-time status monitoring.
- CE Certified — Meets applicable European conformity standards for safety and electromagnetic compatibility.
- Models Available: CW20 (up to 20 doors/floors) & CW40 (up to 40 doors/floors)
Specifications
| Brand | Asia-Teco |
| Model | CW20 / CW40 |
| Communication Protocol | TCP/IP |
| Reader Interface | Wiegand (26/34-bit compatible) |
| Max Floors / Doors | 20 (CW20) / 40 (CW40 with cascade expansion) |
| Relay Type (Elevator) | NO & NC per circuit |
| Relay Type (Cabinet) | NO + S feedback per circuit |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Important Notes
- For systems managing more than 20 doors, one additional cabinet expansion board is required (cascade connection).
- It is strongly recommended to install the additional expansion board in a dedicated controller box for easier wiring and maintenance.
- The wiring method for systems with fewer than 20 doors and those with more than 20 doors follows the exact same diagram — simply add the second expansion board.
- Elevator expansion boards and cabinet/locker expansion boards are different products — verify your application before ordering (elevator boards feature NO/NC/COM; cabinet boards feature NO/GND/S).
Who Is This For?
This system is ideal for commercial office buildings, hotels, hospitals, warehouses, co-working spaces, and residential high-rises that need granular, card-based floor or storage access management without running separate wiring for each floor or cabinet.
