1/2/4 Door TCP/IP Access Control Panel with DC12V Power Supply

TCP/IP Office Entry Access Control Panel — 1, 2, or 4 Door Configuration

Upgrade your office or building security with the Asia-Teco LK02 TCP/IP Access Control Panel. Designed to manage entry across 1, 2, or 4 doors from a single centralized board, this system offers a professional-grade, networked solution for offices, warehouses, schools, and commercial spaces. The included DC12V 5A metal power supply converter box ensures stable, reliable operation right out of the box.

Key Features

• Flexible Door Control: Manage 1, 2, or 4 entry points with a single panel — ideal for scaling from small offices to larger facilities.
• TCP/IP Network Connectivity: Connect directly to your local network for centralized access management, remote monitoring, and real-time control via standard Ethernet.
• Fail-Safe Security Mode: Doors automatically unlock in the event of power loss, prioritizing safety compliance and emergency egress.
• Integrated Power Supply: Includes a rugged DC12V 5A metal converter box — no separate power sourcing required.
• Model LK02 by Asia-Teco: Built for commercial-grade durability and long-term, continuous operation.
• Broad Compatibility: Works with standard electric locks, electromagnetic locks, card readers, and exit buttons.
• Centralized User Management: Add, remove, and manage access credentials across all connected doors from one interface.

Specifications

What's in the Box

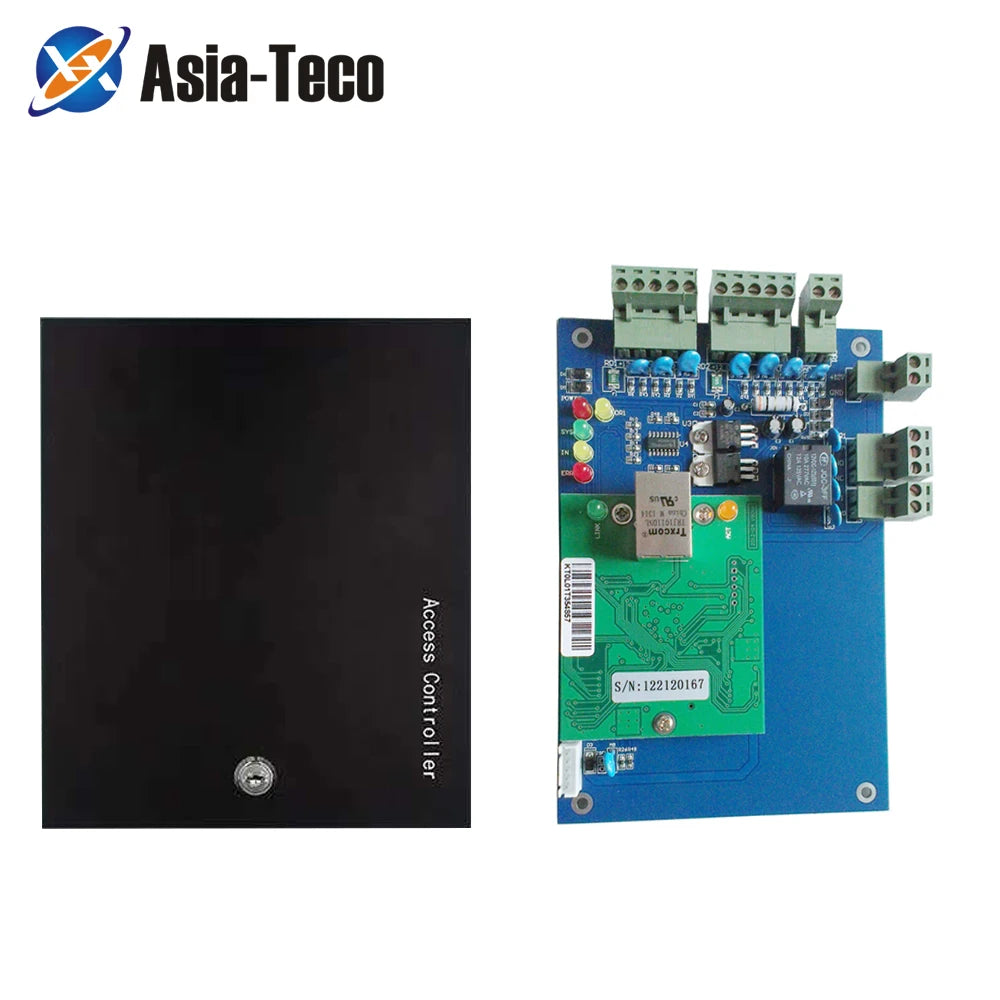

• 1× Asia-Teco LK02 TCP/IP Access Control Panel Board (1/2/4 door configuration)
• 1× DC12V 5A Metal Power Supply Converter Box

Where to Use It

This access control panel is perfectly suited for:

• Corporate offices and co-working spaces
• Schools and educational institutions
• Warehouses and storage facilities
• Apartment buildings and residential complexes
• Retail stores and hospitality venues

For guidance on best practices for physical access control and building security, visit the Cybersecurity and Infrastructure Security Agency (CISA). You can also explore NIST standards for access control systems at NIST Cybersecurity Resources.

Frequently Asked Questions

Q: Can the Asia-Teco LK02 TCP/IP Access Control Panel manage all 4 doors independently?

A: Yes. The LK02 panel supports independent access scheduling, credential management, and monitoring for each of the 1, 2, or 4 connected doors. Each door can be configured with its own access rules and user lists through the central software interface.

Q: What type of locks is this TCP/IP access control panel compatible with?

A: The panel is compatible with standard electric strike locks and electromagnetic (mag-lock) locks that operate on DC12V. It can also interface with wired card readers (RFID/proximity), exit push buttons, and door sensors for a complete entry control setup.

Q: Does the included DC12V 5A power supply support all door configurations?

A: The included DC12V 5A metal power supply converter box is designed to power the control panel board. For multi-door setups with multiple electric locks, additional power supplies may be needed depending on the total load of your locks and peripherals. Always calculate total current draw before installation.

Q: What does "Fail Safe" security mode mean?

A: Fail Safe mode means that in the event of a power outage, the connected electric locks will automatically disengage (unlock), allowing people to exit freely. This is a standard safety requirement in many commercial and public buildings for emergency egress compliance.
