TCP/IP Access Control Board 1–4 Door Controller & 5A Power Box

TCP/IP Access Control Board — 1, 2 & 4 Door Security Controller with Backup Battery & 5A Power Box

Take full command of your building's entry points with the Asia-Teco TCP/IP Access Control Board. Designed to support 1, 2, or 4 doors from a single controller, this system delivers reliable, network-based access management for offices, warehouses, apartment complexes, schools, and any multi-door facility. With a built-in backup battery function and a robust 5A power supply box included, your access control keeps running even during a power outage.

Key Features

• TCP/IP Network Connectivity — Manage and monitor access remotely over your local network or internet connection for seamless integration into your existing IT infrastructure.
• 1, 2, or 4 Door Support — A single board covers multiple entry points (choose model case01, case02, or case04), reducing hardware costs and simplifying wiring.
• Backup Battery Function — Onboard battery support keeps the controller operational during power interruptions, ensuring uninterrupted security coverage.

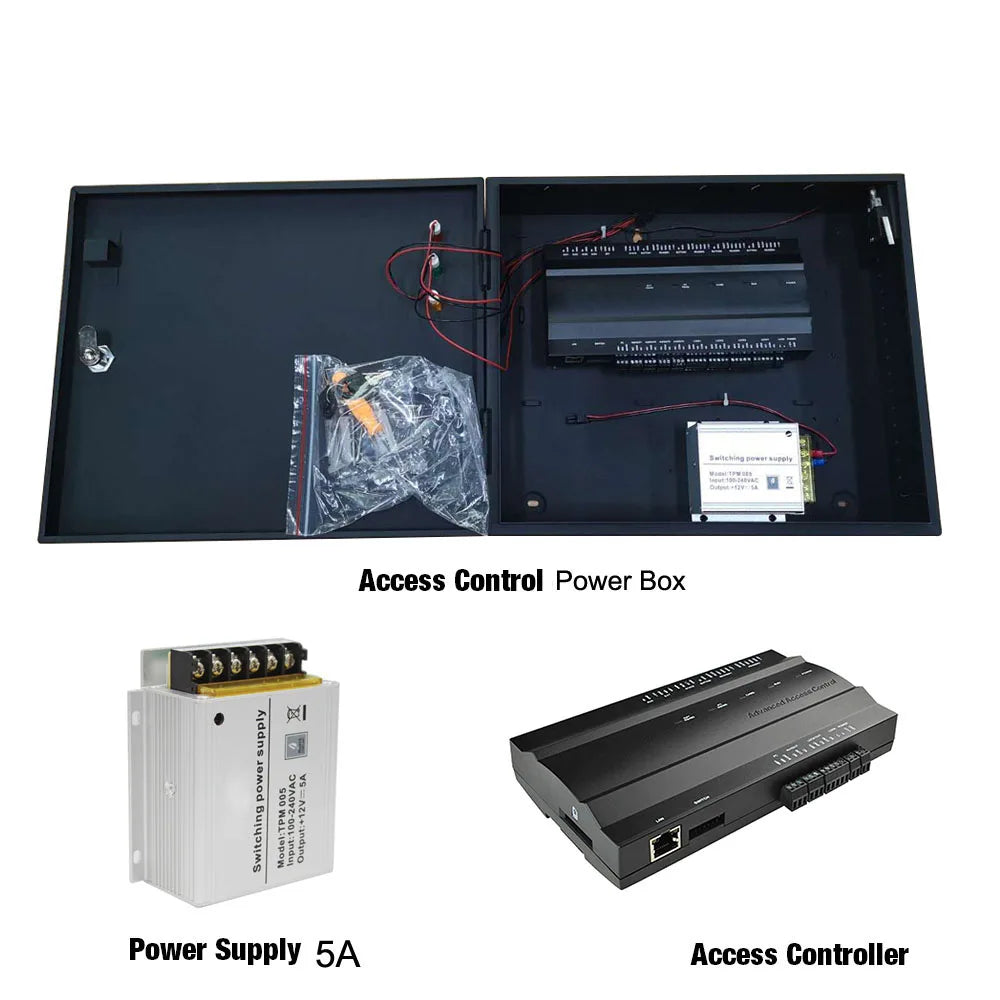

• 5A Power Box Included — The bundled power supply box provides stable, sufficient current to run the controller and connected door hardware (electric locks, readers, etc.).

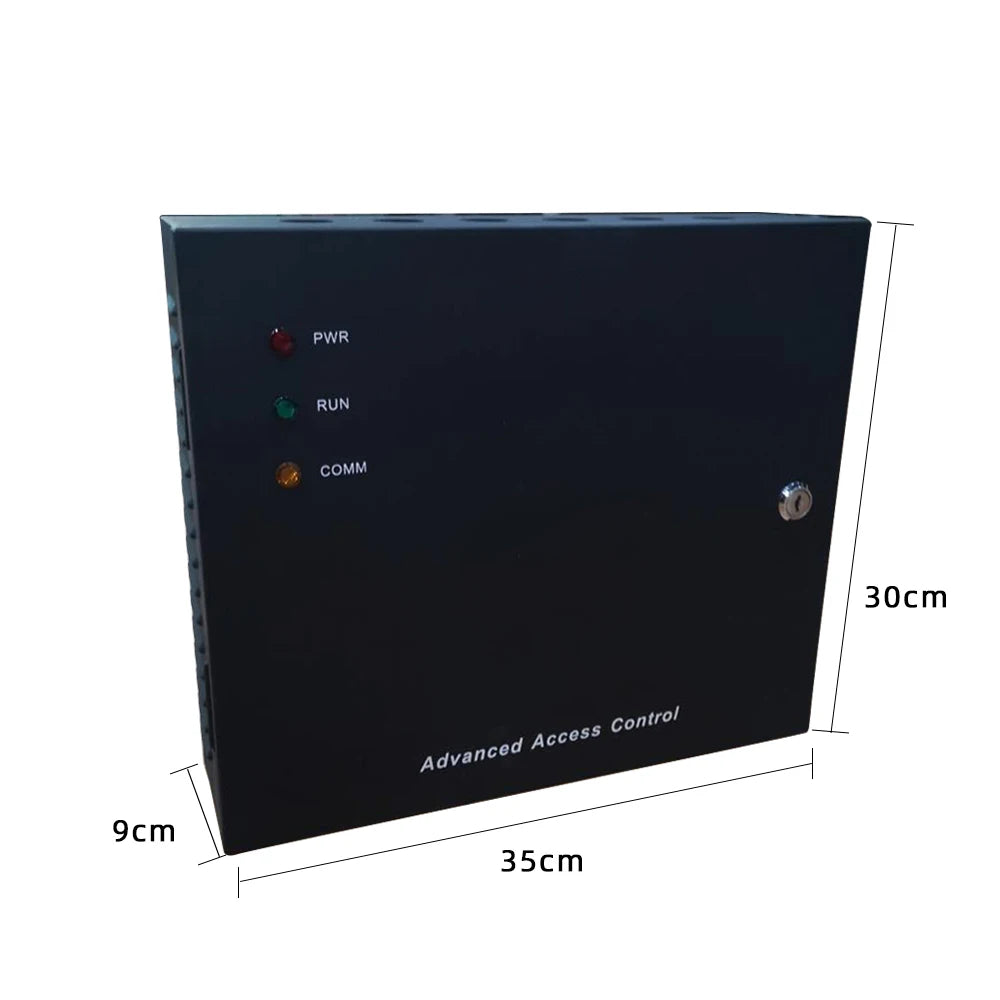

• Compact & Durable Design — Sleek black enclosure (approx. 35 × 30 × 9 mm board) built to fit neatly within standard access control enclosures or custom installations.
• Wide Compatibility — Works with common Wiegand card readers, keypads, electric strikes, magnetic locks, and exit buttons for a fully customizable setup.
• Centralized User Management — Add, edit, or revoke card/credential access across all doors from one intuitive software interface.
• Real-Time Access Logs — Track entry and exit events with time-stamped records for auditing and compliance purposes.

Specifications

Who Is This For?

This controller is ideal for security integrators, IT administrators, facilities managers, and business owners who need a cost-effective, scalable, and network-managed door access solution. Whether you're securing a single door or rolling out a multi-door system across an entire floor, the Asia-Teco TCP/IP board scales to your needs.

Safety & Installation

Always follow your local electrical codes when installing access control hardware. For guidance on physical security best practices, refer to the U.S. Consumer Product Safety Commission (CPSC) for general equipment safety standards, and consult OSHA's Electrical Safety guidelines when wiring low-voltage control systems.

Frequently Asked Questions

Q: How many doors can this TCP/IP access control board support?

A: Depending on the model you select, the board can control 1 door (case01), 2 doors (case02), or 4 doors (case04) from a single unit, making it easy to scale your access control system as your facility grows.

Q: Does this access control board work during a power outage?

A: Yes. The controller features a built-in backup battery function that keeps the board and connected hardware operational when main power is interrupted, ensuring continuous security coverage at all times.

Q: What type of card readers and locks are compatible with this controller?

A: The Asia-Teco TCP/IP access control board is compatible with standard Wiegand-protocol card readers (proximity, RFID), numeric keypads, electric strike locks, and electromagnetic (mag-lock) locks — giving you full flexibility to design your preferred entry system.

Q: Is remote management possible with this system?

A: Yes. Because the board communicates over TCP/IP (Ethernet), you can manage users, view access logs, and configure door settings remotely through compatible access control software on your local network or over the internet.

Q: Is a power supply included in the purchase?

A: Yes, a 5A power supply box is included with the controller, providing everything you need to power the board and standard door hardware right out of the box.
