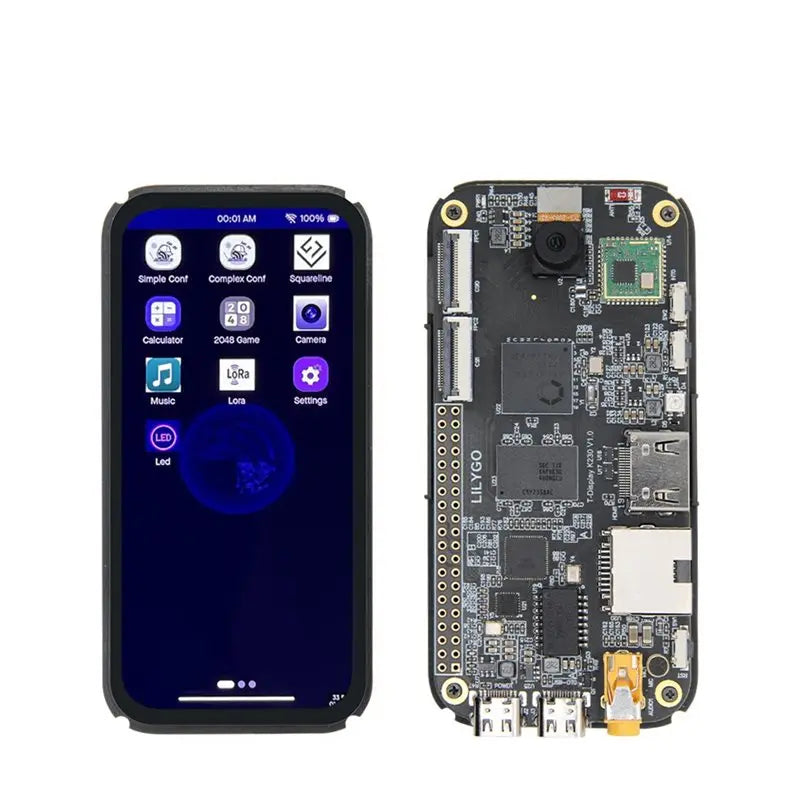

T-Display K230 LoRa AI Development Board — Dual-Core RISC-V with AMOLED Touchscreen
Unlock next-level embedded AI and IoT development with the T-Display K230 LoRa AI Development Board. Built around the powerful K230 dual-core RISC-V SoC, this compact board combines long-range LoRa wireless communication, a vibrant 4.1-inch AMOLED touchscreen, a 2MP camera module, and onboard Wi-Fi — making it an ideal platform for AIoT prototyping, remote sensing, wireless data transmission, and AI inference projects.
Made in Mainland China.
Why Choose the T-Display K230?
- High-Performance Dual-Core RISC-V Processor: CPU1 runs at 1.6 GHz and CPU0 at 800 MHz, delivering exceptional compute throughput for demanding AI workloads.
- Integrated KPU (Knowledge Processing Unit): Supports general-purpose AI computing frameworks for on-device inference — face detection, object recognition, and more.
- 4.1-Inch AMOLED Touchscreen: Vivid, high-contrast display (RGB 568×1232, Driver IC: RM69A10) for rich UI development and real-time data visualization.
- Long-Range LoRa Communication (SX1262): Supports 433 MHz, 868 MHz, 915 MHz, and 920 MHz frequency bands for low-power, long-distance wireless connectivity.
- 2MP 1080P Camera Module (GC2093): Enables real-time image capture and AI vision processing with integrated ISP.
- 2.4GHz Wi-Fi (RTL8189, IEEE 802.11 b/g/n): Seamless network connectivity for cloud integration and remote monitoring applications.

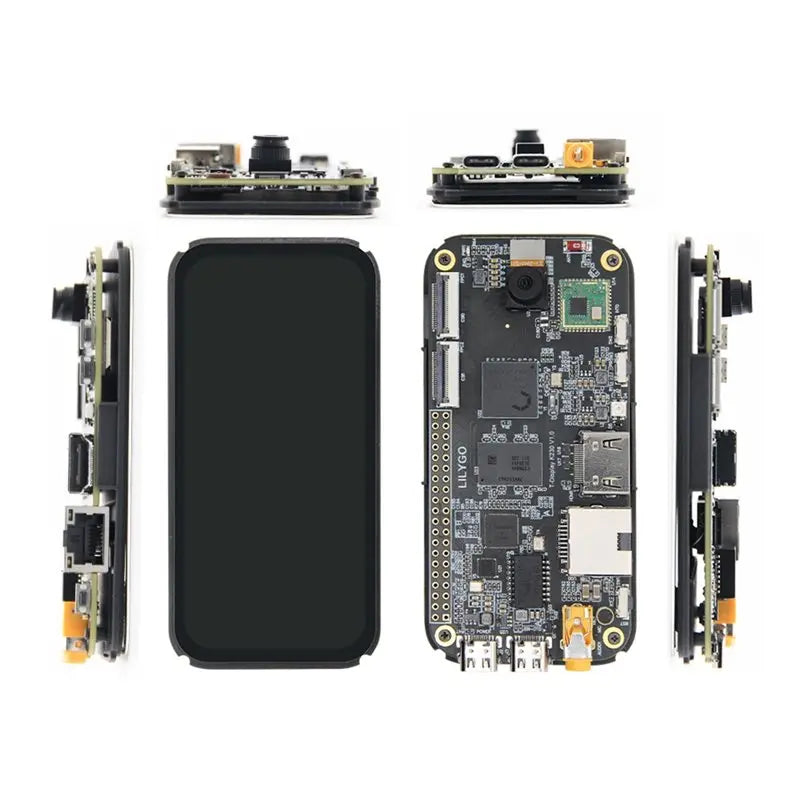

- Compact, Handheld-Friendly Form Factor: Designed for field deployment, prototyping labs, and embedded development environments alike.
Full Technical Specifications
| Feature | Details |
|---|---|
| SoC | K230 — 2× 64-bit RISC-V + KPU + DPU + GPU + VPU |
| CPU Speed | CPU1: 1.6 GHz | CPU0: 800 MHz |
| AI Engine | KPU (general-purpose AI), 2D Engine, 2.5D GPU, 3D DPU |
| Video Codec | H.264 + H.265 |
| LoRa Module | SX1262 | 433 / 868 / 915 / 920 MHz |
| Display | 4.1" AMOLED, RGB 568×1232, Driver IC: RM69A10 |
| Camera | 2MP 1080P — GC2093 |
| Wi-Fi | RTL8189 | IEEE 802.11 b/g/n | 2.4 GHz |
| Memory | 8 Gb |
| Connector | RJ45 |
| Material | PCB + LCD |

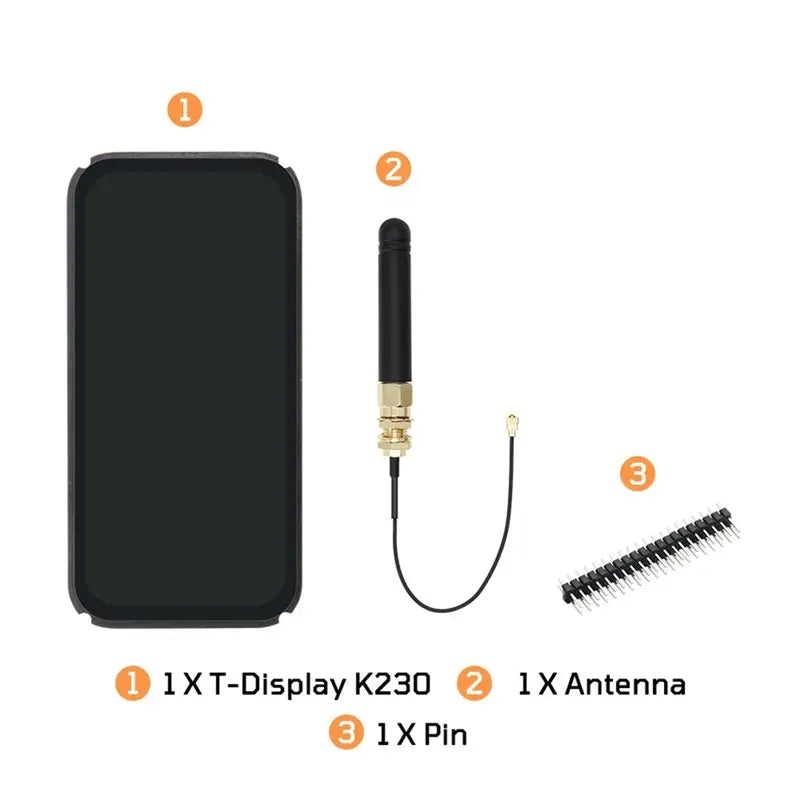

Package Contents
- 1× T-Display K230 LoRa AI Development Board Kit
Note: Other accessories or products shown in images are not included. Minor color differences may occur due to display variation. Measurement tolerance: ±1–3 cm.
Ideal Use Cases
- AIoT prototyping and edge AI inference
- Remote monitoring and wireless sensor networks
- Long-range LoRa IoT gateways and nodes
- Embedded vision and image recognition systems
- Smart agriculture, environmental sensing, and industrial telemetry
For more information on IoT security and wireless communication standards, visit the NIST Communications Technology Laboratory — Wireless Networks.
Frequently Asked Questions
Q: What makes the K230 chip better suited for AI development than older chips like the K210?
A: The K230 is the successor to the K210 and features a significantly more powerful dual-core 64-bit RISC-V architecture with dedicated AI accelerators including a KPU (Knowledge Processing Unit), 2D AI Engine, 2.5D GPU, and 3D DPU. It supports H.264/H.265 video encoding and delivers far greater computing throughput — up to 1.6 GHz — making it well-suited for real-time AI inference tasks such as object detection, face recognition, and video analytics at the edge.
Q: Which LoRa frequency bands does the T-Display K230 support?
A: The T-Display K230 uses the SX1262 LoRa chip, which supports 433 MHz, 868 MHz, 915 MHz, and 920 MHz frequency bands. This makes it compatible with LoRa/LoRaWAN networks across North America, Europe, Asia-Pacific, and other regions, giving developers worldwide flexibility for long-range, low-power IoT deployments.
Q: Does the board include Wi-Fi connectivity, and what standard does it use?
A: Yes. The T-Display K230 includes a 2.4GHz Wi-Fi module (RTL8189) supporting IEEE 802.11 b/g/n. This allows the board to connect to standard wireless networks for cloud communication, remote data logging, firmware updates, and integration with IoT platforms.
Q: Can this development board be used by beginners, or is it intended for advanced developers?
A: The T-Display K230 is primarily targeted at embedded systems developers, IoT engineers, and AI researchers who are comfortable with RISC-V architectures and low-level programming. However, its AMOLED touchscreen interface and modular design make it approachable for experienced makers and students looking to explore edge AI and LoRa communication projects.
Q: What is included in the package?
A: Each order includes one T-Display K230 LoRa AI Development Board Kit. No additional peripherals, cables, or accessories are included unless explicitly listed.
