SY8205 5V 5A Step-Down Voltage Regulator for Arduino & STM32

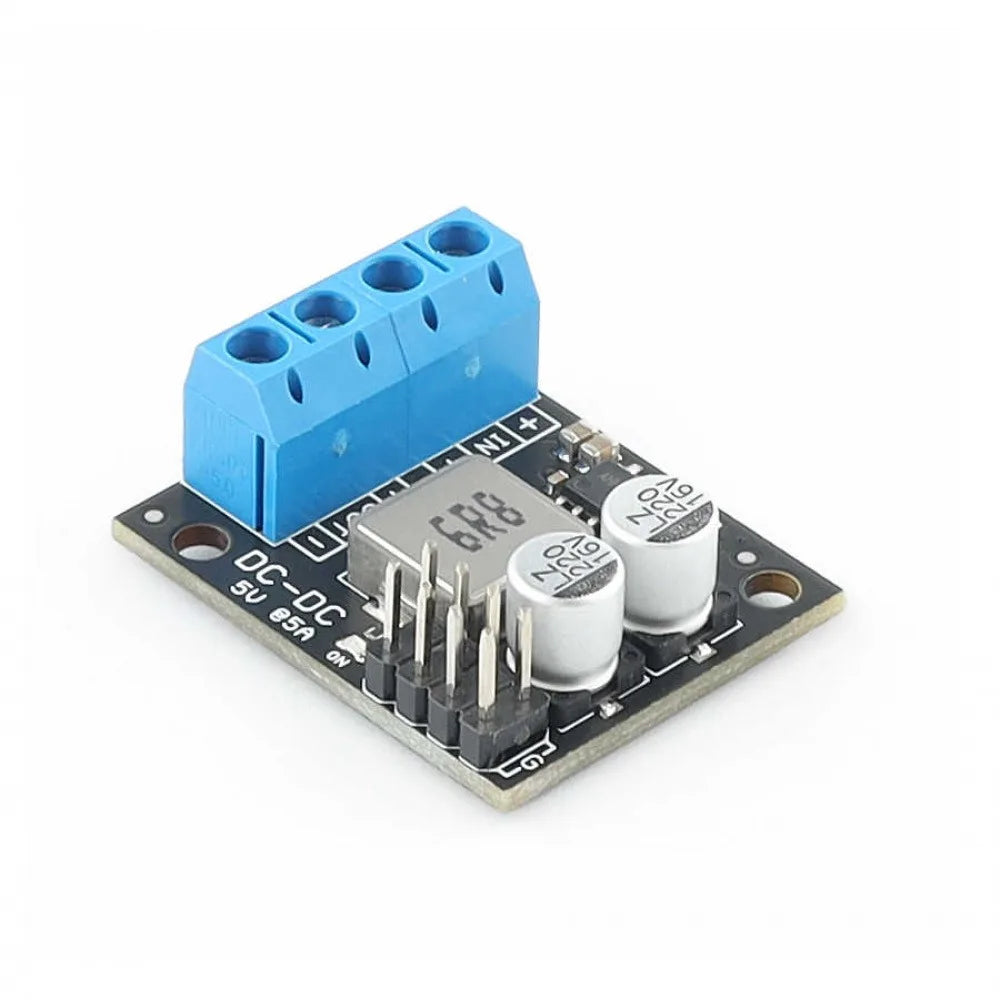

SY8205 5V 5A Synchronous Step-Down Voltage Regulator Module

Power your Arduino, STM32, servo systems, and other microcontroller projects with clean, stable 5V output. This compact SY8205-based synchronous step-down (buck) regulator module converts a 6–12V DC input into a steady 5V output, continuously delivering up to 3A with 5A instantaneous peak current — all in a minimal footprint. Made in Mainland China.

Key Features

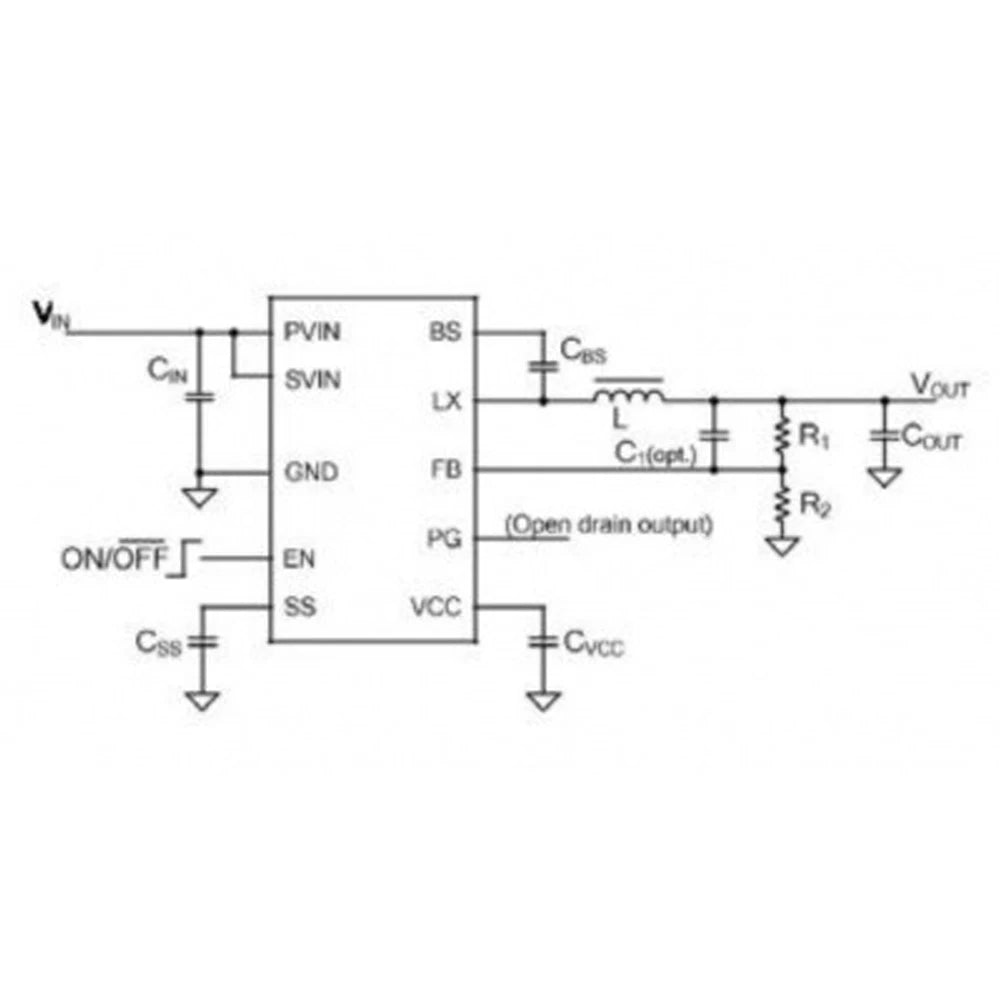

• High-Efficiency Synchronous Buck Design: The SY8205 IC integrates PWM control, high-side and low-side switches on a single chip, minimizing switching transition losses and conduction losses for maximum efficiency.
• Ultra-Low R_ds(ON) Power Switching: Proprietary PWM control delivers high efficiency at high switching frequencies, reducing the size of external inductors and capacitors for a compact solution.
• Wide Input Voltage Range: Accepts 6–12V DC input (the SY8205 chip itself supports up to 30V); recommended input range is 9–12V for best performance.
• Stable 5V / 3A Continuous Output: Provides a reliable 5V regulated output with up to 3A continuous current and 5A instantaneous current capability.
• Dual Output Options: Features both terminal block outputs (ideal for high-current loads via 20AWG silicone wire) and pin header outputs (supports two servo connections directly at 5V).
• Built-In Protections: Cycle-by-cycle current limiting and thermal shutdown protect both the module and connected devices from fault conditions.
• Breadboard & Project Friendly: Compact form factor fits easily into robotics, RC servo systems, Arduino, STM32, and other maker projects.

Specifications

How to Use

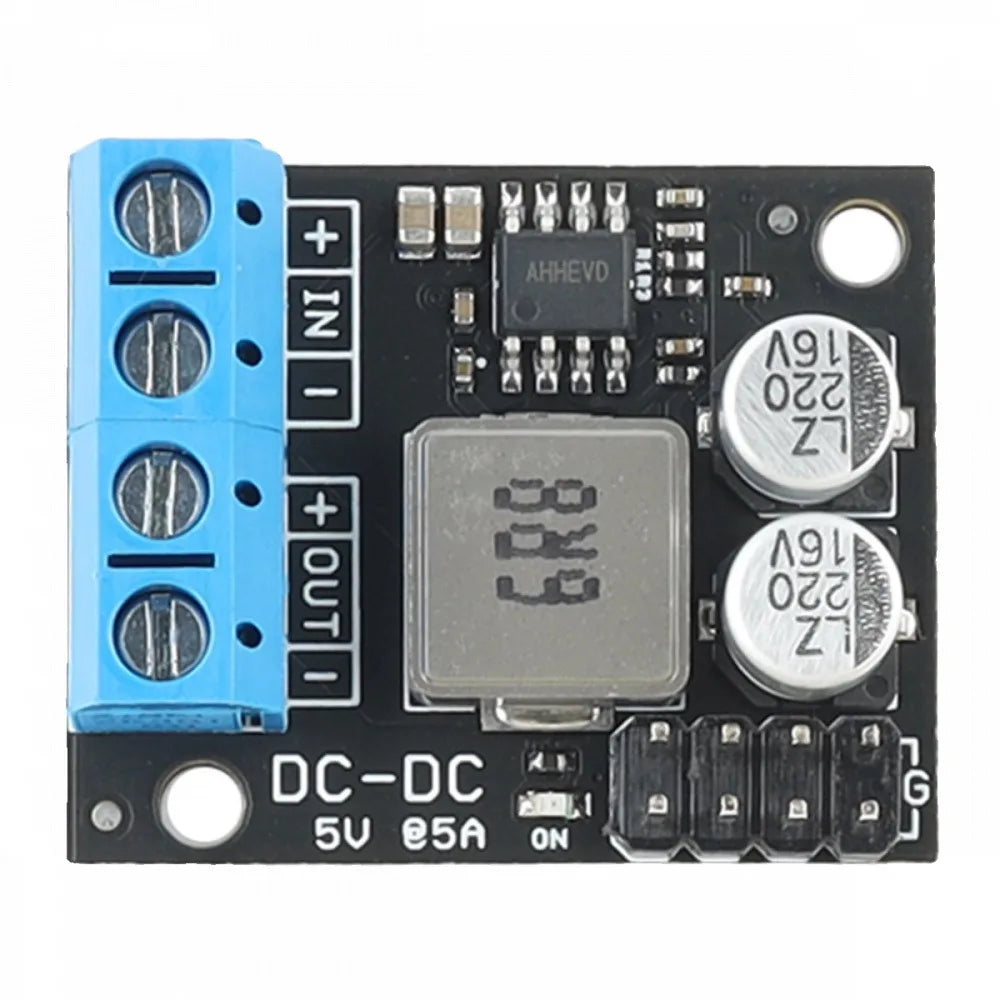

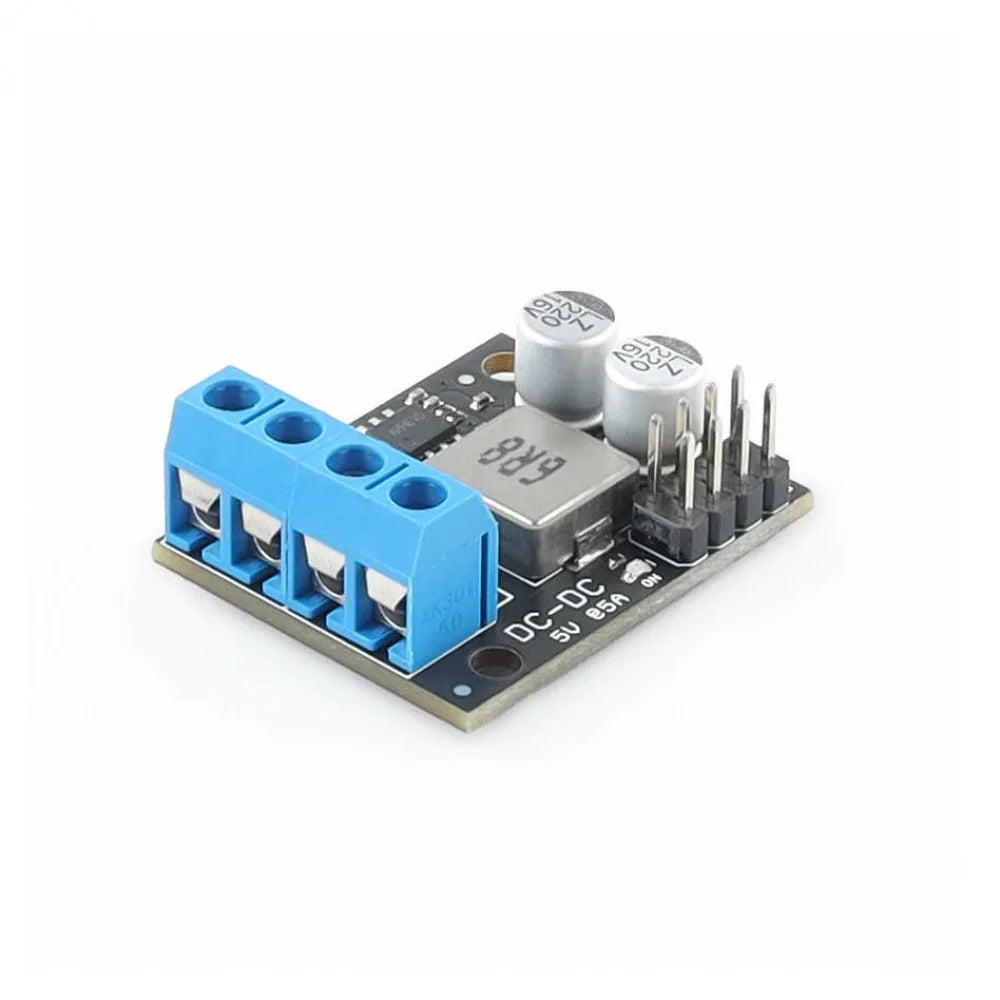

1. Connect your 6–12V DC power supply to the blue terminal block labeled IN. Ensure your power supply can deliver at least 5A input current to meet full output power demands.
2. Use the terminal block outputs for high-current loads; connect with 20AWG silicone wire for safe, full-power delivery.
3. Use the pin header outputs to connect up to two servo motors directly at 5V.
4. Note: If input current is insufficient, output current will decrease. Large output currents may cause a slight voltage drop below 5V — using a 9–12V input is strongly recommended.

Package Includes

• 1× SY8205 5V 5A Step-Down Voltage Regulator Module

Notes

• Color may vary slightly from images due to screen and lighting differences.

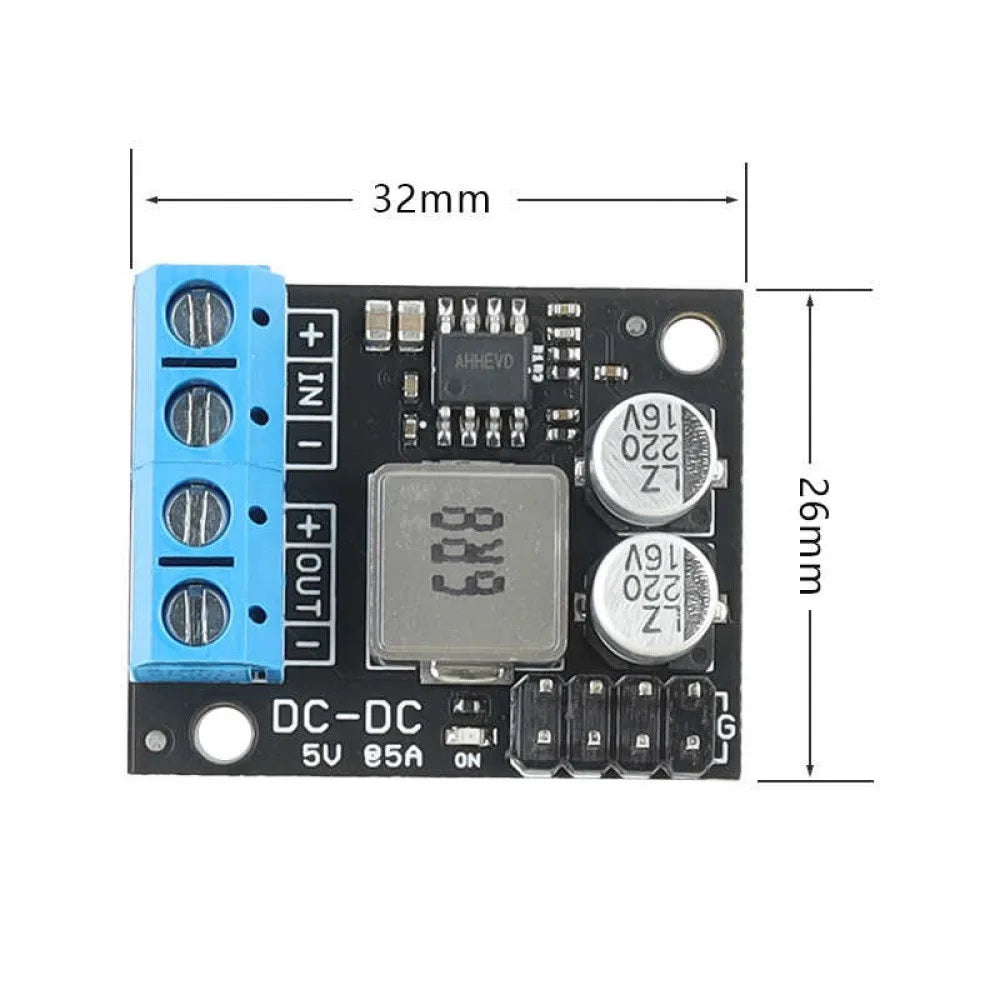

• Please allow ±1mm–1cm measurement tolerance due to manual measurement.

For guidance on electronics safety and best practices in DIY electronics projects, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What input voltage range does the SY8205 step-down module support?

A: The module accepts 6–12V DC input via the blue terminal block. The SY8205 chip itself can handle inputs up to 30V, but the module's rated operating range is 6–12V. For optimal performance and stable 5V output, an input of 9–12V is recommended.

Q: Can this step-down regulator power servos directly?

A: Yes. The module includes pin header outputs specifically designed to connect up to two servo motors at 5V. The current available through the pin headers is the same as the terminal block — up to 3A continuous and 5A instantaneous — making it well-suited for servo power supply in Arduino and STM32 robotics projects.

Q: Why does the output voltage drop below 5V under heavy load?

A: A voltage drop can occur when the input power supply cannot deliver sufficient current (at least 5A input is recommended) or when the load draws near the peak current. Using a higher input voltage (9–12V) with an adequately rated power supply and 20AWG silicone wire for connections will help maintain a stable 5V output.

Q: Is this module compatible with Arduino and STM32 boards?

A: Yes. The SY8205 step-down module outputs a stable 5V, which is the standard operating voltage for most Arduino boards and compatible with STM32-based systems. It is widely used in maker, robotics, and embedded electronics projects as a reliable DC power supply module.
