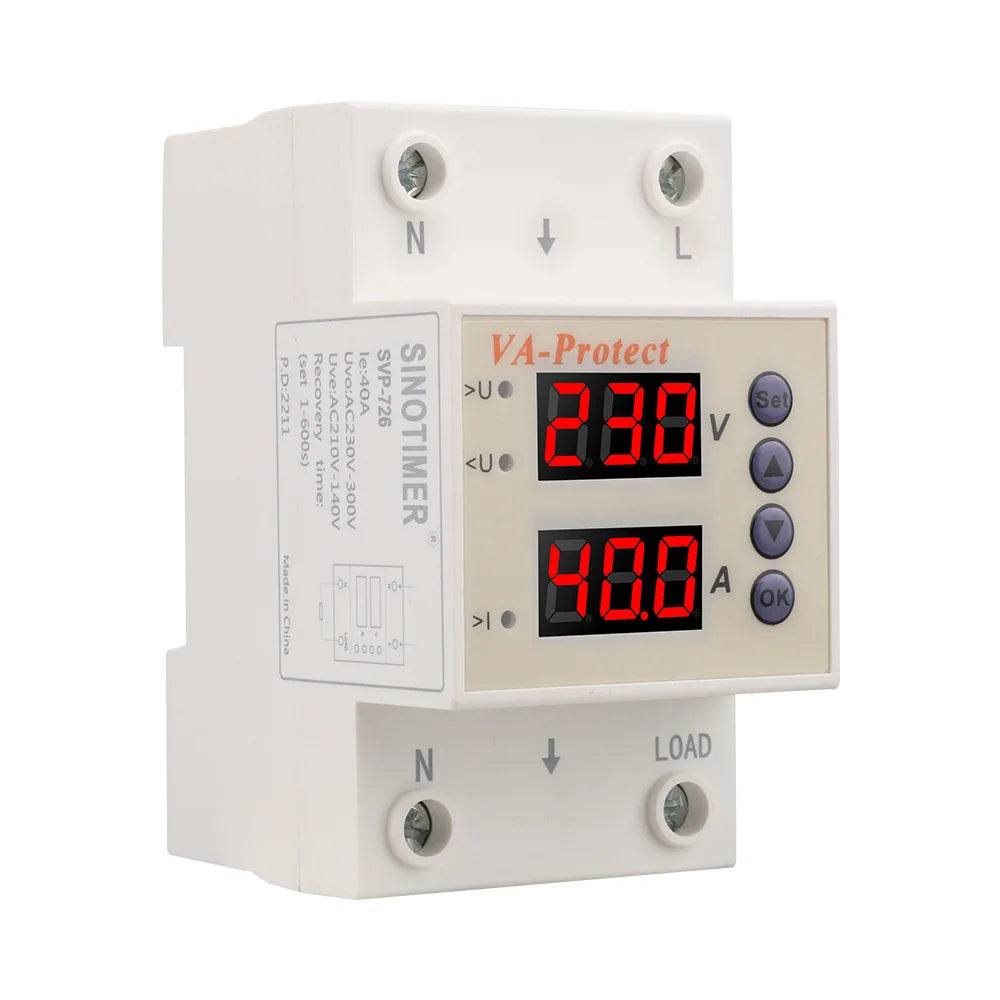

SVP726 220V Digital Overvoltage Undervoltage Protector 40A 63A

SVP726 220V Large Screen Digital Voltage Protector — 40A / 63A

Keep your appliances and electrical systems safe with the SVP726 Adjustable Self-Resetting Overvoltage & Undervoltage Current Limiting Protector. Featuring a large digital display, intuitive traffic-light indicators, and fully adjustable trip thresholds, this DIN-rail-mounted protector is built for demanding residential, commercial, and industrial environments. Made in Mainland China.

Key Features

• Large Digital Screen: Real-time voltage readout for at-a-glance monitoring.
• Traffic-Light Status Indicators: Green light = normal voltage; Red light = overvoltage or undervoltage detected — instantly clear from across the room.
• Fully Adjustable Thresholds: Dial in your exact protection parameters to suit any application.
• Self-Resetting Operation: Automatically reconnects power after voltage returns to a safe range — no manual reset required.
• Current Limiting Protection: Guards connected equipment against damaging overcurrent conditions.
• Wide Compatibility: Strong adaptability for a variety of occasions; operates reliably in harsh environments.
• DIN Rail Mount: Buckle guide-rail installation for fast, secure panel integration.
• Fault Memory: Logs and lets you query the latest 5 fault events for diagnostics.

Specifications

How to Configure Settings

1. Enter Settings: Press and hold the SET key for 5 seconds.
2. Set Overvoltage Threshold: Short-press SET — the overvoltage indicator lights. Adjust between 240V and 300V (default: 270V).
3. Set Undervoltage Threshold: Short-press SET again — the undervoltage indicator lights. Adjust between 140V and 210V (default: 170V).
4. Set Current Limit: Short-press SET — the current indicator lights. Adjust from 1A to 40A/63A (default: 40A or 63A).
5. Set Delay Recovery: Short-press SET — adjust reconnect delay from 1 to 300 seconds.
6. Fault Query: Review the last 5 recorded fault events for easy troubleshooting.

Package Includes

• 1× SVP726 Over & Undervoltage Protector

Please Note: Colours may vary slightly due to screen and lighting differences. Please allow 1–3 cm variance due to manual measurement.

For electrical safety standards and best practices for protective devices, refer to the U.S. Consumer Product Safety Commission — Electrical Safety.

Frequently Asked Questions

Q: What is the difference between the 40A and 63A versions of the SVP726 protector?

A: The two variants differ in maximum rated current capacity. The 40A version is suited for smaller residential or light-commercial circuits, while the 63A version handles heavier loads in larger commercial or industrial installations. Both offer the same voltage protection range and feature set.

Q: Will the SVP726 automatically restore power after a voltage fault?

A: Yes. The SVP726 is a self-resetting protector. Once the voltage returns within the configured safe range and the user-set delay period (1–300 seconds) elapses, the unit automatically reconnects power without any manual intervention.

Q: Can I adjust the voltage trip points after installation?

A: Absolutely. The overvoltage threshold (240V–300V) and undervoltage threshold (140V–210V) are both fully adjustable via the front-panel SET key at any time, even after the unit is installed on the DIN rail.

Q: Is the SVP726 compatible with standard DIN rail panels?

A: Yes. The SVP726 uses a standard buckle guide-rail (DIN rail) installation method, making it compatible with most residential and commercial distribution boards and panel enclosures.
