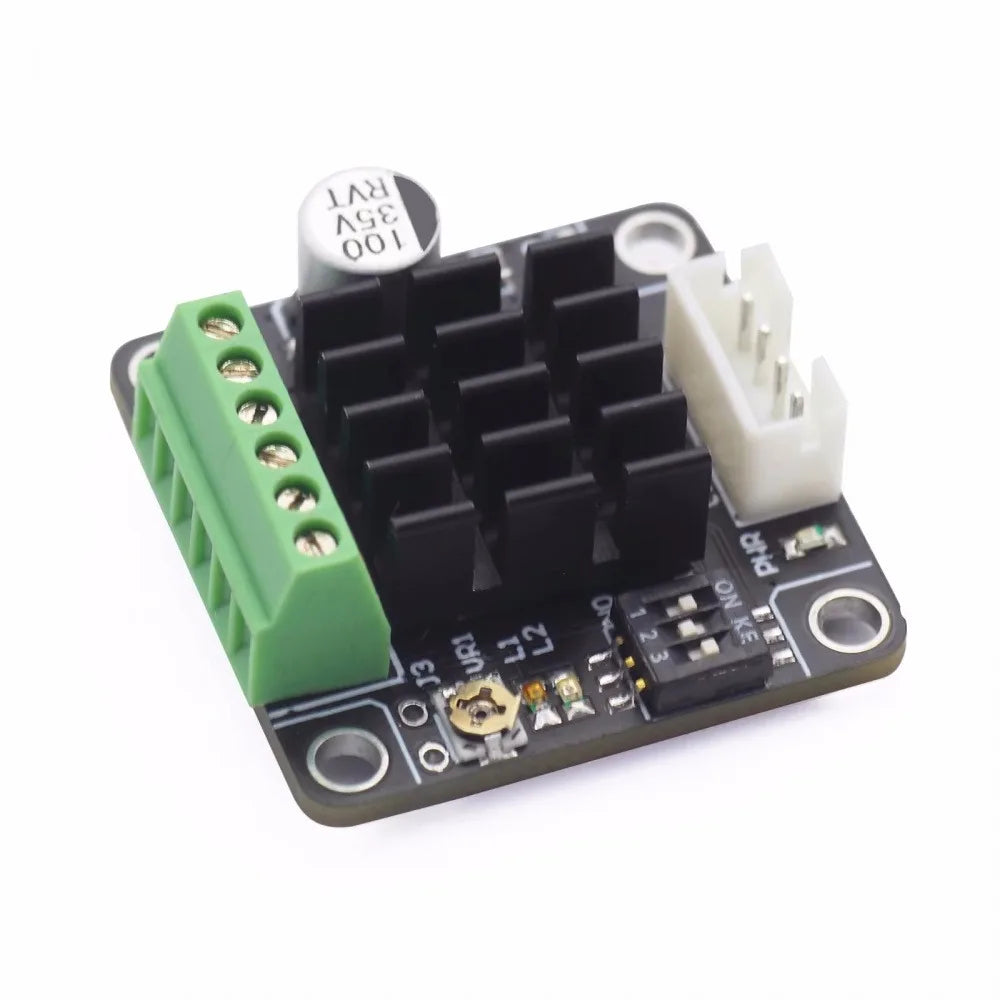

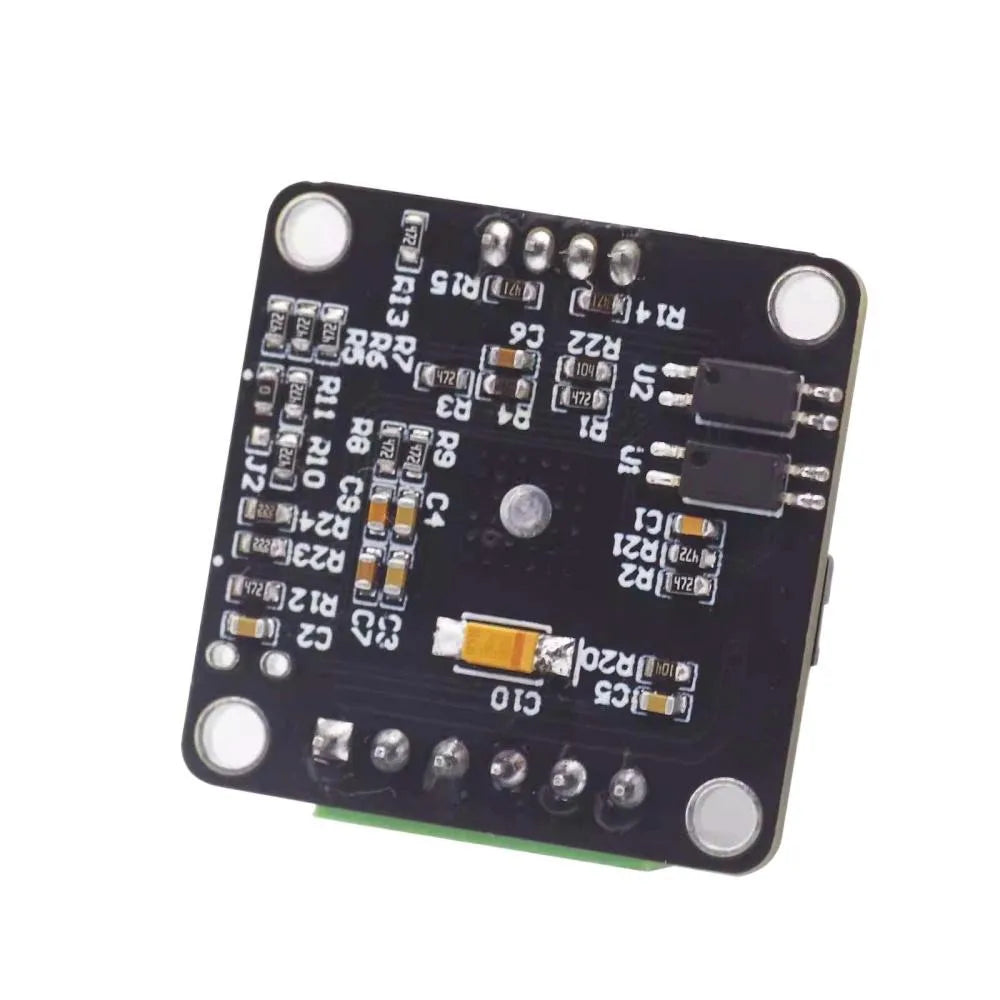

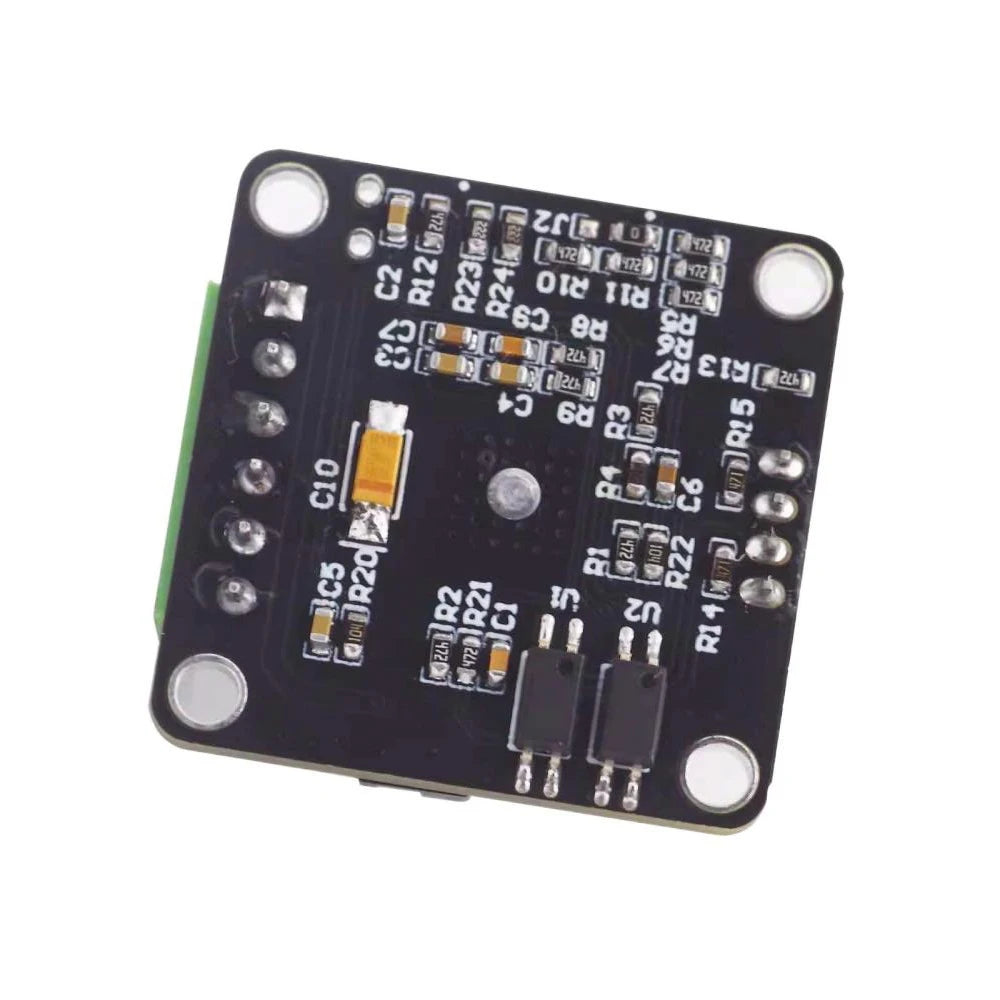

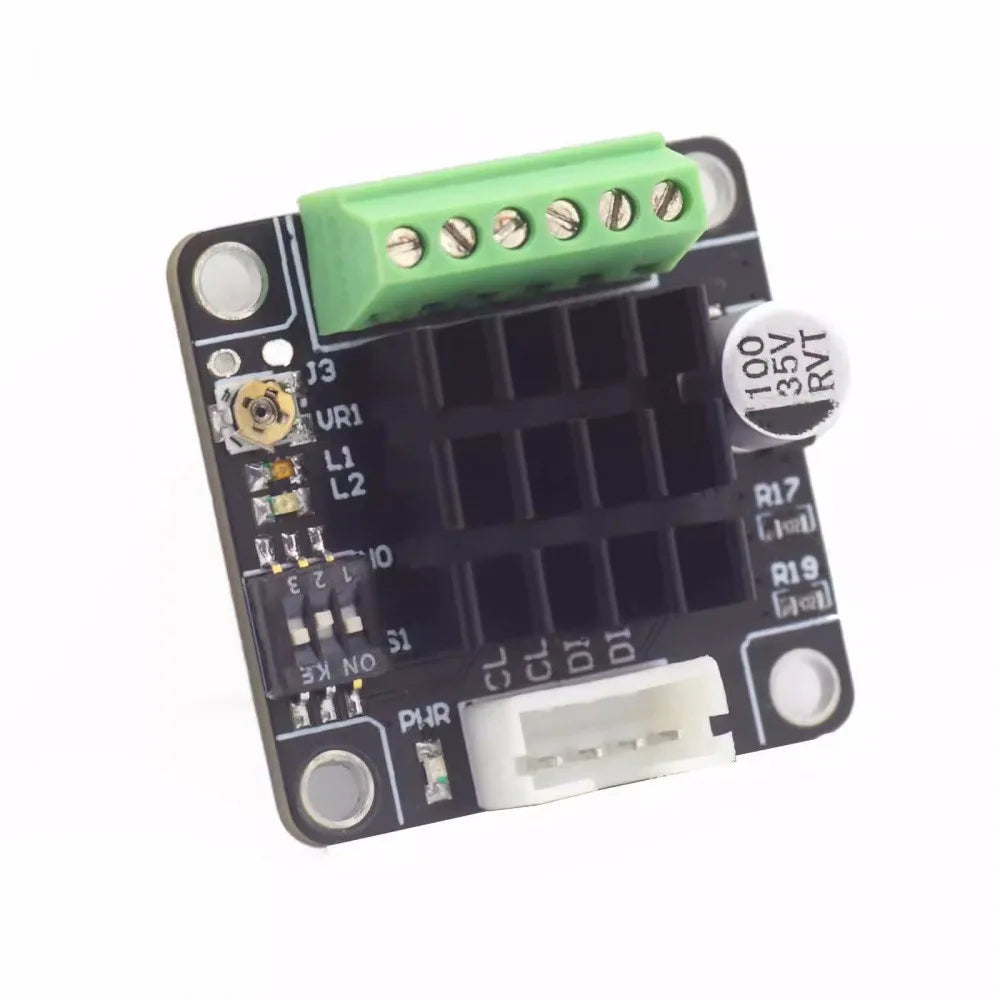

20/28 Stepper Motor Driver Module – Pulse Type, DC 12–36V
Take precise control of your small two-phase, four-wire stepper motors with this compact and reliable Pulse-Type Stepper Motor Driver Module. Designed for NEMA 20/28-size motors, this driver delivers smooth PWM chopping constant-current performance with adjustable microstepping — making it an excellent choice for CNC machines, 3D printers, robotic arms, automated stages, and other motion-control projects. Made in Mainland China.
Key Features
- Wide Input Voltage Range: Operates on DC 12V–36V (DC 24V recommended) for flexible integration into various systems.
- Adjustable Output Current: Peak output of 2A per phase (single phase); adjustable from 0 to 1A during operation to suit your specific motor requirements.
- Multiple Microstepping Resolutions: DIP switch selectable subdivisions — 1, 2, 4, 8, 16, 32, 64, and 128 — for smooth, precise motion control.
- Differential Signal Interface: P+/P- pulse input and D+/D- direction input, both supporting 3.3V–5V differential signals at 100Hz–20KHz pulse frequency for noise-immune operation.
- Built-In Protection: Thermal shutdown, overcurrent protection, and motor load open-circuit detection keep your equipment and motor safe.
- PWM Chopping Constant Current Drive: Efficient drive mode ensures consistent torque output and reduced heat generation.
- High Insulation Rating: >100MΩ insulation resistance and 0.5KV insulation strength (1 min at normal temperature and pressure).
- Wide Operating Temperature Range: Reliable from -20°C to 85°C for demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | DC 12V – 36V (24V recommended) |
| Output Current (Peak) | 2A (single phase max); 0–1A adjustable |
| Drive Mode | PWM Chopping Constant Current |
| Microstep Subdivisions | 1, 2, 4, 8, 16, 32, 64, 128 (DIP switch) |
| Pulse Frequency | 100Hz – 20KHz |
| Signal Input | 3.3V – 5V differential |
| Insulation Resistance | >100MΩ (normal temp/pressure) |
| Insulation Strength | 0.5KV for 1 min (normal temp/pressure) |
| Operating Temperature | -20°C to 85°C |
| Protection | Thermal shutdown, overcurrent, open-circuit |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1× Stepper Motor Driver Module
Notes
- Colors may appear slightly different due to display and lighting variation.
- Please allow 1mm–1cm tolerance due to manual measurement.
For guidance on electrical safety and wiring standards, refer to OSHA's Electrical Safety Guidelines.
Frequently Asked Questions
Q: What stepper motor sizes is this driver module compatible with?
A: This stepper motor driver module is designed for small two-phase, four-wire stepper motors in the NEMA 20 and NEMA 28 form factors. It is ideal for lightweight CNC, 3D printing, robotics, and automated positioning applications that require compact, precise motor control.
Q: What microstepping options are available on this stepper motor driver?
A: The driver supports 8 selectable microstep subdivisions via onboard DIP switches: 1, 2, 4, 8, 16, 32, 64, and 128. Higher subdivision settings provide smoother, quieter motor motion and finer positional resolution, making this driver versatile for a wide range of motion-control applications.
Q: Does this driver module have overcurrent protection?
A: Yes. The module includes built-in overcurrent protection, thermal shutdown, and motor load open-circuit detection. These safeguards help protect both the driver and your connected stepper motor from damage in the event of a fault condition.
Q: What control signals does this stepper motor driver accept?
A: The driver accepts 3.3V–5V differential pulse (P+/P-) and direction (D+/D-) signals, with a supported pulse frequency range of 100Hz to 20KHz. It is compatible with most microcontrollers, PLCs, and CNC controller boards that output standard step/direction signals.
