304 Stainless Steel Eyewash Station Foot Pedal – ANSI Compliant
304 Stainless Steel Eyewash Station Foot Pedal – ANSI Compliant

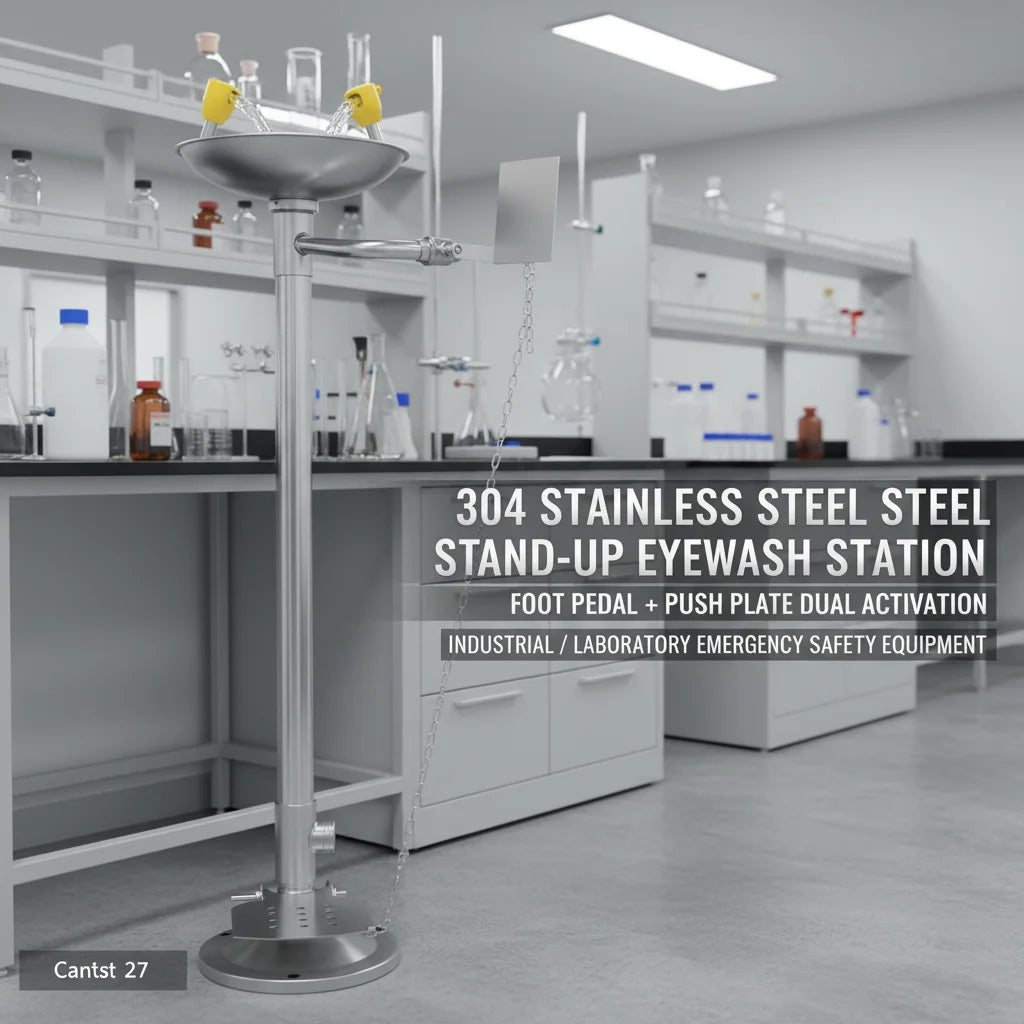

304 Stainless Steel Standing Eyewash Station with Foot Pedal
This ANSI-compliant emergency eyewash station is engineered to deliver immediate, effective eye decontamination in labs, chemical plants, industrial facilities, and any workplace where hazardous substance exposure is a concern. Built from premium 304 stainless steel and activated hands-free via a widened foot pedal, it provides dependable, rapid-response eye flushing whenever it's needed most.
Key Features

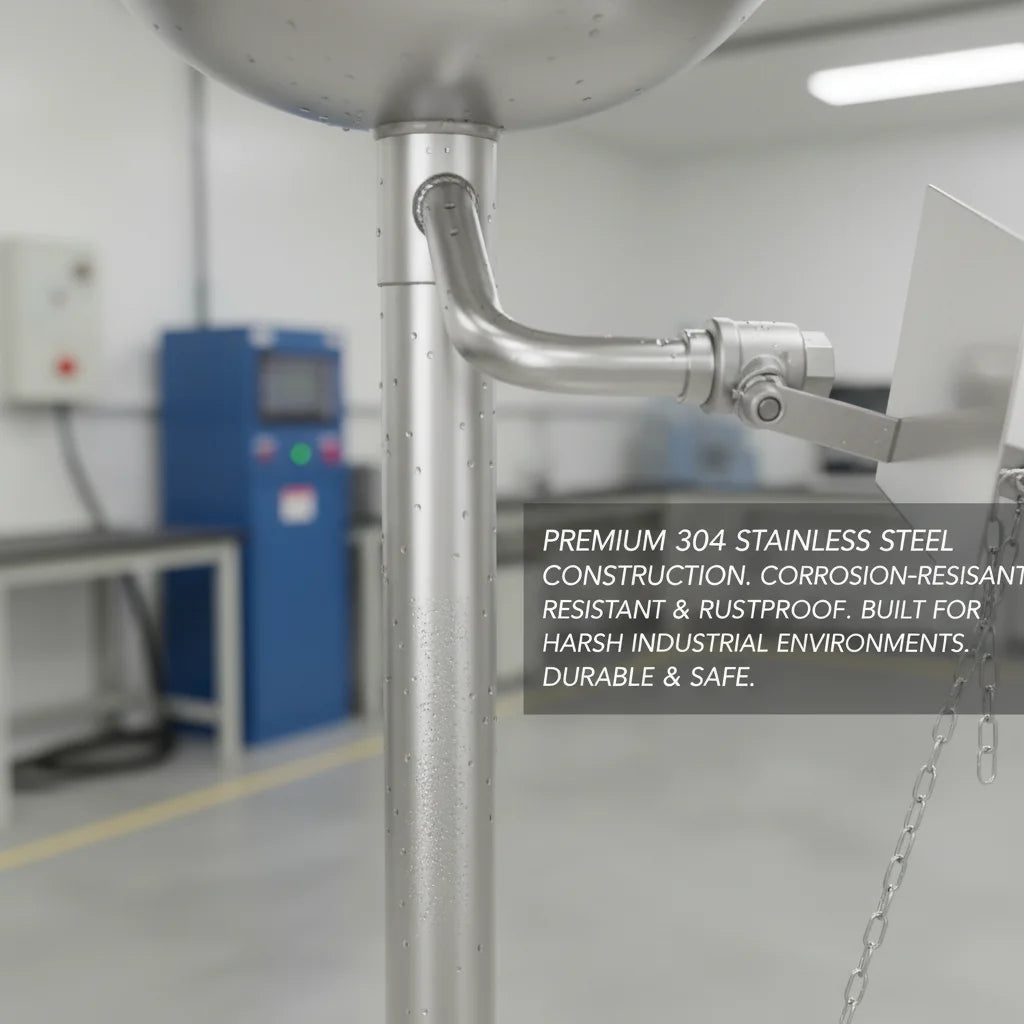

- Premium 304 Stainless Steel Construction – Eco-friendly, odorless, anti-corrosion, and rust-resistant for long-lasting durability and easy maintenance.

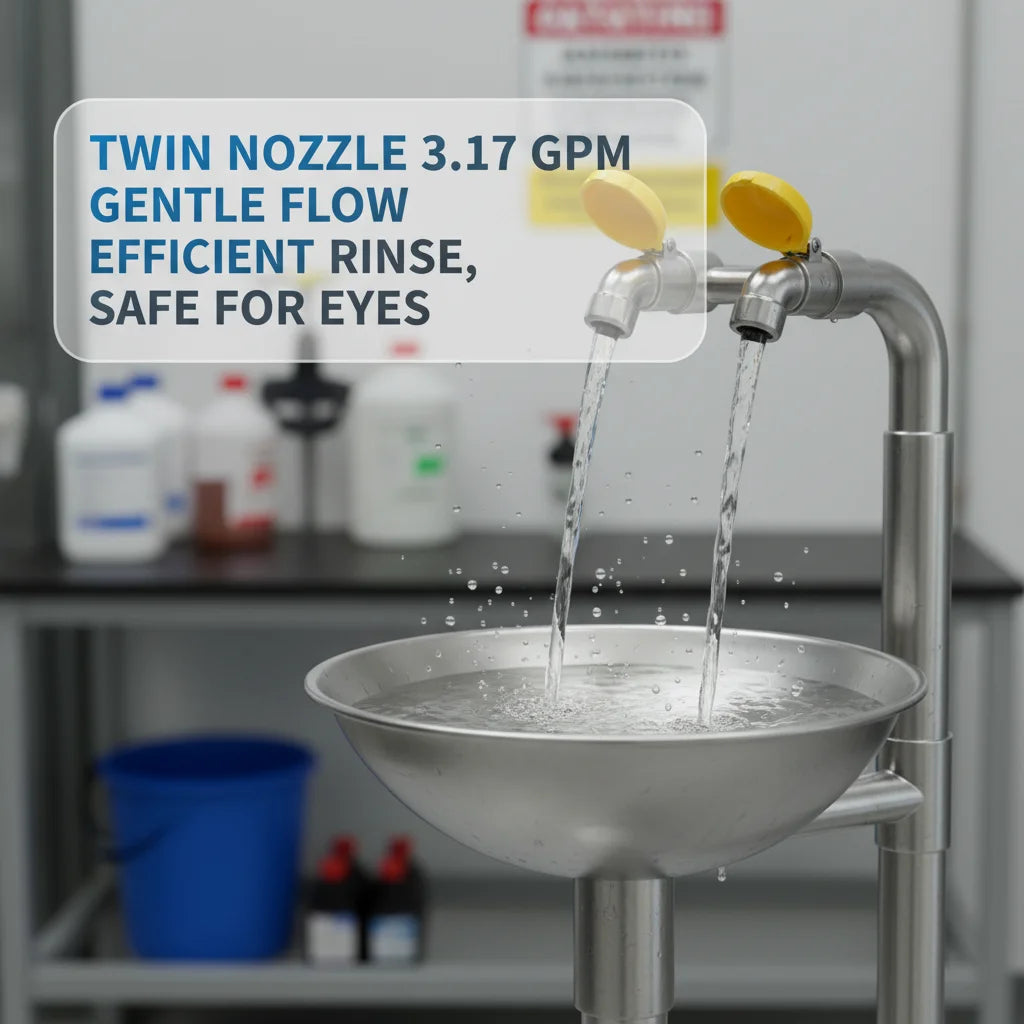

- Gentle 3.17 GPM (12 L/min) Water Flow – A smooth, controlled flow effectively rinses the eyes without causing additional discomfort or secondary irritation.

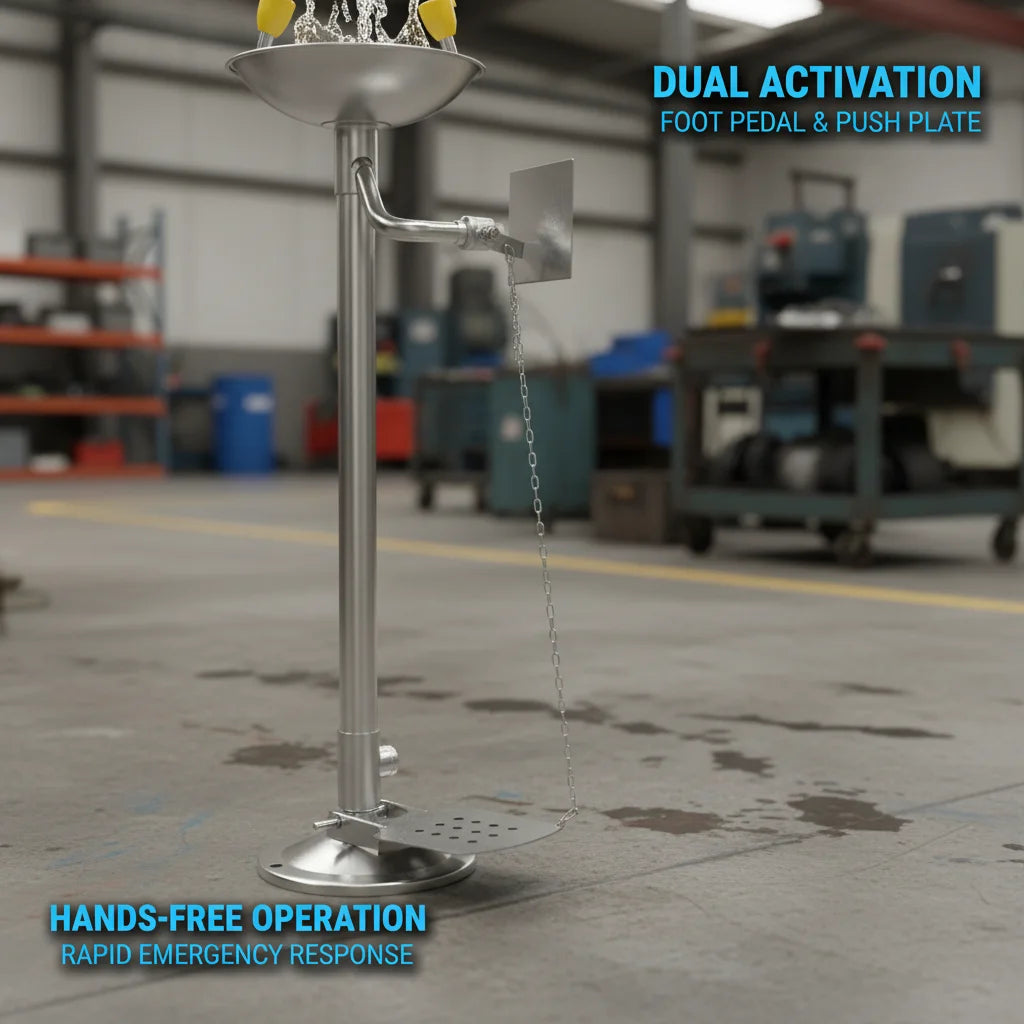

- Hands-Free Foot Pedal + Hand Push Plate (Dual Activation) – Wide, stable foot pedal allows immediate activation without using your hands; the push plate provides an alternative quick-activation option.
- Built-in Nozzle Filter & Dust Cap – Integrated filter removes water impurities, while the dust cap keeps the nozzle hygienic and clog-free when not in use.
- Compact Space-Saving Design – Only 8.27" base diameter; vertical floor-standing profile fits neatly into tight workspaces without compromising performance.
- High-Visibility Yellow Markings – Conspicuous color-coded signage ensures fast identification during emergencies for rapid response.
- Standard 1/2" Water Inlet – Simple plug-and-play connection to your existing water supply hose (not included); easy drainage with no complex plumbing required.
- Easy-Clean Surface – Smooth stainless steel wipes clean with a damp cloth in seconds.

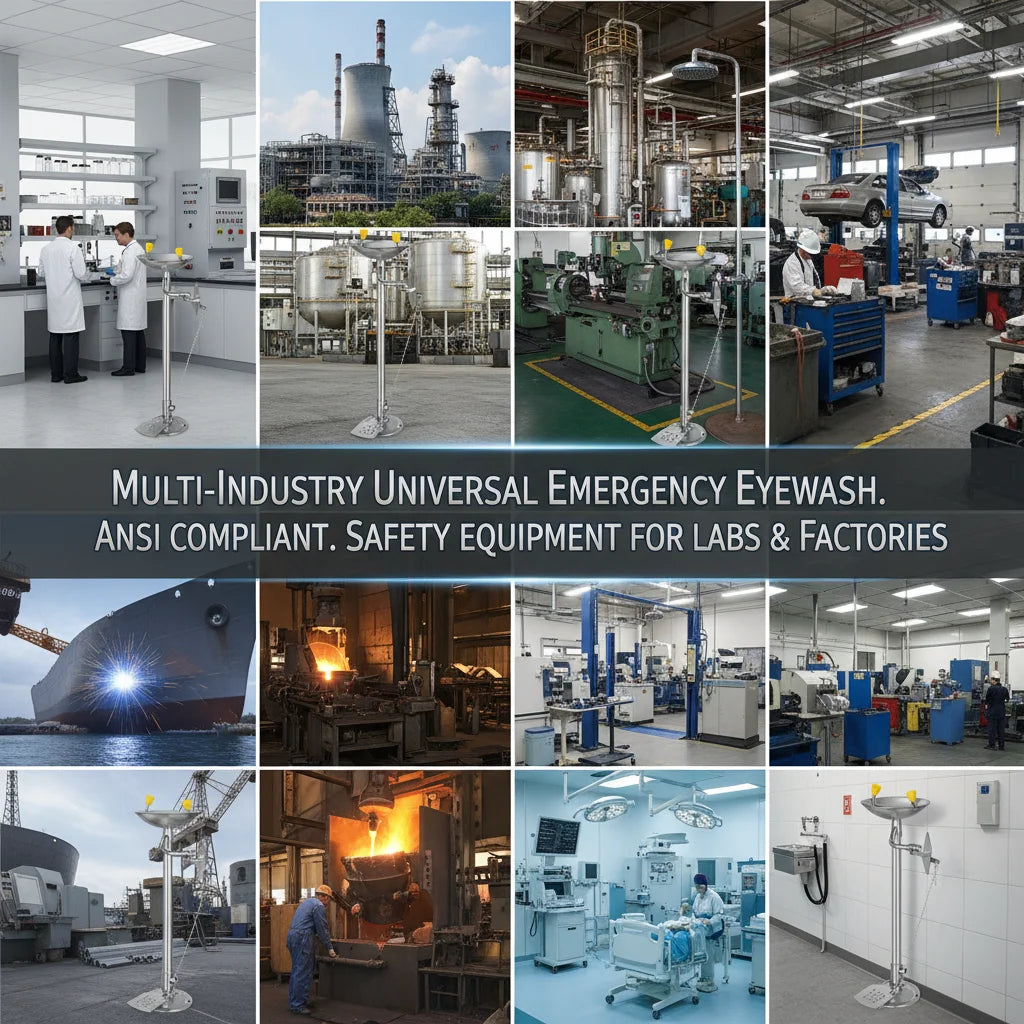

Applications
- 🧪 Laboratories, nuclear energy & petroleum facilities
- 🏭 Chemical plants, machinery manufacturing & automotive repair shops
- 🚢 Shipbuilding, casting, painting & printing industries
- 💊 Pharmaceutical, medical & general industrial workplaces
Specifications
| Material | 304 Stainless Steel |
| Color | Silver + Yellow |
| Mount Type | Floor Standing |
| Working Pressure | 0.2 – 0.4 MPa |
| Eyewash Flow Rate | 12 L/min (3.17 Gal/min) |
| Shower Head Flow Rate | 120 – 180 L/min (31.7 – 47.6 Gal/min) |
| Outlet Diameter | 1" |
| Inlet Diameter | 1/2" |

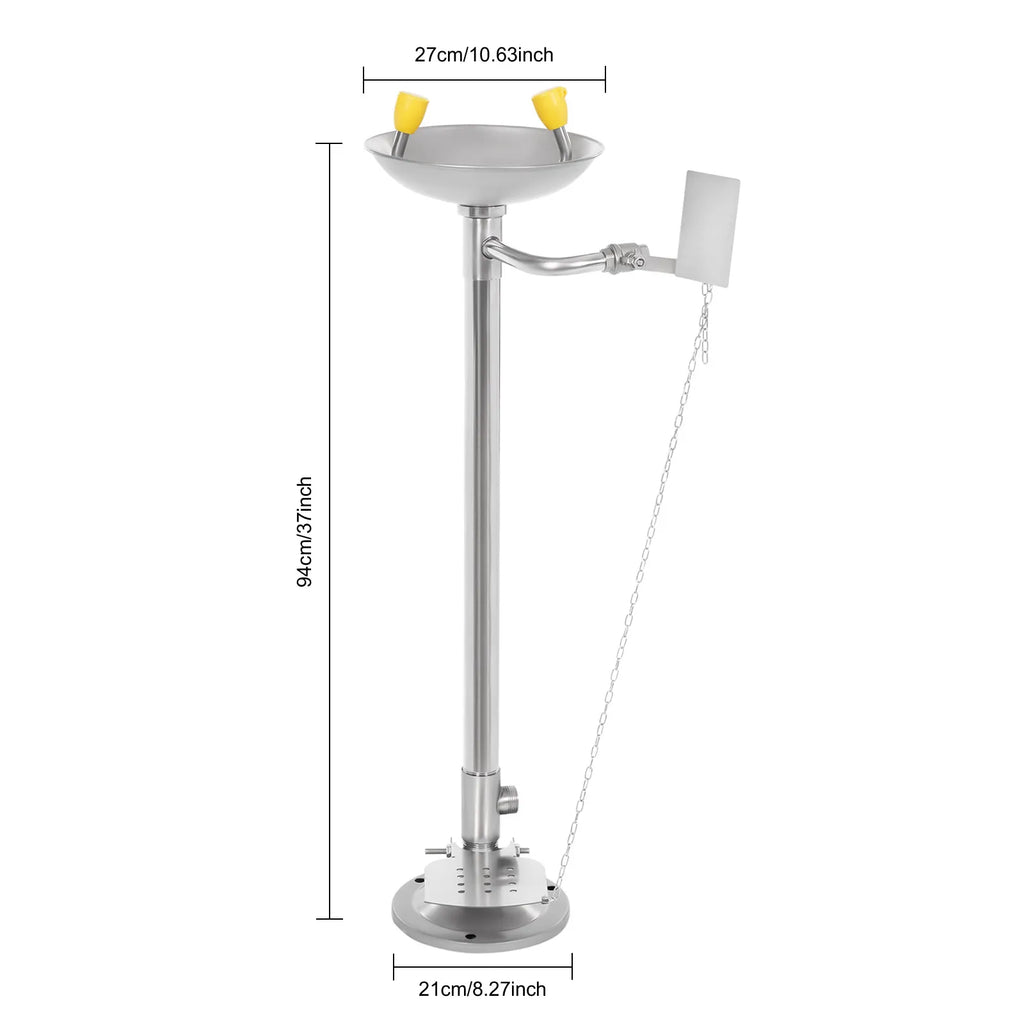

| Wash Basin Diameter | 27 cm / 10.63 in |
| Base Diameter | 21 cm / 8.27 in |
| Product Height | 94 cm / 37 in |
| Assembly Required | Yes (hardware included) |
| Package Dimensions | 63 × 32 × 16 cm / 24.8 × 12.6 × 6.3 in |
| Net Weight | 3.5 kg / 7.7 lbs |
| Gross Weight | 4 kg / 8.8 lbs |
| Country of Origin | Made in China |
What's in the Box
- 1 × Eyewash Station
- 1 × Foot Pedal
- Assembly hardware & accessories
Important Notes
- ⚠️ Recommended flushing duration: at least 15 minutes per use.
- ⚠️ Professional installation is recommended for optimal performance and compliance.
- ⚠️ Slight color variation or 1–3 cm measurement variance may occur due to manual measurement or display calibration differences.
- ⚠️ Water inlet hose is not included.
Safety Compliance Reference
For workplace eye safety standards and best practices, refer to the OSHA First Aid & Emergency Equipment Guidelines, which provide guidance on eyewash station requirements for industrial and laboratory environments.
Frequently Asked Questions
Q: Is this eyewash station ANSI compliant?
A: Yes. This floor-standing eyewash station is designed to meet ANSI Z358.1 standards for emergency eyewash and eye/face wash equipment, making it suitable for regulated industrial and laboratory environments.
Q: Does the foot pedal stay on once activated?
A: The foot pedal is designed to lock the water flow on once pressed, allowing the user to keep both hands free for flushing — a key safety feature for emergency use. Flow can be stopped manually when finished.
Q: What water supply connection does it require?
A: The station uses a standard 1/2" inlet. It connects directly to your facility's existing water supply hose (not included). The 1" outlet handles drainage. No complex plumbing is needed — installation is straightforward.
Q: What is the recommended maintenance routine?
A: It is recommended to activate and flush the eyewash station weekly to ensure the nozzles remain clear and water quality is maintained. Clean the stainless steel basin and surfaces with a damp cloth regularly. Replace or clean the nozzle filter periodically to ensure unobstructed, clean water flow.
