Stainless Steel Door Exit Push Button Switch for Access Control Systems
Upgrade your access control setup with this durable, professionally designed exit push button switch. Built with a brushed stainless steel panel and alloy button, this exit release switch delivers reliable, long-lasting performance for electronic gate locks, door access control systems, and secure entry points. Made in Mainland China.
Why Choose This Exit Button Switch?
- Premium Stainless Steel Panel: Metal-drawn panel with fine workmanship ensures a sleek, professional appearance that complements any modern door or wall installation.
- Laser-Marked Labeling: Permanent laser engraving means the button label will never fade, even with heavy daily use.
- Wide Temperature Tolerance: Engineered to perform in environments ranging from -10°C to 55°C (14°F–131°F), making it suitable for both indoor and outdoor access points.
-

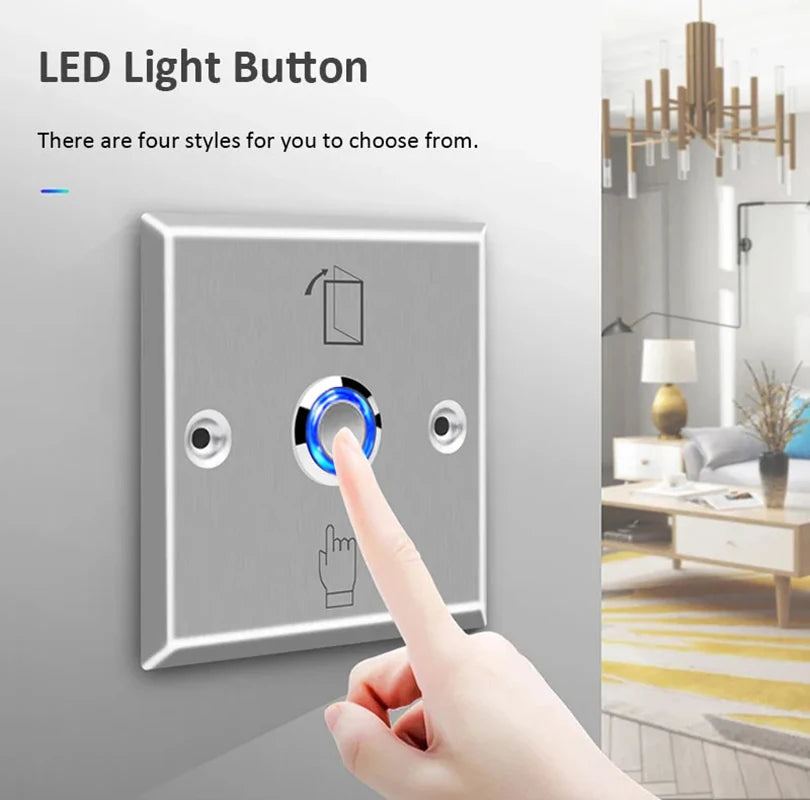

Intuitive LED Indicators: Three-color LED feedback keeps users and administrators informed at a glance:
- White LED: Power OFF
- Blue LED: Power ON (standby)
- Green LED: Power ON (activated)
- High Mechanical Lifespan: Tested to 500,000 press cycles for dependable, long-term operation.
- Simple Operation: Press to close, release to reset — intuitive for all users.
- Concealed Installation: Designed for clean, flush-mount concealed installation in hollow doors and standard wall boxes (86×86mm panel fits standard junction boxes).
Technical Specifications
| Model | E01 / E04 |
| Panel Material | Stainless Steel |
| Button Material | Alloy |
| Input Voltage | DC 12V – 24V |
| Contact Rating | 3A @ 36V DC Max |
| Output Contact | NO/COM or NO/NC/COM |

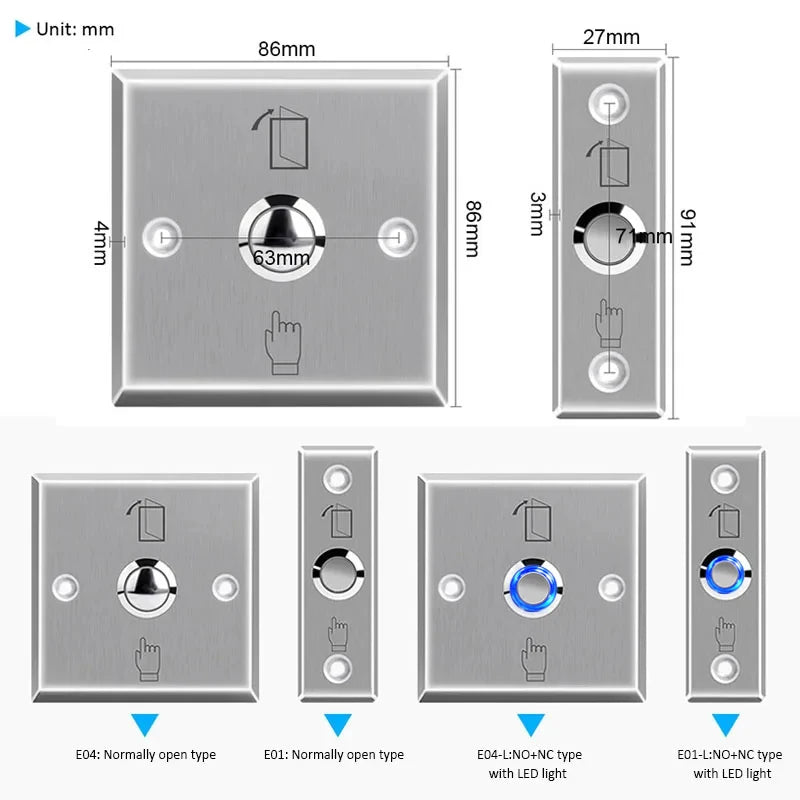

| Panel Size | 86 × 86 mm |

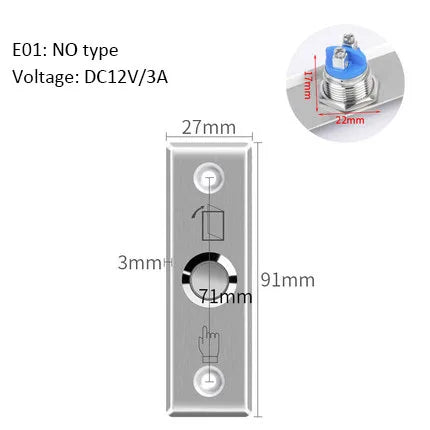

| Button Size | 91 × 27 mm |
| Installation | Concealed (Hollow Door) |
| Mechanical Life | 500,000 cycles |
| Working Temperature | -10°C to 55°C (14°F – 131°F) |
| Working Humidity | 0% – 95% RH |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1 × Exit Push Button Switch
Installation Note
Please allow 1–3mm variance due to manual measurement. Colors may vary slightly from product images depending on your display settings and lighting conditions.
For guidance on best practices for electronic access control and door security systems, visit the U.S. Consumer Product Safety Commission (CPSC) for consumer safety resources.
Frequently Asked Questions
Q: What access control systems is this exit push button switch compatible with?
A: This exit button switch is compatible with most standard electronic door access control systems, including electric strike locks, magnetic locks, and electronic gate locks that operate on DC 12V–24V. The NO/COM and NO/NC/COM output contacts make it versatile for a wide range of setups.
Q: How is this exit button switch installed?
A: The switch is designed for concealed installation, fitting neatly into hollow door frames or standard 86×86mm wall junction boxes. It provides a clean, flush-mounted finish with no exposed wiring visible after installation.
Q: How durable is this push button switch for high-traffic areas?
A: This exit button has been tested to 500,000 mechanical press cycles, making it well-suited for high-traffic commercial or residential access points. The stainless steel panel and alloy button construction ensure long-term resilience against wear, temperature extremes, and humidity levels up to 95% RH.
