LUCKING DOOR Embedded Metal Cable Protector Wire Tube – 304 Stainless Steel Door Loop for Intercom & Access Control Systems
Keep your intercom and door access control wiring secure, tidy, and fully protected with this heavy-duty embedded metal cable protector tube from LUCKING DOOR. Crafted from premium 304 stainless steel, this door loop tube is designed to be embedded directly into door frames, allowing cables and wires to pass cleanly between the door and frame without exposure to wear, pinching, or damage caused by repeated opening and closing.
Whether you're installing a video intercom system, electric strike, magnetic lock, or card reader, this cable protector ensures a clean, professional finish while safeguarding your wiring investment over the long term.
Key Features

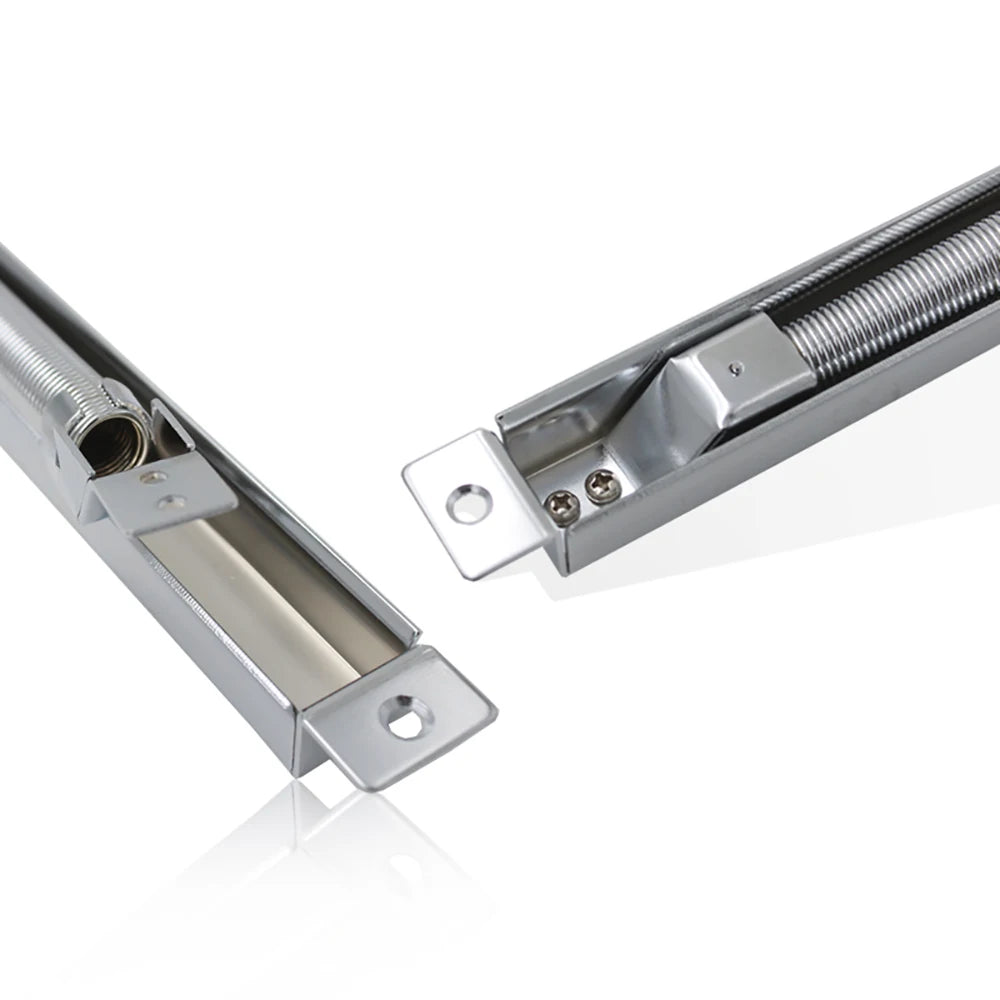

- Premium 304 Stainless Steel Construction – Corrosion-resistant and built to last in both indoor and outdoor door installations.
- 11mm Inner Diameter – Accommodates up to three 6mm diameter mesh wires simultaneously for versatile wiring configurations.

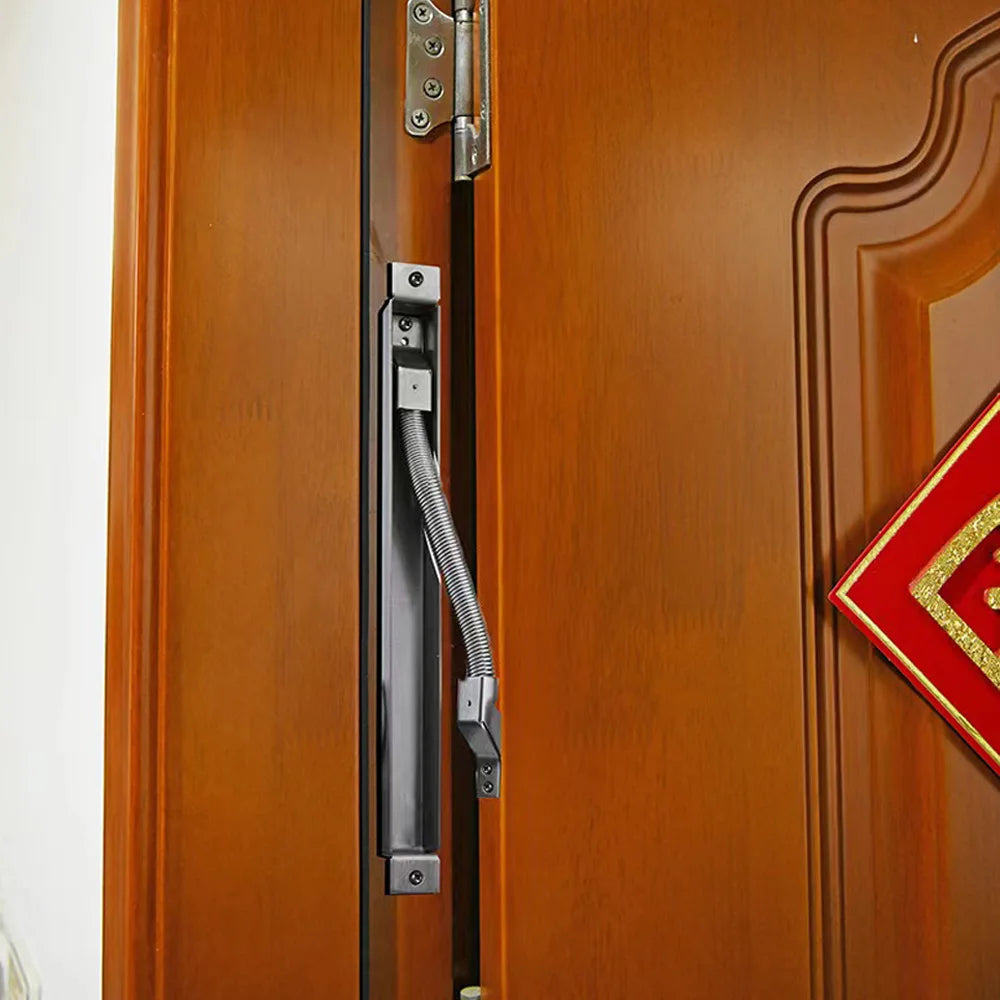

- Embedded Design – Mounts flush into the door frame for a clean, professional appearance with no exposed cables.
- Compact & Precise Dimensions – Product size: 290mm (L) × 21mm (W) × 24mm (H); perfectly sized for standard door frame installations.
- Universal Compatibility – Ideal for intercom systems, access control readers, electric locks, and other door-mounted wiring applications.
- Model Number: 601S – Easy to reference for replacement or multi-unit installations.
- No High-Concern Chemicals – Safe for installation in residential and commercial environments.
Specifications
| Material | 304 Stainless Steel |
| Model Number | 601S |
| Inner Diameter | 11mm |
| Wire Capacity | Three 6mm diameter mesh wires |
| Product Size | 290mm (L) × 21mm (W) × 24mm (H) |
| Box Size | 300mm (L) × 31mm (W) × 22mm (H) |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Video intercom and doorbell wiring
- Electric strike and magnetic lock cable management
- Card reader and keypad wiring for access control systems
- Commercial, residential, and multi-tenant building installations
For guidance on best practices in electrical wiring safety and installation standards, visit OSHA's Electrical Safety Guidelines.
Frequently Asked Questions
Q: What type of wires can pass through this stainless steel door loop cable protector tube?
A: This door loop tube has an 11mm inner diameter and is designed to accommodate up to three 6mm diameter mesh wires simultaneously. It is compatible with typical intercom cables, access control wiring, and electric lock cables used in standard door installations.
Q: Is this door loop cable protector tube suitable for outdoor use?
A: Yes. The tube is made from 304 stainless steel, which provides excellent corrosion resistance, making it suitable for both indoor and outdoor door frame installations including entrances exposed to moisture or varying temperatures.
Q: How is this cable protector tube installed in a door frame?
A: The tube is designed to be embedded (recessed) directly into the door frame. A channel is routed into the frame to fit the tube's dimensions (290mm × 21mm × 24mm), the tube is inserted flush, and cables are then threaded through before connecting to the access control or intercom components. This results in a clean, professional finish with no visible wiring.
Q: What is the brand and model number of this product?
A: This product is manufactured by LUCKING DOOR under model number 601S. It is a reliable and widely used component in professional door access control and intercom installations.
