Stainless Steel Door Loop Cable Protection Sleeve | Access Control
Stainless Steel Door Loop Cable Protection Sleeve | Access Control

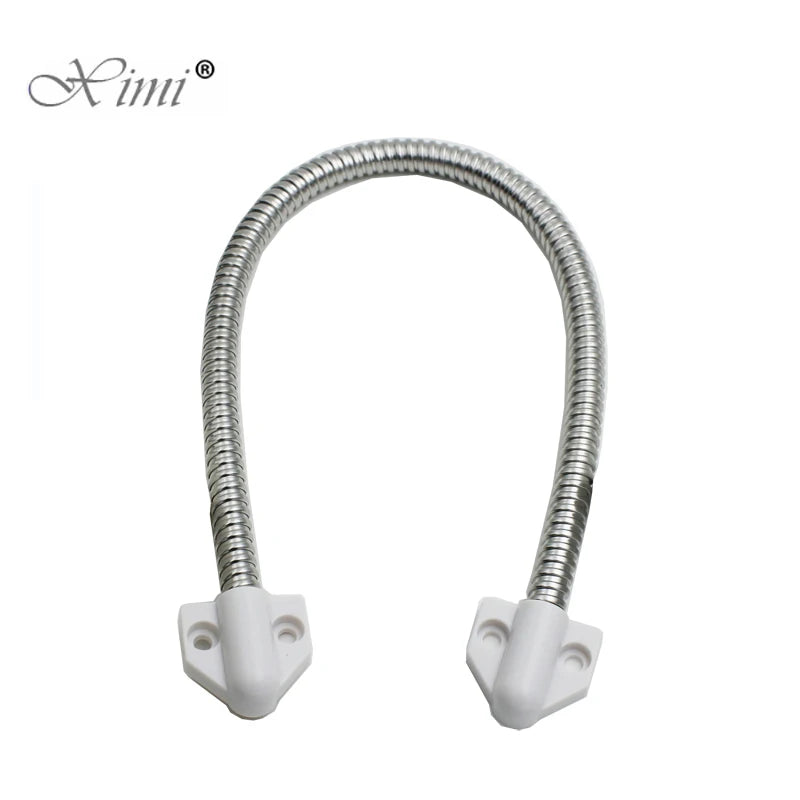

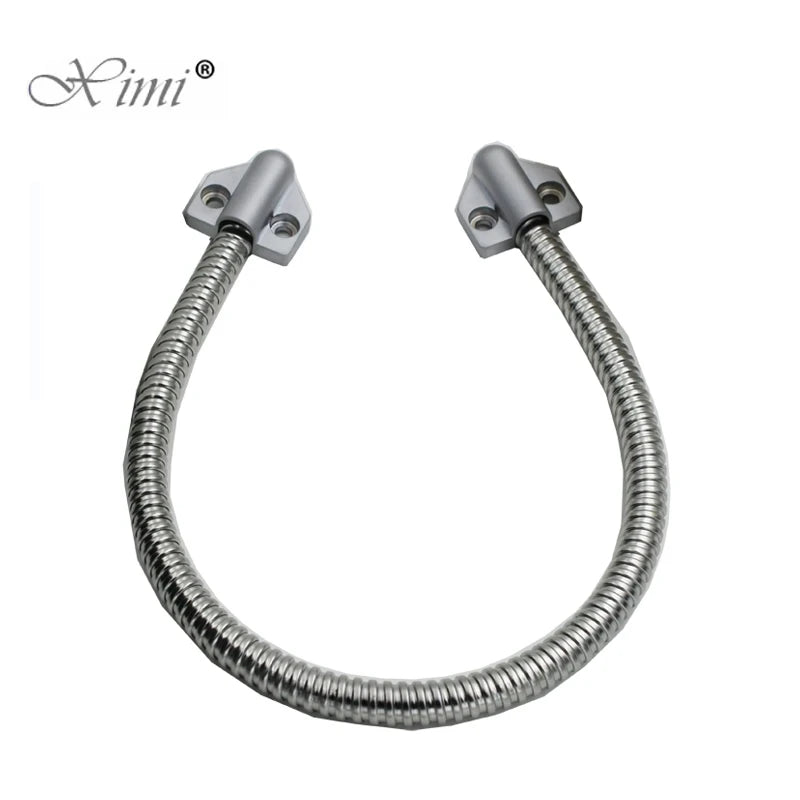

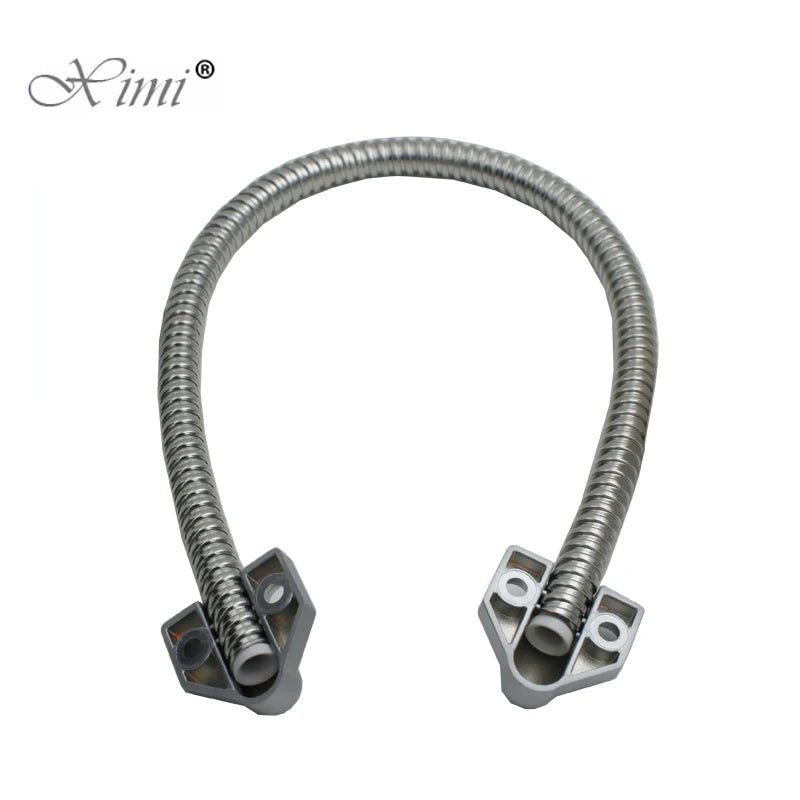

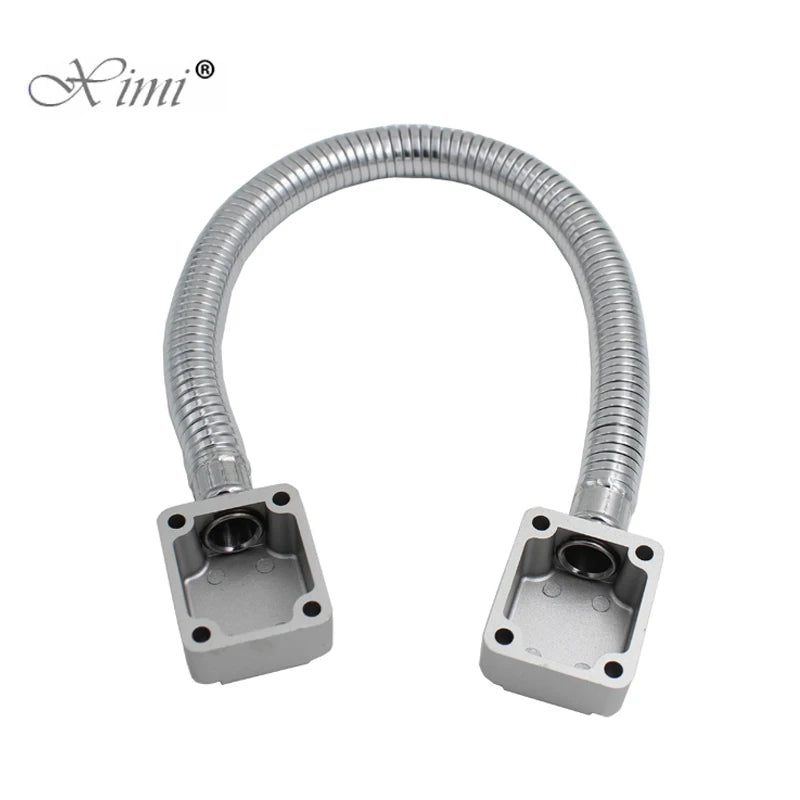

Door Loop Exposed Mounting Wire Protection Sleeve
Keep your access control wiring secure, tidy, and tamper-resistant with this heavy-duty Stainless Steel Door Loop Cable Protection Sleeve. Designed for exposed doorframe mounting, this wire protector routes cables neatly through the gap between the door and frame, safeguarding connections for electric locks, door sensors, alarm switches, and access control systems. The flexible stainless steel hose resists bending fatigue while the high-temperature painted shell delivers a clean, professional finish that suits any commercial or residential entry point. Made in Mainland China.
Why Choose This Door Loop?
- Tamper-Resistant Construction: Stainless steel hose body protects cables from accidental or intentional damage at the door gap.
- Neat, Professional Appearance: High-temperature painted shell and flame-retardant or metal/zinc-alloy heads give a polished, finished look to any installation.
- Multiple Models Available: Choose from G200, G200L, G210, G210L, G220, G221, G222, G231 — varying diameters and lengths to fit your specific door and cable requirements.
- Wide Compatibility: Works with electric locks, magnetic locks, door sensors, alarm switches, and general access control cable runs.
- CE Certified: Meets European conformity standards for safety and quality.
- Easy Installation: Exposed mounting design makes setup straightforward — no special tools required.
- Lightweight: Most models weigh only 0.15–0.2 kg, making handling and installation effortless.

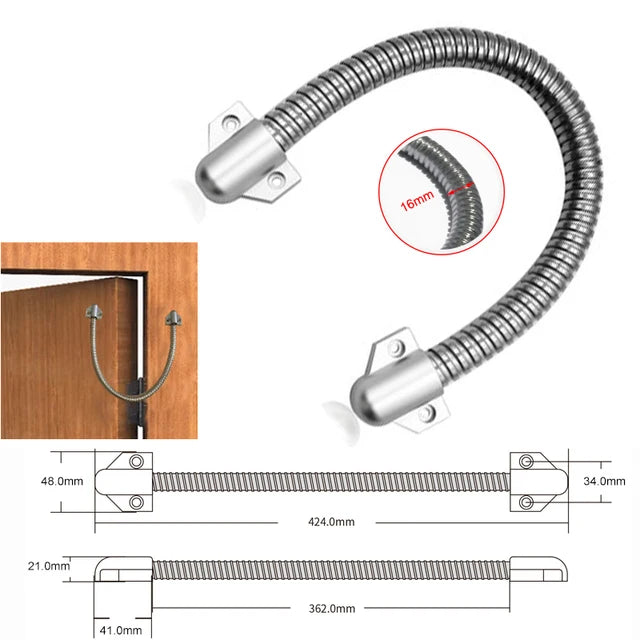

Model Specifications
| Model | Hose Material | Head Material | Dimensions (mm) | Weight |
|---|---|---|---|---|
| G200 | Stainless Steel | Flame Retardant Plastic | 482 × 10 DIA | 0.2 kg |
| G200L | Stainless Steel | Flame Retardant Plastic | 482 × 16 DIA | 0.2 kg |
| G210 | Stainless Steel | Metal | 468 × 10 DIA | 0.2 kg |
| G210L | Stainless Steel | Zinc Alloy | 468 × 13 DIA | 0.2 kg |
| G220 | Stainless Steel | Flame Retardant Plastic | 424 × 8 DIA | 0.15 kg |
| G221 | Stainless Steel | Flame Retardant Plastic | 424 × 10 DIA | 0.15 kg |
| G222 | Stainless Steel | Flame Retardant Plastic | 424 × 16 DIA | 0.15 kg |
| G231 | Stainless Steel | Zinc Alloy | 424 × 8 DIA | 0.15 kg |
Key Specifications
- Brand: Ximiir
- Certification: CE
- Hose Material: Stainless Steel
- Head Materials: Flame Retardant Plastic / Metal / Zinc Alloy (model dependent)
- Shell Finish: High-temperature paint
- Country of Origin: Made in Mainland China
Ideal Applications
- Access control system cable routing
- Electric lock and magnetic lock wiring
- Door sensor and alarm switch cable management
- Commercial entrances, office doors, and residential security doors
For general information on physical security standards and best practices for access control installation, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What is a door loop cable protection sleeve used for?
A: A door loop cable protection sleeve is a flexible armored conduit that routes and shields wiring — such as access control cables, electric lock wires, or door sensor lines — through the gap between a door and its frame. It prevents wires from being pinched, cut, or tampered with during normal door operation or by unauthorized individuals.
Q: How do I choose the right model (G200, G210, G220, G231, etc.)?
A: Select your model based on the diameter and length you need. G200/G200L series measures 482 mm in length; G210/G210L is 468 mm; and G220/G221/G222/G231 are 424 mm long. Diameters range from 8 mm to 16 mm. Choose a larger diameter if you need to route multiple cables or thicker wire bundles. Head material (plastic, metal, or zinc alloy) affects durability and aesthetics.
Q: Is this door loop compatible with standard access control and electric lock systems?
A: Yes. This door loop protection sleeve is designed to work with a wide range of security hardware, including electric strikes, magnetic locks, door sensors, alarm switches, and general access control wiring. Its exposed mounting design fits most standard door and frame configurations.
Q: Is the door loop easy to install?
A: Absolutely. The exposed mounting design means you simply secure the sleeve to the door and frame using the provided mounting points — no special tools or complex routing is required. The flexible stainless steel hose allows for smooth cable movement as the door opens and closes, and the neat finish enhances the overall appearance of the installation.
Q: Is this product CE certified?
A: Yes, this door loop cable protection sleeve carries CE certification, indicating it meets the safety and quality requirements applicable in the European market.
