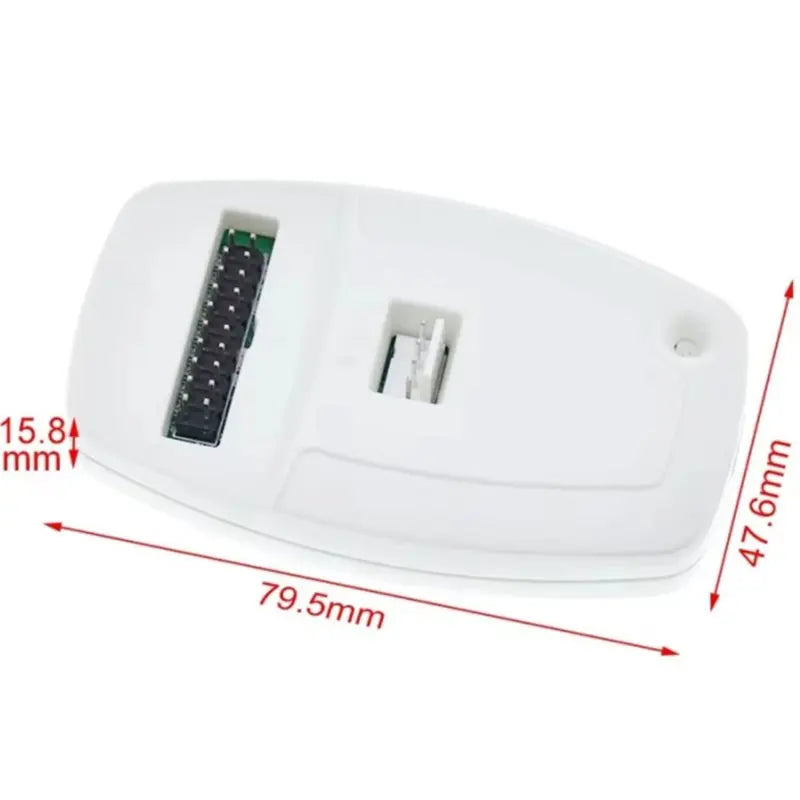

ST-LINK V2 Emulator & Programmer for STM8 STM32
ST-LINK V2 Emulator & Programmer for STM8 STM32
ST-LINK V2 Emulator & Programmer — STM8 & STM32 Development Tool
Take your embedded development to the next level with the ST-LINK V2 Emulator and Programmer. This compact, versatile debugging and programming tool supports the full STM8 and STM32 microcontroller families, integrates seamlessly with all major IDEs, and even includes a built-in Virtual COM Port — making it an essential addition to any electronics workbench or firmware development setup.
Made in Mainland China.
Key Features
- Powerful In-Circuit Debugging: Supports full-speed debugging for STM32 Cortex-M core series — set breakpoints, perform single-step execution, and inspect or modify registers and memory variables in real time.
- IDE Compatibility: Works seamlessly with STM32CubeIDE, IAR Embedded Workbench, Keil MDK, and ST-LINK Utility right out of the box.
- Efficient Flash Programming: Programs STM8 and STM32 families via SWIM, JTAG, and SWD interfaces. High-speed Flash memory programming speeds up your development and production workflow. Supports chip erase, program, verify, and read-protection configuration.
- Integrated Virtual COM Port (VCP): Built-in USB-to-TTL serial interface eliminates the need for a separate USB-to-UART adapter — enabling easy serial communication with your target board for debugging and data logging.
- Broad MCU Support: Compatible with STM32 series (F0, F1, F2, F3, F4, F7, H7, L0, L1, L4, L5, G0, G4, and more) and STM8 series microcontrollers.
- Cross-Platform OS Support: Works on Windows, Linux, and macOS — no platform lock-in.
- Material & Color: White plastic housing — lightweight and durable.
Specifications
- Type: ST-LINK V2 Emulator / Programmer
- Supported Interfaces: SWIM, JTAG, SWD
- Supported MCU Families: STM8, STM32 (all major sub-families)
- VCP Function: Yes (integrated USB-to-TTL)
- Color: White
- Material: Plastic
- Country of Origin: Mainland China
Package Contents
- 1 × ST-LINK V2 Emulator Kit
Note: Due to lighting and display variations, the actual product color may differ slightly from the images. Measurement tolerance is ±1–3 cm.
For general guidance on electronics safety and best practices in embedded development environments, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Which microcontrollers does the ST-LINK V2 programmer support?
A: The ST-LINK V2 supports the full STM32 family (including F0, F1, F2, F3, F4, F7, H7, L0, L1, L4, L5, G0, G4 series) and the complete STM8 family. It connects via SWIM (for STM8) and JTAG/SWD (for STM32).
Q: Does the ST-LINK V2 work on macOS and Linux as well as Windows?
A: Yes — the ST-LINK V2 is compatible with Windows, Linux, and macOS. It integrates with popular development environments including STM32CubeIDE, Keil MDK, and IAR Embedded Workbench on all three platforms.
Q: What is the Virtual COM Port (VCP) feature and do I need extra hardware for it?
A: The integrated VCP provides a USB-to-TTL serial interface directly on the ST-LINK V2. This means you do not need a separate USB-to-UART adapter — simply connect to your target board and use any serial terminal to send and receive data for debugging or data logging.
Q: Is this ST-LINK V2 compatible with the official STM32 ST-LINK Utility software?
A: Yes, it is fully compatible with the official STM32 ST-LINK Utility as well as all ST and third-party tools built on ST-LINK technology, making it straightforward to erase, program, verify, and set read protection on your target device.
