SPH0645LM4H MEMS Digital Microphone Breakout Board — GY-SPH0645
Capture crisp, high-fidelity digital audio in your next electronics project with the GY-SPH0645 MEMS Microphone Breakout Module. Built around the SPH0645LM4H sensor, this compact board delivers a clean I²S (Inter-IC Sound) digital output — no analog-to-digital conversion required. Whether you're building a voice-controlled device, audio recorder, or sound-detection application, this module is an ideal starting point for Arduino, Raspberry Pi, and other microcontroller platforms.
Key Features
- High-Performance MEMS Microphone: SPH0645LM4H chip provides accurate, low-noise digital audio capture.
- I²S Digital Output: Direct digital audio stream — no extra ADC circuitry needed, reducing noise and complexity.

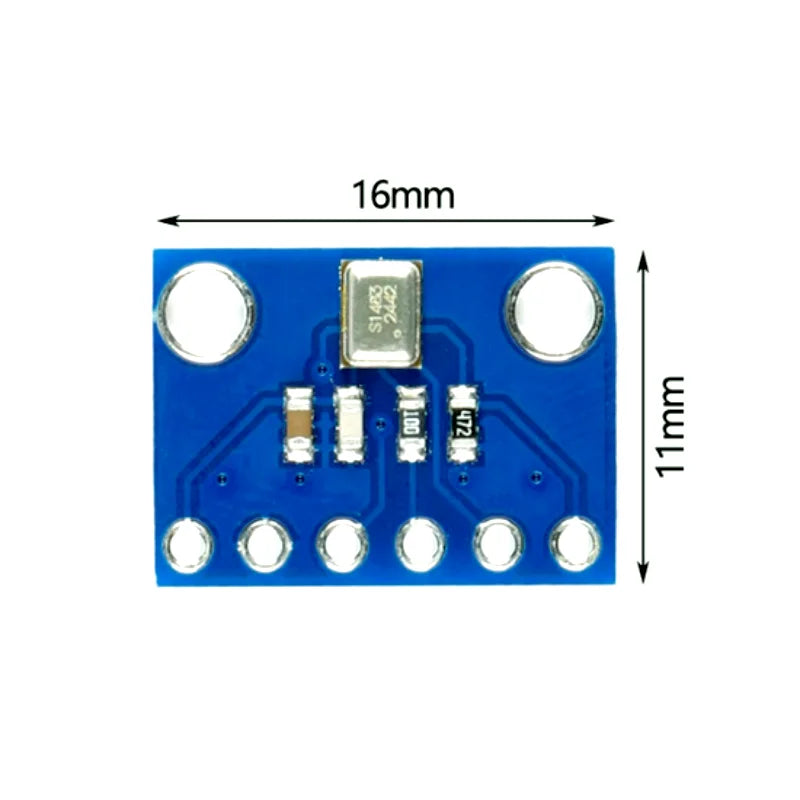

- Compact Breakout Design: Breadboard-friendly PCB with clearly labeled pins for quick prototyping.
- Wide Compatibility: Works with Arduino, Raspberry Pi, ESP32, and other I²S-capable microcontrollers.
- Low Power Consumption: Ideal for battery-powered and embedded applications.
- No High-Concern Chemicals: Free of restricted substances for safer handling and use.
Technical Specifications
- Model: GY-SPH0645 / SPH0645LM4H
- Interface: I²S (Inter-IC Sound) digital audio
- Microphone Type: MEMS (Micro-Electro-Mechanical System)
- Operating Voltage: 3.3V / 5V compatible (check your specific board)
- Output Format: 24-bit digital audio
- Country of Origin: Made in Mainland China
What's in the Box

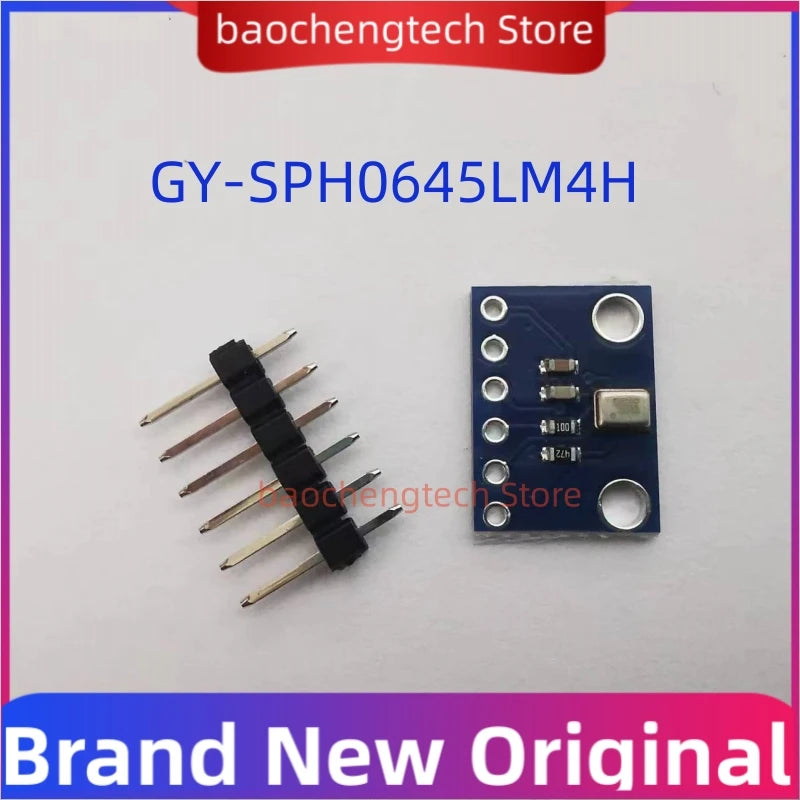

- 1× GY-SPH0645 MEMS Microphone Breakout Board
Who Is This For?
This module is perfect for electronics hobbyists, makers, engineers, and students who want to add high-quality digital microphone input to their projects without the complexity of analog audio circuits. Use it for voice recognition, sound logging, audio visualization, or any application requiring a reliable digital microphone input.
Learn More About Electronics Prototyping
For information on electrical and electronic component safety standards, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Is the SPH0645 MEMS Microphone Breakout Module compatible with Arduino?
A: Yes! The GY-SPH0645 module is designed to work with Arduino boards that support I²S digital audio input, as well as Raspberry Pi, ESP32, and other microcontrollers with I²S capability. Sample code and libraries are widely available in the maker community.
Q: What is the difference between I²S and analog microphone modules?
A: I²S (Inter-IC Sound) is a digital serial bus interface standard used for connecting digital audio devices. Unlike analog microphone modules, the SPH0645 outputs a direct digital audio stream, which means less susceptibility to electrical noise and no need for a separate analog-to-digital converter (ADC) in your circuit.
Q: What voltage does the GY-SPH0645 module operate at?
A: The module is designed for use with 3.3V systems, which is typical for most modern microcontrollers. Always check the specific pinout and datasheet for your board to ensure safe and correct operation.
Q: Can this module be used for voice recognition projects?
A: Absolutely. The clean I²S digital output and high-quality MEMS microphone make the GY-SPH0645 a great choice for voice recognition, sound detection, audio recording, and other sound-sensitive applications in your DIY electronics projects.
