SMT SMD Soldering Practice Board DIY Kit – Build Real Electronics Skills
Take your electronics knowledge from theory to hands-on mastery with this SMT SMD Soldering Practice Board DIY Kit. Designed for students, hobbyists, and newly minted engineers, this compact PCB gives you a realistic, risk-free environment to sharpen your surface-mount soldering technique across a wide range of component packages — from the beginner-friendly 1206 all the way to fine-pitch SOP16 ICs.
Why This Kit?
In real-world product development, the vast majority of components are surface-mount devices (SMD). Manual soldering skills are essential during R&D sample debugging. Whether you're a student just starting out or an engineer looking to level up, this board lets you practice the exact skills demanded on the job — without risking expensive production hardware.
Key Features
- Practical Skill Development: Work with genuine SMD package sizes (1206, 0805, 0603, SOT-23, SOP16) to build real, transferable soldering competence.
- Realistic Circuit Layout: The PCB mirrors actual production board layouts, helping you understand circuit design fundamentals and proper component placement.
- Fault-Finding Practice: The board's design exposes common assembly issues — short circuits, open circuits, and poor solder joints — so you can practice diagnosing and correcting them.
- Hands-On Learning: Nothing beats doing. Soldering real components builds muscle memory, confidence, and genuine competence in electronic assembly.
- Broad Component Exposure: Work with resistors, capacitors, diodes, transistors, and an IC chip — expanding your understanding of each component's role in a circuit.
What You Can Solder

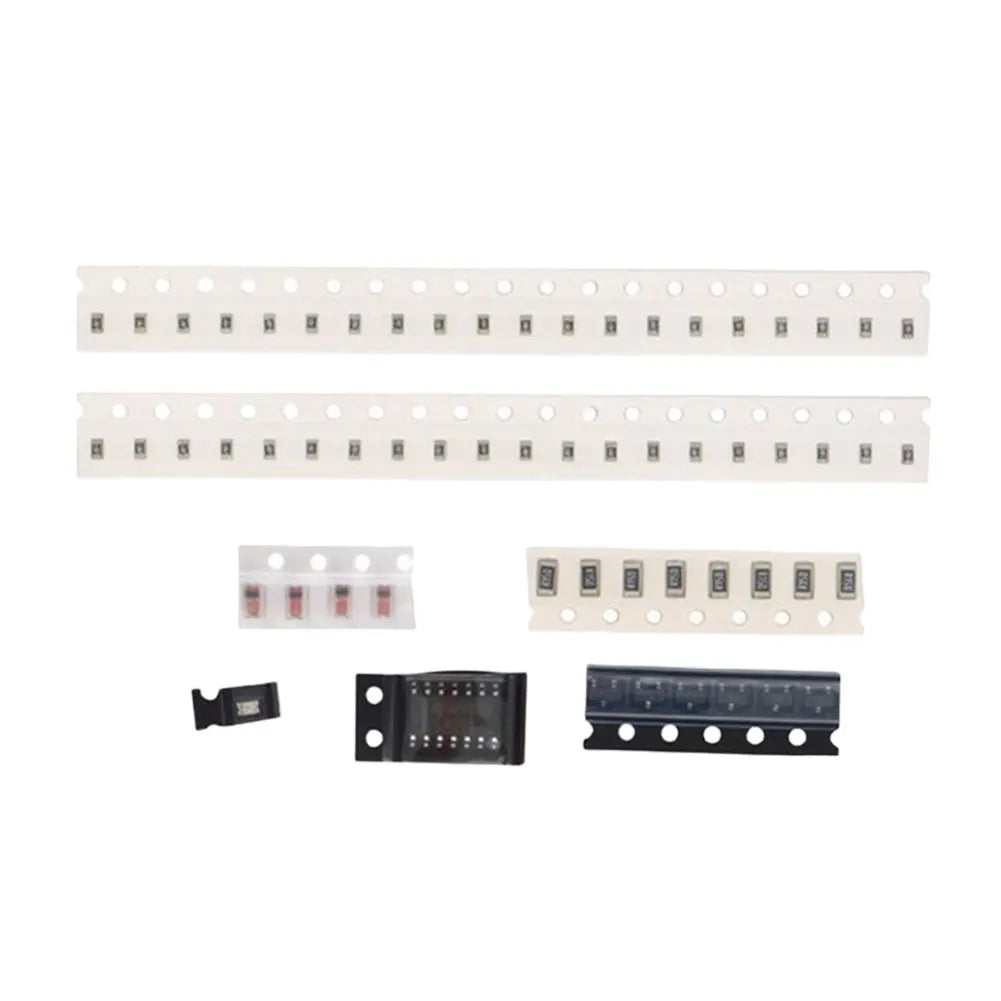

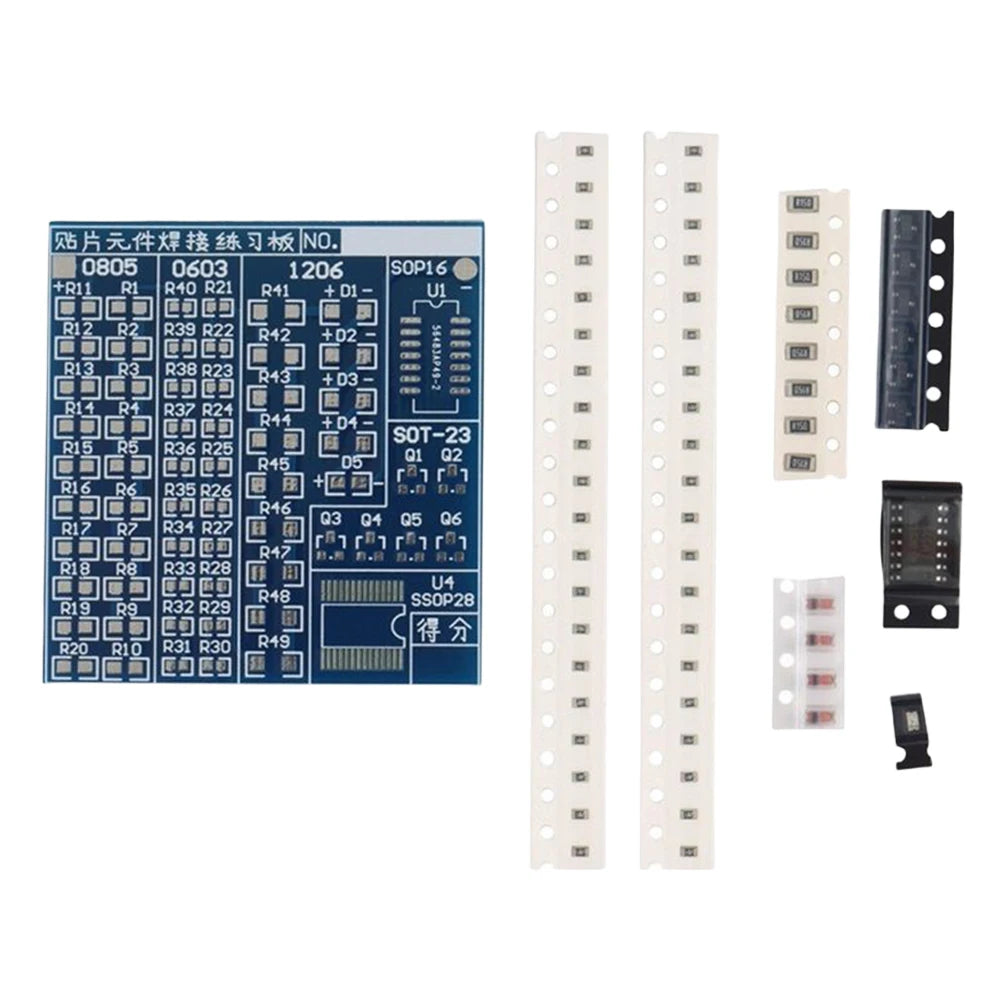

- 20 × Resistors in 0805 package
- 20 × Resistors in 0603 package
- 10 × Resistors in 1206 package
- 4 × Diodes in 1206 package
- 1 × LED in 0805 package
- 6 × Transistors in SOT-23 package
- 1 × IC Chip in SOP16 package (0.127 mm pin pitch)
Specifications
- Board Size: 51 × 49 mm (approx. 2.01 × 1.93 in)
- Component Packages: 1206, 0805, 0603, SOT-23, SOP16
- Made in Mainland China
Package Contents
- 1 × SMT SMD Soldering Practice Board DIY Kit
Note: Colors may vary slightly from images due to monitor settings and lighting. Please allow ±1–2 cm measuring tolerance due to manual measurement.
For a broader look at electronics safety and best practices when working with soldering equipment, visit the U.S. Consumer Product Safety Commission (CPSC). Workplace soldering safety guidelines are also available from OSHA's soldering resources.
Frequently Asked Questions
Q: Is this SMT SMD soldering practice board suitable for complete beginners?
A: Absolutely. The kit includes multiple package sizes starting with the larger, more forgiving 1206 footprint, making it ideal for beginners who are just learning to solder SMD components. As your confidence grows, you can progress to the finer 0603 and SOP16 packages on the same board.
Q: Does the kit come with solder or a soldering iron?
A: The kit includes the SMD practice PCB with components to be soldered. A soldering iron, solder wire, flux, and tweezers are recommended but sold separately. For SMD work, a fine-tip iron with temperature control is strongly recommended.
Q: What skill level is needed to solder the SOP16 IC chip on this board?
A: The SOP16 chip (0.127 mm pin pitch) is the most challenging component on the board and is intended for intermediate to advanced practice. We recommend completing the resistor and capacitor pads first before attempting the IC, so you can build technique progressively.
Q: Can this board be used more than once?
A: The board is a single-use practice kit — once components are soldered on, you can practice desoldering and re-soldering on the same pads to further develop your skills. It's a great way to practice both assembly and rework techniques.
