10Pcs SMT Pogo Pin Connectors – Spring Loaded Contact Needles for PCB Testing & Battery Contacts

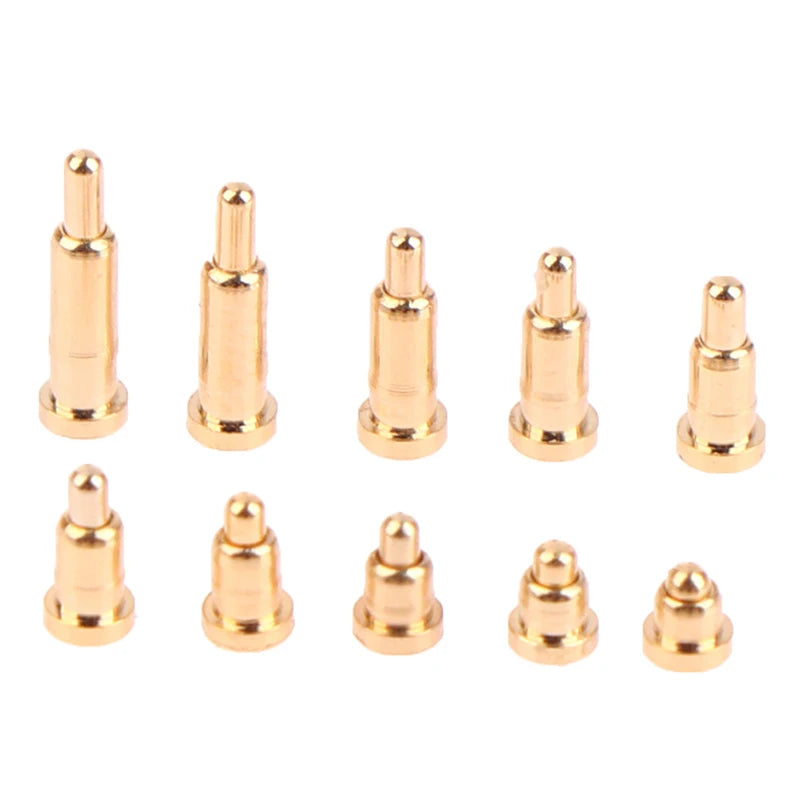

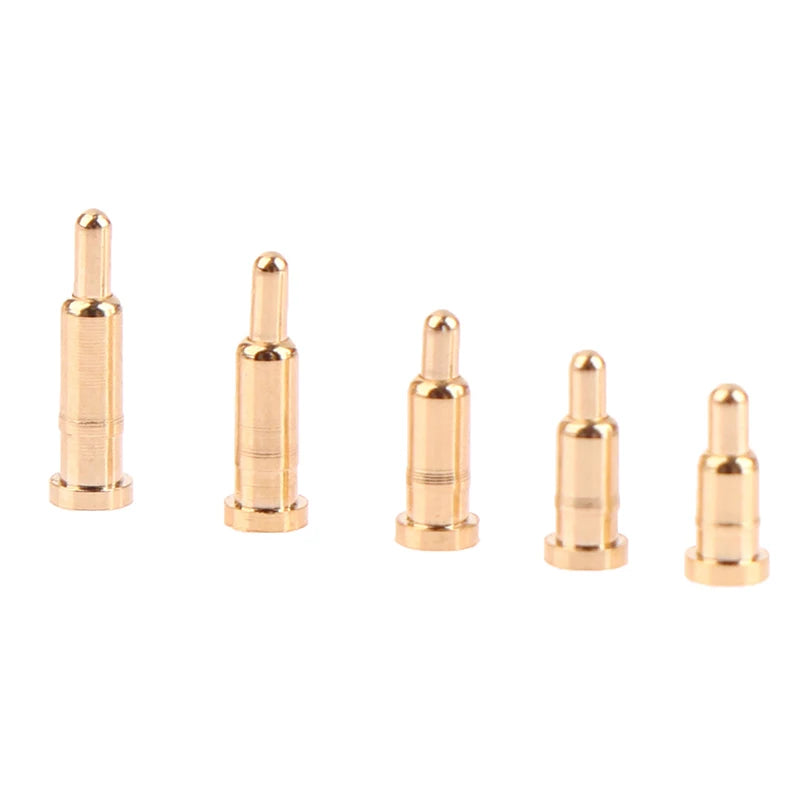

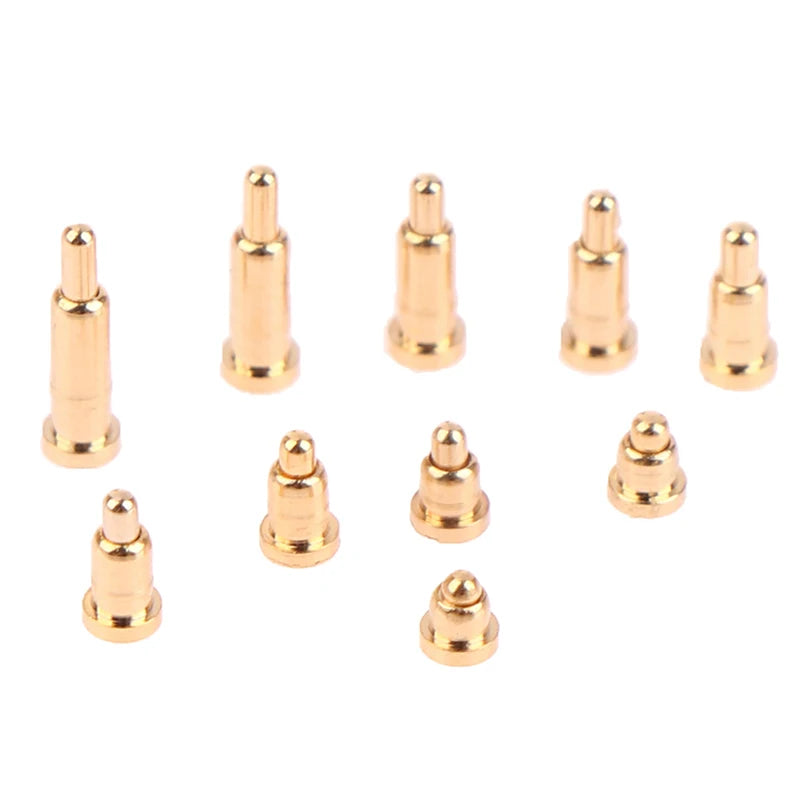

Upgrade your electronics projects with these precision-engineered SMT Pogo Pin Connectors. Available in a wide range of sizes — 2.0 / 3 / 3.5 / 4 / 4.5 / 5 / 5.5 / 6.5 / 7mm — these spring-loaded contact needles deliver reliable, low-resistance electrical connections for PCB testing, battery contacts, programming jigs, and general prototyping work. Each pack contains 10 pieces, giving you a ready supply for multiple applications.
Key Features
- High-Quality Brass Construction: Durable brass body ensures excellent conductivity and long service life.
- Spring-Loaded Design: Consistent contact force of 80±20 gf keeps connections stable even with surface irregularities.
- Low Contact Resistance: <30 mΩ contact resistance for minimal signal loss and accurate test results.
- Reliable Current Handling: Supports continuous current of 1A and instantaneous current of 3A.
- Multiple Size Options: Choose from 2.0, 3, 3.5, 4, 4.5, 5, 5.5, 6.5, or 7mm lengths to suit your specific application.
- Versatile Applications: Ideal for PCB test probes, battery spring contacts, SMT connectors, charging pins, and prototyping jigs.
- Pack of 10: Convenient multi-pack value for hobbyists, engineers, and makers.
Technical Specifications
| Material | Brass |
| Spring Force (Elasticity) | 80 ± 20 gf |
| Continuous Current | 1A |
| Instantaneous Current | 3A |
| Contact Resistance | < 30 mΩ |

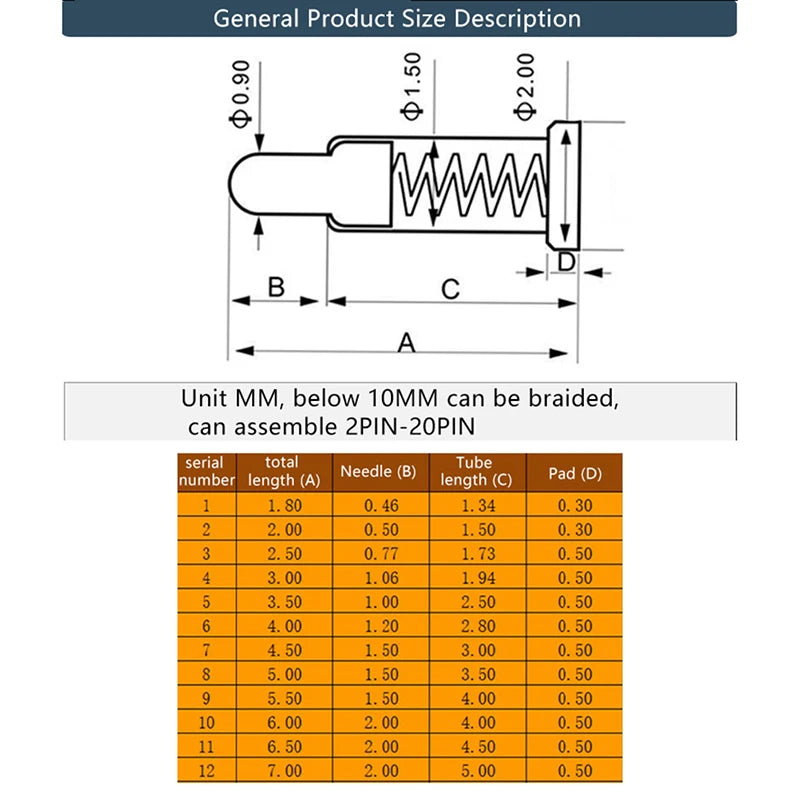

| Available Sizes | 2.0 / 3 / 3.5 / 4 / 4.5 / 5 / 5.5 / 6.5 / 7mm |

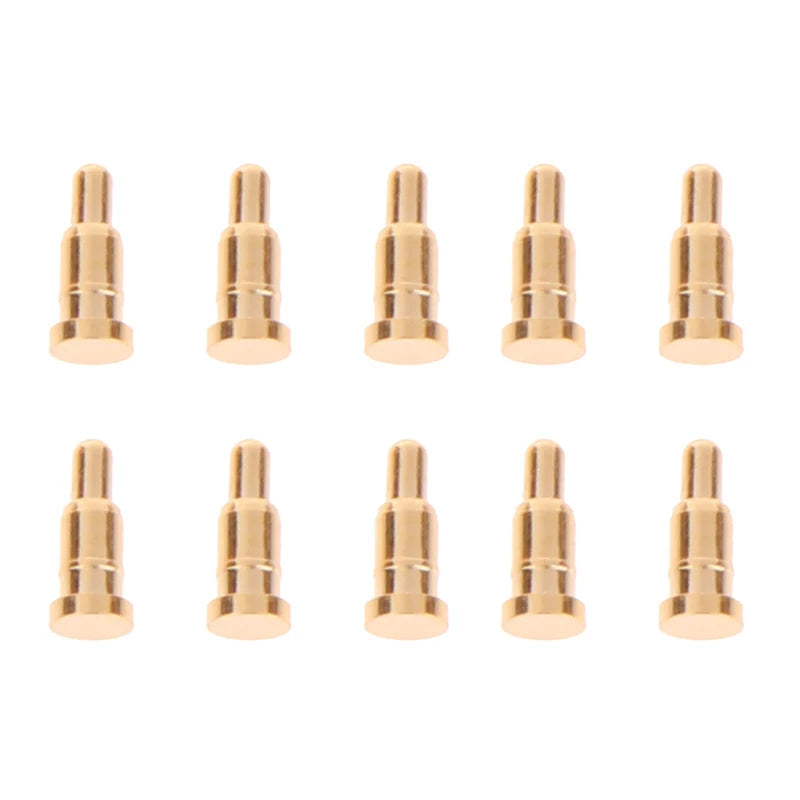

| Quantity | 10 Pieces per Pack |
| Country of Origin | Made in Mainland China |
Important Notes
- Due to manual measurement, please allow a tolerance of 1–3mm.
- Actual product color may vary slightly from images due to differences in monitor display settings.
Authoritative Resource
For best practices in PCB design, test probe selection, and electronic component standards, refer to the NIST Electronics Manufacturing Resource.
Frequently Asked Questions
Q: What are SMT pogo pin connectors used for?
A: SMT pogo pin connectors (spring-loaded contact needles) are used in PCB testing, battery contact points, programming jigs, charging interfaces, and prototype electronics. Their spring-loaded design ensures consistent electrical contact even on uneven or slightly misaligned surfaces.
Q: What size pogo pin do I need for my project?
A: The right pogo pin size depends on the spacing and footprint of your PCB or battery contact. This set offers sizes from 2.0mm up to 7mm, covering a wide range of standard SMT and through-hole applications. Refer to your PCB design files or component datasheet for the exact pitch and stroke requirements.
Q: What is the current capacity of these pogo pins?
A: Each pogo pin supports a continuous current of 1A and an instantaneous peak current of 3A, with a contact resistance of less than 30 mΩ — making them well-suited for low-power signal testing and battery contact applications.
Q: Are these pogo pins compatible with standard PCB testing equipment?
A: Yes. These brass spring-loaded contact needles are designed to work with standard PCB test fixtures and programming jigs. Always verify the pin diameter and travel length against your equipment's specifications before use.
