SMSL DS100 MQA DAC & Headphone Amp | CS43131 Hi-Res Audio

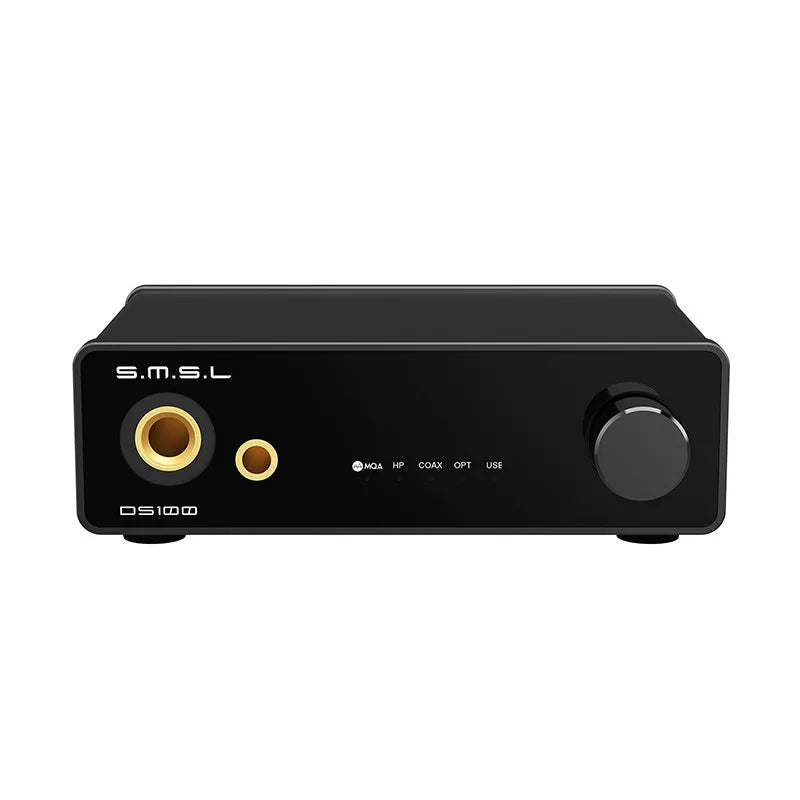

SMSL DS100 MQA DAC & Headphone Amplifier – Hi-Res Audio Decoder

Experience studio-quality sound with the SMSL DS100, a compact yet powerhouse Hi-Res digital audio converter and headphone amplifier. Built around Cirrus Logic's premium CS43131 audio decoder chip and the cutting-edge XMOS XU-316 (3rd generation) USB controller, the DS100 delivers breathtaking audio fidelity with an ultra-low distortion rate of just 0.00017% (-115dB). Whether you're a dedicated audiophile or a casual listener ready to step up your game, this mini aluminum DAC brings professional-grade sound within reach.

Made in Mainland China.

Key Features

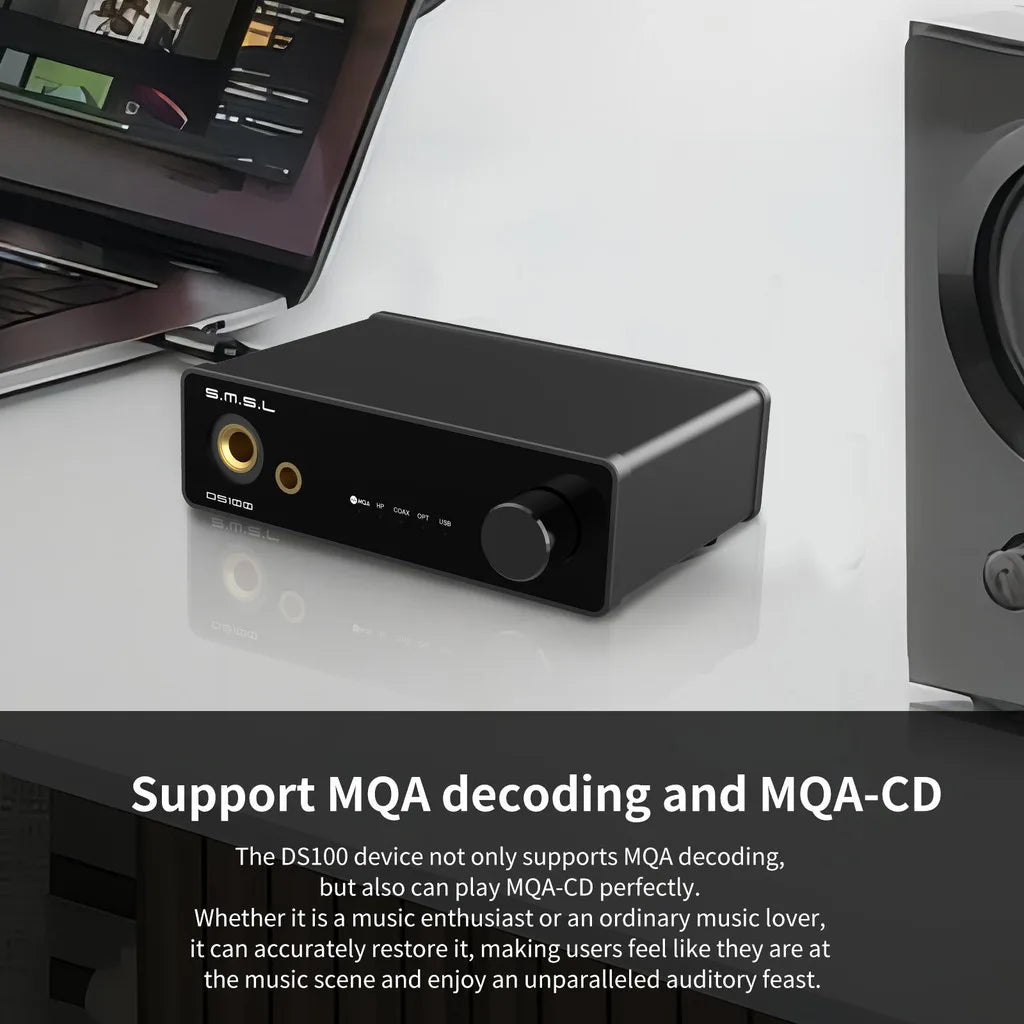

• Full MQA Decoding: Supports MQA and MQA-CD for unfolding master-quality recordings to their original studio resolution.
• CS43131 DAC Chip: Cirrus Logic's latest high-performance audio decoder chip, carefully tuned for an exceptionally low 0.00017% THD (-115dB).
• XMOS XU-316 (3rd Gen): PCM support up to 32-bit/768kHz and DSD support up to DSD256 for extreme resolution playback.

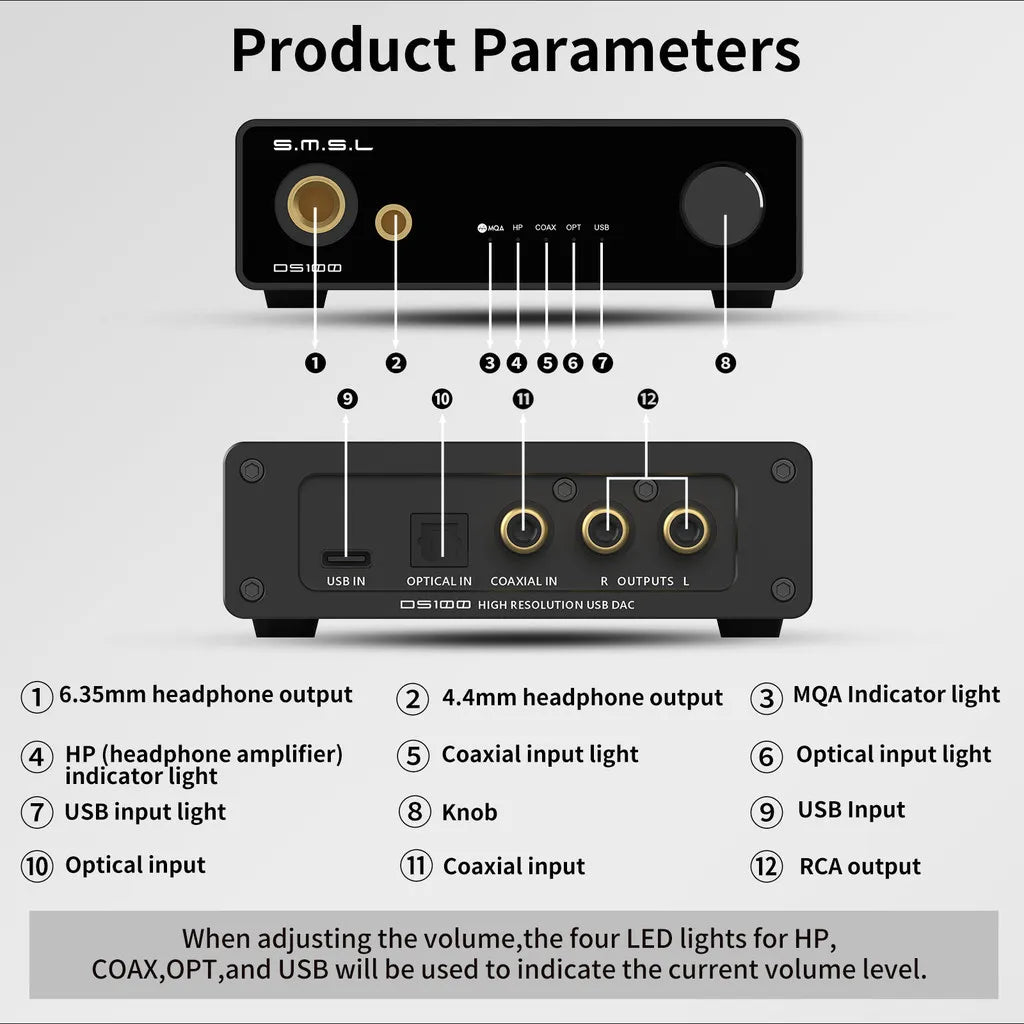

• Versatile Input/Output: All inputs (USB, Coaxial, Optical) support MQA and DSD; Coaxial and Optical support DoP64. Outputs include RCA and balanced headphone jacks.

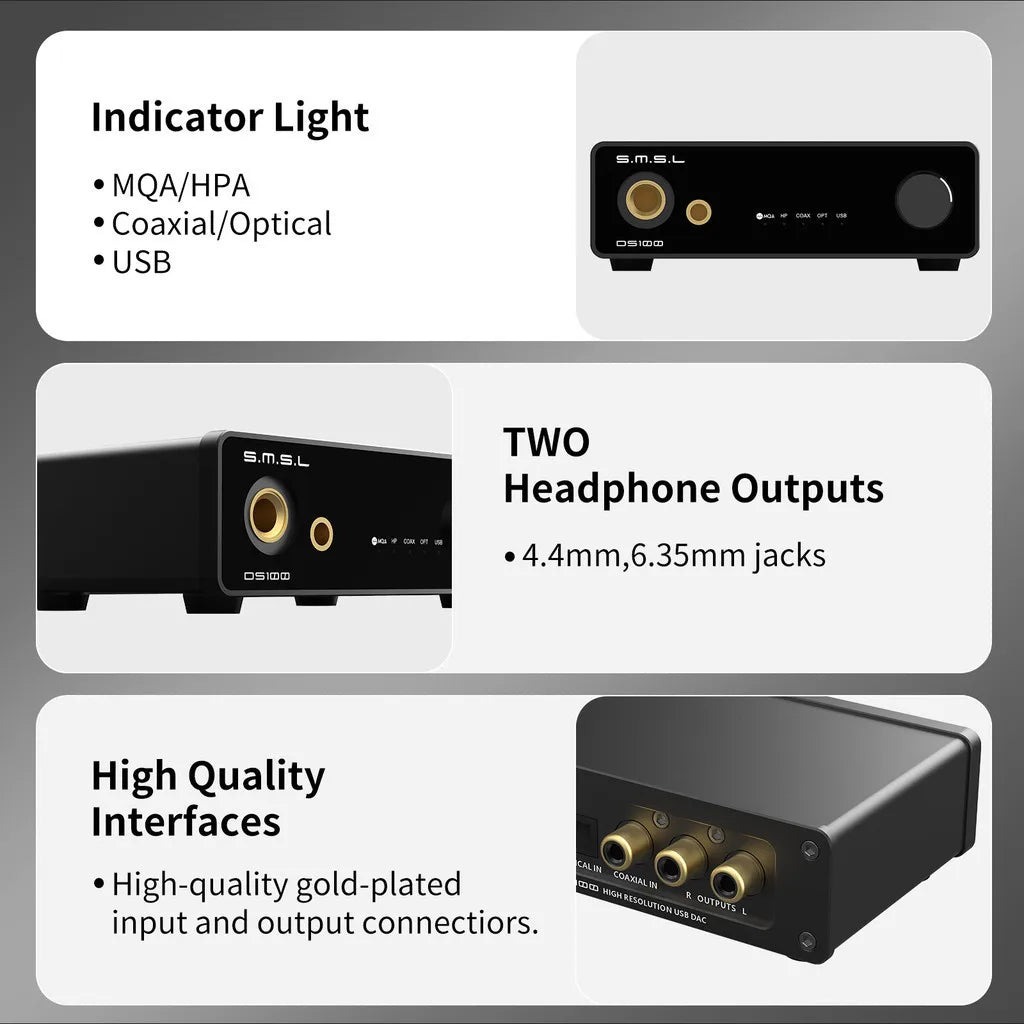

• Dual Headphone Outputs: Equipped with a 6.35mm single-ended and a 4.4mm balanced headphone output for maximum versatility.
• Dedicated Audio Clock Circuit: Purpose-built clock processing circuitry dramatically reduces jitter for a cleaner, more accurate signal.
• Low-Noise Power Supply: Built-in high-efficiency power chip with multiple low-noise LDO regulators for a stable, interference-free power delivery.
• Premium Gold-Plated Terminals: High-quality gold-plated input and output connectors for superior conductivity and corrosion resistance.

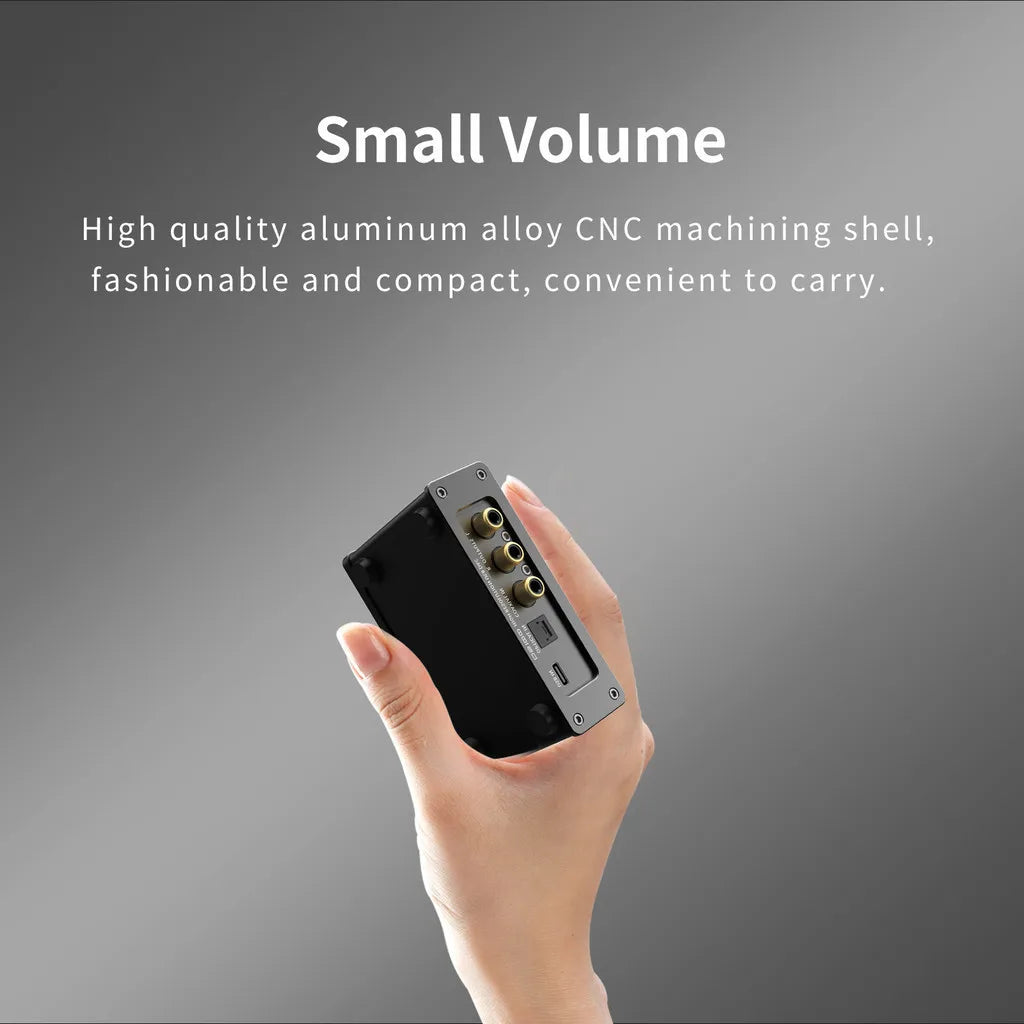

• All-Aluminum CNC Chassis: Precision CNC-machined all-aluminum alloy enclosure minimizes electromagnetic interference and looks stunning on any desk.
• JAS Hi-Res Certified: Officially certified by the Japan Audio Society (JAS) for High-Resolution Audio playback.

Specifications

What's in the Box

• 1 × SMSL DS100 DAC/Headphone Amplifier
• 1 × USB Cable
• 1 × Instruction Manual
• 1 × Warranty Card

Learn More About Hi-Res Audio

For a deeper understanding of digital audio standards and how they impact listening quality, visit the National Institute of Standards and Technology (NIST) for resources on audio measurement and standards.

Frequently Asked Questions

Q: What is MQA decoding and why does the SMSL DS100 support it?

A: MQA (Master Quality Authenticated) is an audio technology that encodes and authenticates master-quality recordings in a file small enough to stream or download. The SMSL DS100 includes full hardware MQA decoding — including MQA-CD support — so you hear music exactly as the artist and engineer intended, with full unfolding to the original studio master resolution.

Q: What headphones work best with the SMSL DS100?

A: The SMSL DS100 is compatible with a wide range of headphones. Its 6.35mm (1/4-inch) single-ended output suits most standard full-size audiophile headphones, while the 4.4mm balanced output is ideal for headphones with a balanced cable for even lower noise and better channel separation. Both low-impedance and high-impedance headphones are well-supported thanks to its powerful amplification stage.

Q: What is the difference between PCM and DSD audio formats?

A: PCM (Pulse-Code Modulation) is the most common digital audio format, used on CDs and most streaming services. DSD (Direct Stream Digital) is a high-resolution format used on SACDs, storing audio as a stream of single-bit values at very high sampling rates. The SMSL DS100 supports both, handling PCM up to 32-bit/768kHz and DSD up to DSD256, ensuring compatibility with virtually any high-resolution audio file.

Q: Does the SMSL DS100 require special drivers to work on a computer?

A: For most operating systems including macOS and Linux, the SMSL DS100 is plug-and-play via USB. Windows users may need to install ASIO or WASAPI drivers for the best performance and to unlock full high-resolution playback capabilities. Driver details are included in the instruction manual provided in the box.

Q: Is the SMSL DS100 suitable for desktop and portable use?

A: The DS100 is designed as a compact, portable-friendly desktop DAC/amplifier. Its mini all-aluminum chassis is lightweight yet rigid, making it well-suited for both a home listening setup and on-the-go use with a laptop or portable player.
