SMSL AO300 Pro DAC Headphone & Power Amplifier | DSD256 BT5.3

SMSL AO300 Pro — 3-in-1 Decoder, Headphone Amplifier & Power Amplifier

Experience audiophile-grade sound in one elegant, compact unit. The SMSL AO300 Pro combines a high-resolution DAC (Digital-to-Analog Converter), a powerful headphone amplifier, and a stereo power amplifier into a single chassis — delivering exceptional audio performance for home listening, desktop hi-fi setups, and critical monitoring alike.

Why the SMSL AO300 Pro Stands Out

• 3-in-1 Versatility: Decoder (DAC), headphone amplifier, and power amplifier in one streamlined device — simplify your audio chain without sacrificing quality.
• Hi-Res Audio Support: Handles PCM up to 32-bit/768kHz and DSD256, ensuring pristine playback of even the most demanding high-resolution audio files.
• CS43131 DAC Chip: Built around the renowned Cirrus Logic CS43131 DAC, delivering ultra-low noise, wide dynamic range, and highly accurate audio reproduction.
• Bluetooth 5.3: Seamless wireless connectivity with the latest BT5.3 standard for stable, low-latency streaming from your phone, tablet, or laptop.

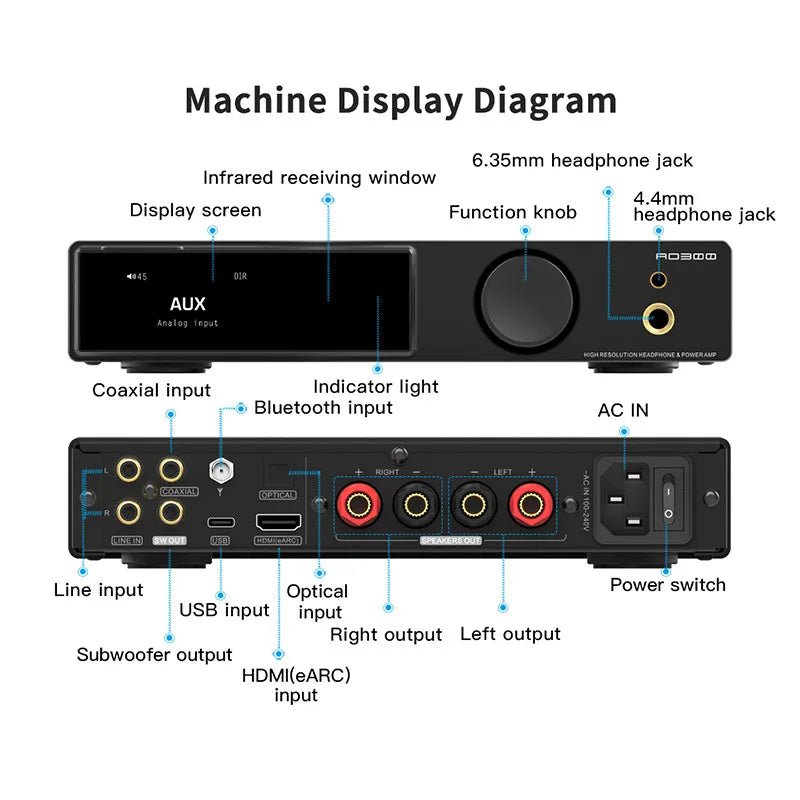

• Multiple Inputs: USB Type-A, USB Type-C, Coaxial, Optical, and Bluetooth — connect virtually any source with ease.
• RCA Line Output: Clean RCA output for connecting to external speakers, receivers, or recording equipment.
• Supports Headphones Up to 300 Ohm: Drives demanding high-impedance headphones (up to 251–300 Ohm) with authority and clarity.
• Premium Aluminum Body: Sturdy, heat-dissipating aluminum construction gives the AO300 Pro a professional look and long-lasting durability.
• Convenient Remote Control: Adjust volume, switch inputs, and control playback from across the room with the included remote.
• No Built-in Battery: Designed for stationary desktop use, ensuring consistent, stable power delivery for optimal audio performance.

Technical Specifications

Perfect For

• Desktop hi-fi and audiophile listening setups
• Home studio monitoring and critical listening
• Driving high-impedance headphones with precision and power
• Wireless Bluetooth streaming from smartphones and computers
• Connecting multiple audio sources via digital and analog inputs

For more information on audio standards and high-resolution audio, visit the National Institute of Standards and Technology (NIST) for technical resources on digital audio and signal processing standards.

Frequently Asked Questions

Q: What is the difference between the DAC, headphone amplifier, and power amplifier functions of the SMSL AO300 Pro?

A: The DAC (Digital-to-Analog Converter) converts digital audio signals (from USB, Coaxial, Optical, or Bluetooth) into an analog audio signal. The headphone amplifier takes that analog signal and boosts it to drive headphones — even high-impedance models up to 300 Ohm. The power amplifier further amplifies the signal to drive passive bookshelf or desktop speakers directly, making the AO300 Pro a true all-in-one solution for your audio system.

Q: Does the SMSL AO300 Pro support lossless and hi-res audio formats?

A: Yes. The AO300 Pro supports PCM up to 32-bit/768kHz and DSD up to DSD256 (11.2896 MHz), making it fully compatible with high-resolution audio files from platforms like Tidal, Qobuz, and local FLAC/DSD libraries. This ensures you hear every nuance the artist intended.

Q: Can I use the SMSL AO300 Pro wirelessly with my phone or laptop?

A: Absolutely. The AO300 Pro features Bluetooth 5.3, enabling stable, low-latency wireless audio streaming from any Bluetooth-enabled smartphone, tablet, or laptop. You can also switch seamlessly between Bluetooth and wired digital inputs using the included remote control.

Q: Does the SMSL AO300 Pro come with a remote control?

A: Yes, a remote control is included in the package, allowing you to conveniently adjust volume, switch between input sources, and control playback from a distance — ideal for desktop or shelf-mounted setups.
