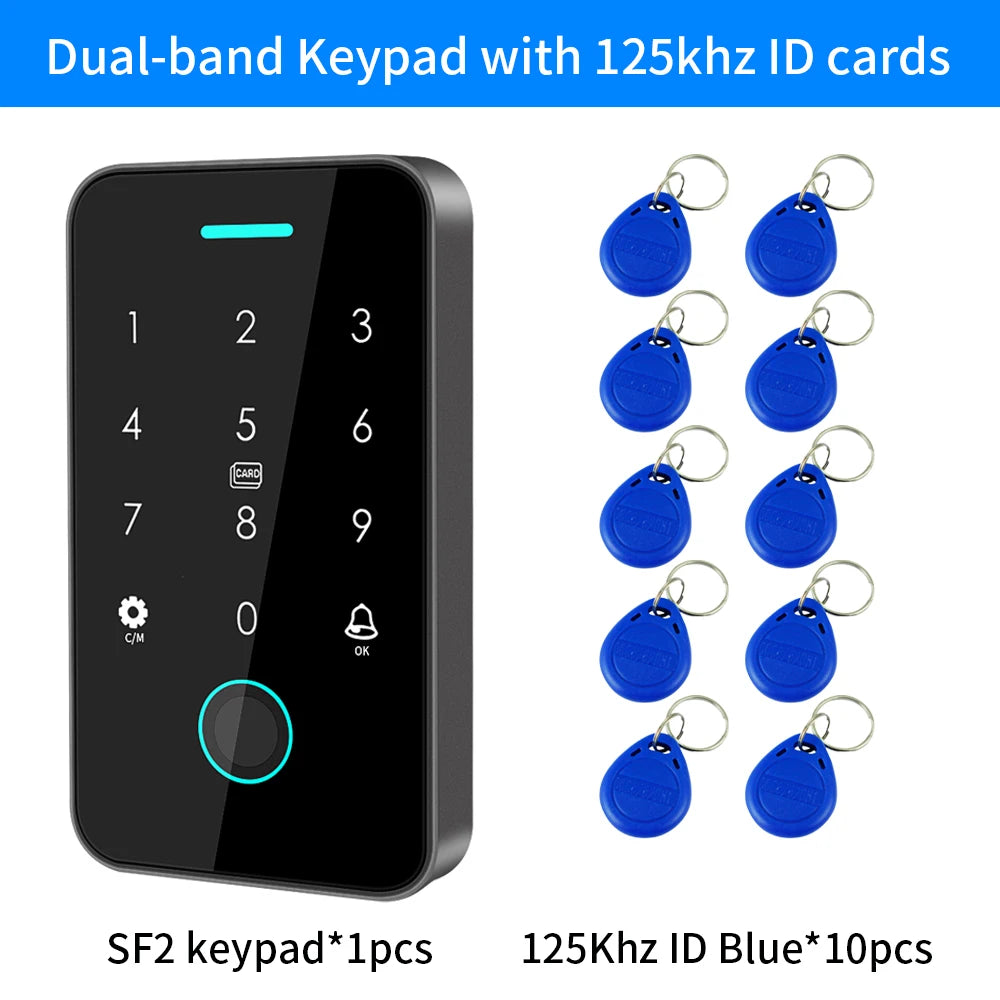

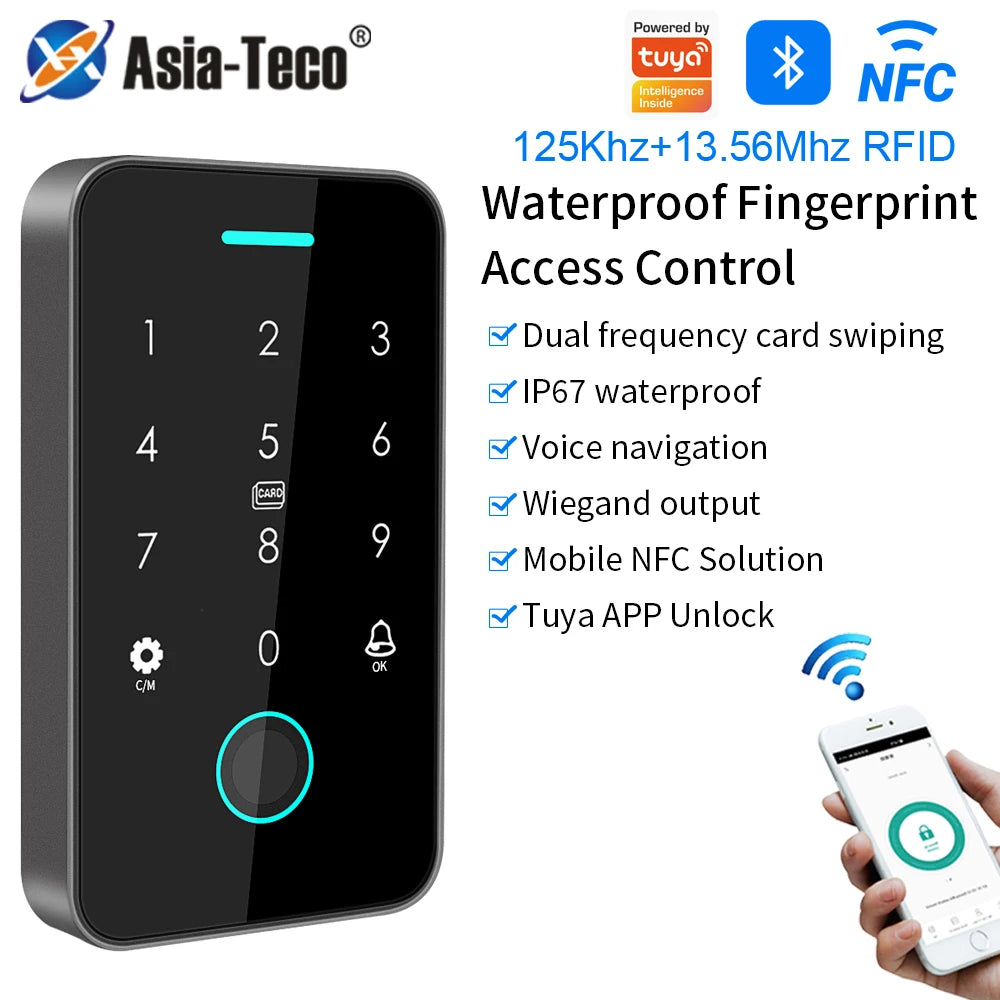

Smart Fingerprint & RFID Access Controller with Tuya WiFi
Take full control of your gate or door with this advanced smart access controller from Asia-Teco. Whether you're securing a residential gate, office entrance, or outdoor barrier, this IP68-rated, rainproof unit offers multiple convenient entry methods — fingerprint scan, RFID/NFC card, PIN password, or the Tuya Smart App on your smartphone. With Bluetooth and WiFi Gateway support, managing access has never been easier or more flexible.
Key Features

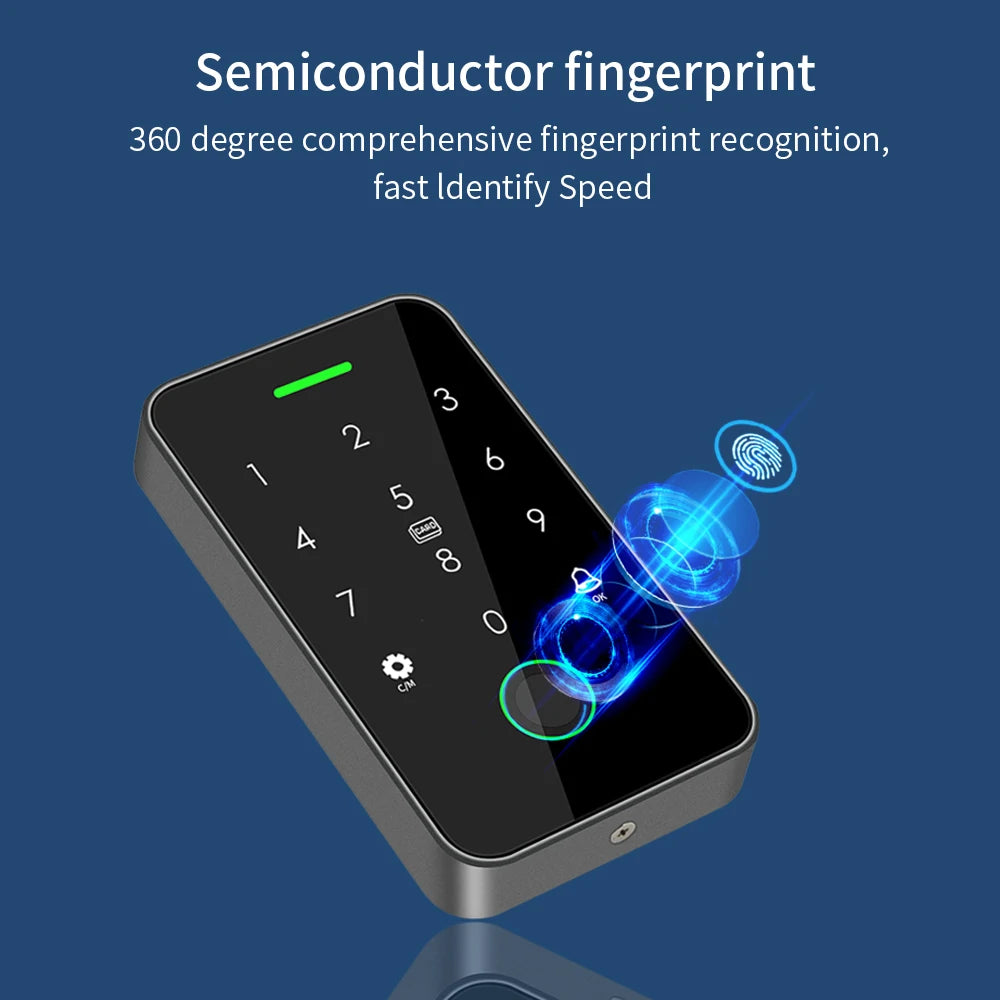

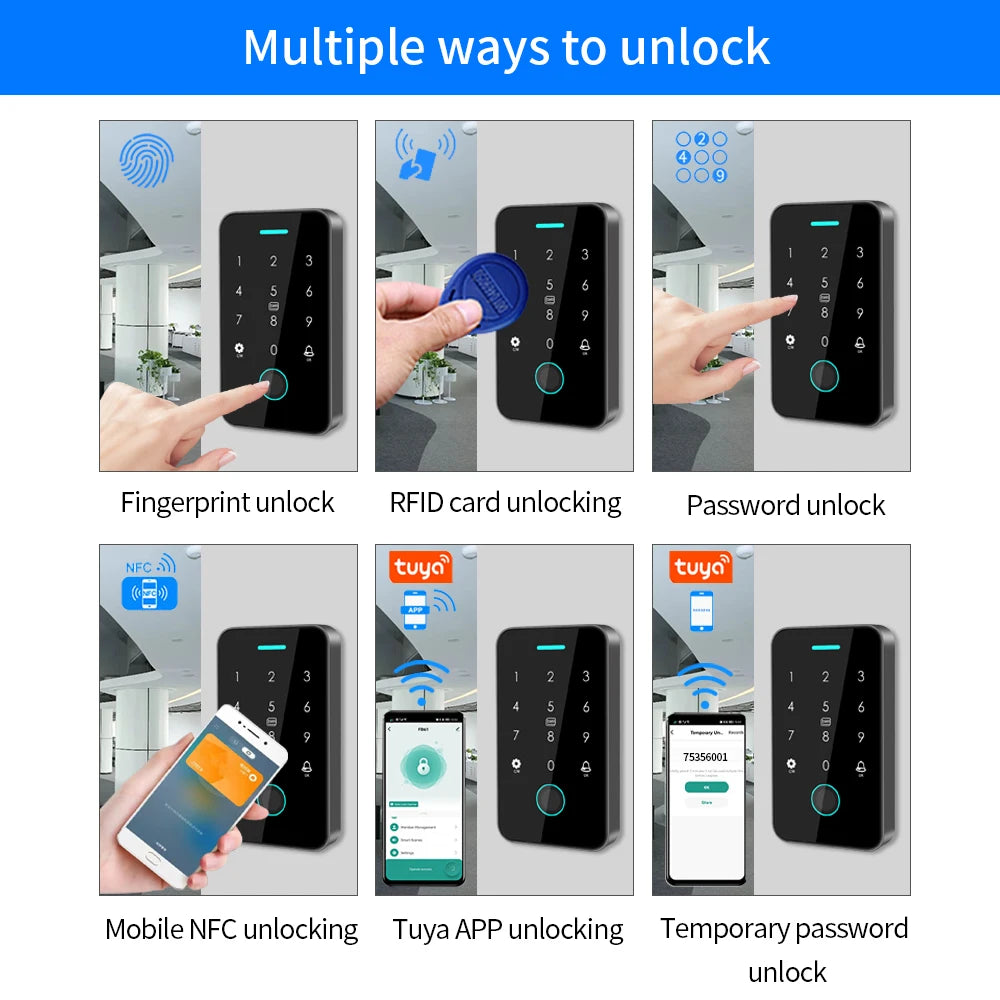

- 4-in-1 Identification: Fingerprint, RFID Card (125KHz & 13.56MHz dual frequency), Password, and Tuya App remote control
- Large Capacity: Stores up to 100 fingerprints, 1,000 RFID cards, and 1,000 passwords

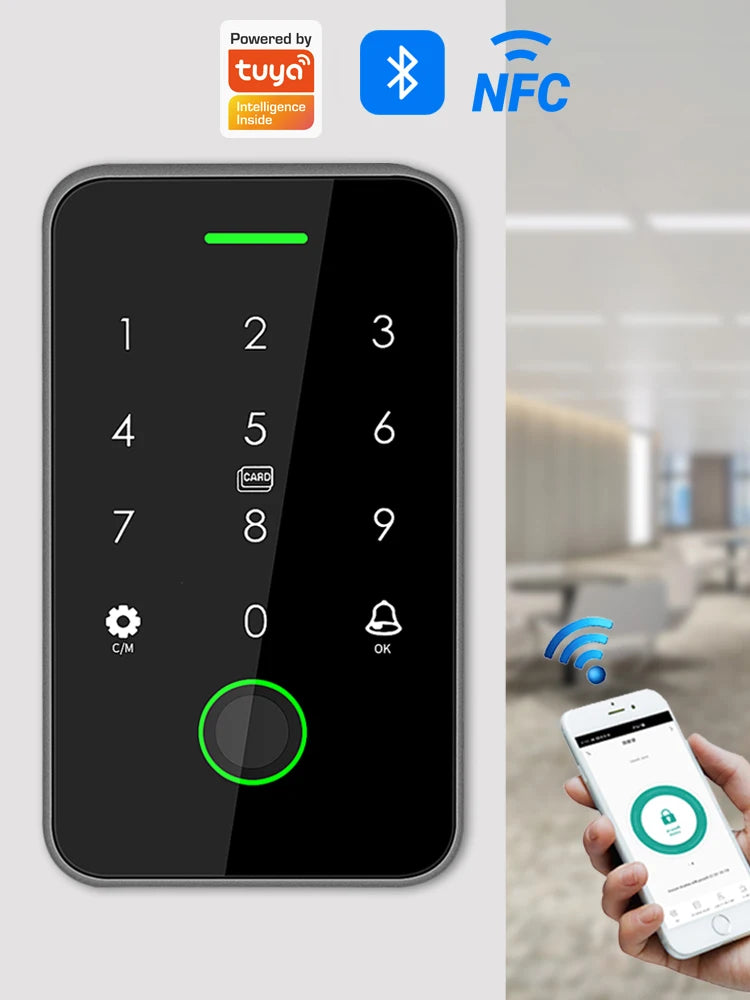

- Tuya Smart Home Integration: Works seamlessly with the Tuya/Smart Life platform; remotely manage access and view door-opening records from your phone
- IP68 Waterproof & Weatherproof: Rated for outdoor installation; operates in temperatures from -20°C to 70°C and humidity from 20% to 90%
- Touch Screen Panel: Backlit blue touchscreen for easy low-light use
- Wide Card Compatibility: Supports EM ID and MF 1K (Mifare Classic) compatible cards at 0–5cm reading distance
- Wiegand Signal Support: WG26/WG34 input/output; supports machine data copy function for easy integration with existing systems
- Built-in Doorbell: Supports wired doorbell connection
- Adjustable Volume: 0–4 levels to suit any environment
- CE Certified for quality and safety assurance
Technical Specifications
| Material | High-quality ABS plastic |
| Fingerprint Capacity | 100 |
| Card Capacity | 1,000 |
| Password Capacity | 1,000 |

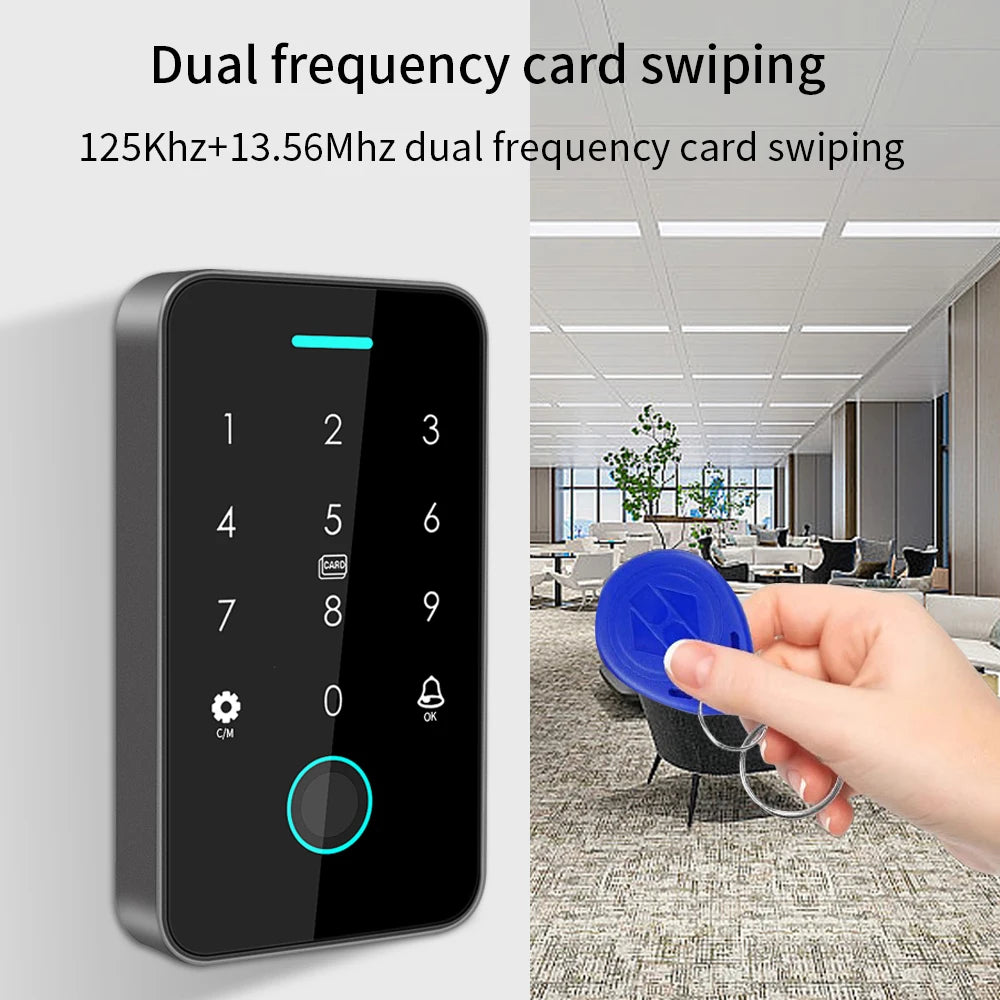

| Working Frequency | 125KHz & 13.56MHz (dual frequency) |
| Card Reading Distance | 0–5 cm |
| Waterproof Rating | IP68 |
| Working Voltage | DC 12V |
| Working Current | ≤30mA |
| Working Temperature | -20°C ~ 70°C |
| Working Humidity | 20% ~ 90% |
| Wiegand | WG26 / WG34 Input/Output |
| Backlight | Blue backlight |
| Language | Chinese, English |
| Product Size | 138 × 70 × 18 mm |
| Model Number | SF2EM/MF-W |
| Certification | CE |
| Smart Platform | Tuya Smart / Smart Life |
Made in Mainland China.
For more information on best practices for electronic access control and home security, visit the U.S. Consumer Product Safety Commission (CPSC).
Learn more: Access control
Frequently Asked Questions
Q: Does this smart access controller require a WiFi gateway to work with the Tuya app?
A: Yes, the Tuya App and remote smartphone control features require a compatible WiFi gateway (sold separately). Once connected through the gateway, you can manage users, view door-opening records, and control access remotely via the Tuya Smart or Smart Life app on iOS or Android.
Q: Is this RFID fingerprint access controller suitable for outdoor installation?
A: Absolutely. This unit carries an IP68 waterproof rating, making it fully suitable for outdoor gates, doors, and barriers. It withstands rain, dust, and temperatures ranging from -20°C to 70°C, ensuring reliable year-round performance in virtually any climate.
Q: What RFID card types are compatible with this access controller?
A: This controller supports dual-frequency operation at both 125KHz and 13.56MHz, making it compatible with EM ID cards and MF 1K (Mifare Classic) cards. The card reading distance is 0–5cm. It can store up to 1,000 unique card credentials.
Q: Can I integrate this controller with my existing access control system?
A: Yes. The unit supports Wiegand WG26 and WG34 input/output signals, allowing straightforward integration with most existing access control systems. It also supports a machine data copy function for convenient user migration.
