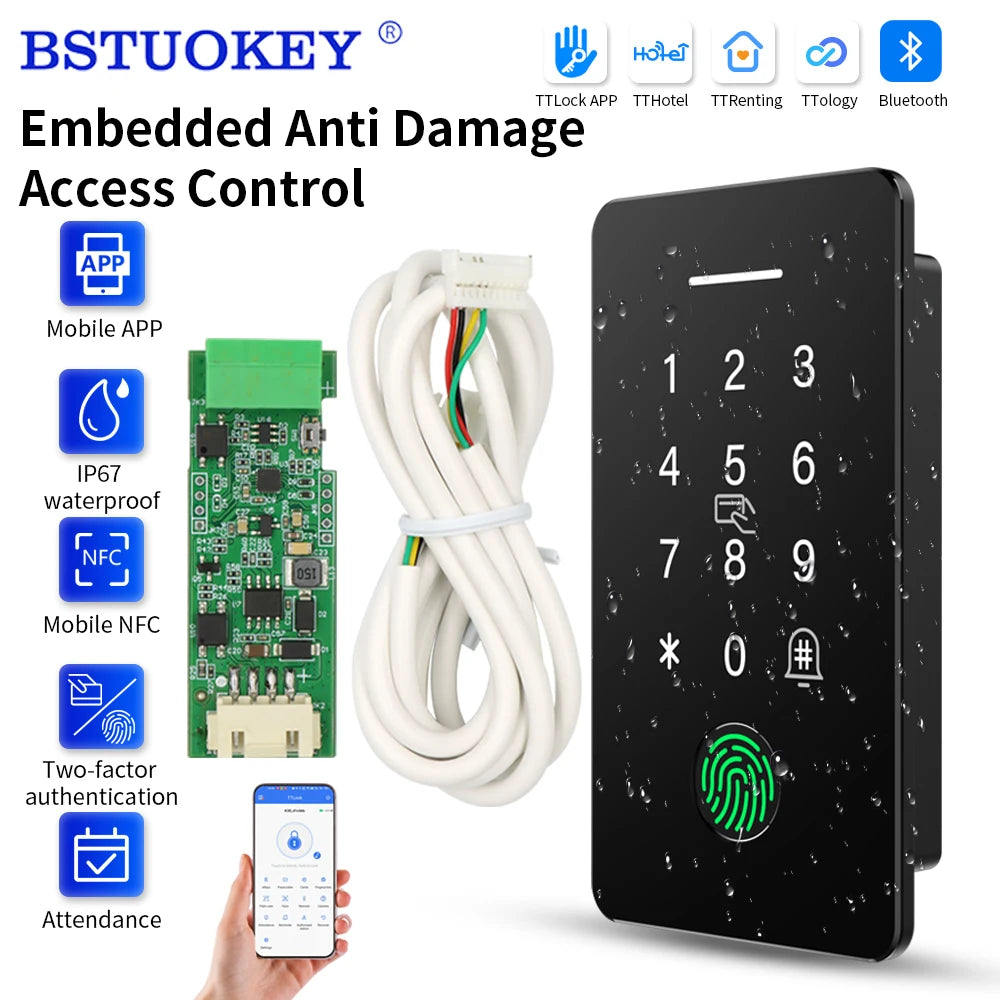

Asia-Teco SR1055 Smart Access Control Keypad — Fingerprint, NFC & App Unlocking
The Asia-Teco SR1055 Smart Access Control Keypad is a premium, embedded security keypad engineered for high-security environments. With IP67 waterproof protection, Bluetooth 5.0 BLE, and four versatile unlocking methods — app, fingerprint, RFID card, and PIN — this device delivers enterprise-grade entry control for offices, banks, government facilities, and outdoor installations. Made in Mainland China.
Key Features
- 4-in-1 Unlocking: Unlock via TTlock App, 13.56 MHz NFC/RFID card (MIFARE M1), PIN password, or optional semiconductor fingerprint sensor

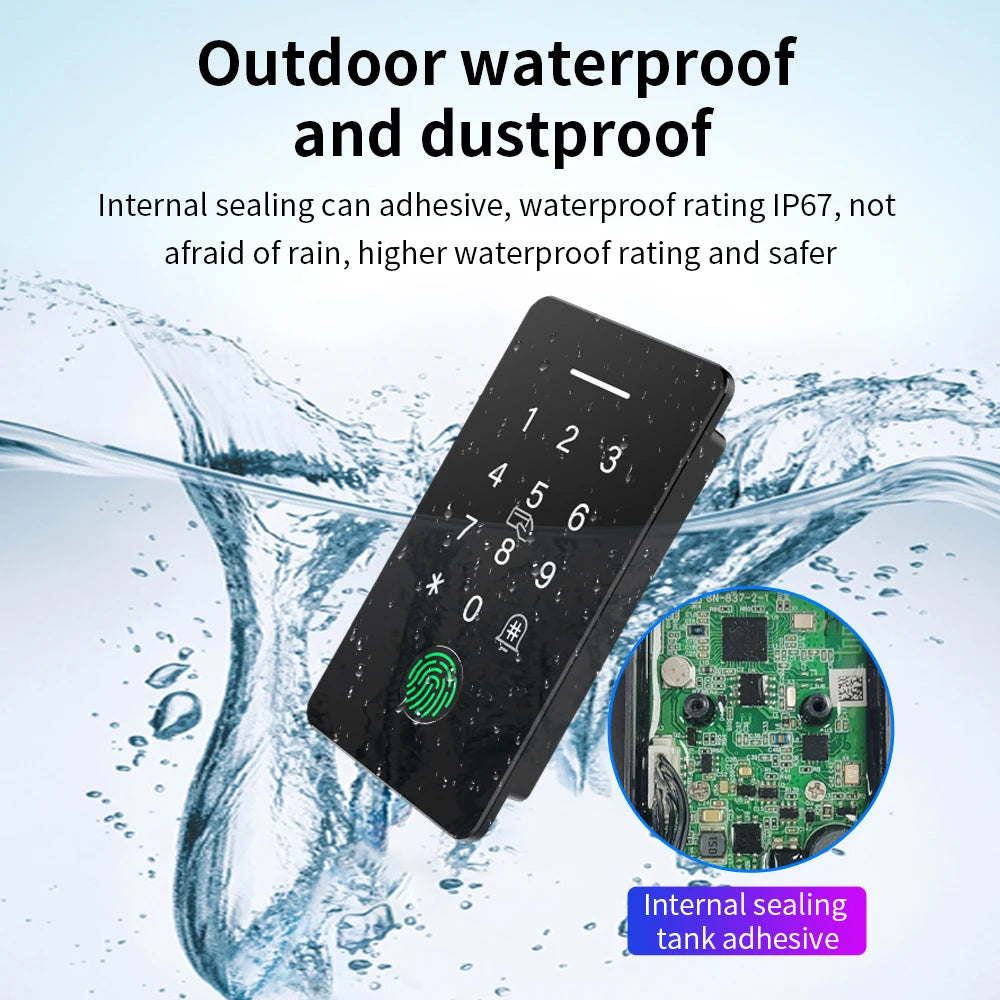

- IP67 Waterproof Rating: Fully dust-tight and submersion-resistant — built for indoor and outdoor installation
- Anti-Tamper Security Module: Even if the device is physically interfered with, it cannot be forced open — ideal for high-security settings
- Dual Authentication: Require two unlocking methods simultaneously (e.g. fingerprint + PIN, card + PIN) for elevated security zones
- Massive Capacity: Stores up to 20,000 RFID cards, 500 PIN codes, and 500 fingerprints (fingerprint model)
- Bluetooth 5.0 BLE: Fast, stable wireless connection compatible with Android 4.3+ and iOS 7.0+
- Employee Attendance Tracking: Log and export attendance records wirelessly via the TTlock app — no USB drive required
- Wide Operating Range: Works from -20°C to 70°C; input voltage 12V–24V DC
- Anti-Strong Magnetic Design: Resistant to magnetic interference for reliable operation in demanding environments
- CE & FCC Certified
Specifications
| Model | SR1055-TT |
| Bluetooth | Bluetooth 5.0 BLE |
| Card Type | MIFARE M1 Card (13.56 MHz) |
| Card Capacity | 20,000 |
| Password Capacity | 500 |
| Fingerprint Capacity | 500 (fingerprint model only) |
| False Acceptance Rate (FAR) | <0.001% |
| False Rejection Rate (FRR) | <1.0% |
| Waterproof Rating | IP67 |
| Voltage | 12V–24V DC |
| Standby Current | 7.4 mA |
| Working Current | <200 mA |
| Operating Temperature | -20°C to 70°C |
| Compatibility | Android 4.3+ / iOS 7.0+ |
| Certification | CE, FCC |
| Country of Origin | Made in Mainland China |
Who Is This For?
The SR1055 is purpose-built for environments where access security cannot be compromised. Whether you manage a corporate office, a government facility, a bank, a residential complex, or an outdoor gate, this keypad delivers multiple layers of authentication with smartphone convenience. The TTlock app lets administrators manage users, set scheduled access times, configure delayed door-opening, and pull attendance reports — all from a mobile device.
Learn More About Access Control & Security Standards
For guidance on physical security and access control best practices, visit the U.S. Consumer Product Safety Commission (CPSC) for general product safety standards.
Frequently Asked Questions
Q: What unlocking methods does the Asia-Teco SR1055 smart keypad support?
A: The SR1055 supports four unlocking methods: TTlock smartphone app (via Bluetooth 5.0 BLE), 13.56 MHz NFC/RFID card (MIFARE M1), PIN password, and optional semiconductor fingerprint recognition. You can also enable dual authentication, requiring two methods simultaneously for added security.
Q: Is the SR1055 fingerprint keypad suitable for outdoor installation?
A: Yes. The device carries an IP67 waterproof rating, meaning it is fully dust-tight and can withstand submersion in water up to 1 meter for 30 minutes. It also operates reliably across a wide temperature range of -20°C to 70°C, making it ideal for outdoor gates, building entrances, and exposed installations.
Q: How does the employee attendance tracking feature work?
A: The SR1055 logs entry and exit events for each registered card or fingerprint. Administrators can export attendance records wirelessly through the TTlock app on their smartphone — no USB drive or physical connection needed. This makes it easy to calculate attendance, streamline HR workflows, and improve overall efficiency.
Q: How many users can be stored on the SR1055 access control keypad?
A: The keypad stores up to 20,000 RFID cards, 500 PIN passwords, and 500 fingerprints (on the fingerprint-enabled model). This makes it well-suited for large organizations with many staff members or multi-tenant buildings.
