Inductive Loop Vehicle Detector AC220V | Single Channel Barrier Gate

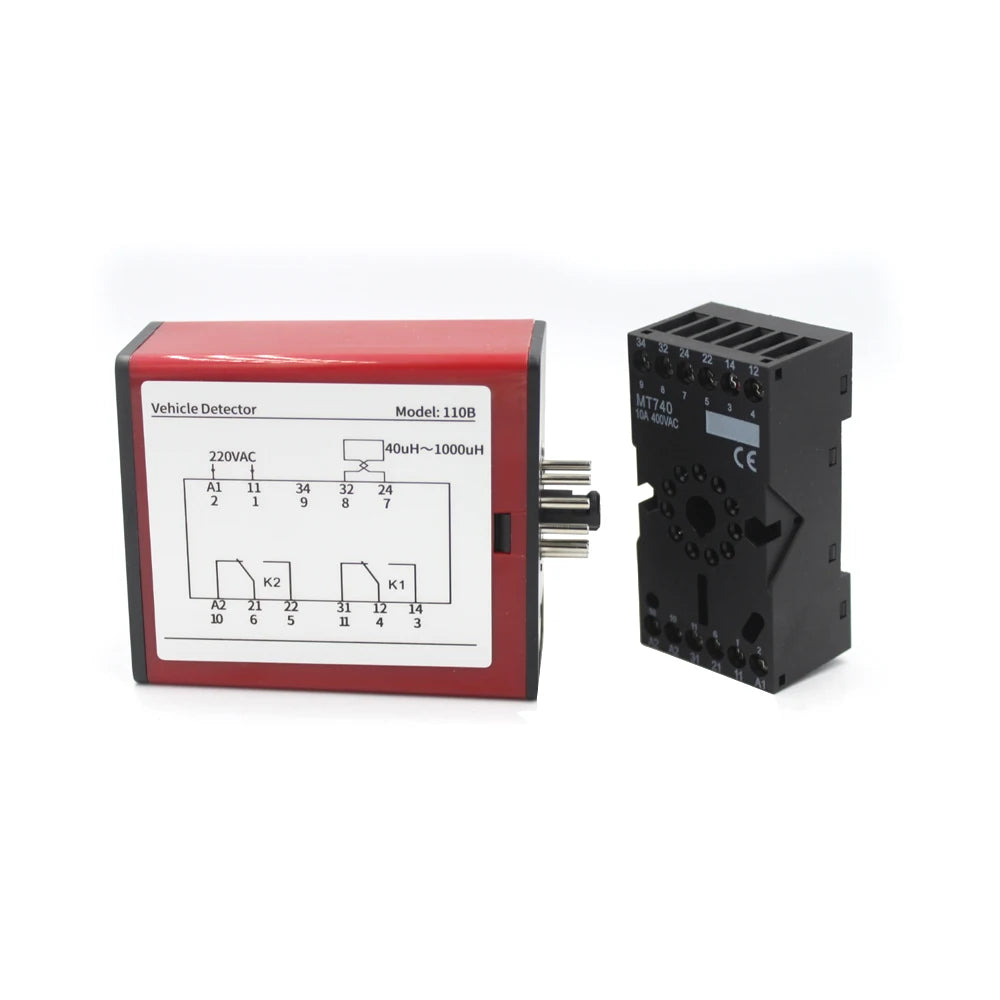

Asia-Teco Single Channel Inductive Loop Vehicle Detector – Model 110B

Upgrade your parking access control system with the Asia-Teco 110B Single Channel Inductive Loop Vehicle Detector. Engineered for reliable, round-the-clock vehicle detection, this compact unit integrates seamlessly with automatic barrier gates, parking lot systems, and traffic management installations. Made in Mainland China.

Why Choose the Asia-Teco 110B Loop Vehicle Detector?

• Accurate Vehicle Detection: Uses a proven inductive loop sensing technology operating at 100 kHz to detect the presence and passage of vehicles with a 35 ms sampling time — fast, precise, and dependable.

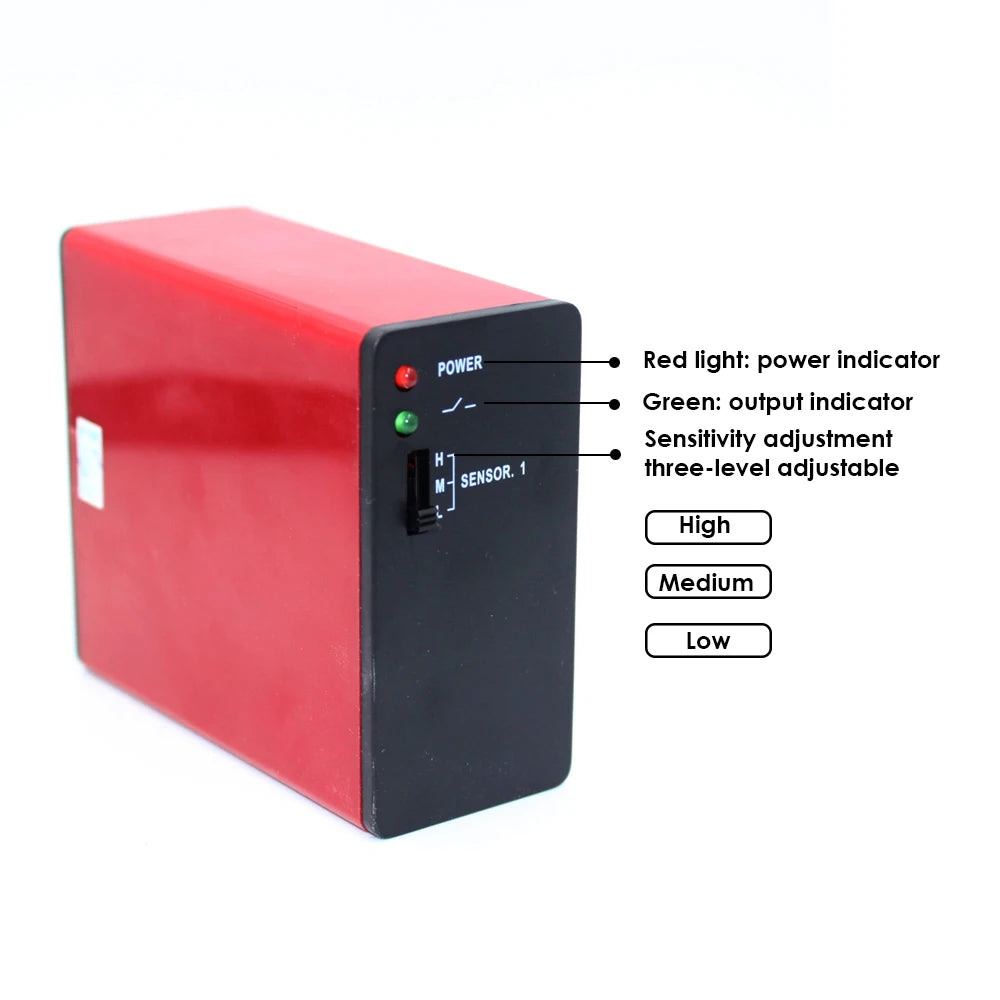

• 3-Level Sensitivity Adjustment: Easily switch between high, medium, and low sensitivity settings to suit different loop sizes, vehicle types, and environmental conditions.
• Reset Function: Built-in reset switch allows the detector to re-tune to the sensing loop instantly, keeping your system ready for vehicle detection without downtime.
• Relay Output: Outputs via relay for straightforward integration with barrier gates, traffic lights, and other access control hardware.
• Wide Environmental Tolerance: Operates reliably in temperatures from -40°C to 65°C and humidity up to 95% RH — suitable for covered and open-air parking structures alike.
• High-Quality Internal Components: Premium electronic components ensure stable, long-term performance even in demanding installations.
• Versatile Installation: Ideal for shopping malls, hotels, corporate facilities, residential communities, and any venue requiring automated vehicle access management.

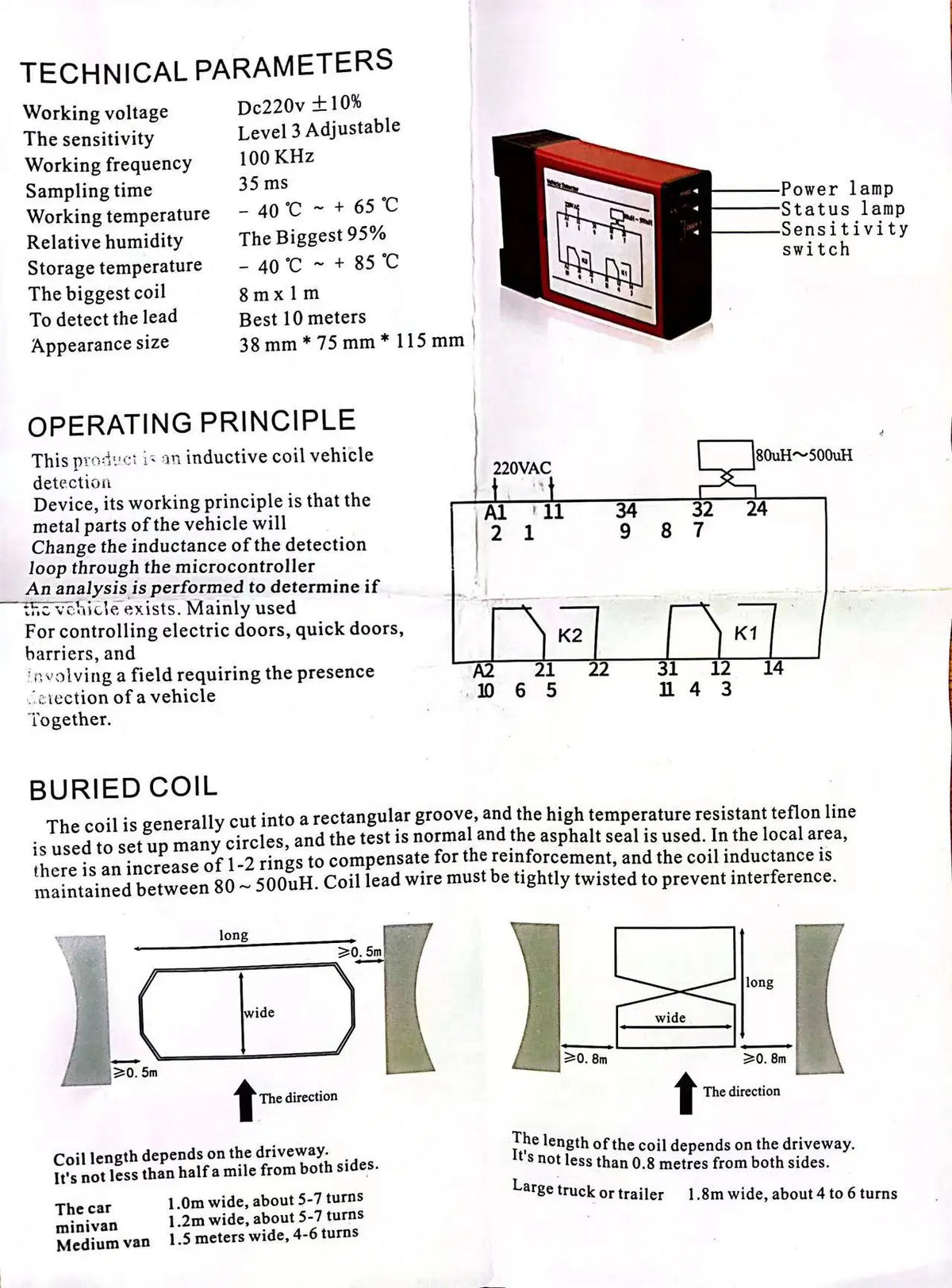

Technical Specifications

Common Applications

• Automated parking barrier gates
• Shopping mall and hotel parking lots
• Corporate and residential parking facilities
• Traffic monitoring and access control systems
• Toll plaza and gated community entrances

For more information on traffic control standards and road safety devices, visit the U.S. Federal Highway Administration or review guidance on electrical safety and code compliance from the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What type of vehicles can the Asia-Teco 110B inductive loop vehicle detector detect?

A: The 110B inductive loop vehicle detector is designed to detect any vehicle with a metal chassis — including cars, trucks, SUVs, and motorcycles — that passes over or rests on the sensing loop embedded in the road surface. The three sensitivity levels allow you to fine-tune detection for different vehicle sizes and loop configurations.

Q: How do I install the inductive loop vehicle detector with my barrier gate?

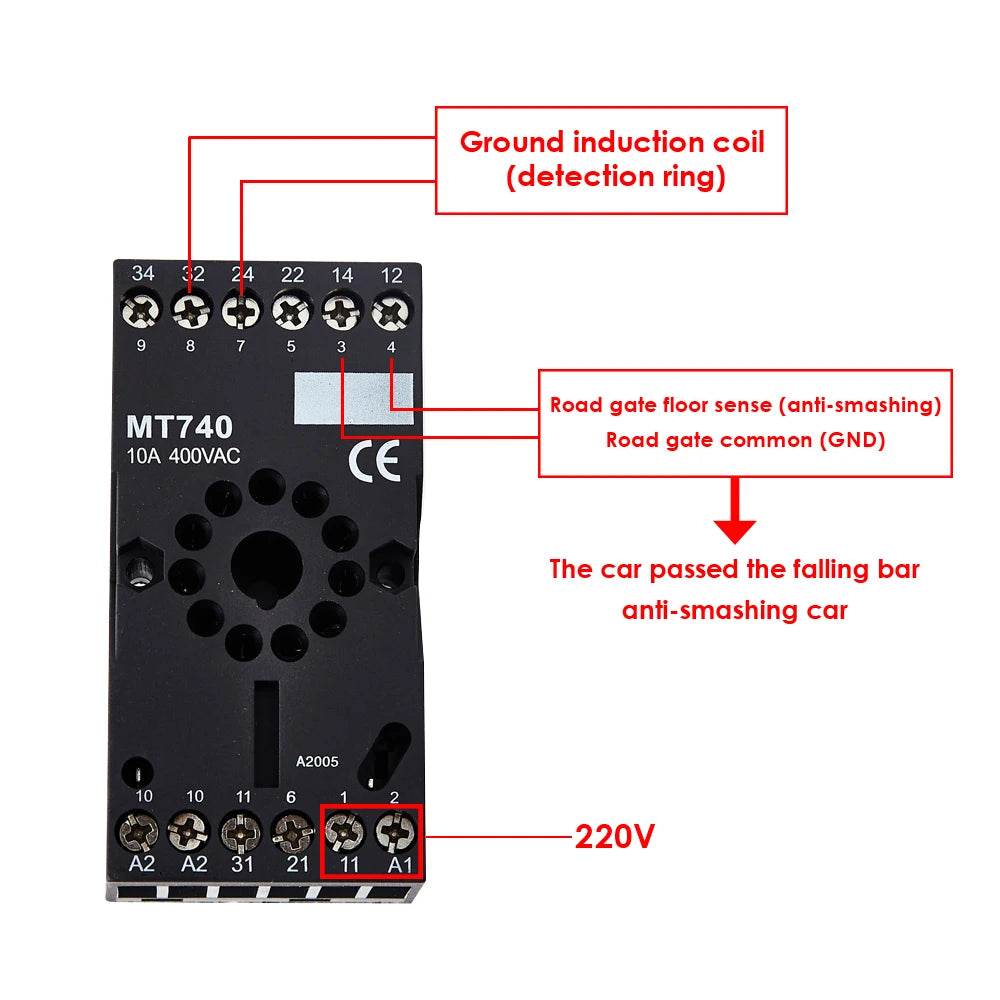

A: Installation involves embedding an inductive loop wire (within 10 m) in a slot cut into the pavement, connecting the loop leads to the 110B detector unit, and then wiring the relay output to your barrier gate or access control panel. The unit operates on AC 220V / 50 Hz and features a reset switch for easy re-tuning after installation. Always consult a qualified electrician for mains wiring work.

Q: Can this vehicle detector be used outdoors in harsh weather conditions?

A: Yes. The Asia-Teco 110B is rated for working environments from -40°C to 65°C and up to 95% relative humidity, making it well-suited for both indoor covered parking structures and outdoor installations subject to varying weather conditions.

Q: What does the sensitivity adjustment do, and which level should I choose?

A: The sensitivity adjustment determines how strong a change in the loop's inductance must be before the detector triggers. Use high sensitivity for motorcycles or smaller loops; medium sensitivity for standard passenger cars; and low sensitivity in environments with potential electrical interference or for very large loops. You can switch between levels and press the reset button to re-tune as needed.
