1HP Shallow Well Jet Pump – Auto Controller, 23 GPM Booster
1HP Shallow Well Jet Pump – Auto Controller, 23 GPM Booster
Powerful Shallow Well Jet Pump for Garden, Lawn & Water Transfer
Meet your ultimate water management solution — the SucceBuy 1HP Shallow Well Jet Pump. Whether you need to irrigate your garden, fill a water tank, or draw water from a pond, lake, rain barrel, or shallow well, this electric booster pump delivers reliable, high-volume performance at the push of a button. Made in China.
Key Features & Benefits
- 1HP Powerful Motor: Delivers up to 23 GPM max flow, 145 ft max head, 87 psi max pressure, and 26.2 ft max suction — more than enough power for home water pressure boosting, irrigation, and water transfer tasks.

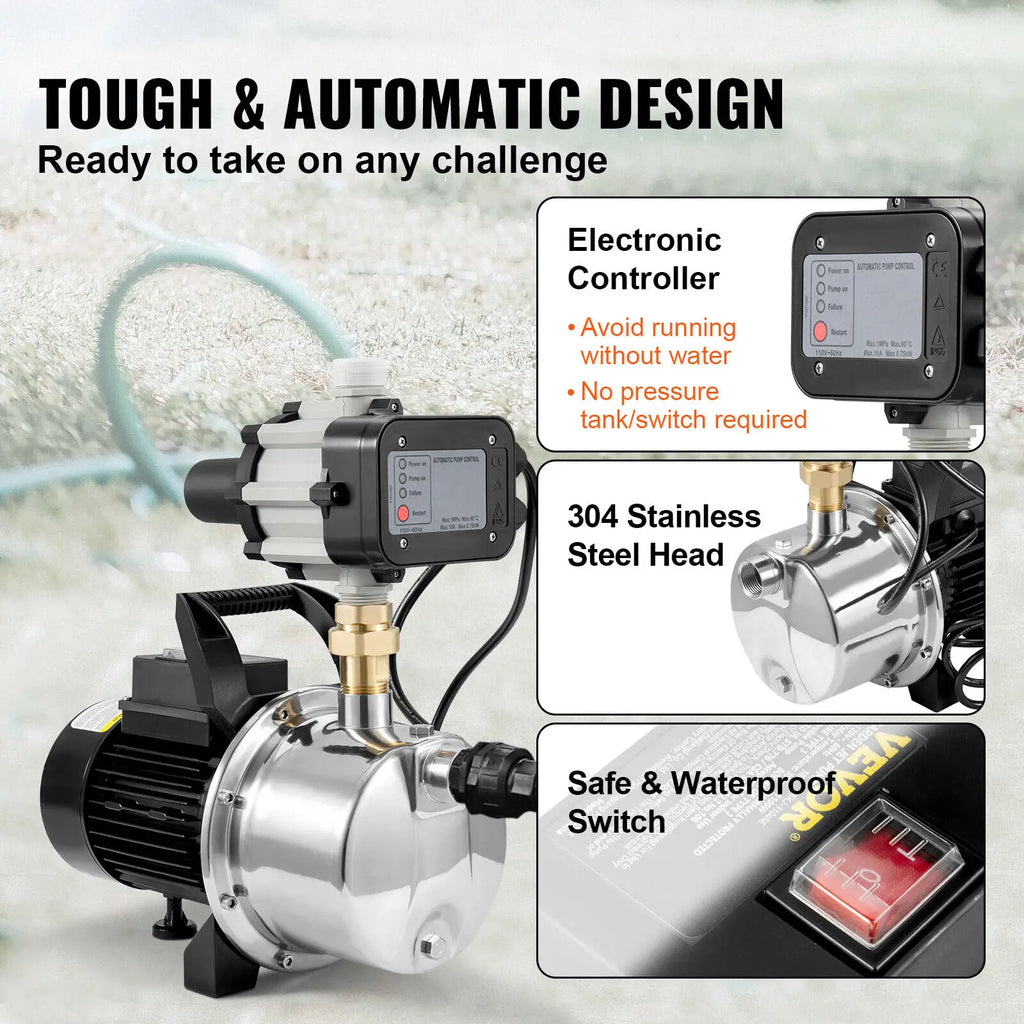

- Automatic Electronic Controller: The built-in automatic controller monitors water flow and pressure, enabling hands-free operation. It also features dry-run protection to prevent motor damage when water supply is low or interrupted.
- Stainless Steel & Cast Aluminum Build: The stainless steel pump head and cast aluminum housing deliver exceptional durability — rust-resistant, corrosion-resistant, and leak-proof even under demanding, long-term conditions.
- IPX4 Waterproof Rating: The motor is fully protected against water splashes, giving you confidence in wet outdoor environments and harsh conditions.
- Low-Noise, Energy-Efficient Operation: The quiet motor features built-in thermal and overload protection to prevent overheating. Large cooling vents ensure efficient heat dissipation for extended, worry-free use.

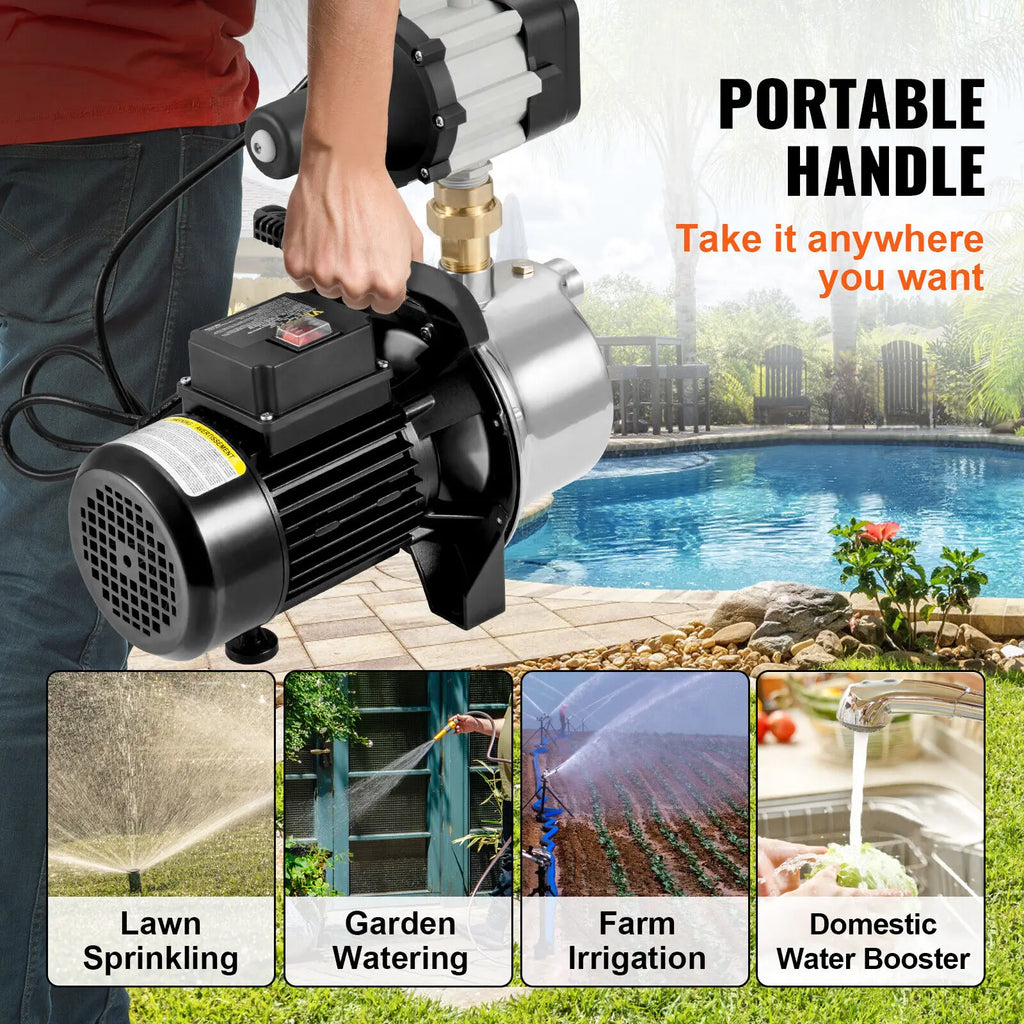

- Portable & Versatile: The ergonomic carry handle makes it easy to move to any water source. Use it as a sprinkler pump, well pump, or booster pump — ideal for shallow wells, ponds, lakes, rain barrels, water tanks, and more.
- CE Certified: Meets CE certification standards for quality and safety assurance.
Specifications
| Motor Power | 1HP (Electric) |
| Max Flow Rate | 23 GPM |
| Max Head | 145 ft |
| Max Pressure | 87 psi |
| Max Suction | 26.2 ft |
| Waterproof Rating | IPX4 |
| Housing Material | Stainless Steel Head / Cast Aluminum Body |
| Power Source | Electric |
| Certification | CE |
| Origin | Made in China |

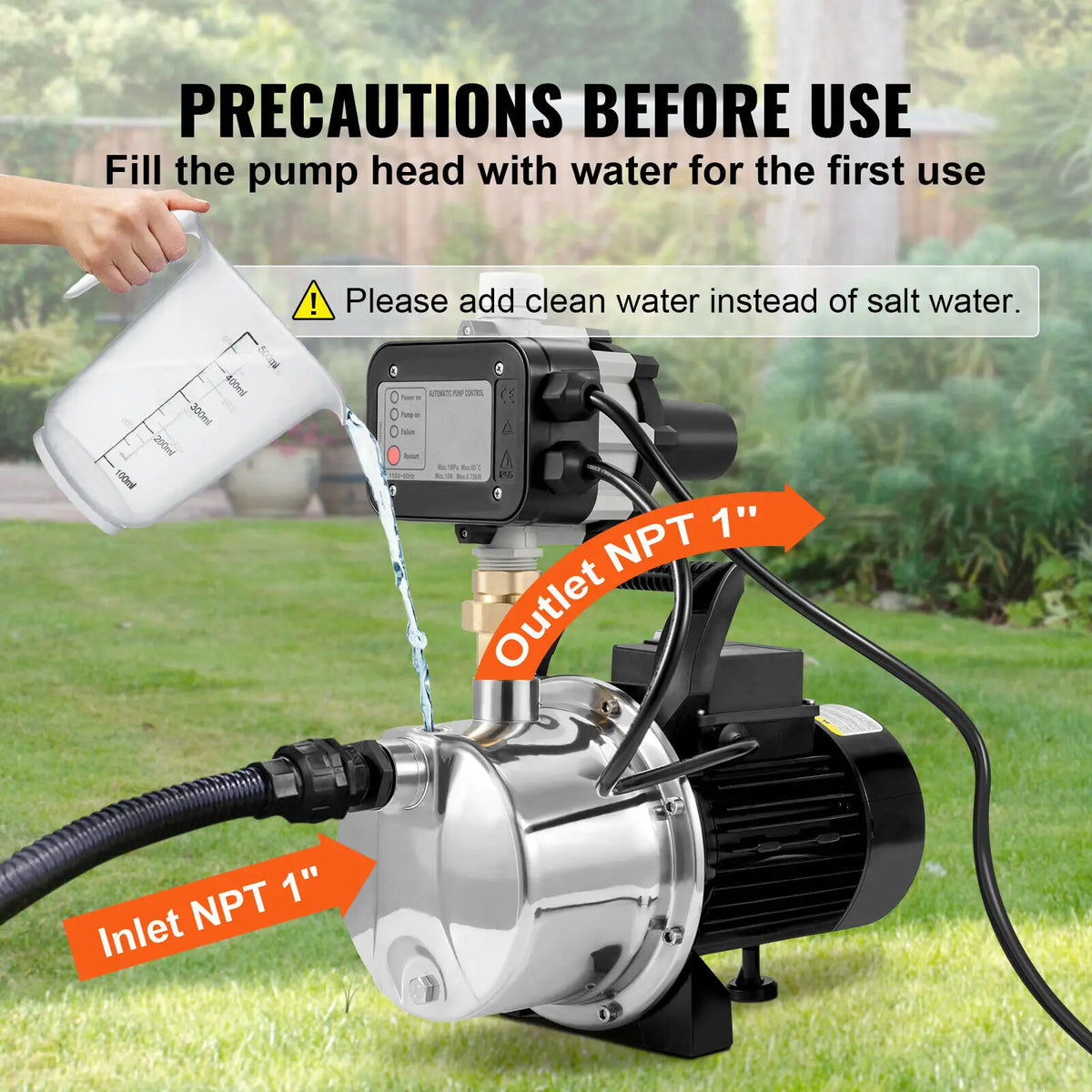

⚠️ Important: This pump is designed for use with CLEAN WATER ONLY. Do not use with debris-laden, chemically treated, or saline water sources.
Ideal For
- Garden & lawn irrigation
- Shallow well water extraction
- Water transfer from ponds, lakes & rain barrels
- Home water pressure boosting
- Farmland & agricultural watering
- Water tank filling
For guidance on safe outdoor water use and irrigation best practices, visit the U.S. EPA WaterSense: Outdoor Water Use resource page.
Frequently Asked Questions
Q: What is the maximum depth this shallow well jet pump can draw water from?
A: This shallow well jet pump has a maximum suction depth of 26.2 feet. It is designed for shallow well applications and is not suitable for deep well use. For best performance, ensure the water source is within this suction range.
Q: Does this pump operate automatically, and does it have dry-run protection?
A: Yes! The built-in electronic automatic controller allows the pump to start and stop based on water demand — no manual switching required. It also includes dry-run protection, which automatically shuts the pump off if water supply drops, protecting the motor from damage.
Q: Can I use this pump with well water, pond water, or rainwater?
A: This pump is compatible with any clean water source, including shallow wells, ponds, lakes, rain barrels, and water tanks. It is not designed for use with dirty, chemically contaminated, or saltwater sources, as particles or corrosive substances can damage the pump internals.
Q: Is this jet pump portable and easy to move between locations?
A: Absolutely. The pump is designed with an easy-to-carry handle, making it simple to relocate to different water sources as needed — whether for garden irrigation, water transfer, or pressure boosting tasks.
