ATUOTIN 7.83Hz Schumann Wave Generator — Precision Adjustable Signal Generator

Experience Earth's natural resonance frequency with the ATUOTIN Schumann Wave Generator. Pre-set to the iconic 7.83Hz Schumann resonance frequency and fully adjustable from 0.1Hz to 30,000Hz (30KHz), this compact digital signal generator is ideal for wellness enthusiasts, hobbyists, and lab professionals alike. Its crystal oscillator reference delivers rock-solid frequency stability with strong anti-interference performance — all in a portable, USB-powered form factor.

Key Features

• Default 7.83Hz Output: Powers on instantly at Earth's natural Schumann resonance frequency, recognized for its calming environmental influence and widely used in wellness and experimental settings.
• Wide Adjustable Range: Go beyond a single frequency — tune output anywhere from 0.1Hz to 30KHz via the built-in keypad for versatile lab, research, and DIY applications.
• Dual Model Options: Choose the Green model for pure sine wave output, or the Black model for expanded waveform options including sine, square, and inverted square waves.
• Crystal Oscillator Stability: A digital crystal oscillator reference ensures exceptional precision and robust anti-interference capability for demanding signal environments.
• Flexible Power Options: Powered via Micro USB (5V) or DC 5.5×2.1mm jack — compatible with power banks, USB wall adapters, and laptop USB ports for true portability.
• LCD Display: Clear, easy-to-read LCD screen displays the current output frequency at all times.

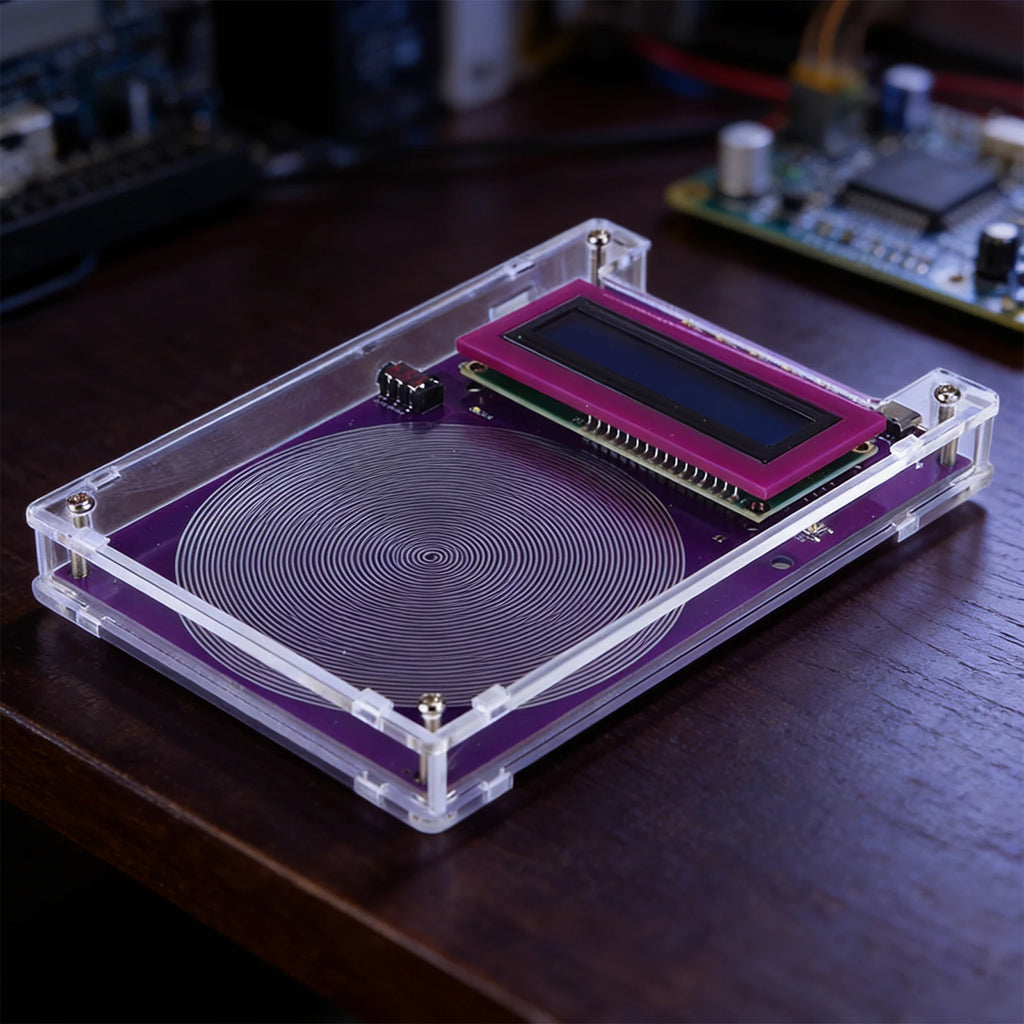

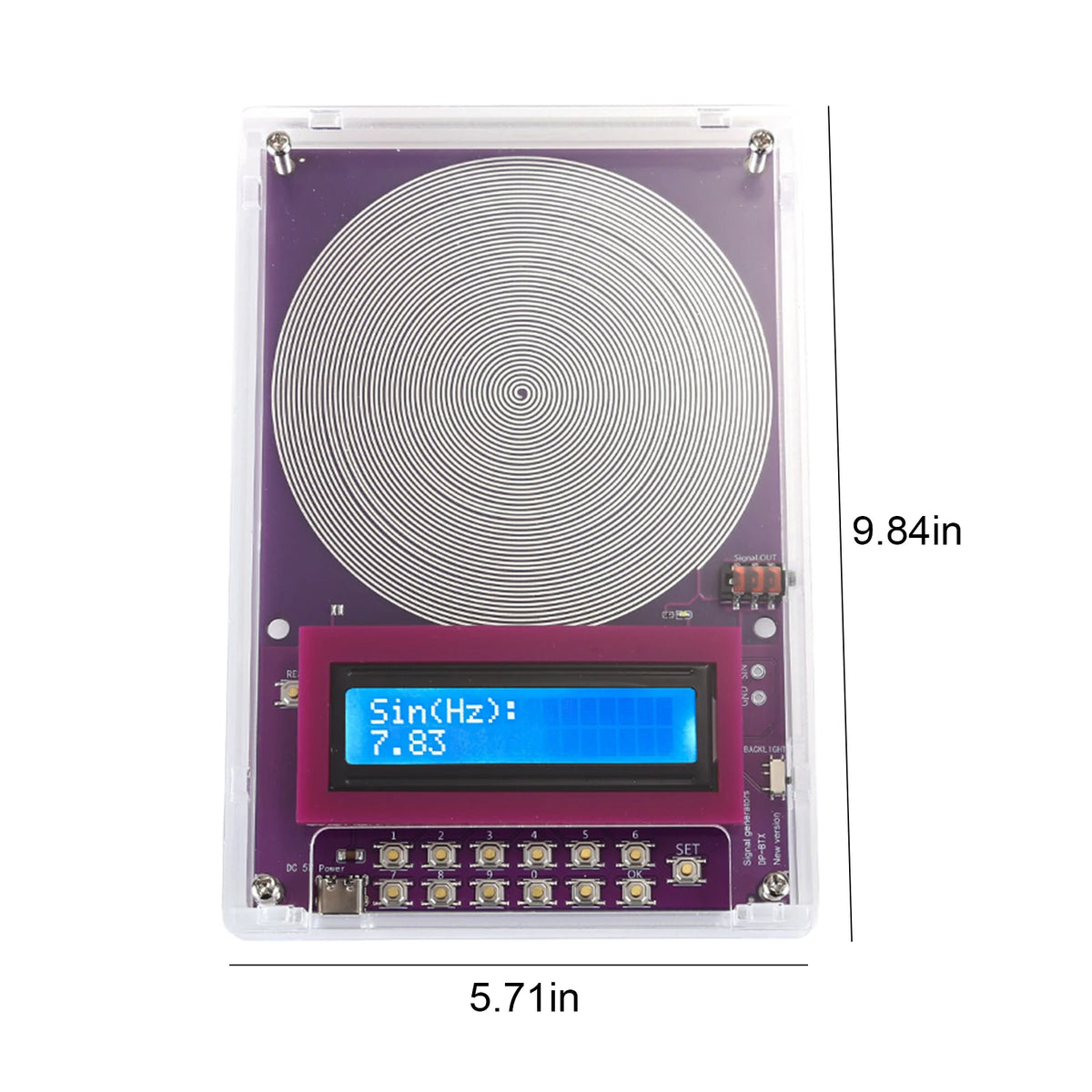

• Compact & Enclosed: Comes with a protective acrylic casing (approx. 155 × 105 × 28mm), ideal for bench use or travel.

Specifications

How to Set Your Frequency

1. Enter your desired frequency using the keypad (e.g., press 7 → . → 8 → 3 for 7.83Hz).
2. Press the OK button (bottom-left corner) to confirm and apply the setting.
3. The device will default back to 7.83Hz on next power-up.

How to Power the Device

1. Connect the included Micro USB cable to the device's power port.
2. Plug the USB end into a power bank, USB charger, or computer USB port.
3. The device will begin operating immediately at the default 7.83Hz frequency.

What's in the Box

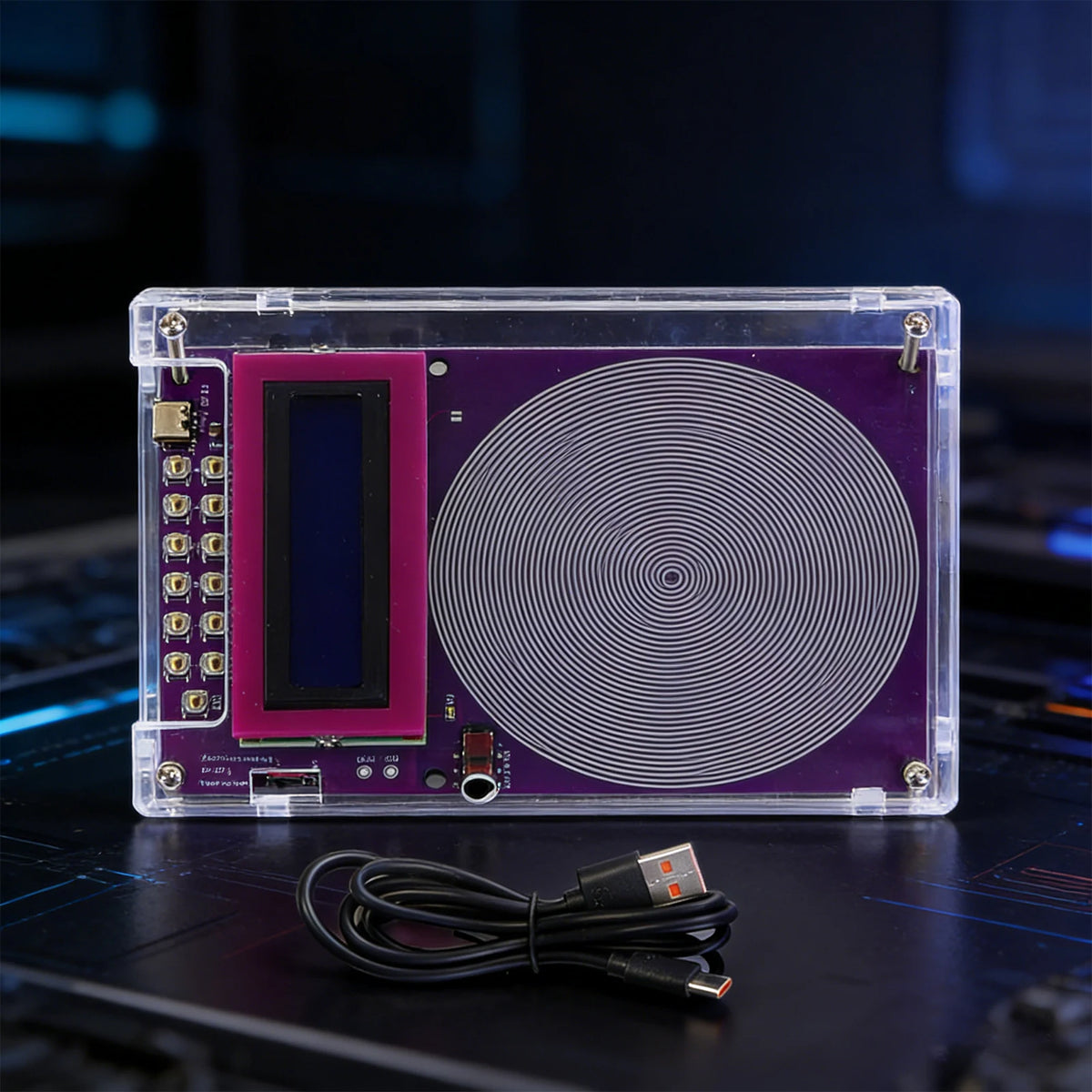

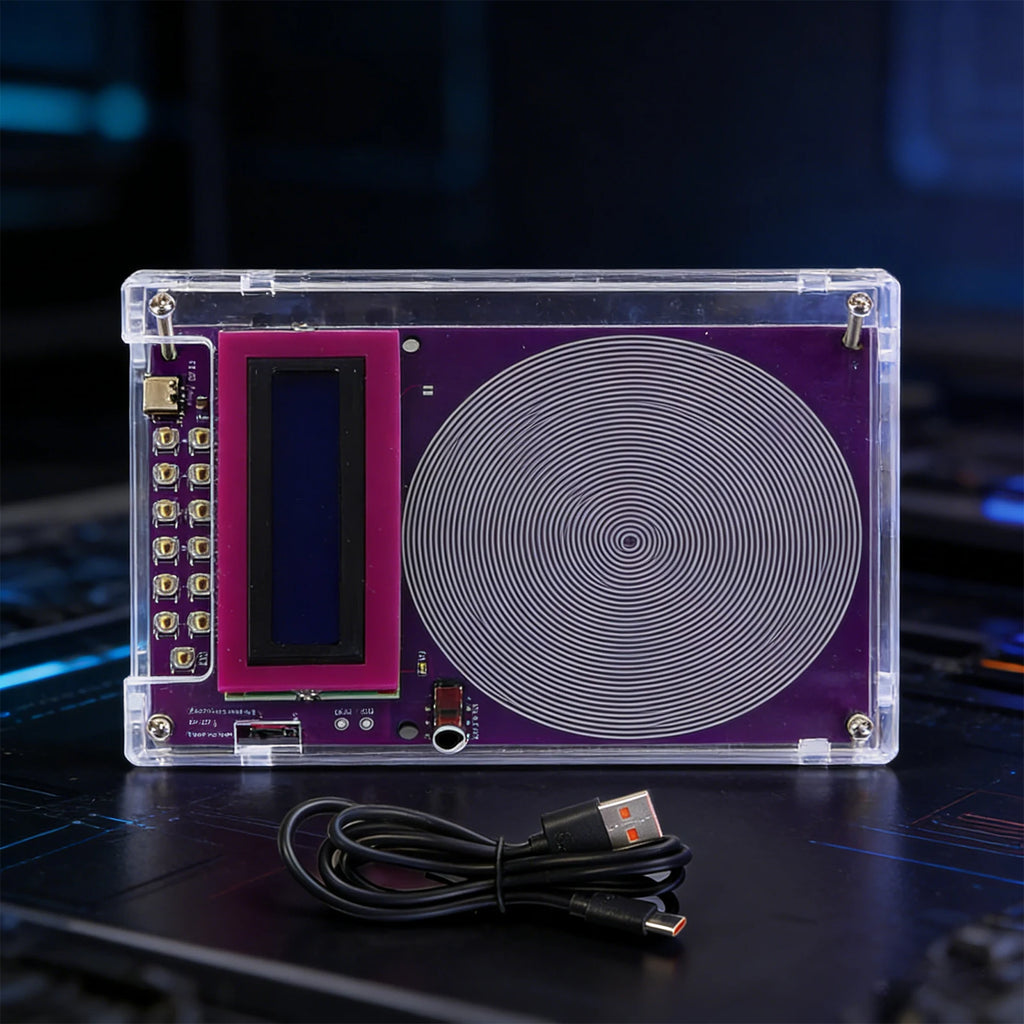

• 1× Schumann Wave Generator (with acrylic casing)
• 1× USB Cable

Please Note: Due to differences in monitor settings and lighting conditions, actual product color may vary slightly from images. Please allow a 1–2cm measurement variance due to manual measuring. For experimental and wellness use only.

For more information on Earth's electromagnetic environment and the science of resonance frequencies, visit the NASA Science resource on electromagnetic phenomena.

Frequently Asked Questions

Q: What is the default frequency of this Schumann Wave Generator?

A: The device defaults to 7.83Hz — Earth's natural Schumann resonance frequency — every time it powers on. You can manually adjust the output to any frequency between 0.1Hz and 30,000Hz using the built-in keypad and LCD display.

Q: What power source does this signal generator require?

A: The generator runs on 5V via Micro USB or a DC 5.5×2.1mm connector. It is compatible with standard USB power banks, USB wall adapters, and laptop USB ports, making it highly portable and versatile for home, lab, or travel use.

Q: What is the difference between the green and black model options?

A: The green model outputs a pure sine wave only, ideal for straightforward Schumann resonance and wellness applications. The black model adds expanded waveform options including sine, square, and inverted square waves, making it better suited for broader signal generation and lab testing needs.

Q: Can this device be used for lab testing and DIY electronics projects?

A: Yes. With its crystal oscillator frequency reference, wide 0.1Hz–30KHz tunable range, and stable digital output, this adjustable signal generator is well-suited for lab testing, electronics experimentation, DIY projects, and frequency research applications.
