Sboard Mini Single-Door WiFi Access Control Panel Board

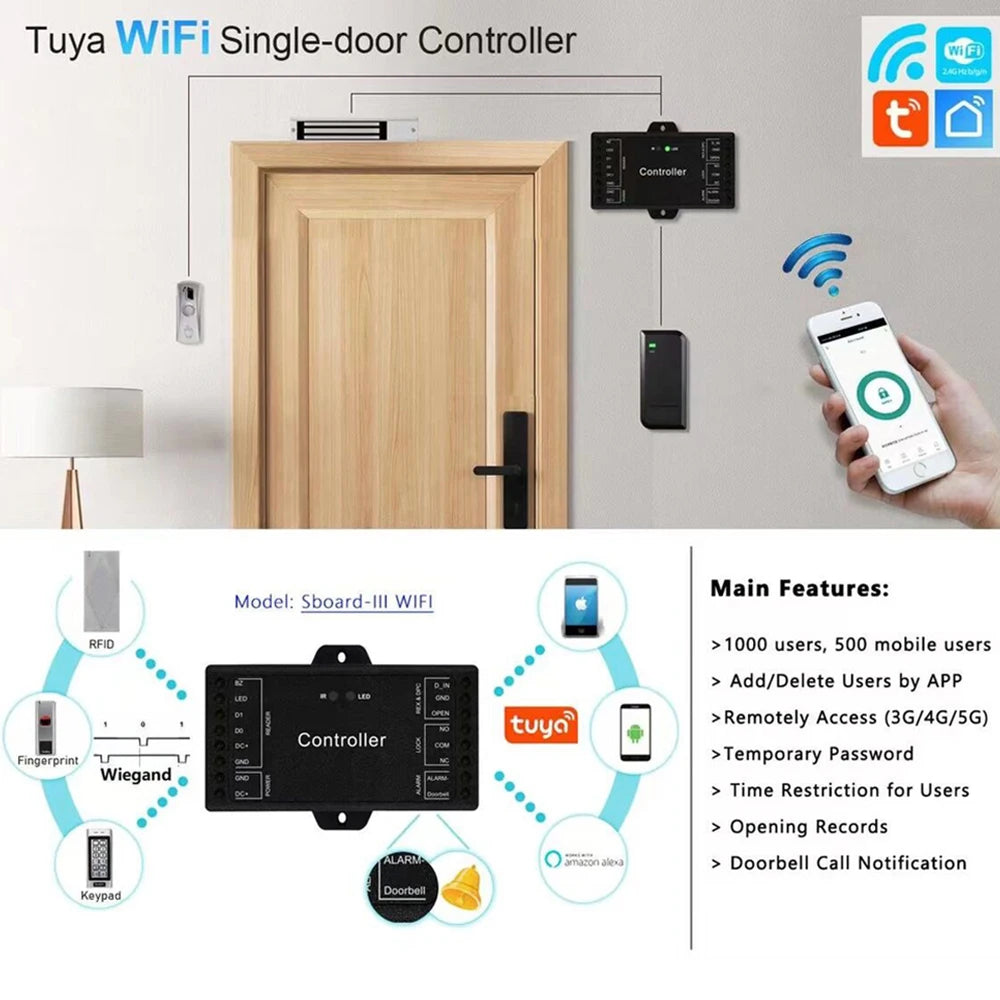

Take full command of your door security from anywhere in the world with the Sboard Mini (Sboard-III-WiFi) — a compact, feature-packed access control panel board that pairs seamlessly with the Tuya Smart App on iOS and Android. Supporting 2.4G, 3G, 4G, and 5G WiFi, it delivers real-time remote entry management for homes, offices, server rooms, and more. Made in Mainland China.
Key Features
- Multiple Access Modes: Card only, Card or PIN, Card with PIN, and multi-card/PIN combinations — choose the security level that fits your space.
- Wide Wiegand Compatibility: Connects with any Wiegand 26–44, 56, or 58-bit reader, plus keypad readers supporting 4-bit, 8-bit (ASCII), or 10-bit Virtual PIN formats.
- 1,000 User Capacity: Store up to 1,000 credentials locally, with up to 500 users manageable directly through the Tuya App.
- Tuya Smart App (iOS & Android): Add or delete card users, set time restrictions, generate temporary or one-time passwords, check door-opening history records, and remotely unlock — all from your smartphone.
- Master Card & Principal Card Support: Easily enroll and manage users on-site without a computer using master card functionality.
- One Relay Output: Controls a single door lock; compatible with fail-safe and fail-secure lock types.
- External Alarm & Door Contact Input: Integrates with alarm systems and door position sensors for comprehensive perimeter awareness.
- Doorbell Call Notice: Supports connection to an external doorbell for visitor alerts.
- Temporary Password: Issue one-time or time-period access codes for guests, contractors, or delivery personnel — no physical credential required.
- DC 12V Power Input: Standard low-voltage power supply for easy installation alongside most electric locks and power supplies.

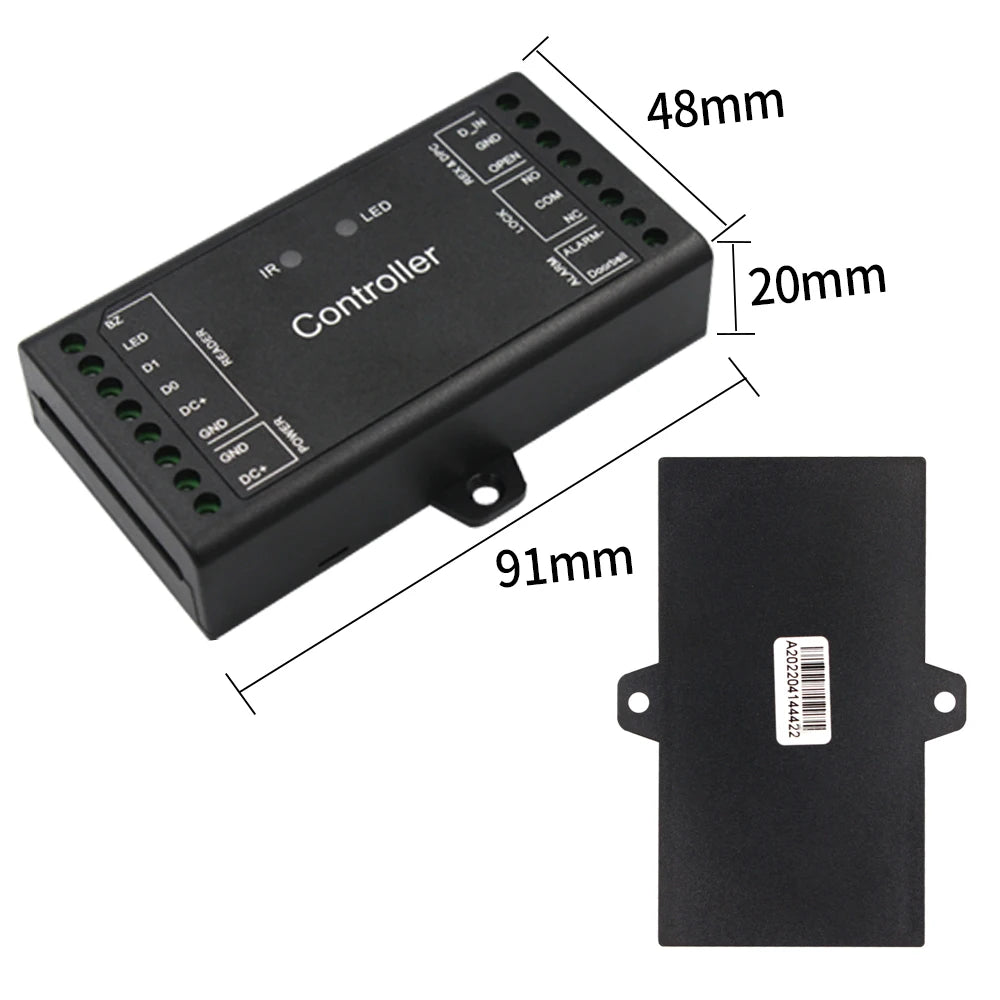

- Compact "Mini" Form Factor: Designed for discreet mounting in tight spaces without sacrificing capability.
Technical Specifications
| Model | Sboard-Mini / Sboard-III-WiFi |
| Brand | Asia-Teco |
| Power Input | DC 12V |
| WiFi Support | 2.4G / 3G / 4G / 5G |
| Smart App Platform | Tuya (iOS & Android) |
| Total User Capacity | 1,000 users |
| App User Capacity | 500 users |
| Wiegand Input | 26–44, 56, 58 bits |
| Relay | 1 relay (single door) |

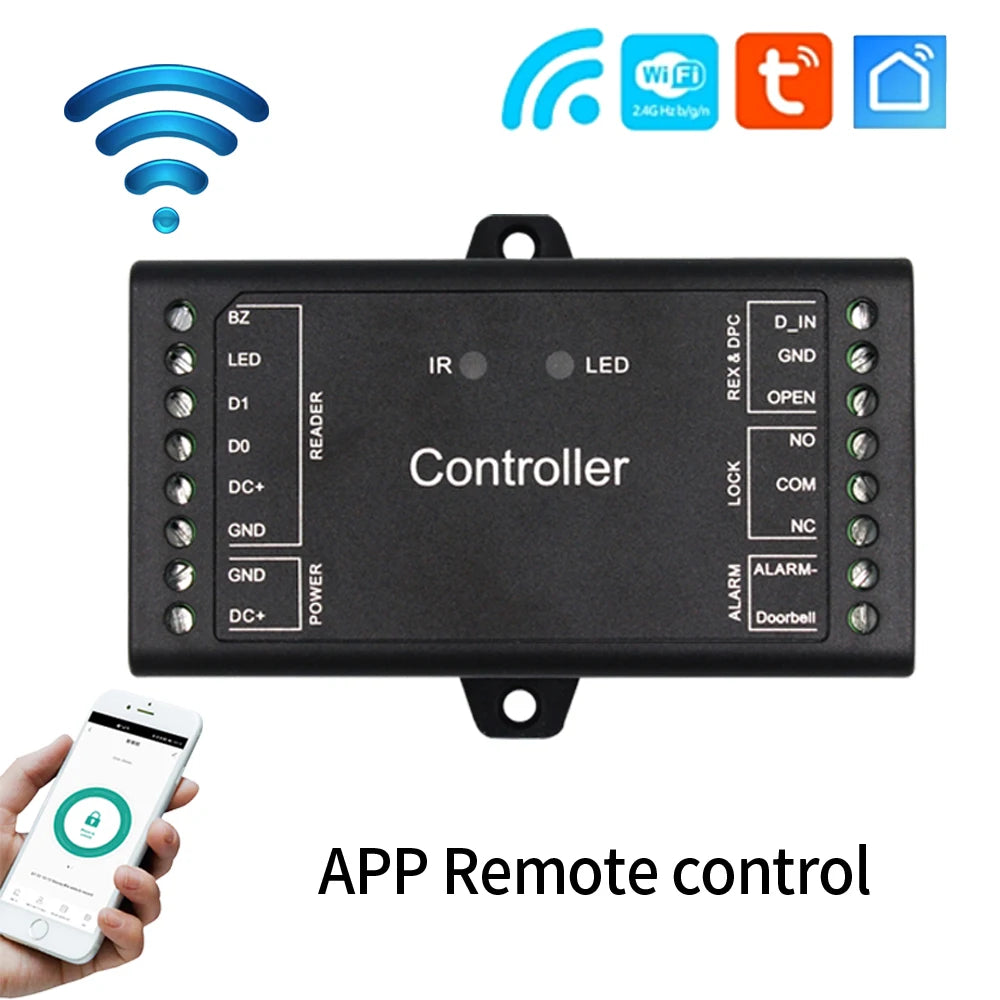

| Interfaces | Lock Control, Exit Button, Door Contact Input, Alarm Input, Wiegand |
| Security Mode | Fail Safe with Signal |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1× Sboard Mini Access Control Panel Board
- Installation hardware and documentation
Why Choose the Sboard Mini?
Whether you're upgrading a small office, securing a rental property, or modernizing a home entry point, the Sboard Mini delivers enterprise-grade access control in a budget-friendly, app-connected package. The Tuya ecosystem lets you manage access from anywhere — no dedicated server or PC software required. For guidance on physical security best practices, visit the Cybersecurity and Infrastructure Security Agency. For smart home device cybersecurity tips, see FTC IoT Security Guidance.
Frequently Asked Questions
Q: Does the Sboard Mini work with my existing card readers?
A: Yes. The Sboard Mini is compatible with virtually any Wiegand reader outputting 26–44, 56, or 58-bit signals, as well as keypad readers using 4-bit, 8-bit (ASCII), or 10-bit Virtual PIN formats. Simply wire your existing reader to the Wiegand input terminals.
Q: Can I manage users remotely without being on-site?
A: Absolutely. With the Tuya Smart App (available for iOS and Android) and an active WiFi connection (2.4G, 3G, 4G, or 5G), you can add or delete card users, issue temporary passwords, set time-based access restrictions, remotely unlock the door, and review the door-opening history log — all from your smartphone, anywhere in the world.
Q: How many users can this access control board support?
A: The panel stores up to 1,000 user credentials locally. Of these, up to 500 users can be managed and operated through the Tuya App. Additional users can be enrolled using the master card function directly at the controller.
Q: Is this compatible with both fail-safe and fail-secure electric locks?
A: The Sboard Mini operates in Fail Safe with Signal mode. It is compatible with standard 12V electric locks. Confirm your lock's fail-safe/fail-secure requirements before wiring to ensure correct operation during a power interruption.
Q: What WiFi frequencies does the Sboard Mini support?
A: The controller supports remote access over 2.4GHz, 3G, 4G, and 5G WiFi/mobile data networks, giving you flexible connectivity options depending on your installation environment.
