RS485 Dual L6205 DC Motor Controller Decoder Module

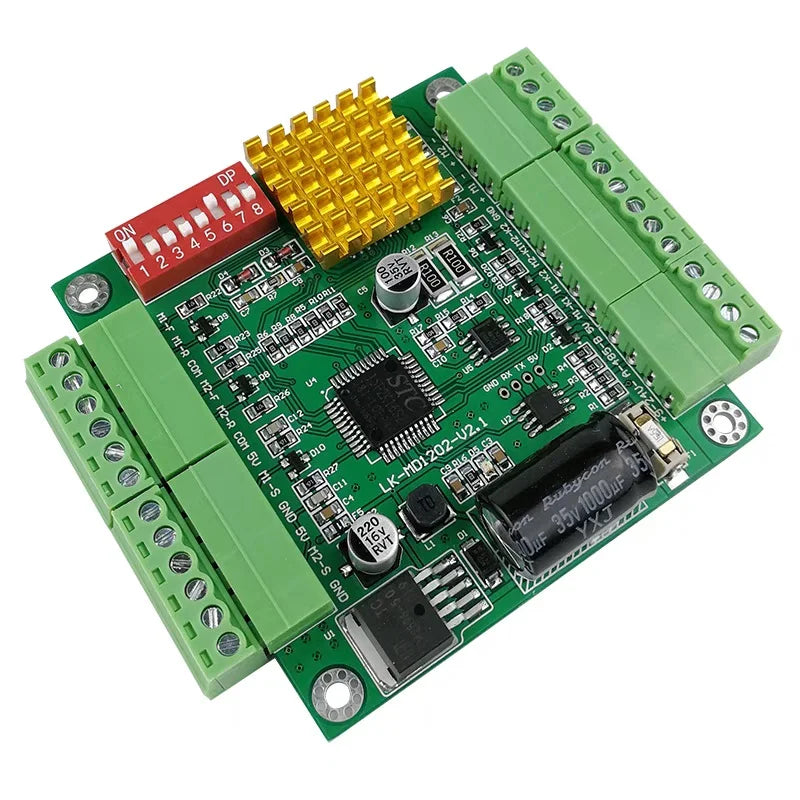

The LIHTNE MD1202 RS485 Dual L6205 DC Motor Controller Module is a powerful, versatile control solution designed for engineers, robotics enthusiasts, and automation professionals. Featuring two independent H-bridge circuits powered by the L6205 chip, this module delivers precise, reliable bidirectional DC motor control — all over an RS485 serial interface with PELCO-D protocol support straight out of the box.
Key Features
- Dual Independent H-Bridge: Two fully independent H-bridge circuits, each rated at a maximum continuous current of 2.8 A, for simultaneous control of two DC motors.
- Wide Input Voltage Range: Operates on DC 9V to 24V, making it compatible with a broad range of power supplies and applications.
- RS485 Communication: Industry-standard RS485 serial interface ensures noise-immune, long-distance communication in demanding environments.
- PELCO-D Protocol Support: Default protocol is PELCO-D; Modbus protocol is available as a customizable option.
- Flexible Control Modes: Supports RS485 communication control, potentiometer control, and direct switch control for motor direction and speed.
- Adjustable Baud Rate & Address Code: Easily configure the baud rate and device address to suit your network topology and application requirements.
- Customizable: Available with custom configurations — contact us to discuss Modbus or other protocol requirements.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | MD1202 |
| Driver IC | Dual L6205 |
| Input Voltage | DC 9V – 24V |
| Max Rated Current per Channel | 2.8 A |
| Communication Interface | RS485 |
| Default Protocol | PELCO-D |
| Optional Protocol | Modbus (customizable) |
| Control Modes | RS485, Potentiometer, Switch |
| Baud Rate | Adjustable |
| Address Code | Adjustable |
| Country of Origin | Made in Mainland China |
Ideal Applications
- PTZ camera pan/tilt drive systems
- Industrial automation and conveyor systems
- Robotics platforms requiring dual-motor control
- CNC and motion control projects
- Smart home and building automation integrations
For guidance on RS485 industrial communication standards and best practices, refer to the NIST Electronics & Communications Resources.
Frequently Asked Questions
Q: What protocol does the LIHTNE MD1202 RS485 DC motor controller use by default?
A: The MD1202 uses the PELCO-D protocol by default. If you require Modbus protocol support, this can be arranged as a custom configuration — please reach out before ordering to confirm your requirements.
Q: Can the MD1202 control two DC motors simultaneously?
A: Yes. The module features two fully independent H-bridge circuits, each capable of driving a separate DC motor at up to 2.8 A. Both channels operate independently, enabling simultaneous bidirectional control of two motors.
Q: What control methods are supported besides RS485?
A: In addition to RS485 serial communication, the MD1202 supports potentiometer control and switch control for motor direction and operation, giving you flexible integration options for a wide range of setups.
Q: What is the operating voltage range for this motor controller module?
A: The module accepts a supply voltage of DC 9V to 24V, making it compatible with most standard industrial and hobby power supplies commonly used in automation and robotics projects.
