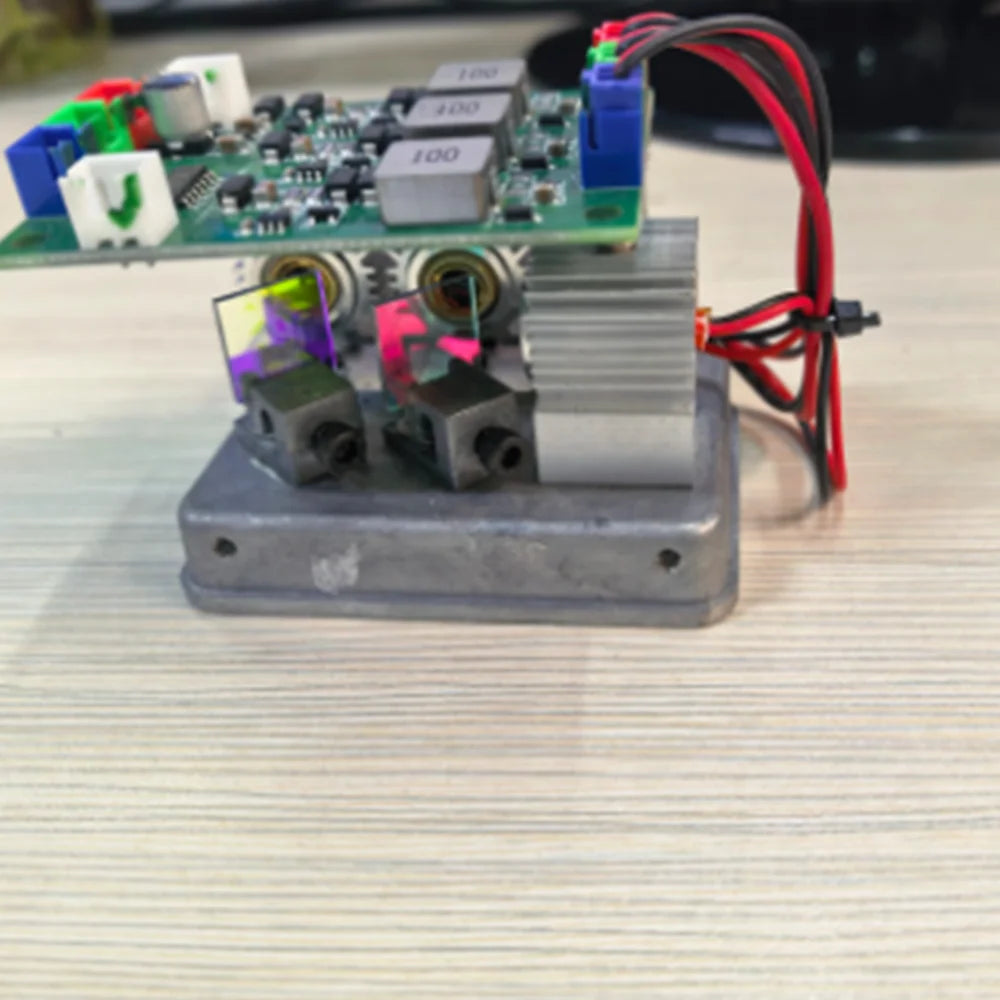

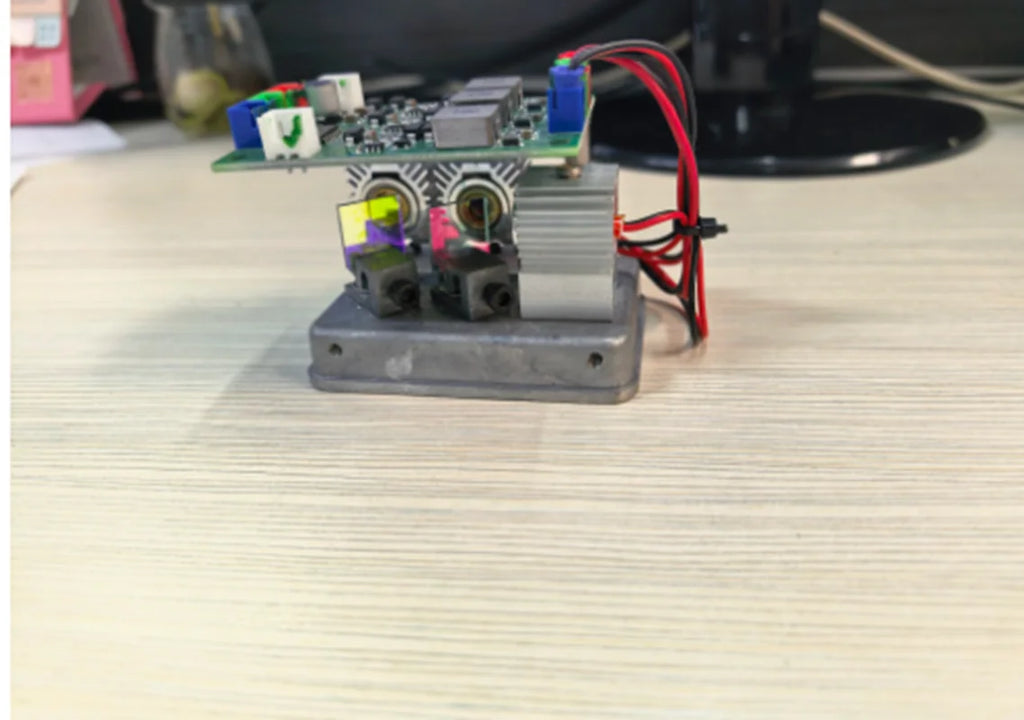

RGB Stage Laser Light Module – 6W / 8W | Aviation Aluminum Housing
Elevate your stage, studio, or performance setup with this professional-grade RGB Laser Light Module. Available in 6W and 8W configurations, this compact yet powerful module delivers vivid red, green, and blue laser outputs — perfectly blended into a crisp white fine-spot beam. Built on a solid aviation-grade aluminum base for superior heat management and long-lasting durability, it's engineered for demanding lighting applications.
Key Features
- Dual Power Options: Choose 6W (R:1W / G:1.8W / B:3.5W) or 8W (R:1W / G:2W / B:5W) to match your output needs.
- Precise Output Wavelengths: Red 638nm | Green 520nm | Blue 450nm — delivering vivid, saturated colors.
- Fine Spot White Light Output: Focusing lens optics produce a sharp, concentrated beam ideal for stage and performance environments.
- TTL Modulation Compatible: Supports external TTL modulation for precise, programmable light control in professional rigs.
- Aviation Aluminum Construction: Lightweight yet rugged housing ensures efficient thermal dissipation and reliable operation.
- DC Input: Operates on DC 12V (standard) / DC 24V — easy integration into existing stage power systems.
- Compact Form Factor: 67mm × 50mm footprint fits into a wide range of fixture housings and custom builds.
- Safe Operating Temperature: Designed to perform at ambient temperatures up to 40°C.
Technical Specifications
| Specification | 6W Model | 8W Model |
|---|---|---|
| Red Output | 1W / 638nm | 1W / 638nm |
| Green Output | 1.8W / 520nm | 2W / 520nm |
| Blue Output | 3.5W / 450nm | 5W / 450nm |
| Output Current (R/G/B) | 900mA / 1.8A / 3A | |
| Input Voltage | DC 12V / 24V | |
| Dimensions | 67mm × 50mm | |
| Material | Aviation Aluminum | |
| Modulation | TTL External Modulation | |
| Light Output | White Fine Spot (Focusing Lens) | |
| Working Temperature | ≤ 40°C | |
| Batteries Included | No | |
Ideal Applications
- Stage and theatrical lighting rigs
- DJ and club light installations
- Custom laser projector builds
- Entertainment venue accent lighting
- Studio and broadcast lighting fixtures
Made in Mainland China.
For guidance on laser product safety standards and classifications, refer to the FDA's Laser Products and Instruments resource page.
Frequently Asked Questions
Q: What is the difference between the 6W and 8W RGB laser light modules?
A: Both modules share the same red (1W) channel, but the 8W model offers a more powerful green (2W vs 1.8W) and blue (5W vs 3.5W) output, resulting in a brighter, more intense combined white beam. Choose the 8W model for larger stages or venues requiring greater light output.
Q: Is this RGB laser module compatible with standard DMX or TTL control systems?
A: This module supports external TTL modulation, making it compatible with a wide range of professional lighting controllers. It is designed for integration into custom stage fixtures, laser projectors, and DMX-compatible rigs with TTL signal input.
Q: What power supply does this laser module require?
A: The module operates on a DC 12V or 24V input. A suitable DC power supply must be used — batteries and bulbs are not included. Ensure your power source meets the current requirements for each channel (Red: 900mA, Green: 1.8A, Blue: 3A).
Q: Is the aviation aluminum housing important for performance?
A: Yes. The aviation-grade aluminum base acts as an integral heat sink, efficiently dissipating thermal energy generated by the laser diodes. This helps maintain optimal operating conditions and extends the lifespan of the module, especially during extended performance sessions.
