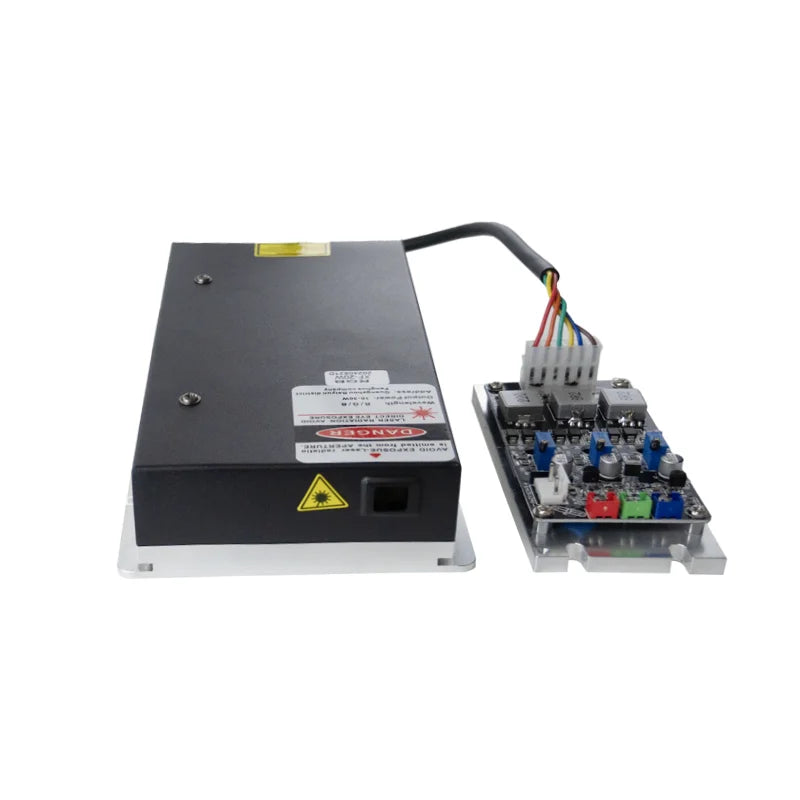

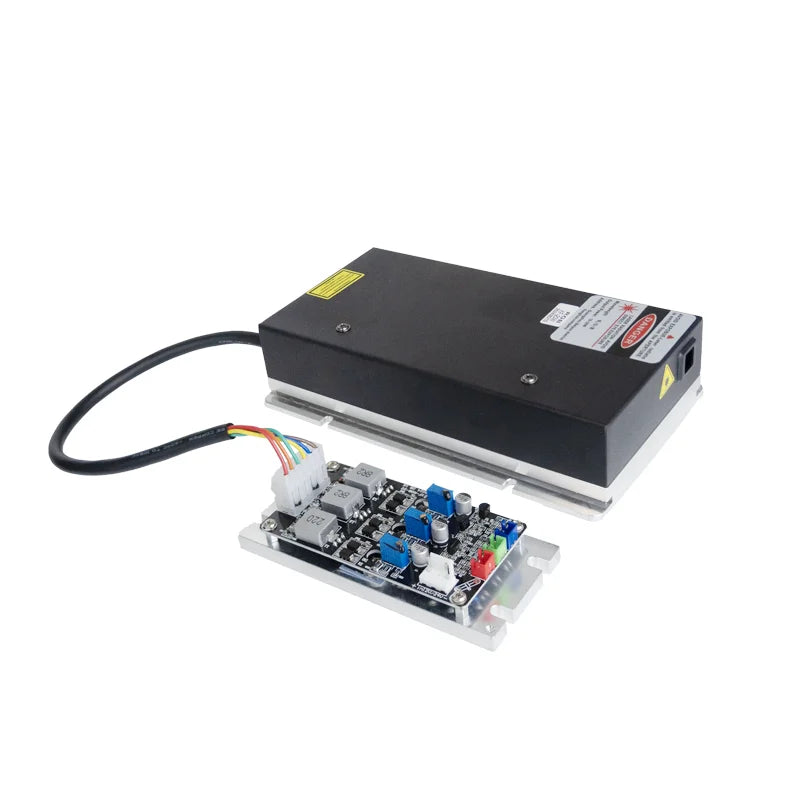

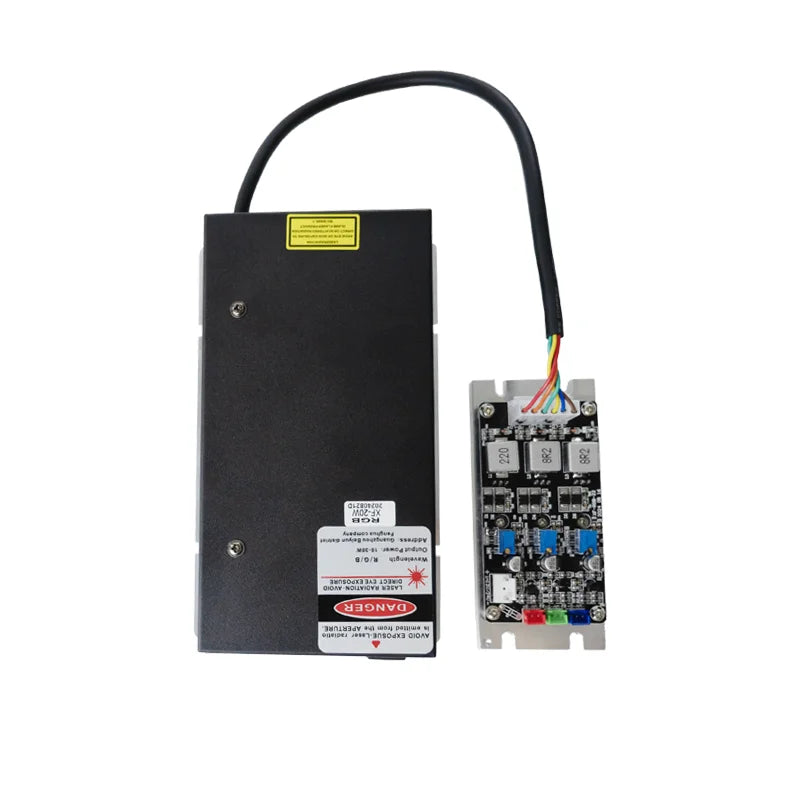

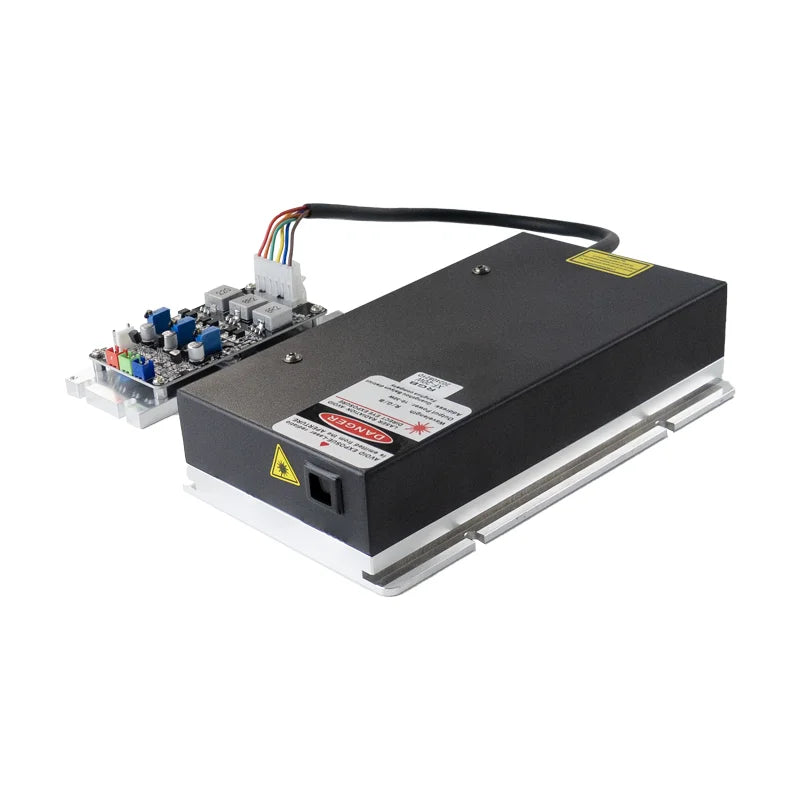

RGB 20W Stage Performance Laser Light Module
Elevate your stage productions, DJ sets, and live performances with the Elubor RGB 20W Stage Laser Light Module. Engineered for professional use, this compact yet powerful laser module delivers vivid red, green, and blue beams with precision wavelength control — creating stunning visual effects that captivate any audience.
Key Specifications
- Total Output Power: 20W RGB (R: 5W @ 638nm | G: 5W @ 520nm | B: 10W @ 450nm)
- Power Fluctuation Range: ±100mW
- Light Mode: Multi-mode spot mode
- Divergence Angle: <3mrad for a tight, focused beam
- Light Outlet Spot Size: 6.0 × 6.0mm
- Output Stability: ±2%
- Input Voltage / Current: DC 24V / 6A (Overall power: 144W)
- Driver Board Wire Length: 250mm (Red = Positive, Black = Negative)
- Modulation Frequency: 0–20KHz
- Working Lifespan: 8,000–10,000 hours
- Optimal Operating Temperature: 11°C–35°C
- Suitable Temperature Range: -20°C to 50°C (ventilation/heat dissipation system required above 50°C)
- Cooling: Requires a separate external radiator for heat dissipation
- Style: Mini / Compact
- Power Source: DC
- Batteries / Bulbs Included: No
Why Choose This RGB Laser Module?
- ✅ Precision Wavelengths — Pure RGB colors at 638nm, 520nm, and 450nm for vivid, accurate hues
- ✅ High Modulation Frequency — Up to 20KHz for smooth, flicker-free animation and effects
- ✅ Tight Beam Divergence — Under 3mrad for sharp, well-defined light beams on large stages
- ✅ Long Operational Life — 8,000–10,000 hours of reliable performance
- ✅ Professional-Grade Stability — ±2% output stability ensures consistent show quality
- ✅ Versatile Applications — Ideal for performing arts, laser shows, DJ booths, concerts, and theatrical productions
Ideal For
This module is purpose-built for professional stage lighting engineers, laser show operators, and DJ equipment integrators who need a reliable, high-output RGB laser source. Its compact self-contained design makes it easy to integrate into custom laser show rigs and performance lighting systems.
Made in Mainland China.
For guidance on laser product safety standards, refer to the U.S. Consumer Product Safety Commission – Laser Products Safety Guide.
Frequently Asked Questions
Q: What power supply is required for the RGB 20W Stage Laser Light Module?
A: This module operates on DC 24V / 6A with an overall system power consumption of 144W. A suitable DC power supply rated at 24V and at least 6A is required and is not included with the module.
Q: Does this RGB laser module require external cooling?
A: Yes. A separate external radiator or heat dissipation system must be installed to ensure proper cooling during operation. For environments above 50°C, an active ventilation and heat dissipation system is mandatory to maintain safe and stable performance.
Q: What applications is this laser module designed for?
A: The Elubor RGB 20W Stage Laser Light Module is designed for professional performing arts, DJ shows, concerts, theatrical productions, and custom laser display systems where high-output, stable RGB laser beams are required.
Q: What is the expected lifespan of this laser module?
A: Under normal operating conditions within the recommended temperature range of 11°C–35°C, this module offers a working lifespan of 8,000 to 10,000 hours.
