RFID Wireless Access Control System – Keypad, Remote & Power Supply
RFID Wireless Access Control System – Keypad, Remote & Power Supply
Asia-Teco RFID Wireless Access Control Kit – Secure, Smart & Simple

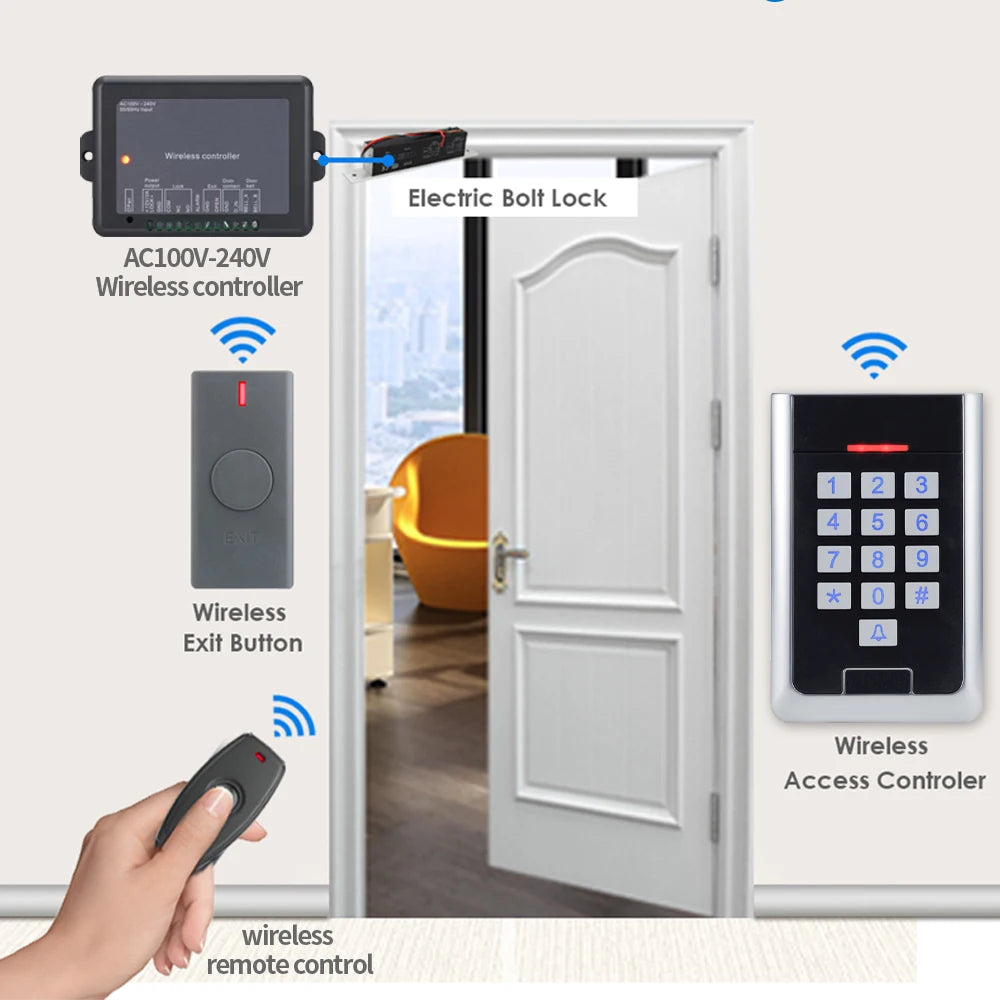

Take full control of who enters your property with this professional-grade RFID Wireless Access Control System by Asia-Teco. Designed for homes, offices, warehouses, and commercial spaces, this all-in-one kit combines a rugged outdoor keypad, wireless controller, remote controls, exit button, and a built-in AC 100V–240V power supply — everything you need for a complete standalone door access solution.
Made in Mainland China.
Key Features
- Universal AC Input: AC 100V–240V input with DC 12V/2A output — works worldwide with no additional converter needed.
- Dual-Frequency Support: Default 125kHz EM (ID) card system; optional 13.56MHz IC Mifare version available (contact us for upgrade).
- Large User Capacity: Supports up to 1,000 standard users + 100 temporary visitor users, perfect for businesses and multi-tenant buildings.
- Zinc-Alloy Outdoor Unit: Anti-vandal, anti-tamper, and anti-explosion housing built to last in demanding environments.

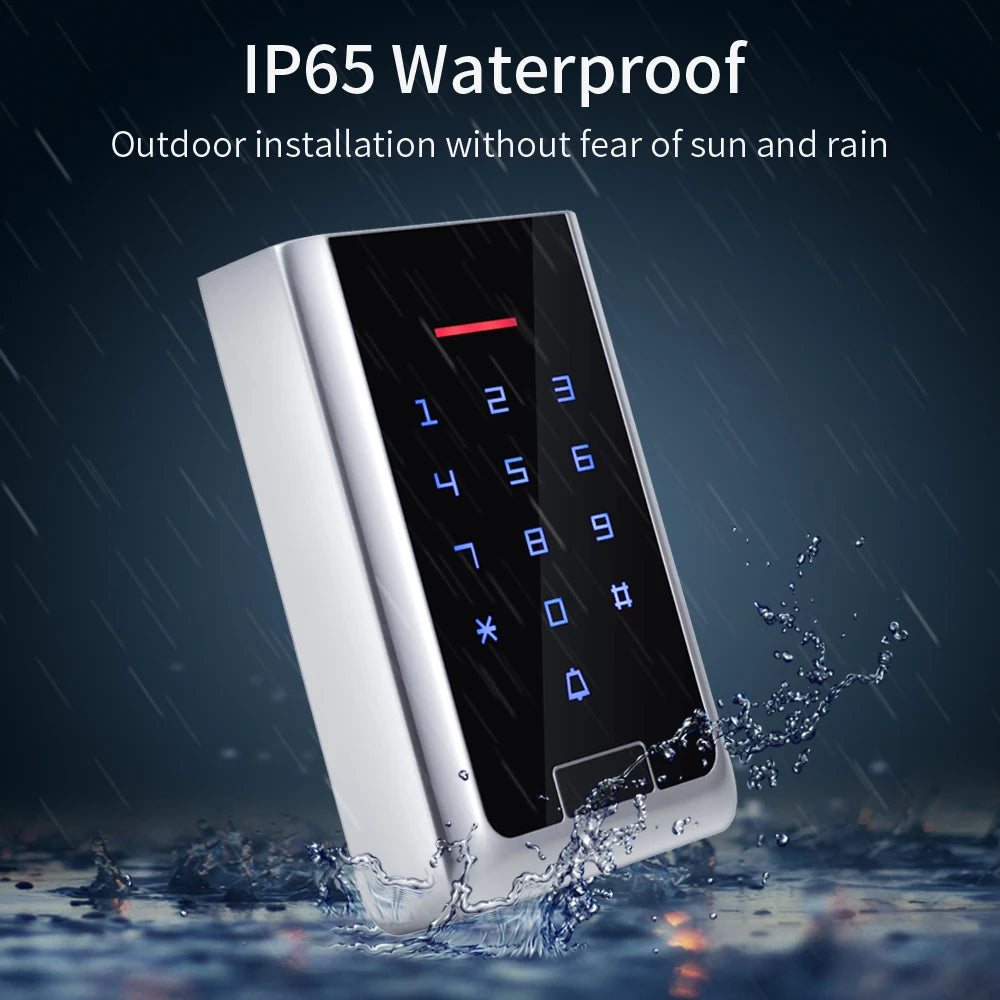

- IP66/IP67 Weatherproof: Fully rated for outdoor installation — rain, dust, and extreme temperatures (-30°C to 60°C) are no match.
- Backlit Keypad: Illuminated keys allow easy entry in low-light or nighttime conditions.
- Multiple Entry Modes: Open with card only, password only, or card + password for layered security.
- TEA + Rolling Code Encryption: Advanced cryptographic algorithm ensures each transmission is unique and highly secure.
- Wiegand 26–44 Output/Input: Compatible with a wide range of third-party access control systems and panels.
- Wireless Communication: 433MHz frequency with up to 20m range between keypad and controller.
- Built-in Wireless Doorbell: Indoor unit features an integrated doorbell; external doorbell connection also supported.
- Anti-Tamper Alarm: If the outdoor unit is forcibly removed, both the keypad and indoor controller trigger an alarm simultaneously.
- Pulse & Toggle Modes: Flexible output modes for standard electric locks or magnetic locks.
- Card Toggle Mode: Swipe to open, swipe again to close — ideal for gates and barriers.
- 2-Device Interlock: Two units can be interlocked to manage access for 2 separate doors.
- Block Enrollment: Add sequentially numbered cards in bulk, saving time for large installations.
- Admin Card Management: Quickly add or delete users using admin cards — no PC required.
- Multi-User Door Opening: Require multiple authorized users to present cards simultaneously for extra-high-security zones.
- Long Battery Life (Remote): Wireless remote operates for over 1 year at 30 uses per day.
- External Peripheral Support: Connect external alarm, door magnetic switch (door contact), doorbell, or exit button.
Specifications
| Model | AW10EM-K-W |
| Brand | Asia-Teco |
| Input Power | AC 100V–240V |
| Output Power | DC 12V / 2A |
| Card Reading Type | EM (ID) 125kHz (default); 13.56MHz IC optional |
| Communication Frequency | 433MHz |
| Communication Distance | ≤ 20m |
| User Capacity | 1,000 standard users + 100 visitor users |
| Wiegand Output/Input | 26–44 bit |
| Unlocking Current | ≤ 2A |
| Waterproof Rating | IP66 (outdoor unit) |
| Working Temperature | -30°C to 60°C |
| Password Length | 4–8 digits |
| Encryption | TEA + Rolling Code |
| Country of Origin | Mainland China |

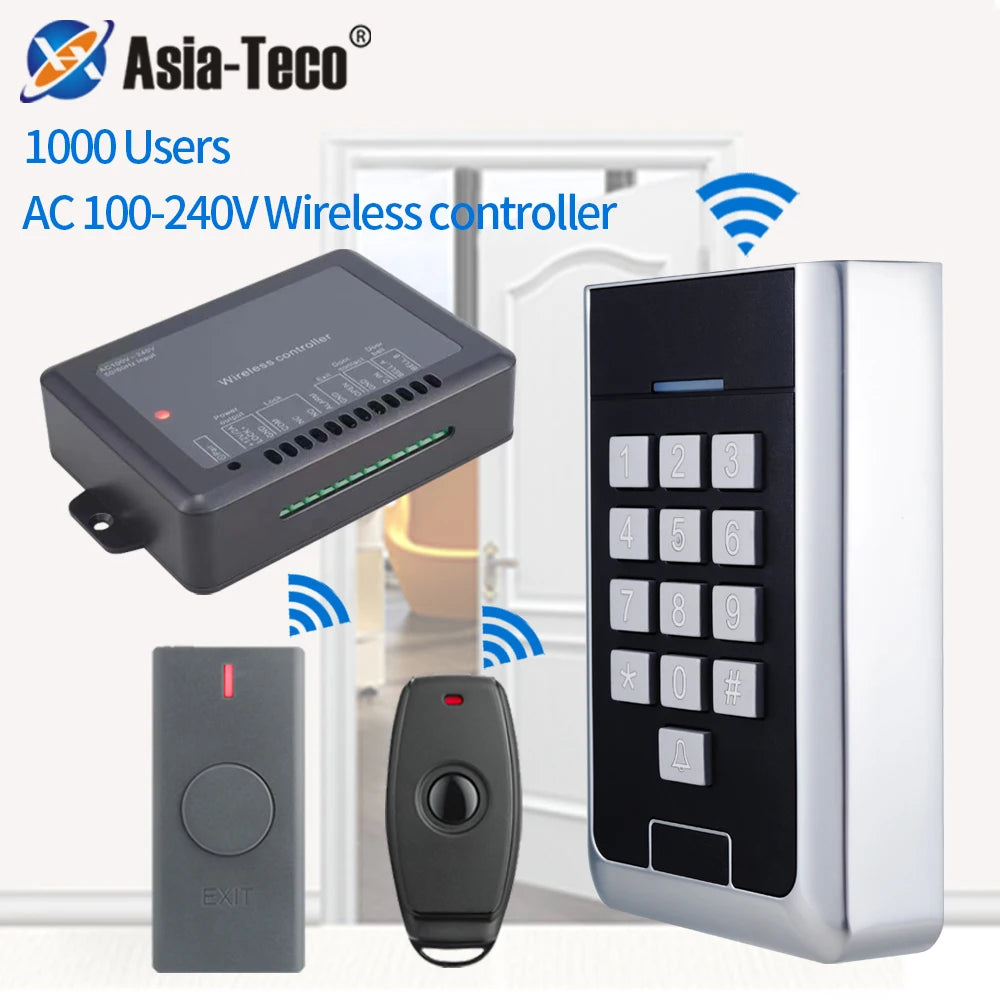

What's in the Box
- Outdoor RFID Keypad Unit (IP66, backlit, zinc-alloy)

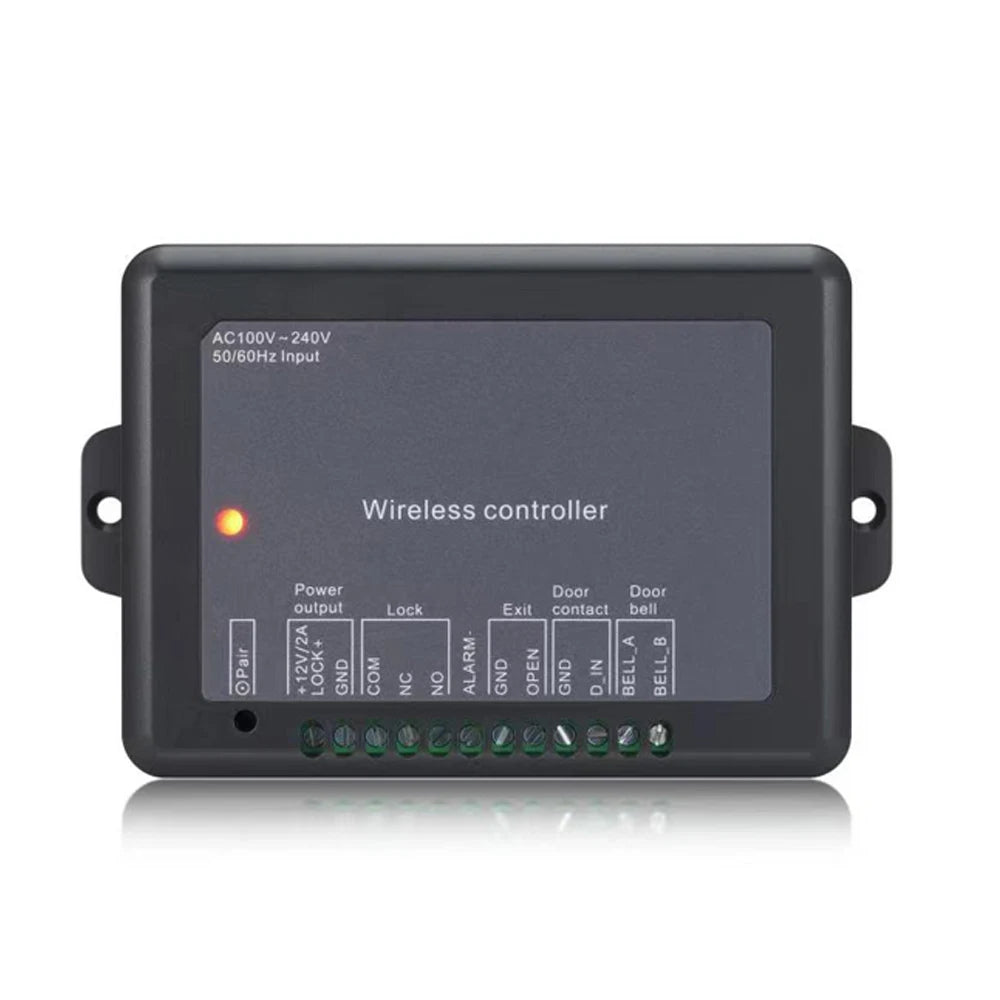

- Indoor Wireless Controller (with built-in doorbell)
- AC 100V–240V Power Supply (DC 12V/2A output)
- Wireless Remote Controls
- Exit Button
- Admin Cards
Ideal For
Homes, apartments, offices, warehouses, garages, gates, retail stores, gyms, schools, and any location requiring reliable, keyless access management with multi-user support.
For guidance on physical security and access control best practices, visit the U.S. Cybersecurity & Infrastructure Security Agency or consult the NIST Cybersecurity resources for standards on physical and electronic access systems.
Frequently Asked Questions
Q: What card frequency does this RFID access control system use by default?
A: The system defaults to 125kHz EM (ID) card technology. If you need 13.56MHz IC Mifare card support, you can request a customized version for an additional fee — simply contact customer service before ordering.
Q: Can this access control system be installed outdoors?
A: Yes. The outdoor keypad unit carries an IP66 weatherproof rating and is built from durable zinc-alloy, making it suitable for exterior doors, gates, and entry points exposed to rain, dust, and temperatures ranging from -30°C to 60°C.
Q: How many users can be registered on this system?
A: The system supports up to 1,000 standard registered users plus 100 temporary visitor users, making it suitable for small businesses, apartment complexes, and commercial facilities.
Q: Does this system work with existing access control panels via Wiegand?
A: Yes. The system features Wiegand 26–44 output and input, ensuring compatibility with a wide range of third-party access control panels and management systems.
Q: What power supply does this access control kit require?
A: The included power supply accepts universal AC 100V–240V input (suitable for use in most countries) and outputs DC 12V/2A to power the controller and connected lock hardware — no separate transformer needed.
