JCSMARTS RFID Smart Locker Lock – Keypad & Card Access
JCSMARTS RFID Smart Locker Lock – Keypad & Card Access

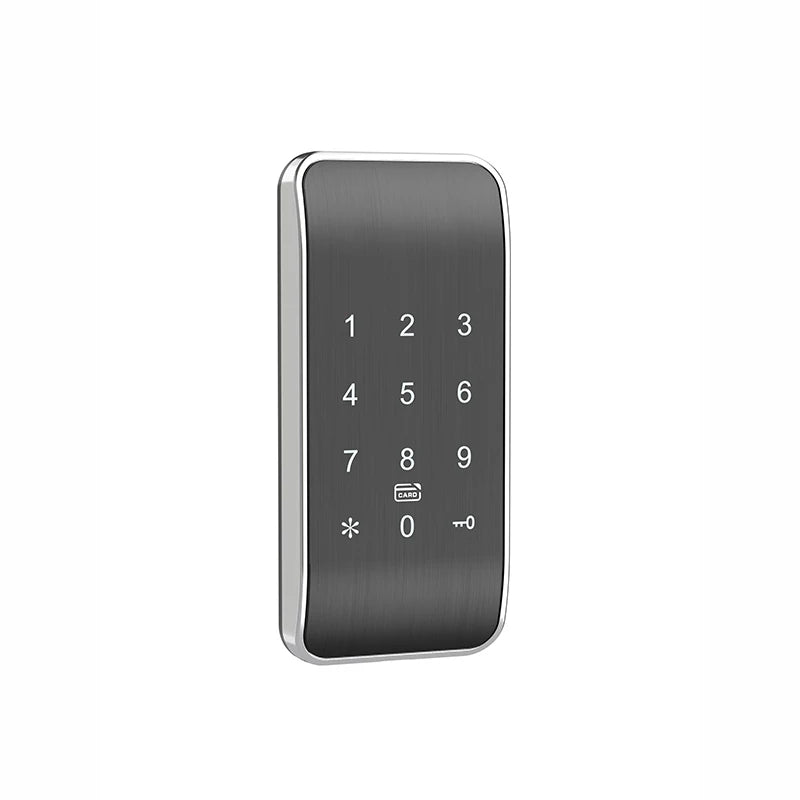

JCSMARTS Digital Smart Locker Lock – Keypad & RFID Card Access
Secure your cabinets, drawers, lockers, and storage boxes with the JCSMARTS RFID Electronic Smart Locker Lock (Model JCEM2110ID). Featuring a polished aluminum alloy touch keypad and multiple unlock methods — PIN code, RFID card, or a combined card + PIN — this versatile lock is built for homes, gyms, offices, libraries, schools, swimming facilities, and more.
Key Features
- Multiple Unlock Methods: Unlock via password, 13.56 MHz MIFARE RFID card, or both together for added security.
- Private & Public Working Modes: Perfect for personal use or shared environments like gyms, salons, and offices.
- Large User Capacity: Supports up to 200 card users and 200 password users (4–15 digits).
- Durable Construction: Polished aluminum alloy panel is wear-resistant and scratch-resistant; stainless steel latch and ABS lock body resist corrosion.
- Battery-Powered with Emergency Charging: Runs on 4 × AA batteries; equipped with a micro-USB port so you can use a power bank to unlock in the event of a low battery.
- Low Battery Alert: Built-in alarm activates at 4.8 V so you're never caught off-guard.
- No Wiring or Drilling Required: Quick and easy cable-through installation — simply drill one hole for the cable and two small holes to secure the lock body.
- Master Card & Password Included: One master card and one master password included — both can unlock all connected locks.
- Wide Operating Range: Rated for -30 °C to 80 °C, <95% relative humidity, and >15,000 V antistatic protection.
- OEM/ODM Available: Custom production options available for bulk or business orders.
Specifications
| Model | JCEM2110ID |
| Card Type | 13.56 MHz MIFARE RFID |
| Card Users | Up to 200 |
| Password Users | Up to 200 |
| Password Length | 4–15 digits |
| Power Source | 4 × AA dry batteries |
| Emergency Charging | Micro-USB port (power bank compatible) |
| Low Voltage Alarm | 4.8 V |
| Operating Temperature | -30 °C to 80 °C |
| Relative Humidity | <95% |
| Antistatic Protection | >15,000 V |
| Static Power Consumption | <5 μA |
| Dynamic Power Consumption | ~200 mA |
| Panel Material | Aluminum alloy (polished) |
| Lock Body | ABS plastic with stainless steel latch |
| Finish | Polished |
| Country of Origin | Made in China |
Ideal For
- Home cabinets, drawers & storage boxes
- Gym & fitness center lockers
- Office & workplace storage
- Libraries, schools & universities
- Supermarkets, sauna clubs & swimming facilities
- Child-safety applications (keep drawers and cabinets secure from little ones)
Installation Guide
Installation is straightforward and requires no electrical wiring:
- Drill one hole through the door or panel to route the cable.
- Drill two small mounting holes to secure the lock body.
- For double-door lockers, secure one door in place before locking.
For guidance on best practices for securing personal property and storage security, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What unlock methods does the JCSMARTS RFID smart locker lock support?
A: This smart locker lock supports three unlock methods: PIN code only, RFID card only (13.56 MHz MIFARE), or a combination of both card and PIN for maximum security. One master card and one master password are included and can override all registered user credentials.
Q: What happens if the batteries run out while the lock is in use?
A: The lock features a built-in low battery alarm that alerts you at 4.8 V before power is fully depleted. In the event the battery does run out, the micro-USB emergency charging port allows you to connect a standard power bank to temporarily power the lock and unlock it.
Q: Can this lock be used in a gym or shared public locker room?
A: Yes — the JCSMARTS smart locker lock supports both Private Mode (for individual use) and Public Mode (for shared environments). In Public Mode, the lock is ideal for gyms, swimming facilities, libraries, offices, and other settings where multiple users take turns using the same locker.
Q: How many users can be registered on a single lock?
A: Each lock can store up to 200 RFID card users and 200 password users, making it well-suited for both personal and commercial applications.
Q: Is installation difficult, and does it require an electrician?
A: No electrician is needed. Installation requires only basic tools — drill one hole for the cable and two small holes to mount the lock body. No wiring is required since the lock is fully battery-powered.
