RFID Barcode 2D QR Code Access Control Reader – 20,000 Users | TTL / RS485 / Wiegand 26/34 | NFC & DESFire EV2

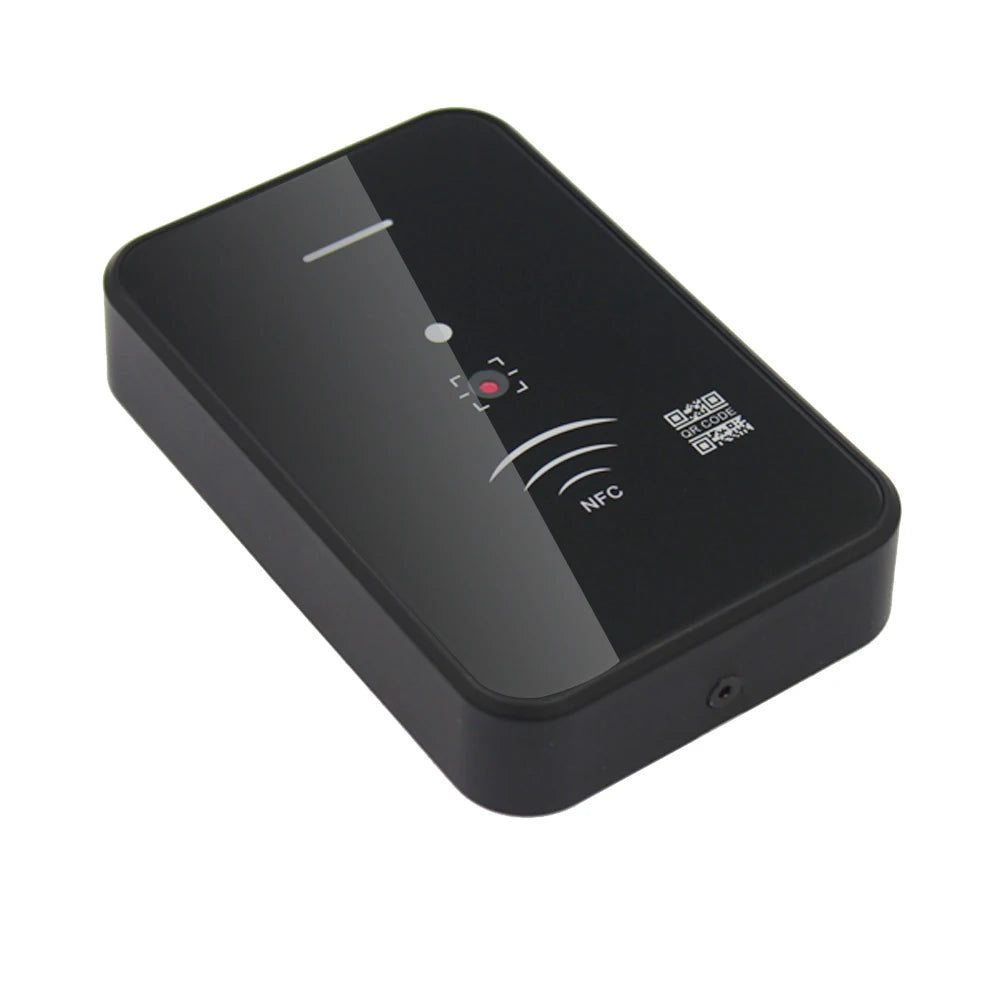

Take your entry management system to the next level with this advanced multi-technology access control reader. Designed for demanding environments, it combines 2D QR Code scanning, RFID IC Card reading, Mobile NFC, and DESFire EV2 support into a single compact device — capable of managing up to 20,000 users. Whether you're securing an office, apartment complex, warehouse, or gated facility, this reader delivers fast, reliable, and flexible credential verification.
Made in Mainland China.
Key Features
- Multi-Credential Support: Reads QR codes (on screen or paper), Mifare IC cards, mobile phone NFC, and DESFire EV2 cards — all in one device.
- Fast Recognition: QR code scan in under 0.5 seconds; card read time under 0.3 seconds for smooth, efficient throughput.
- High Capacity: Supports up to 20,000 users, including up to 20,000 IC card-bound QR code bindings via app.
- 360° Vertical Reading Angle: CMOS-based scanner with a 360° vertical reading angle and a wide left/right/up/down 80° camera field for effortless scanning at any orientation.
- Versatile Communication Interfaces: Standard TTL, RS485, and Wiegand 26/34 output — easily integrates with most existing access control panels and systems.
- Automatic Fill Light: Built-in fill light activates automatically in low-light or dark environments for consistent scanning performance around the clock.
- Audible Confirmation: Integrated buzzer provides instant notification on successful reads.

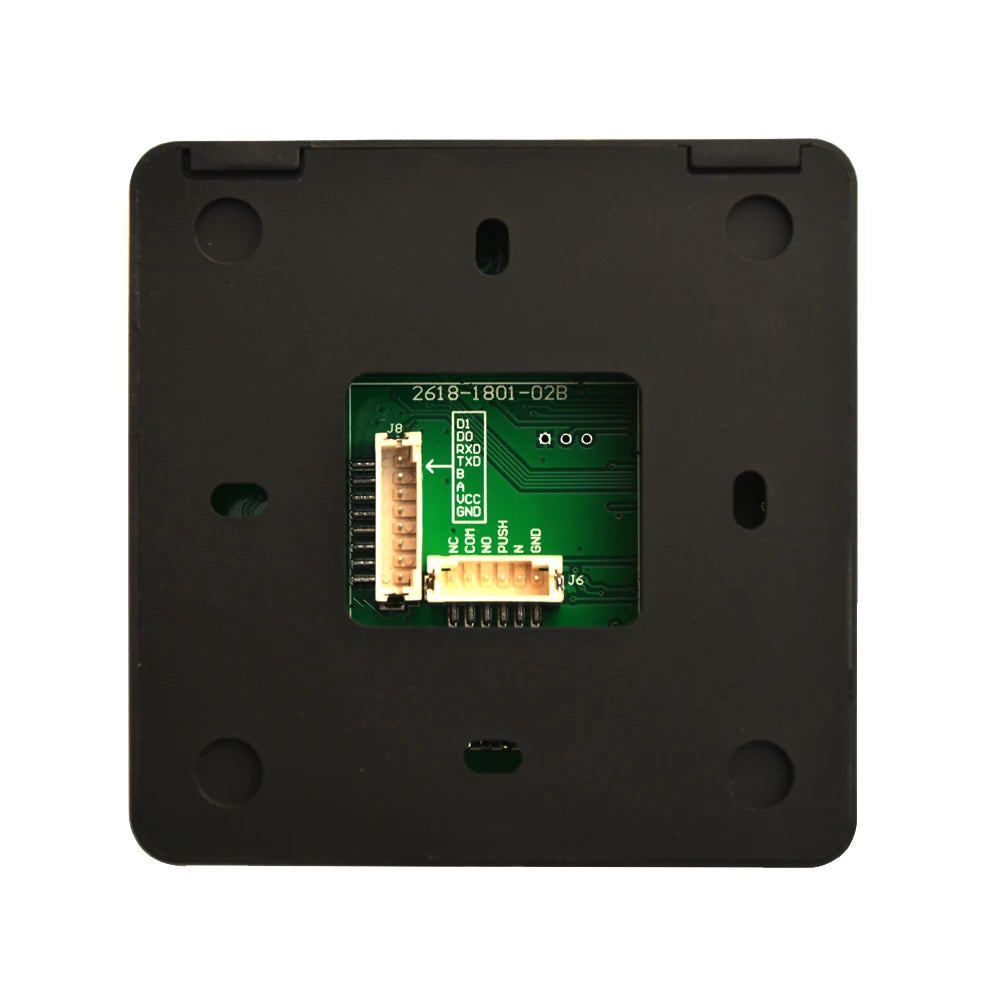

- Flexible Unlock Signaling: Includes 1 set of normally open contacts, 1 set of normally closed contacts, and 1 open-door button signal input.
- Wide Voltage Range: Operates on DC 5–12V for broad compatibility with standard access control power supplies.
- Compact & Weatherproof: Device dimensions: 114mm × 74mm × 21mm. Supplied with a shading & waterproof cover (150mm × 103mm × 80mm) for outdoor and exposed installations.
Technical Specifications
| Reading Mode | CMOS |
| Reading Code | QR Code (on screen / paper) |
| Reading Accuracy | 5 mil |
| QR Reading Distance | 2–10 cm (0–2 cm is the blind zone; maintain >3 cm from camera) |
| QR Recognition Time | < 0.5 second |
| Vertical Reading Angle | 360° |
| Camera Field | Up/down and left/right 80° |
| Card Reading Type | Mifare One (IC Card), Mobile Phone NFC, DESFire EV2 |
| Card Reading Distance | 3–6 cm |
| Card Reading Time | < 0.3 second |
| Maximum Users | 20,000 |
| Communication Interface | TTL, RS485, Wiegand 26/34 (output) |
| Operating Voltage | DC 5–12V |
| Unlock Signal | 1× normally open + 1× normally closed contacts |
| Signal Input | 1× open-door button |
| Notification | Buzzer |
| Security Mode | Fail Secure |
| Device Dimensions | 114 mm × 74 mm × 21 mm |
| Weatherproof Cover Dimensions | 150 mm × 103 mm × 80 mm |
| Model Number | 6615 |
| Origin | Mainland China |
Ideal Applications
- Office buildings and corporate campuses
- Apartment complexes and residential communities
- Warehouses, factories, and logistics facilities
- Parking garages and gated entry points
- Gyms, co-working spaces, and event venues
For more information on access control security standards and best practices, visit the NIST Identity & Access Management resource center.
Frequently Asked Questions
Q: What types of credentials does this RFID QR Code access control reader support?
A: This reader supports multiple credential types including 2D QR codes (displayed on a screen or printed on paper), Mifare One IC cards, mobile phone NFC, and DESFire EV2 smart cards — making it one of the most versatile access control readers available for modern installations.
Q: How many users can be stored on this access control reader?
A: The reader supports a maximum of 20,000 users. It also supports up to 20,000 IC card and QR code bindings through its compatible app/applet, making it well-suited for large facilities and high-traffic entry points.
Q: What communication interfaces are supported for integration with existing systems?
A: This reader outputs via Standard TTL, RS485, and Wiegand 26/34 — the three most widely used protocols in professional access control systems — ensuring compatibility with a broad range of access control panels and controllers.
Q: Can this reader be used outdoors?
A: Yes. The reader comes with a dedicated shading and waterproof cover (150mm × 103mm × 80mm) designed to protect the device from rain and outdoor conditions, making it suitable for exterior door installations, parking gates, and other exposed mounting locations.
Q: What is the reading distance for QR codes and RFID cards?
A: QR codes can be read at a distance of 2–10 cm (note: 0–2 cm is the blind zone, so a minimum of 3 cm is recommended). RFID IC cards and NFC devices have a card reading distance of 3–6 cm, with a read time of under 0.3 seconds.
