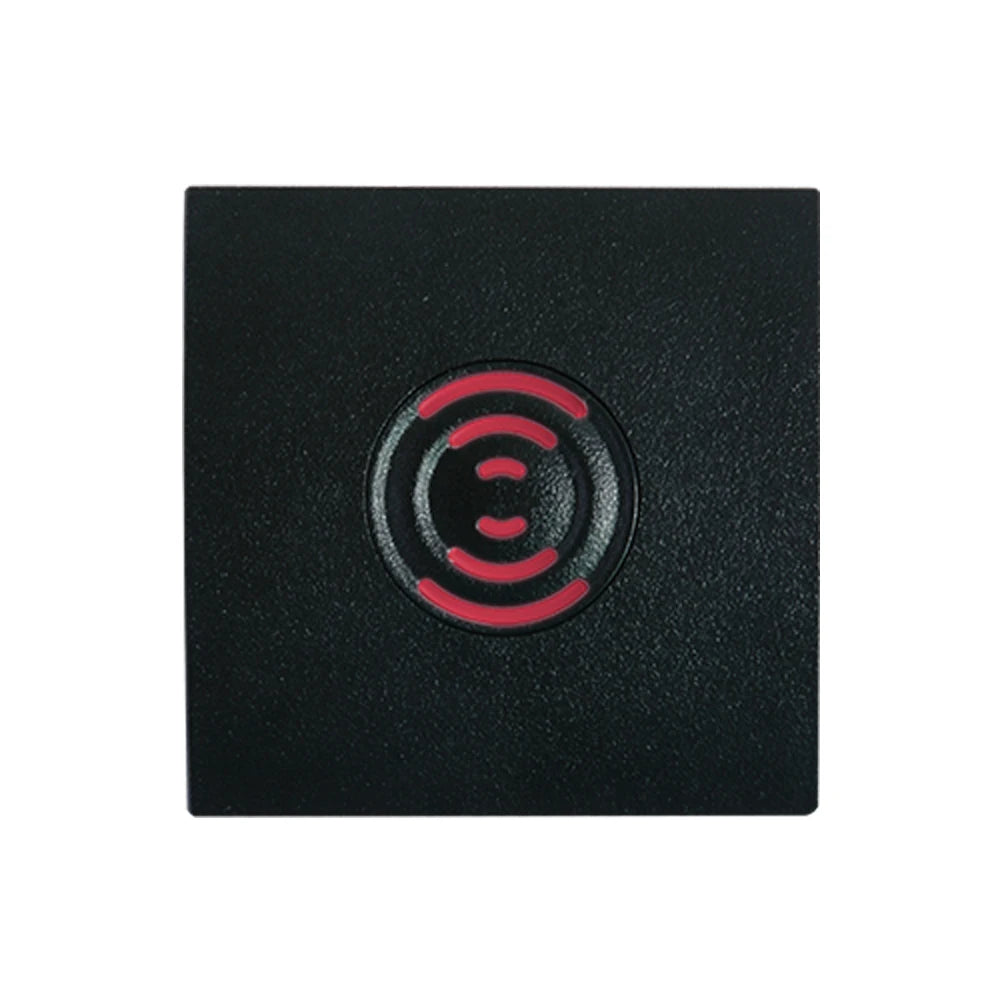

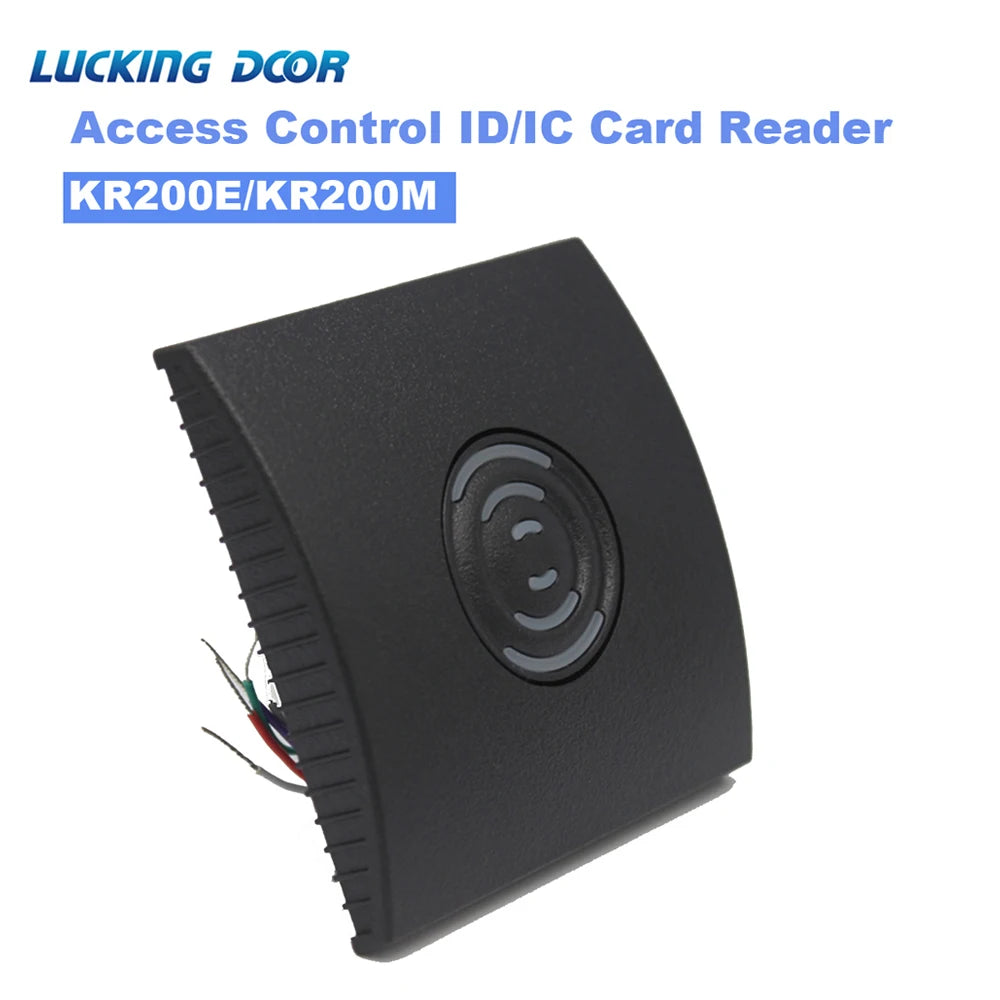

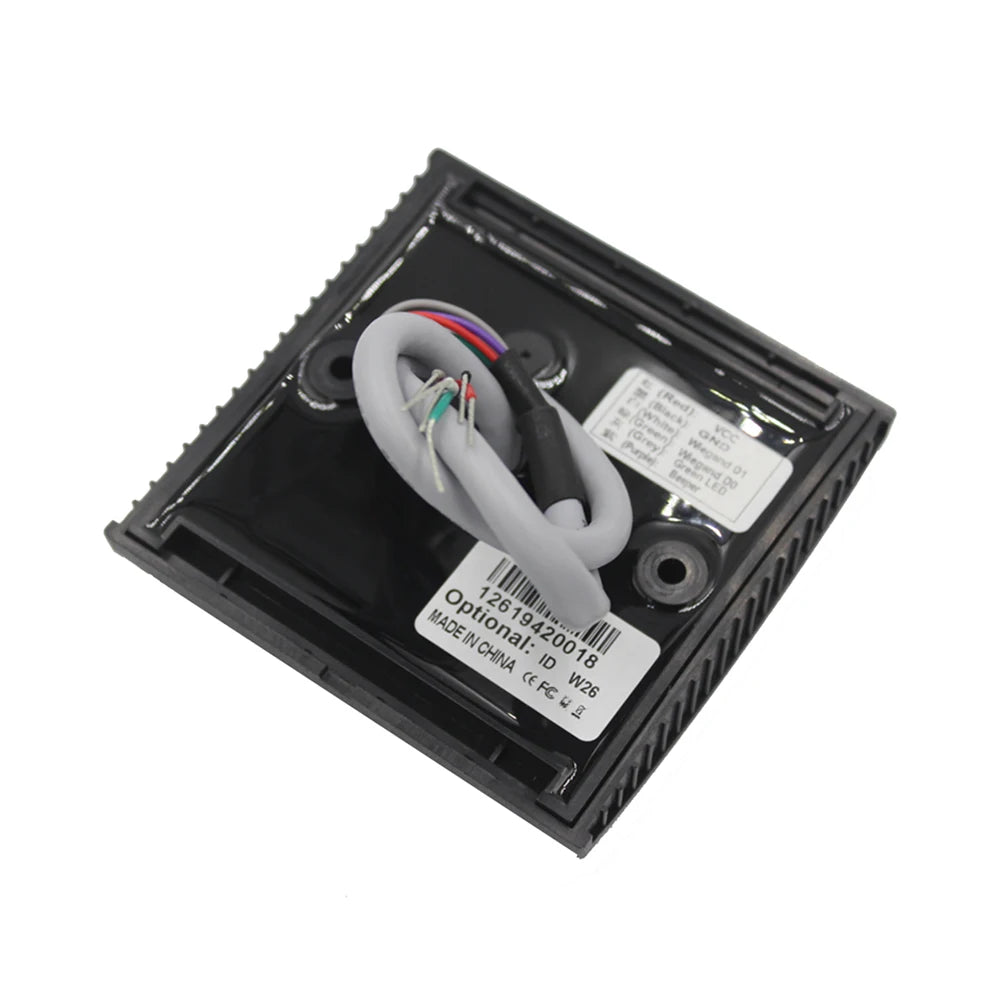

Dual-Frequency RFID Proximity Card Reader Wiegand IP65 KR200E
Dual-Frequency RFID Proximity Card Reader Wiegand IP65 KR200E
LUCKING DOOR KR200E Dual-Frequency RFID Proximity Card Reader
Upgrade your entry security with the LUCKING DOOR KR200E — a versatile, dual-frequency RFID access control card reader compatible with both 13.56 MHz and 125 KHz proximity cards. Designed for professional and residential installations alike, this compact reader features a universal Wiegand output interface, making it easy to integrate with virtually any access control panel on the market.
Built to withstand the elements, the KR200E carries an IP65 waterproof rating, ensuring reliable performance whether it's mounted at an outdoor entrance, parking gate, or indoor corridor. With a lightning-fast induction time of ≤ 0.2 seconds, access is smooth and instant every time.
Key Features
- Dual Frequency Support: Works with both 13.56 MHz (Mifare) and 125 KHz (EM) proximity cards and key fobs

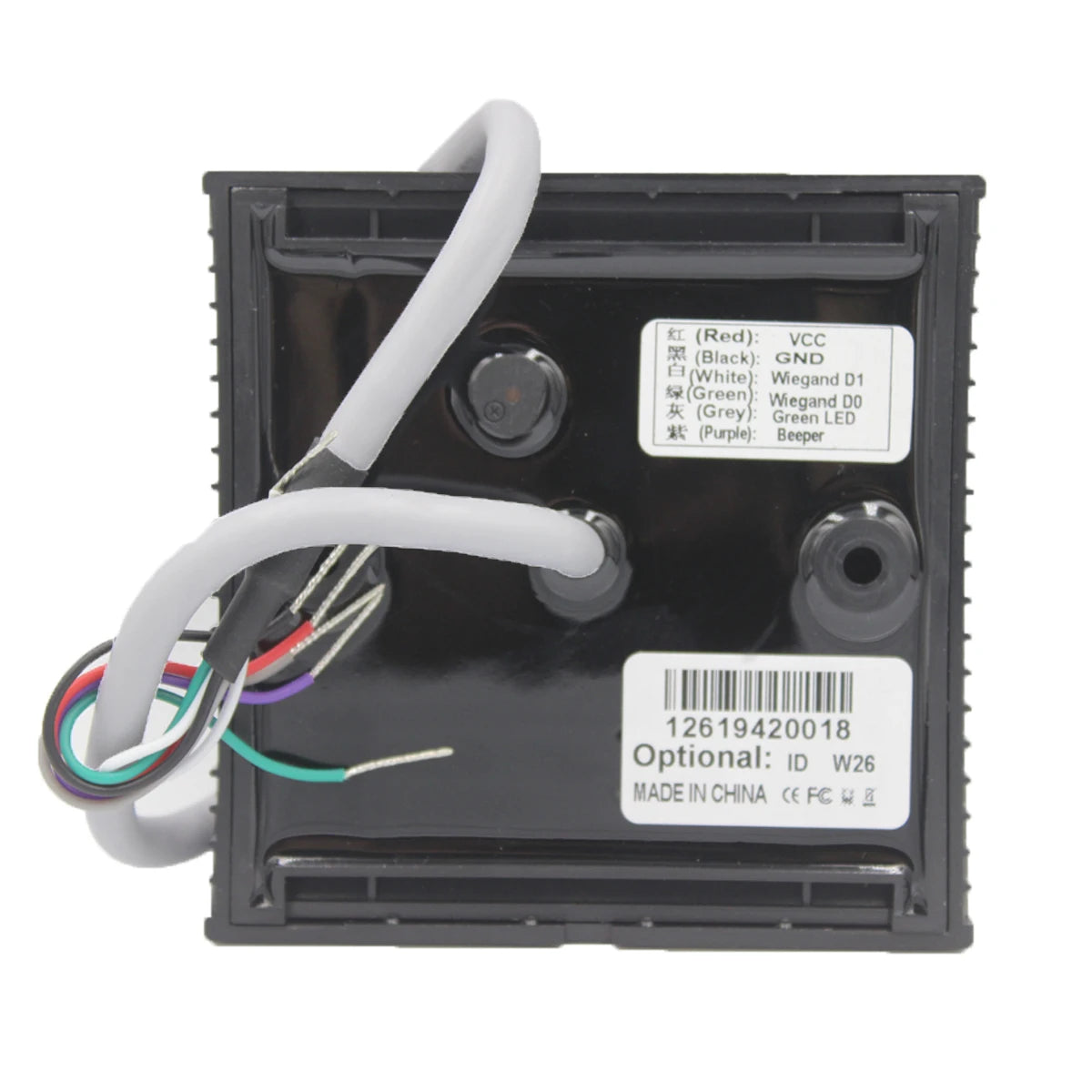

- Wiegand Output: Compatible with standard Wiegand 26/34 access control systems for seamless integration
- IP65 Waterproof: Weather-resistant enclosure suitable for outdoor and indoor use in varying conditions
- Ultra-Fast Response: Induction time ≤ 0.2 seconds for swift, reliable card detection
- Wide Voltage Range: Operates on 6V–12V DC, offering flexibility for different system configurations
- Low Power Consumption: Working current ≤ 100mA for energy-efficient operation
- Compact Design: Slim 86 × 86 × 16.8 mm form factor fits standard wall boxes and panels
- Wide Operating Range: Functions in temperatures from -10°C to +70°C and humidity of 10%–90%
Technical Specifications
| Model | KR200E / KR200M |
| Frequency | 13.56 MHz & 125 KHz |
| Working Voltage | 6V – 12V DC |
| Working Current | ≤ 100mA |
| Induction Time | ≤ 0.2 Seconds |
| Operating Temperature | -10°C to +70°C |
| Working Humidity | 10% – 90% |
| Waterproof Rating | IP65 |
| Dimensions | 86 × 86 × 16.8 mm |
| Output Interface | Wiegand 26/34 |
Who Is This For?
The KR200E is an ideal choice for facility managers, security integrators, and homeowners looking to implement or upgrade a contactless card-based access control system. Its dual-frequency capability means you won't be locked into a single card type — use the cards or fobs you already have.
For further guidance on physical access control systems and security best practices, visit the Cybersecurity & Infrastructure Security Agency (CISA) or reference NIST's physical security resources at nist.gov.
Made in Mainland China.
Frequently Asked Questions
Q: What types of cards and key fobs are compatible with the KR200E RFID card reader?
A: The KR200E supports both 13.56 MHz (Mifare Classic, Mifare DESFire, ISO 14443A) and 125 KHz (EM4100, HID) proximity cards and key fobs, making it highly versatile for mixed-card environments.
Q: Can the KR200E RFID reader be used outdoors?
A: Yes. The KR200E is rated IP65 waterproof, meaning it is protected against dust ingress and low-pressure water jets from any direction. It is fully suitable for outdoor installation at gates, building entrances, and parking facilities.
Q: What access control panels is the Wiegand card reader compatible with?
A: The KR200E outputs a standard Wiegand 26 or Wiegand 34 signal, which is the industry-standard protocol supported by the vast majority of access control panels and systems available today.
Q: What power supply does the KR200E require?
A: The reader operates on a wide voltage range of 6V to 12V DC with a current draw of ≤ 100mA, making it compatible with most standard access control power supplies.
