RFID Metal Keypad Access Control Kit – 1000 Users, DC12V
RFID Metal Keypad Access Control Kit – 1000 Users, DC12V
Complete Door Access Control System – Metal Keypad + RFID Keyfobs
Upgrade your home, office, apartment, hotel, or factory entrance with this all-in-one standalone access control kit. Featuring a robust metal keypad, 125KHz RFID keyfob reader, electric lock, power supply, doorbell, and exit button — everything you need arrives in one box, ready to install. Supports up to 1,000 registered users and operates completely standalone — no PC connection required.
Made in Mainland China.
Key Features
- 1,000-User Capacity: Store up to 1,000 cards or keyfobs for seamless multi-user management.
- Three Entry Modes: Card only, PIN code only, or card + PIN for enhanced security.
- Metal Construction Keypad: Durable, vandal-resistant metal housing with backlit digits and built-in doorbell button.
- WG26 Interface: Industry-standard Wiegand 26 output for broad compatibility.
- Dual Relay Output: Adjustable time delay (0–3–6 seconds) plus tamper alarm function.
- 125KHz RFID Keyfobs: Compact fobs with 2–10 cm read range; 10 fobs included.
- Fail-Secure Mode: Lock remains secure if power is interrupted.
- Wide Operating Temperature: -10°C to +55°C for reliable performance in varied environments.
- Versatile Compatibility: Works with wooden, metal, iron, glass, and frameless glass doors.

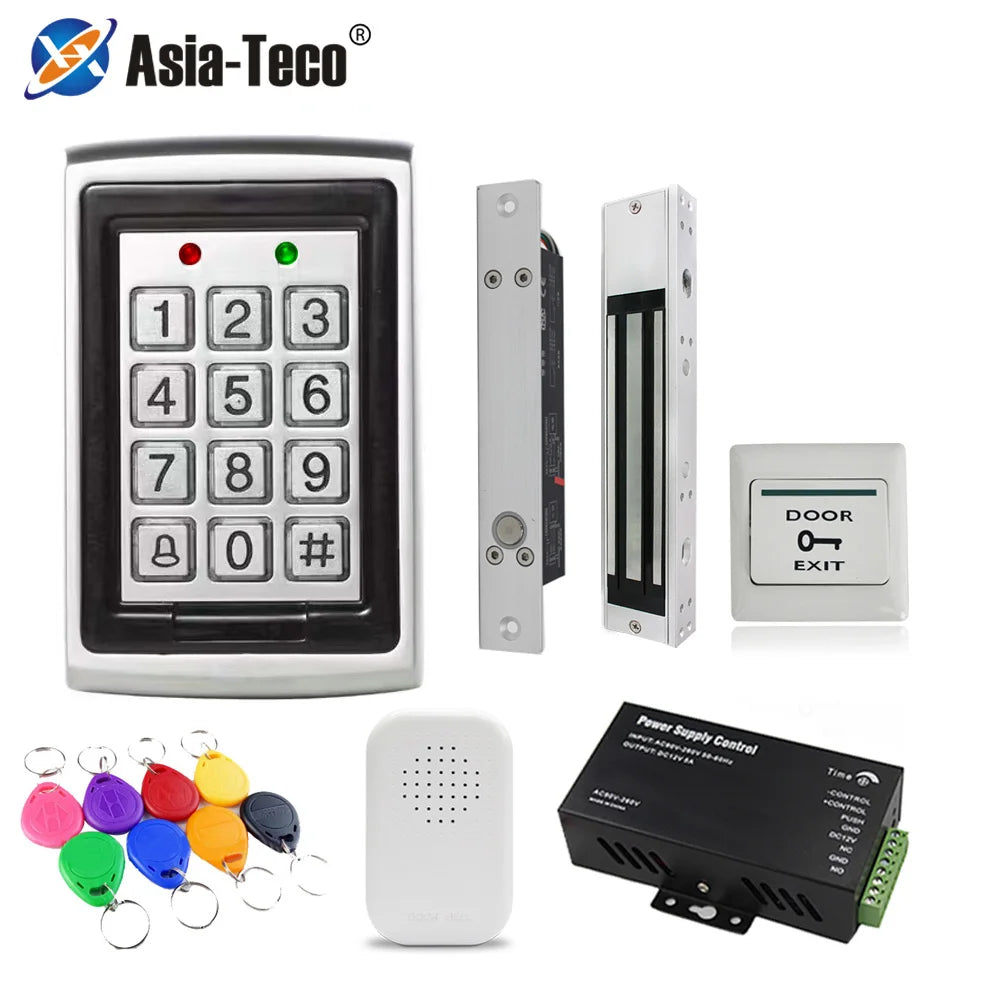

Available Kit Configurations
| Kit | Best For | What's Included |
|---|---|---|

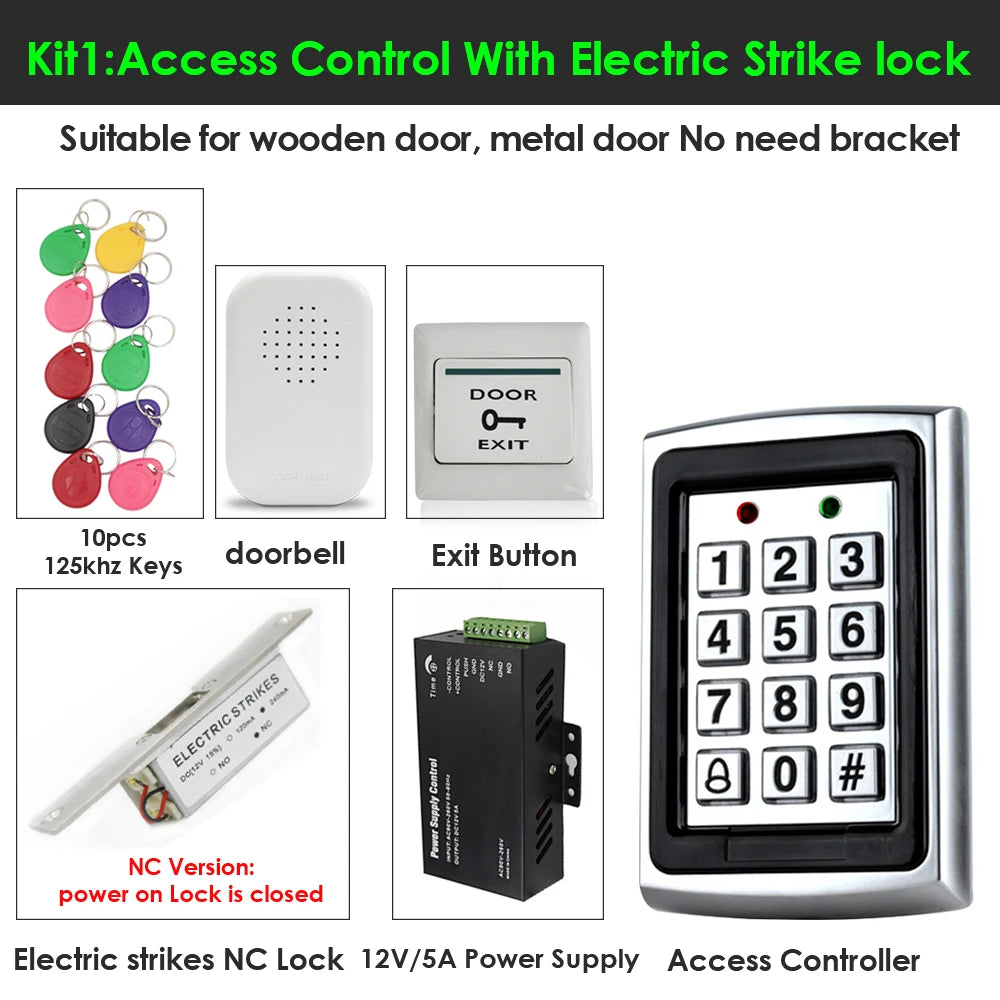

| Kit 1 | Wooden & metal doors (no bracket needed) | Keypad + Power Supply + Electric Strike Lock + Doorbell + Exit Button + 10 Keyfobs |
| Kit 2 | Doors requiring ZL bracket | Keypad + Power Supply + 180KG Magnetic Lock + ZL Bracket + Exit Button + Doorbell + 10 Keyfobs |
| Kit 3 | Standard door (no bracket needed) | Keypad + Power Supply + 180KG Magnetic Lock + Doorbell + Exit Button + 10 Keyfobs |
| Kit 4 | Frameless glass doors (U bracket) | Keypad + Power Supply + 180KG Magnetic Lock + U Bracket + Doorbell + Exit Button + 10 Keyfobs |
| Kit 5 | Glass doors (built-in install) | Keypad + Power Supply + Electric Bolt Lock + Doorbell + Exit Button + 10 Keyfobs |
| Kit 6 | Wooden, metal & stainless steel doors | Keypad + Power Supply + Electric Drop Bolt Lock + Doorbell + Exit Button + 10 Keyfobs |
Technical Specifications

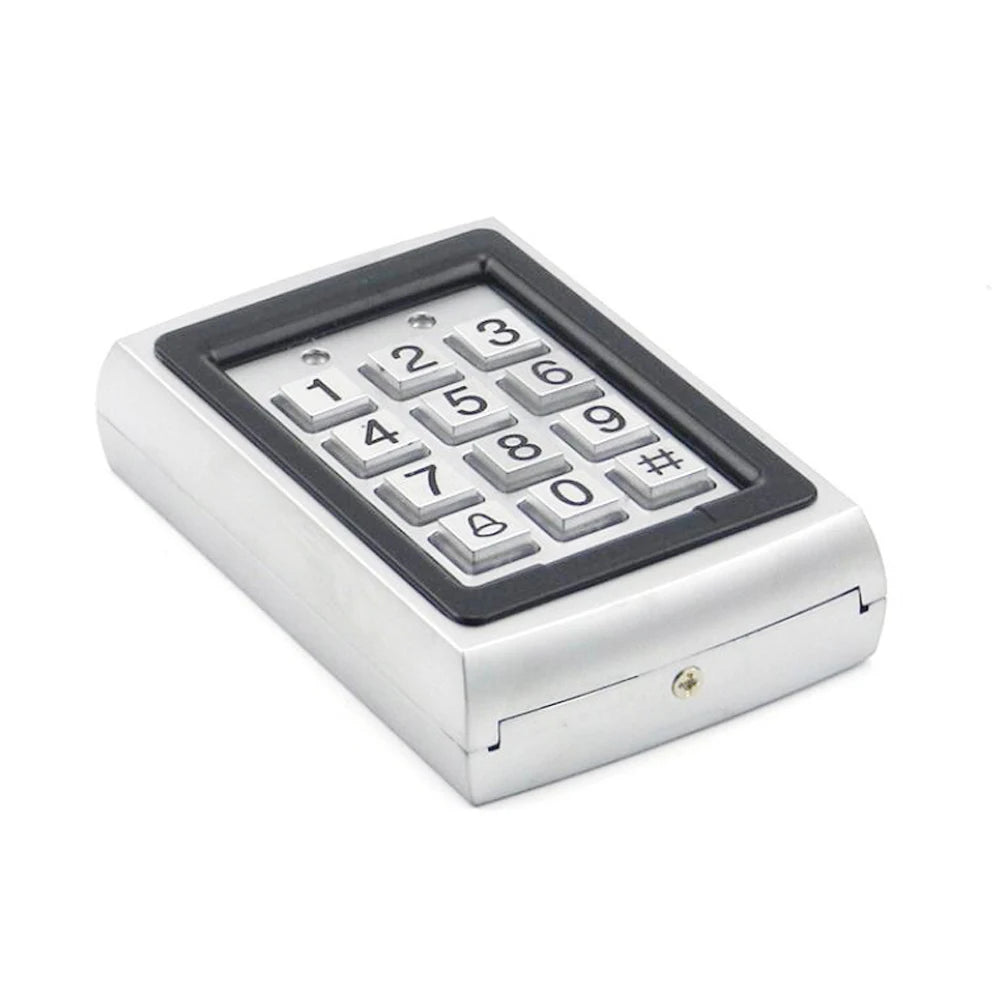

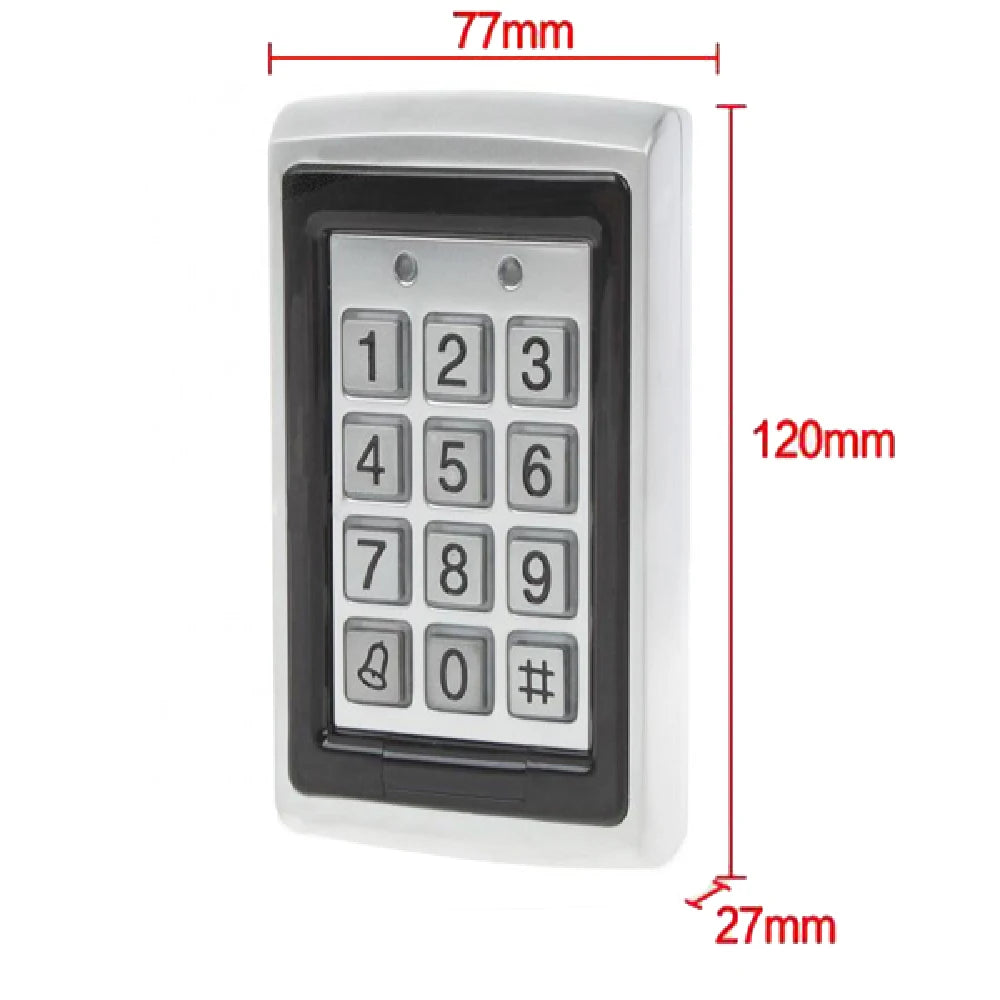

Access Control Metal Keypad (Model K7612)
- Material: Metal
- Working Voltage: DC 12V
- Working Frequency: 125KHz
- User Capacity: 1,000 users
- Read Distance: 0–10 cm
- Interface: WG26 (Wiegand 26)
- Security Mode: Fail Secure
- Operating Temperature: -10°C to +55°C

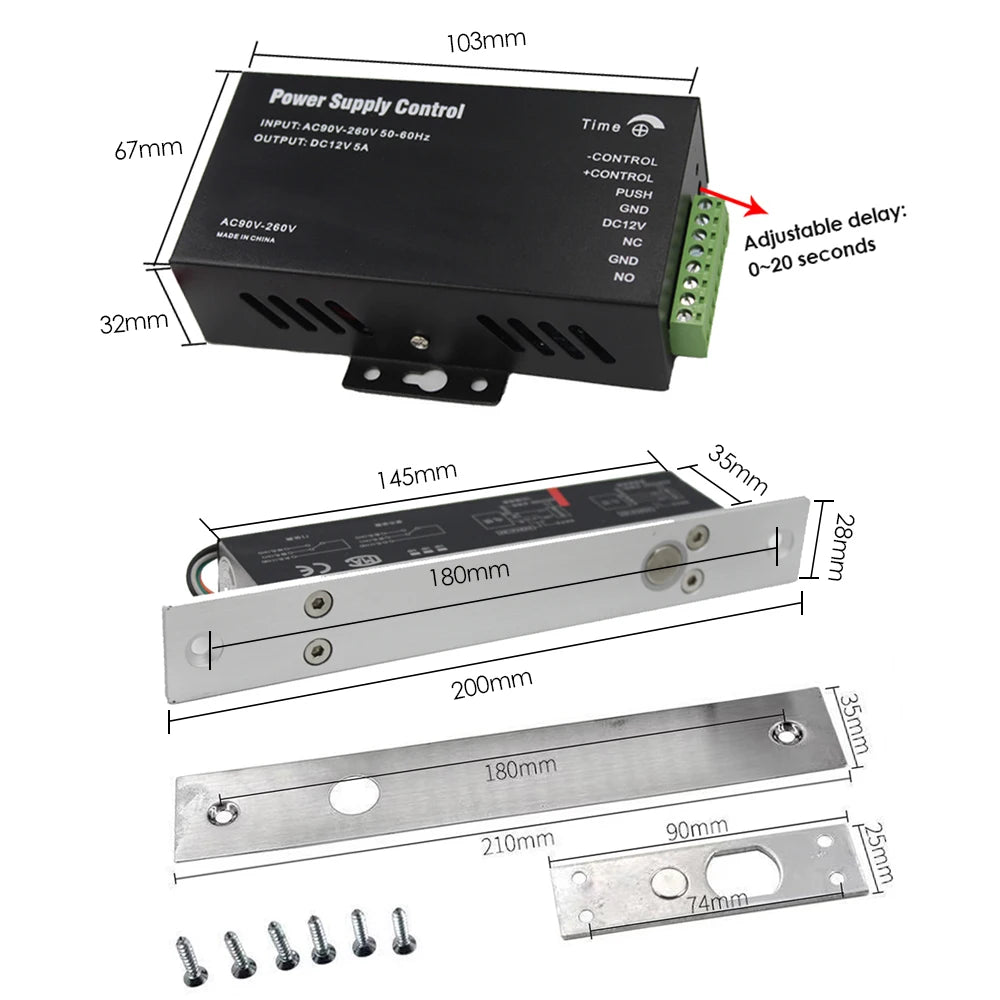

Power Supply
- AC Input: 90V–260V
- DC Output: 12V / 5A
- Rated Power: 42W
- Working Current: 3.5A
- Adjustable Delay: 0–20 seconds
- Dimensions: 103 × 67 × 32 mm
Electric Bolt Lock
- Time Delay: 0 / 3 / 6 seconds (adjustable)
- Start Current: 1.1A | Working Current: 0.14A
- NC feedback signal included
- Suitable for glass, wooden, metal, and security doors
Door Exit Button
- Material: PC flame-retardant
- Dimensions: 86 × 86 mm
Doorbell
- Material: ABS flame-retardant
- Power Supply: DC 12V
- Dimensions: 80 × 50 × 20 mm
RFID Keyfobs (10 included)
- Frequency: 125KHz
- Read Distance: 2–10 cm
- Diameter: 65 mm
Applications
Home entryways, hotel rooms, office suites, apartment buildings, factories, warehouses, and more. Ideal for any environment requiring controlled, keyless entry for multiple users.
For guidance on physical security standards and best practices for access control systems, visit the U.S. Consumer Product Safety Commission (CPSC).
Warranty & Support
- 1-Year Warranty from the date of purchase (excludes damage caused by misuse or fire).
- Customer support available Monday–Saturday within 24 hours.
Frequently Asked Questions
Q: Does this access control kit require a computer or software to program?
A: No. This is a fully standalone access control system. You can add or delete users directly on the metal keypad without connecting to a computer or installing any software.
Q: Which door types is this RFID access control kit compatible with?
A: The kit is designed for wooden doors, metal doors, iron doors, glass doors, and frameless glass doors. Six different kit configurations are available to match your specific door type — simply choose the kit that fits your installation.
Q: How many users can this access control system support?
A: The system stores up to 1,000 users. Each user can be assigned a keyfob, a PIN code, or both (card + PIN) for added security.
Q: What happens to the lock if the power goes out?
A: The keypad operates in Fail Secure mode, meaning the lock remains in its secured position if power is interrupted, keeping the door locked until power is restored.
Q: Can the entry time delay be adjusted?
A: Yes. The electric lock supports adjustable time delays of 0, 3, or 6 seconds, and the power supply offers a delay range of 0–20 seconds, giving you flexible control over how long the door stays unlocked after a valid credential is presented.
