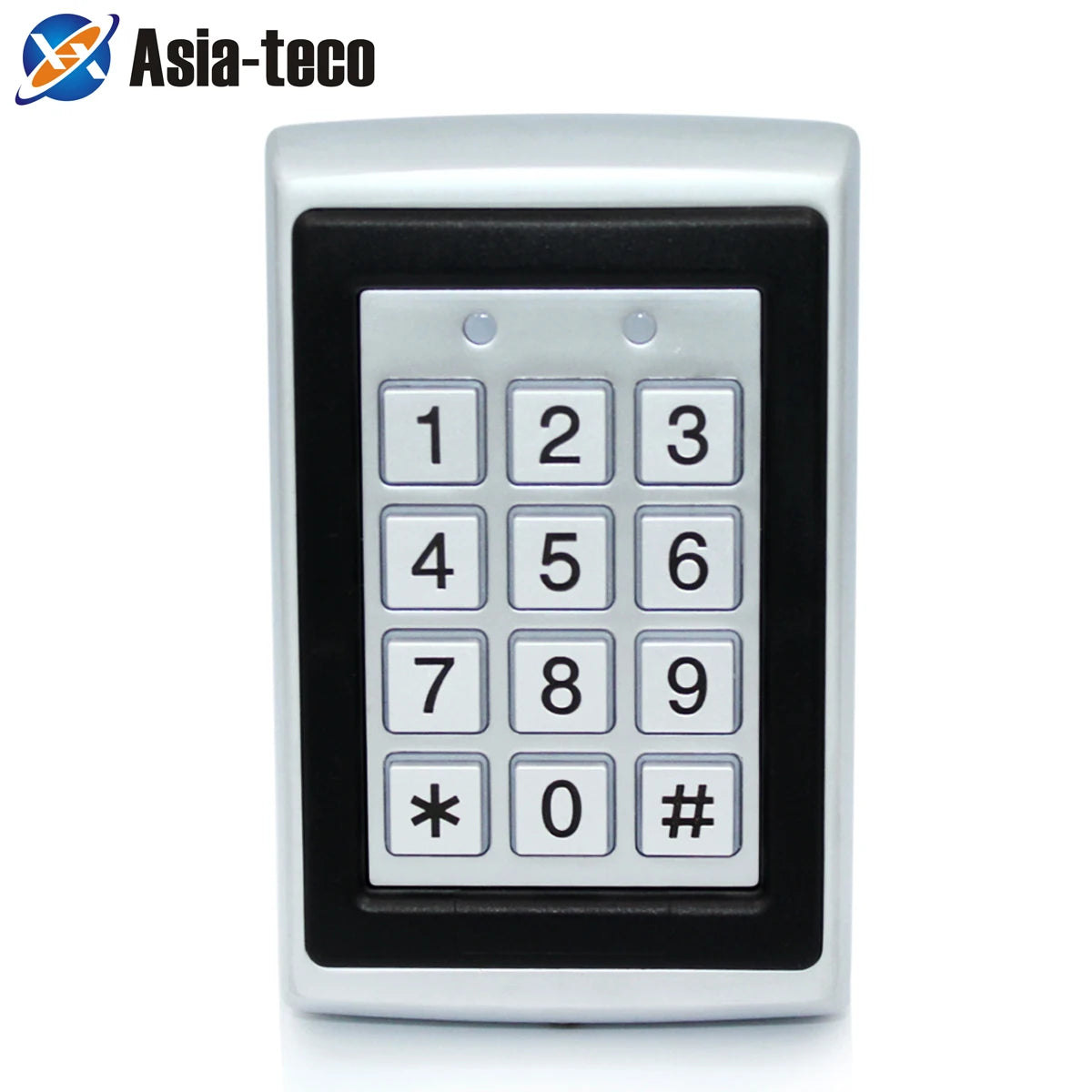

Asia-Teco RFID Metal Access Control Keypad – 2000 Users | 125KHz EM Card Reader
Take full control of who enters your space with the Asia-Teco K7612N Standalone RFID Access Controller. Built for homes, offices, factories, warehouses, banks, and commercial facilities alike, this rugged zinc alloy keypad delivers fast, reliable door access management for up to 2,000 users — all without a separate controller or PC software.
Why Choose This RFID Keypad?
- Triple Entry Modes: PIN only, 125KHz EM Card only, or Card + PIN for layered security

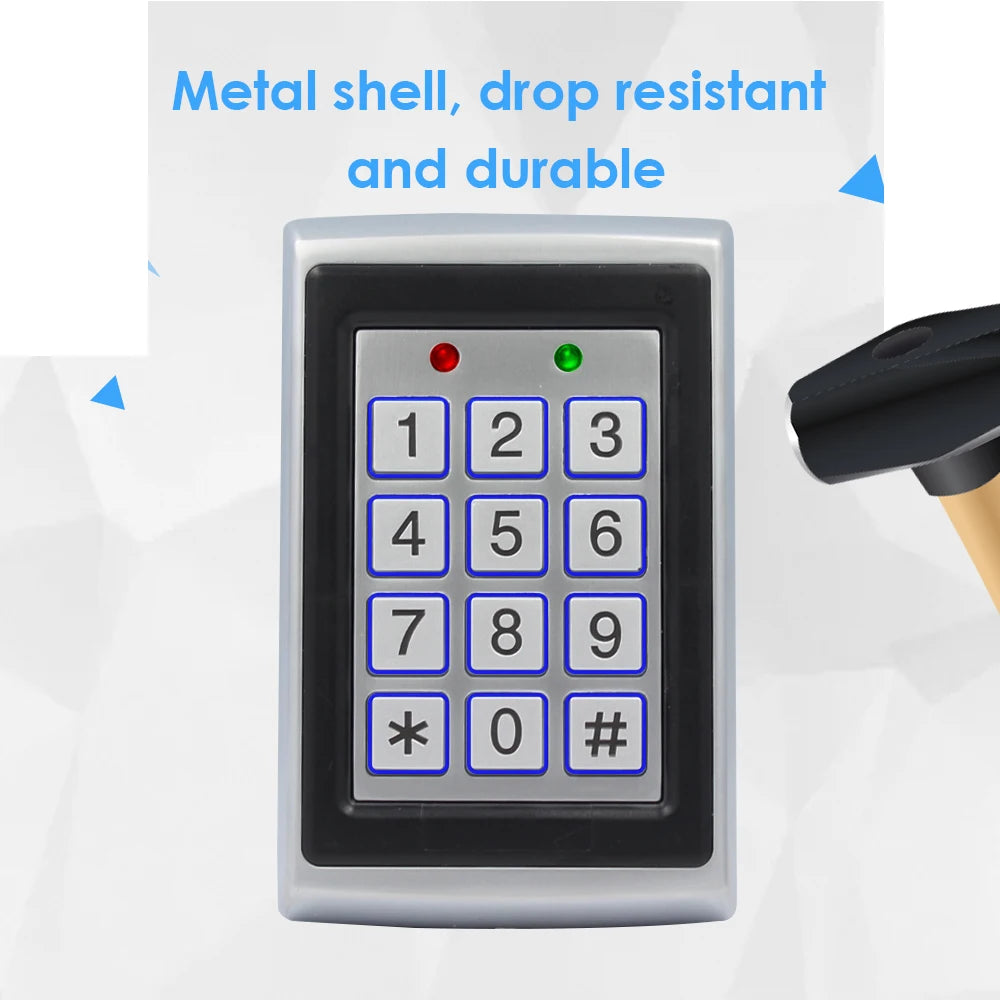

- Heavy-Duty Zinc Alloy Case: Electroplated, anti-vandal housing in bright or matt silver — built to withstand demanding environments
- Backlit Keypad: Built-in illuminated keys with a light-dependent resistor (LDR) anti-tamper alarm for round-the-clock visibility and security
- Wiegand 26 In/Out: Connect to an external reader or integrate with an existing access controller seamlessly
- Ultra-Fast Processing: Authenticates all 2,000 users in under 20ms
- Low Power Draw: Only 30mA current consumption — energy efficient and always on
- Lock Output Protection: Short circuit protection on lock output for added safety
- Fully Programmable from the Keypad: No PC required — configure door output time, alarm time, and door open time directly
- Built-in Buzzer: Audio feedback confirms every valid or invalid access attempt
- Fail-Safe Security Mode: Defaults to a safe state in the event of a power interruption
Key Specifications
| Brand | Asia-Teco |
| Model | K7612N |
| User Capacity | 2,000 Users |
| Card Frequency | 125KHz EM |
| Entry Modes | PIN / Card / Card + PIN |
| Material | Zinc Alloy (Electroplated) |
| Wiegand Interface | 26-bit Input & Output |
| Power Consumption | 30mA |
| Processing Speed | <20ms |
| Security Mode | Fail Safe |
| Installation | Indoor Mounting |
| Country of Origin | Made in China |

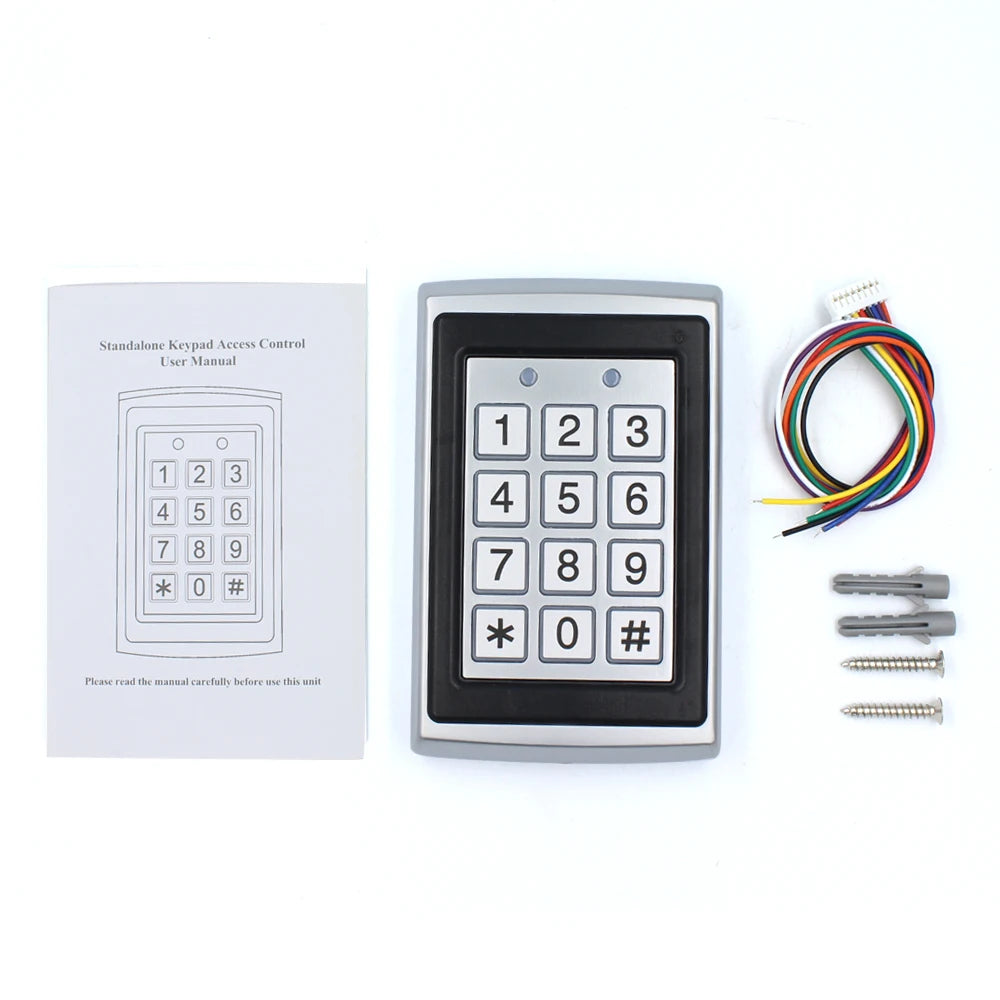

What's in the Box?
- RFID Keypad Access Controller × 1
- User Manual × 1
- Rubber Plug × 2
- Self-Tapping Screws × 2
Ideal Applications
This standalone access controller is perfectly suited for a wide range of settings, including:
- Residential homes and apartment buildings
- Small retail shops and offices
- Industrial facilities, warehouses, and factories
- Laboratories, banks, and high-security environments
For more information on access control standards and best practices for physical security systems, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: How many users can the RFID Metal Access Control Keypad support?
A: The Asia-Teco K7612N standalone access controller supports up to 2,000 users. Each user can be assigned a 125KHz EM card, a 4-digit PIN, or a combination of both card and PIN for enhanced security.
Q: Does this RFID keypad require a PC or separate controller to program?
A: No. The K7612N is a fully standalone unit — all programming is done directly from the keypad itself. You can configure user credentials, door output time, alarm time, and door open time without any external software or controller.
Q: Is this access controller compatible with existing Wiegand systems?
A: Yes. The unit features both Wiegand 26 input (for connecting an external card reader) and Wiegand 26 output (for connecting to a third-party access controller), making it easy to integrate into most existing security infrastructures.
Q: What happens if there is a power outage?
A: The device operates in Fail Safe mode, meaning it defaults to a predetermined safe state in the event of a power interruption, helping maintain security continuity at your door.
Q: Can this keypad be used outdoors?
A: The K7612N is designed for indoor mounting. Its zinc alloy anti-vandal case offers excellent durability inside, but it is not rated for direct outdoor exposure to weather elements.
