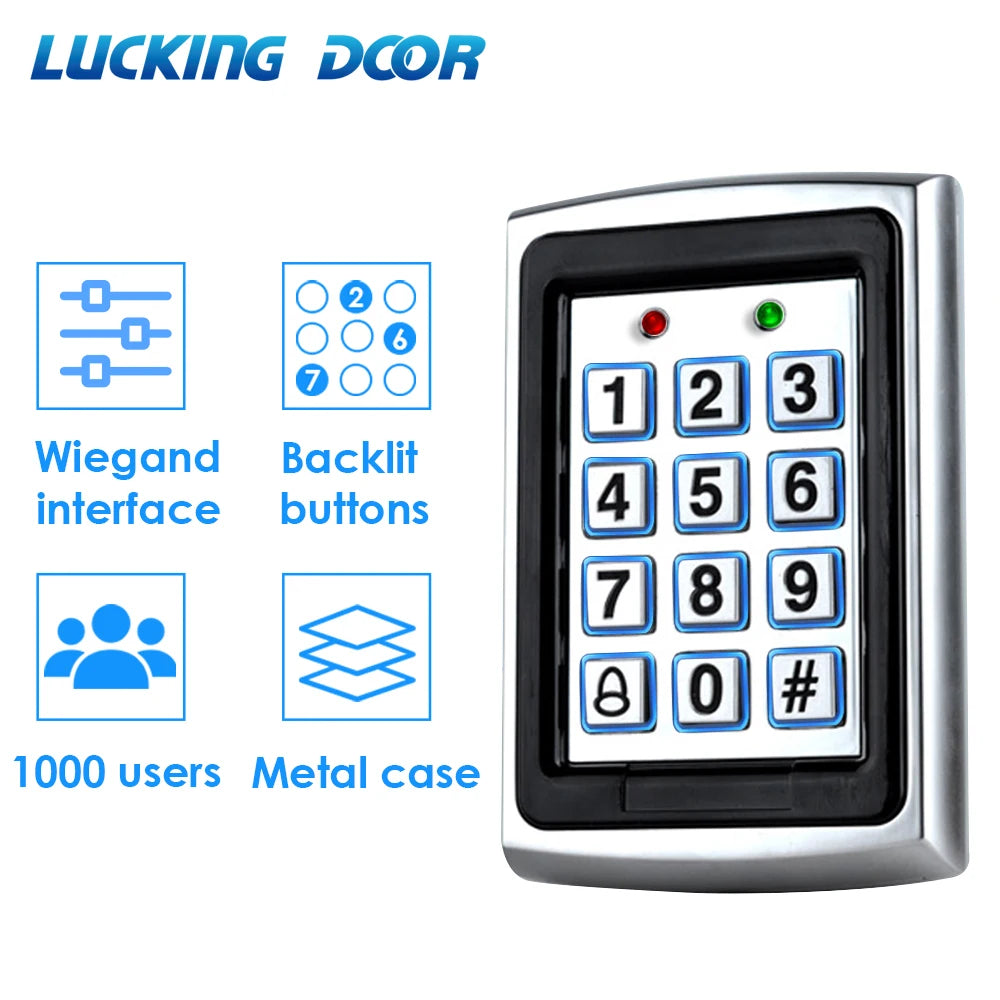

LUCKING DOOR RFID Metal Access Control Keypad – Model K7612
Upgrade your home or office security with the LUCKING DOOR K7612 RFID Metal Access Control Keypad. Built with a rugged metallic enclosure and packed with advanced features, this 125KHz proximity card reader and PIN keypad supports up to 1,000 users and offers multiple entry modes — giving you flexible, reliable access control in one compact unit.
Key Features

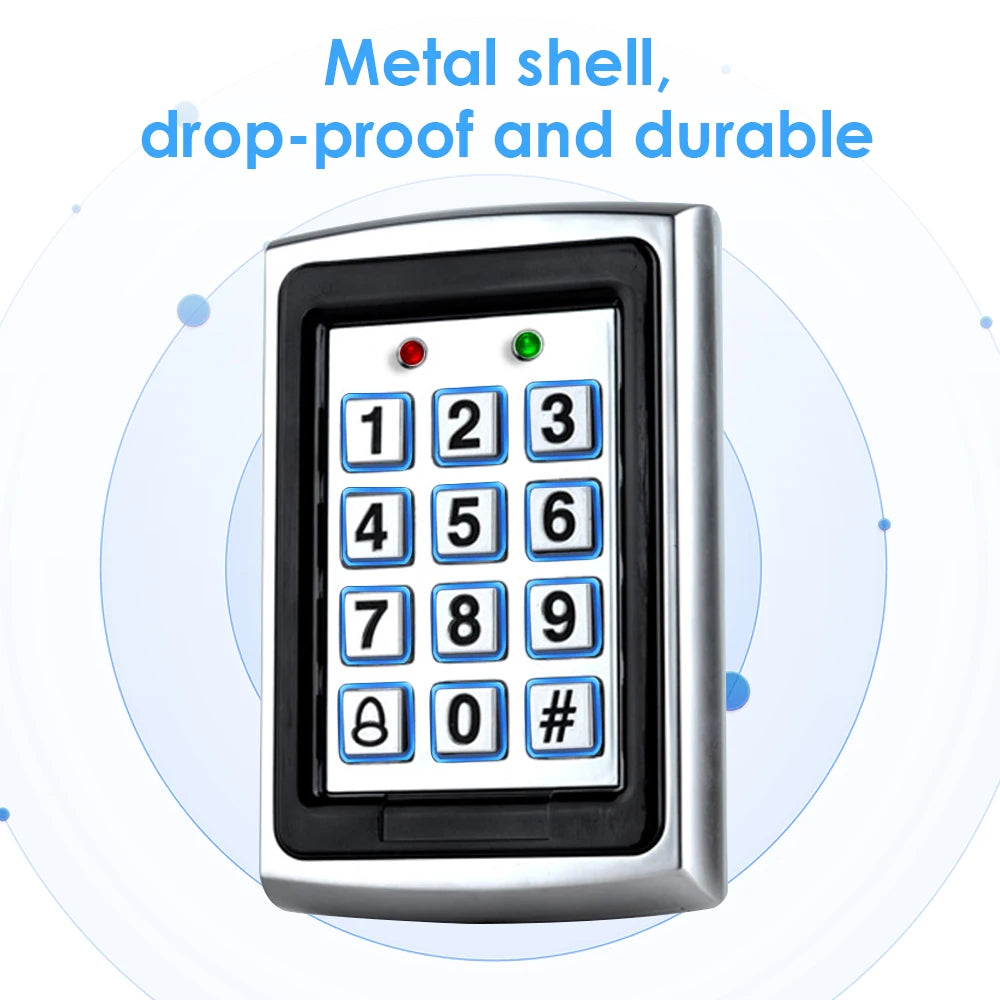

- Durable Metallic Case: Heavy-duty metal housing for long-lasting protection in demanding environments.
- 1,000 User Capacity: Store and manage up to 1,000 individual users with ease.
- Multiple Entry Modes: Choose from Password Only, ID Card Only, or Password + ID Card for maximum flexibility.
- 125KHz RFID Reader: Built-in proximity card reader with ASK modulation — compatible with standard EM key fobs and cards.
- Backlit Keypad: Illuminated keys for easy use in low-light conditions.
- Built-In Doorbell Button: Connect an external bell directly to the unit — no additional controller needed.
- Anti-Tamper Alarm: Built-in case and back tamper detection triggers an immediate alert if the unit is disturbed.
- Fail-Safe Security Mode: Supports both Fail Safe (with signal) and standard lock relay output — NO/NC configurable.
- Relay Output: 12VDC/2A lock relay output for direct control of electric strikes and magnetic locks.
- WG26 External Reader Support: Expand your system with an external Wiegand 26 reading head.
- 3 User Levels: Normal User, Secure User, and Master User for tiered access management.
- 8 Auxiliary Modes: Including door ajar, forced door, shunt, door monitor, normal/secure modes, and more.
- Programmable Siren & Lock Release Time: Customize alarm duration and door unlock timing to suit your setup.
- Code Search Feature: Quickly locate and manage existing user PIN codes.
- Dual Status LEDs: 2 programming/status indicator LEDs for at-a-glance system feedback.
- Internal Buzzer: Audible confirmation for key presses and access events.
- Auxiliary Input & Output: Versatile integration with alarms, sensors, and external devices.
Specifications
| Brand | LUCKING DOOR |
| Model | K7612 |
| Power Supply | 12VDC ±12% / 1.2A |
| Relay Output | 12VDC / 2A |
| Frequency | 125KHz (ASK Modulation) |
| User Capacity | 1,000 |
| Security Mode | Fail Safe with Signal |
| External Reader | WG26 (Wiegand 26) |
| Backlight | Yes |
| Doorbell Support | Yes |
| Anti-Tamper Alarm | Yes |
| Country of Origin | Made in Mainland China |

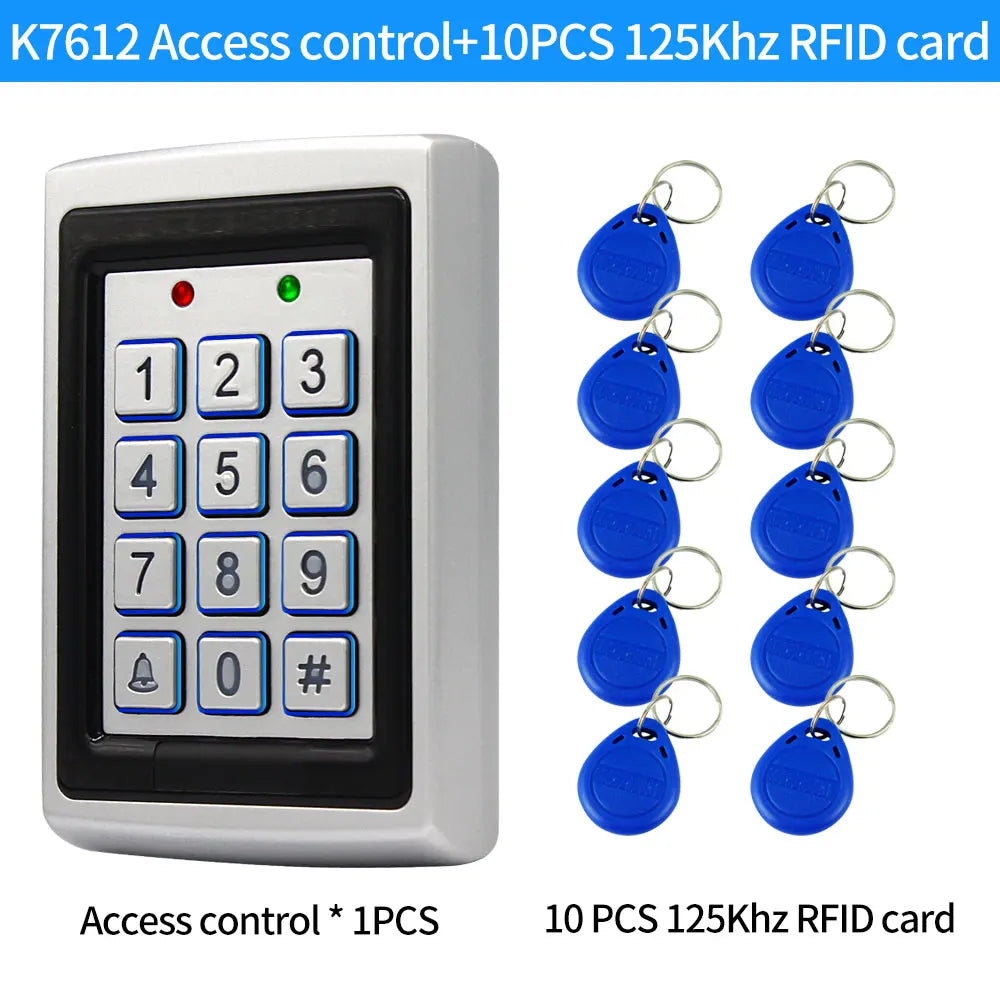

What's in the Box?
- 1 × RFID Metal Access Control Keypad (K7612)
- Key fobs / EM cards (check variant selection)
- Mounting hardware
- User manual
Ideal For
Homes, apartments, offices, warehouses, small businesses, server rooms, and anywhere you need dependable keypad and card-based entry control.
For guidance on best practices in physical access control and building security, visit the Cybersecurity & Infrastructure Security Agency (CISA) or refer to NIST security resources for enterprise access management standards.
Frequently Asked Questions
Q: What types of cards and fobs are compatible with this RFID access control keypad?
A: The K7612 is compatible with standard 125KHz EM proximity cards and key fobs. It uses ASK modulation, which is one of the most widely used standards for RFID access control. Most generic 125KHz EM4100-format cards and fobs will work seamlessly with this system.
Q: Can I use this keypad with an external RFID reader?
A: Yes. The K7612 supports a WG26 (Wiegand 26) external reading head, allowing you to expand your access control system and mount a secondary reader for additional entry points or higher-traffic areas.
Q: How many users can be programmed into this access control system?
A: This system supports up to 1,000 individual users. You can assign different access levels — Normal User, Secure User, or Master User — and add or delete card/PIN entries at any time using the built-in code management and code search features.
Q: Does this unit work with magnetic locks and electric door strikes?
A: Yes. The built-in 12VDC/2A relay output is designed to directly control common electric strikes and magnetic locks. The relay supports both Normally Open (NO) and Normally Closed (NC) configurations, and the lock release time is fully programmable.
Q: Is the keypad suitable for outdoor installation?
A: The K7612 features a rugged metallic enclosure built for durability. While it offers strong physical protection, we recommend verifying the installation environment against the product's rated specifications before outdoor use in extreme weather conditions.
