Asia-Teco RFID Standalone Access Control Keypad – Dual Frequency | IP67 Waterproof | 1000 Users

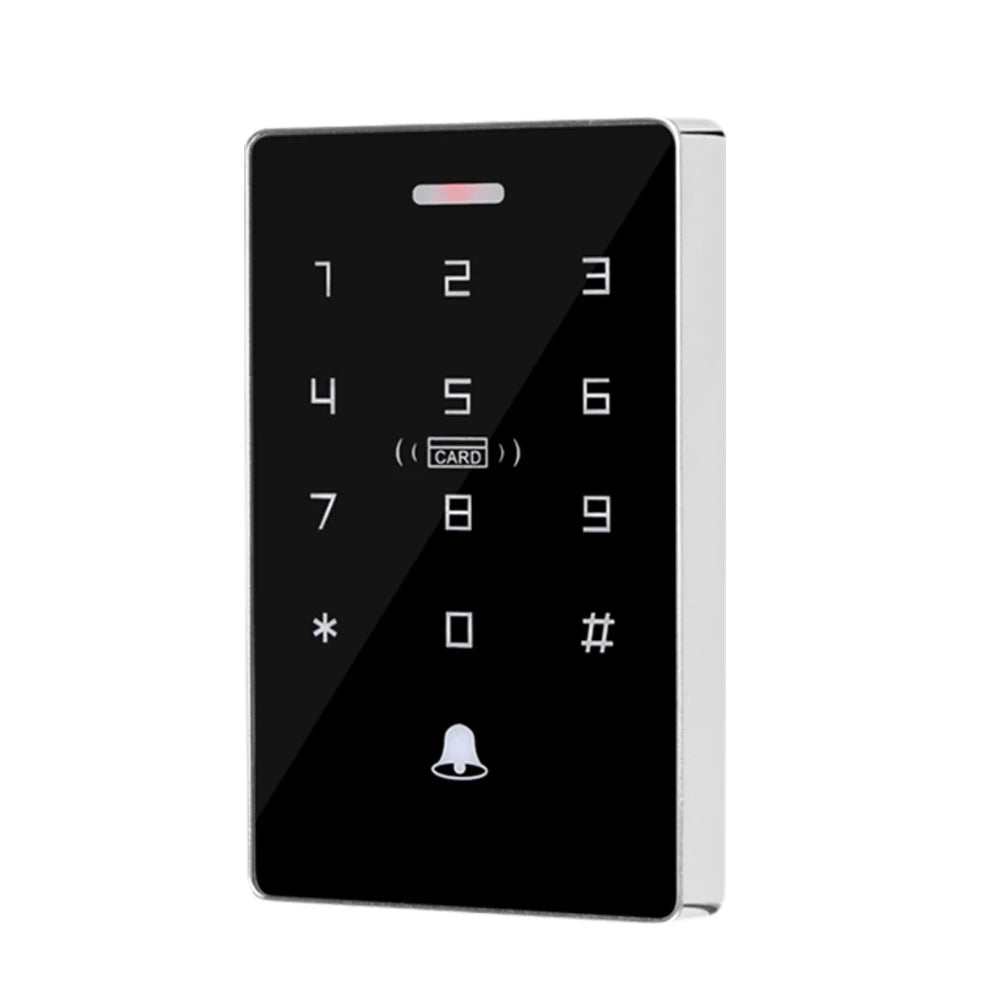

Upgrade your entry security with the Asia-Teco S10DC Touch Screen RFID Standalone Access Controller. This advanced single-door access control unit combines a backlit touch keypad with dual-frequency RFID card reading (125KHz EM & 13.56MHz Mifare), giving you versatile, reliable access management for offices, residential buildings, warehouses, and more — all in a rugged, IP67-rated weatherproof housing.
Made in Mainland China.
Why Choose This Access Control Keypad?

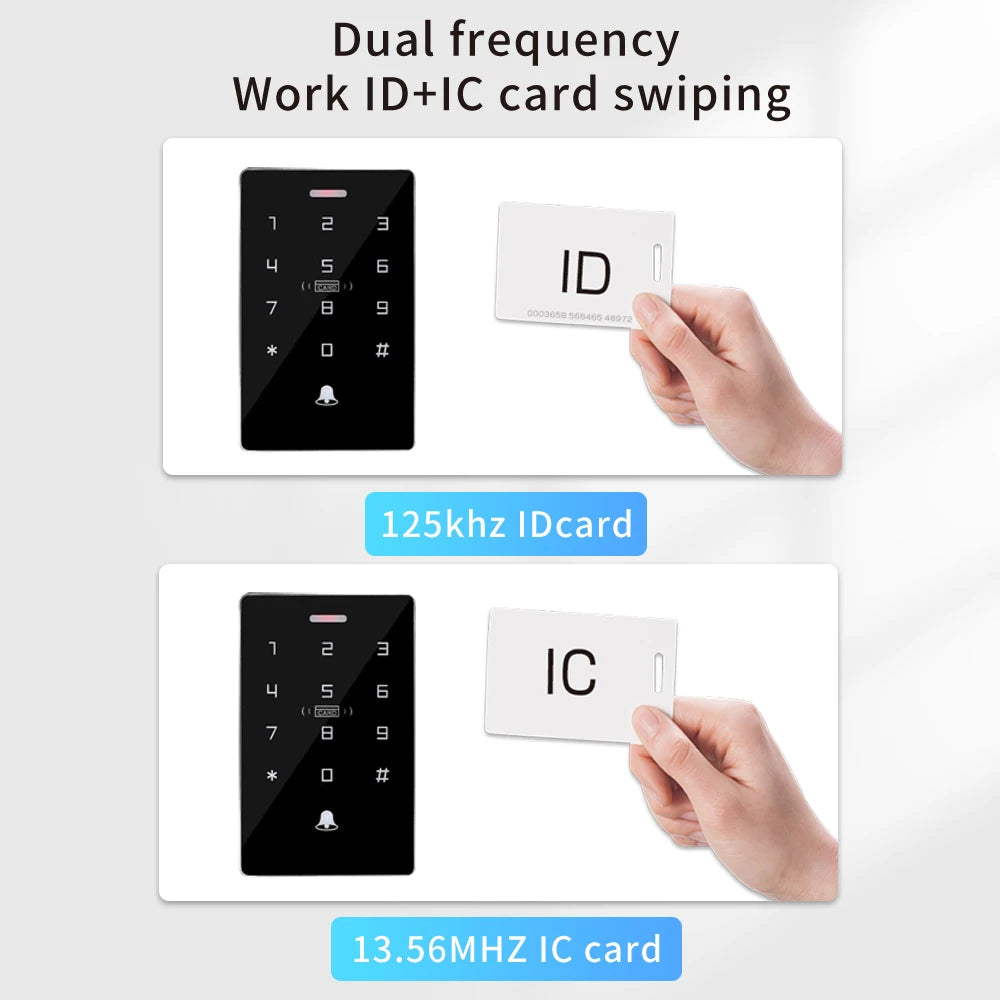

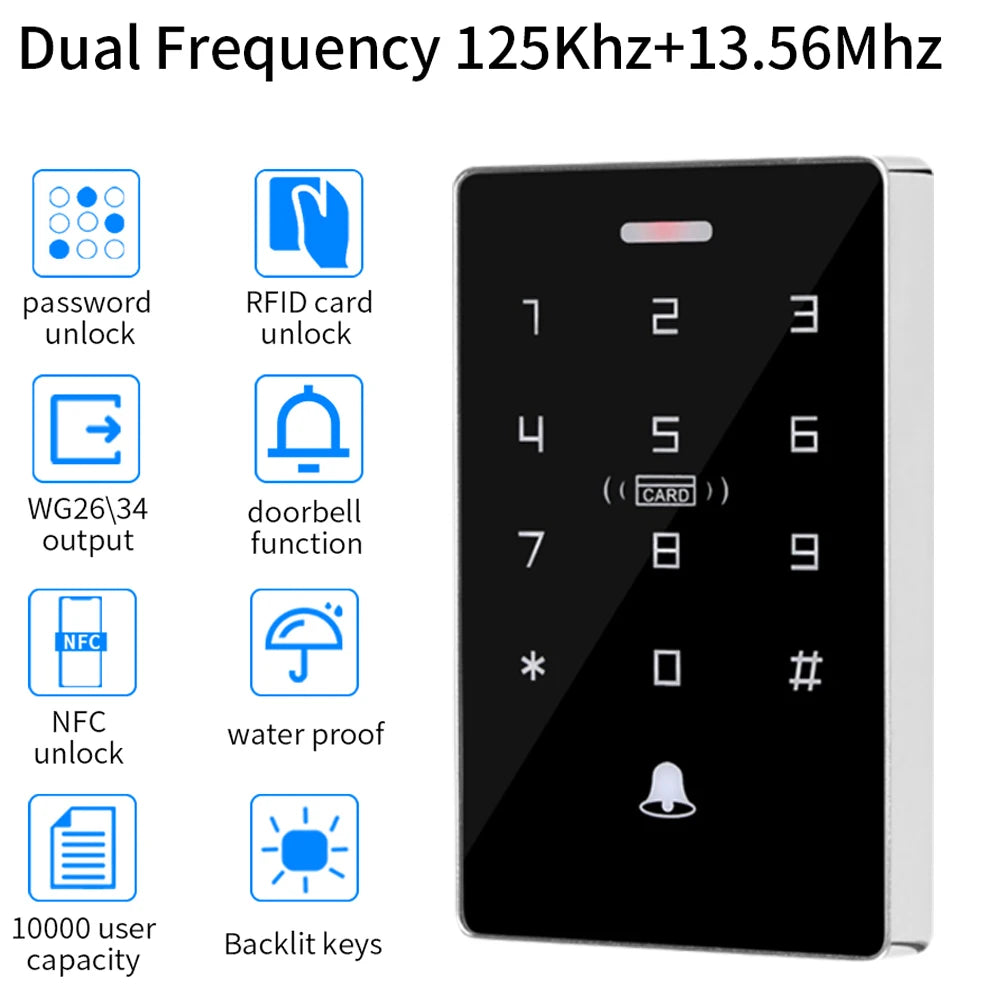

- Dual-Frequency RFID: Supports both 125KHz (EM) and 13.56MHz (Mifare) proximity cards, plus bank cards and RFID wristbands — maximum compatibility with your existing cards.
- 3 Flexible Entry Methods: Card only, PIN code only, or Card + PIN for two-factor authentication — you choose the level of security.
- 1,000 User Capacity: Store up to 1,000 individual card/PIN combinations for scalable access management.
- Wiegand Output: Compatible with most access control panels and third-party systems via standard Wiegand interface.

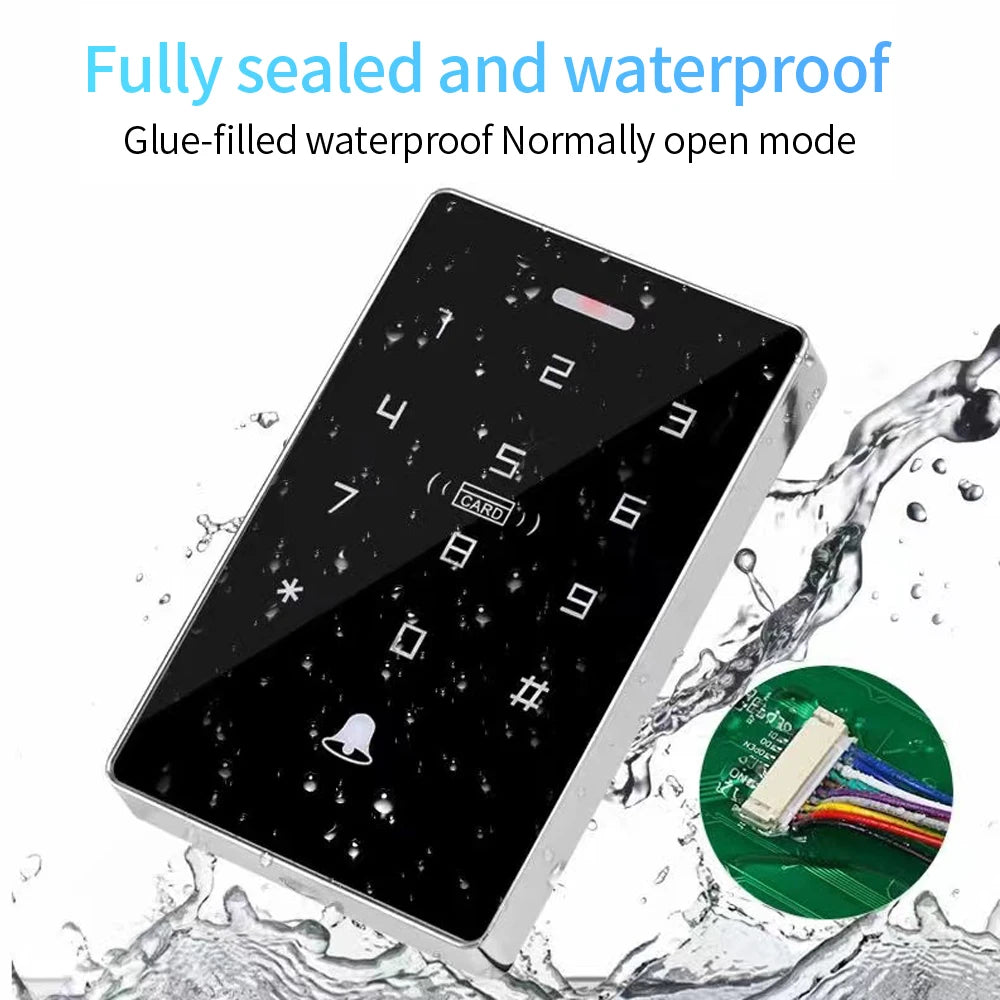

- IP67 Waterproof: Epoxy resin encapsulation protects the unit from rain, dust, and humidity — perfect for outdoor installation.
- Wide Operating Temperature: Functions reliably from -40°C to +70°C, making it suitable for extreme climates.
- Ultra-Fast Card Read: Door opens in under 0.1 seconds after card presentation — no waiting at the door.
- Backlit Touch Keypad: Luminous keypad for easy, accurate PIN entry in low-light and nighttime conditions.
- Independent PIN: Assign a standalone access PIN completely separate from card credentials for added flexibility.
- User-Modifiable PIN: Individual users can update their own PINs without administrator intervention.
- Doorbell Interface: Connect an external wired doorbell directly to the unit.
- Multi-Device Data Sync: Register one controller and share card data across multiple units — reducing administrative workload.
- Low Power Consumption: Quiescent current ≤100mA keeps operating costs minimal.
- Fire-Retardant Housing: High-quality, durable materials built to last in demanding environments.
Technical Specifications
| Model | S10DC |
| Working Voltage | DC 9–16V |
| Quiescent Current | ≤100mA |
| Card Read Frequencies | 125KHz (EM) + 13.56MHz (Mifare) |
| Card Reading Distance | 2–6 cm |
| User Capacity | 1,000 cards/PINs or 1,000 card+PIN groups |
| Output | Wiegand |
| Security Mode | Fail Secure |
| Door Open Duration | 0–999 seconds (adjustable, default: 5 sec) |
| Default Programming PIN | 123456 |
| Operating Temperature | -40°C to +70°C |
| Waterproof Rating | IP67 (Epoxy resin potted) |
| Product Dimensions | 115 × 75 × 18 mm |
| Country of Origin | Mainland China |
Ideal Applications
- Office buildings and corporate entrances
- Residential apartment complexes and gated communities
- Warehouses, storage facilities, and server rooms
- Gyms, clubs, and co-working spaces
- Outdoor gates and perimeter access points
Learn More About Access Control Standards
For guidance on physical security and access control best practices, visit the NIST Cybersecurity Resources — the trusted U.S. authority on security standards and technology.
Frequently Asked Questions
Q: What RFID card types are compatible with this access control keypad?
A: The Asia-Teco S10DC supports both 125KHz EM cards and 13.56MHz Mifare cards (dual frequency). It also works with compatible RFID wristbands and standard bank cards, giving you broad compatibility with most proximity card systems.
Q: Can this RFID keypad be installed outdoors?
A: Yes. The unit carries an IP67 waterproof rating, achieved through epoxy resin encapsulation. It is designed to withstand rain, dust, and outdoor conditions, and operates across an extremely wide temperature range of -40°C to +70°C, making it suitable for outdoor doors and gates in virtually any climate.
Q: What is Wiegand output and what controllers is it compatible with?
A: Wiegand is an industry-standard data protocol widely used in access control systems. The Wiegand output on this keypad allows it to integrate seamlessly with most third-party access control panels and door controllers that support the Wiegand interface, making it highly versatile for upgrades or new installations.
Q: How many users can be stored in this standalone access controller?
A: The controller supports up to 1,000 users. You can store individual cards, individual PINs, or card+PIN combination groups — with a combined total of 1,000 entries. This makes it suitable for medium-sized offices, apartment buildings, or multi-tenant facilities.
Q: What are the three door-opening methods available?
A: You can configure access in three ways: Card only (swipe an RFID card), PIN code only (enter a numeric password on the backlit keypad), or Card + PIN (two-factor authentication requiring both a card swipe and a PIN entry) — giving you full control over your desired security level.
