RFID Keypad Door Access Control Reader 125KHz Wiegand 26-Bit
RFID Keypad Door Access Control Reader 125KHz Wiegand 26-Bit

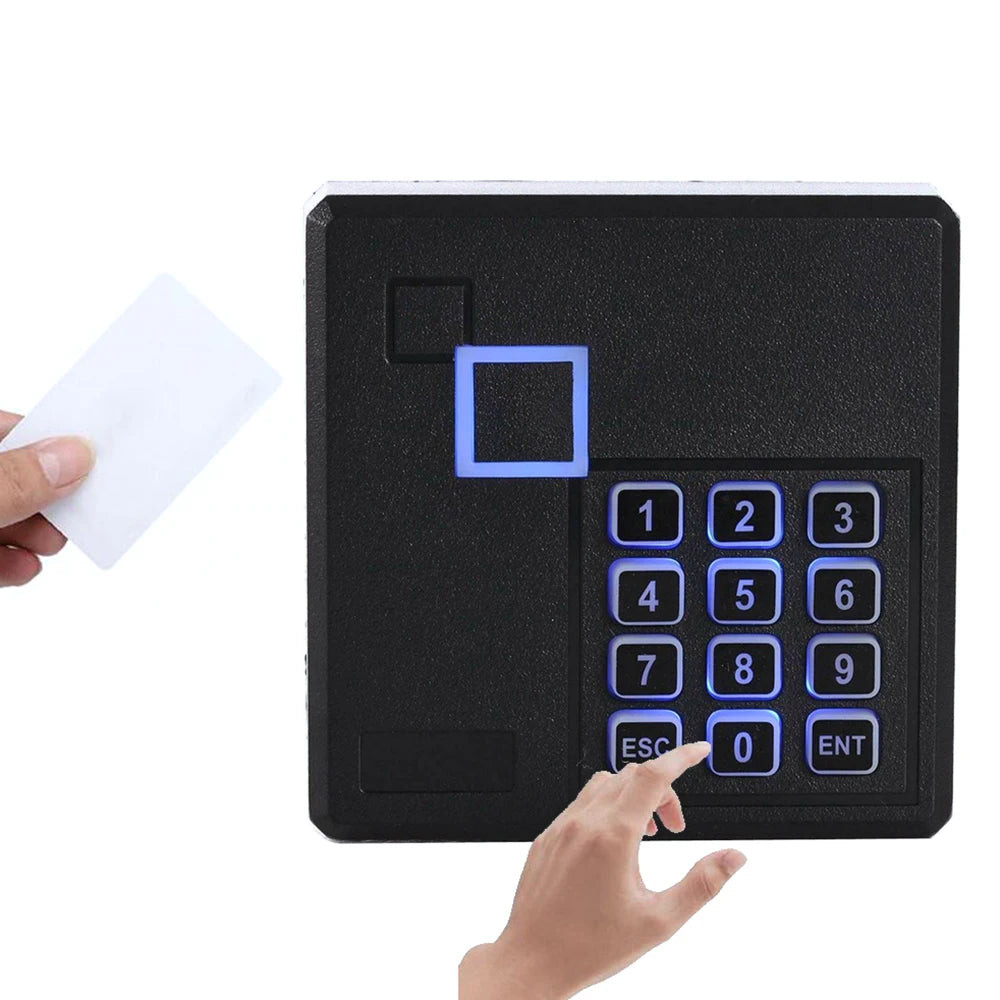

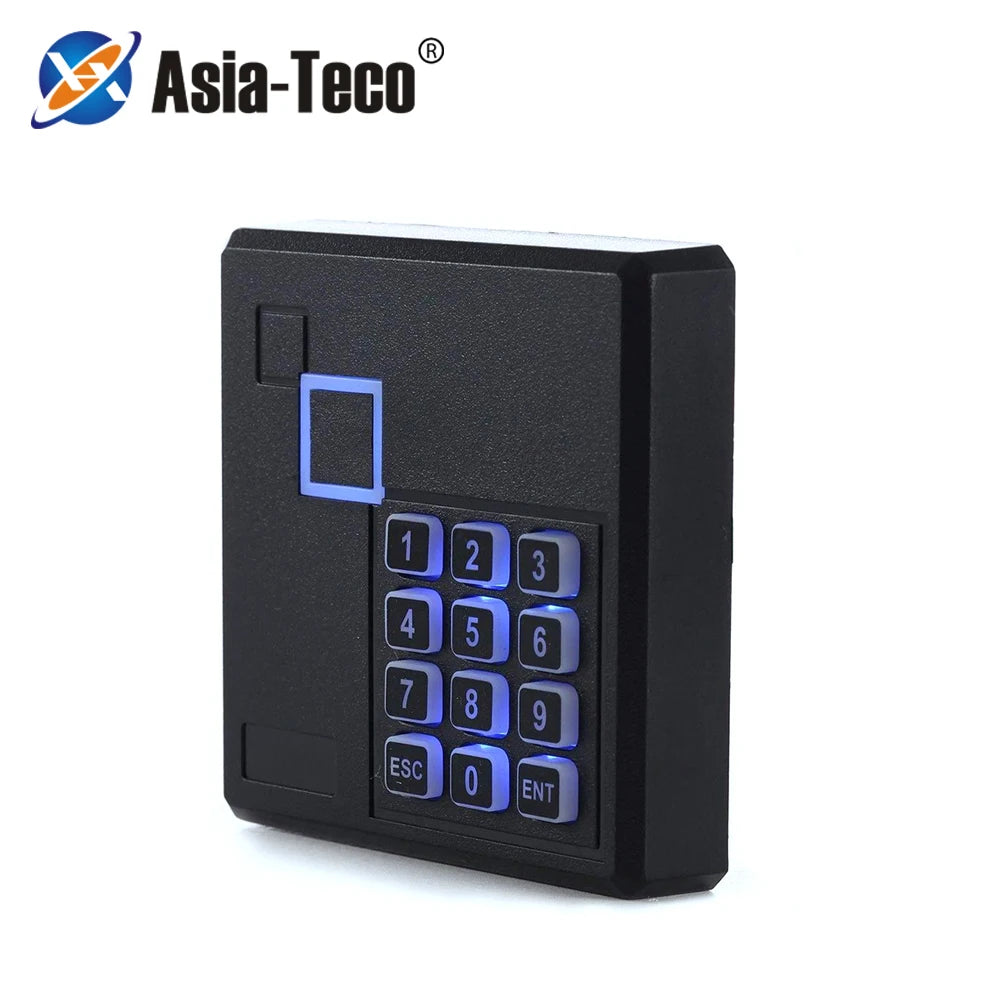

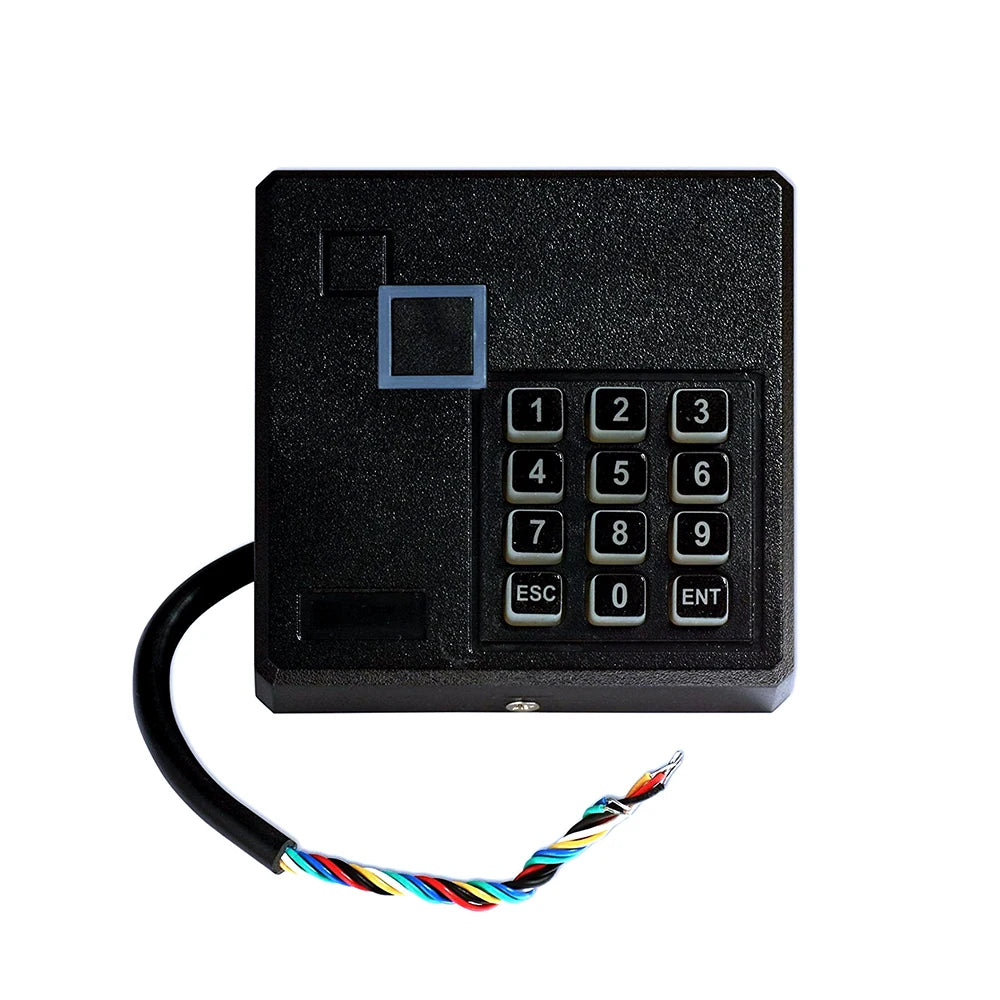

Asia-Teco 125KHz Proximity RFID Keypad Door Access Control Reader
Upgrade your entry security with the Asia-Teco 125KHz Proximity RFID Keypad Reader — a compact, reliable door access control solution designed for homes, offices, and commercial spaces. Simply present your EM-ID card and gain access in under 0.2 seconds. The sleek black housing fits standard wall boxes for a professional, low-profile install.
Key Features
- Fast Response: Card read time under 0.2 seconds for smooth, uninterrupted entry
- Wiegand 26-Bit Output: Industry-standard Wiegand 26-bit protocol for seamless integration with most access control panels
- 125KHz EM-ID Card Compatibility: Works with standard EM-ID proximity cards (note: does not support some encrypted card formats such as HID, Cobra, or APCiK)
- Versatile Reading Range: 3–15 cm proximity detection for convenient tap-and-go access
- Long Communication Range: Supports communication distances up to 100 metres
- Wide Input Voltage: DC 9–16V, max. 70mA — compatible with a wide range of access control power supplies
- Compact Form Factor: 86 × 86 × 18 mm — fits standard single-gang wall boxes for a clean, professional finish
- Built-in Keypad: Dual-verification capability combining card and PIN entry for enhanced security
- Black Housing: Durable black finish that suits modern interiors and exterior door frames
Technical Specifications
| Brand | Asia-Teco |
| Model | 103ID/IC |
| Frequency | 125 KHz |
| Card Type | EM-ID Card |
| Protocol | Wiegand 26-Bit |
| Reading Range | 3–15 cm |
| Response Speed | < 0.2 seconds |
| Proximity Time Distance | < 0.5 seconds |
| Input Voltage | DC 9–16V, Max. 70mA |
| Communication Distance | < 100 m |
| Dimensions | 86 × 86 × 18 mm |
| Color | Black |
| Country of Origin | Made in China |
What's in the Box?
- 1 × Asia-Teco 125KHz RFID Keypad Access Control Reader
Where to Use It
This reader is ideal for residential front doors, office entry points, server rooms, warehouses, gyms, and any controlled-access area where fast, contactless card-based entry is required.
For guidance on physical access control standards and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Which card types are compatible with this 125KHz RFID keypad reader?
A: This reader supports standard 125KHz EM-ID proximity cards. It does not support some encrypted card formats, including HID, Cobra, and APCiK. Always verify your existing card type before purchasing.
Q: What access control panels is the Wiegand 26-bit output compatible with?
A: The Wiegand 26-bit protocol is an industry-standard interface supported by the vast majority of access control panels and controllers on the market. Check your panel's specifications to confirm Wiegand 26 compatibility.
Q: What power supply does this RFID door reader require?
A: The reader operates on DC 9–16V with a maximum current draw of 70mA. Most standard access control power supplies fall within this range, making it easy to integrate into existing systems.
Q: Can this reader be used outdoors?
A: The compact 86 × 86 × 18 mm housing is designed to fit standard wall boxes. For outdoor installation, it is recommended to provide adequate weather protection (e.g. a suitable enclosure or covered porch) to ensure long-term performance.
