RFID Keypad Access Controller 125kHz – 1500 Users | Digital Lock
RFID Keypad Access Controller 125kHz – 1500 Users | Digital Lock
Digital Panel Access Controller with RFID Card Reader & Password Keypad
Upgrade your home or office security with this reliable 125kHz RFID Access Control System. Supporting up to 1,500 users, this sleek digital panel lets you manage entry via PIN keypad, RFID card, or a combination of both — giving you flexible, layered access control in one compact unit. Made in Mainland China.
Key Features
- Dual Access Methods: Unlock using a password, an EM 125kHz RFID card, or both simultaneously for enhanced security.
- Large User Capacity: Stores up to 1,500 unique users — ideal for offices, apartment buildings, gyms, and shared workspaces.
- 125kHz RFID Frequency: Compatible with standard EM-type ID cards and key fobs with a convenient 3–8 cm reading distance.
- Compact & Discreet Design: Slim 112 × 78 × 20 mm panel fits neatly on virtually any door frame or wall surface.
- Stable Power Input: Operates on 12V DC (±10%) for consistent, reliable performance.
- Easy Management: Quickly add or remove user credentials directly from the keypad — no specialist tools required.
- Versatile Application: Suitable for residential front doors, office entrances, server rooms, warehouses, and more.
Technical Specifications
| Brand | Asia-Teco |

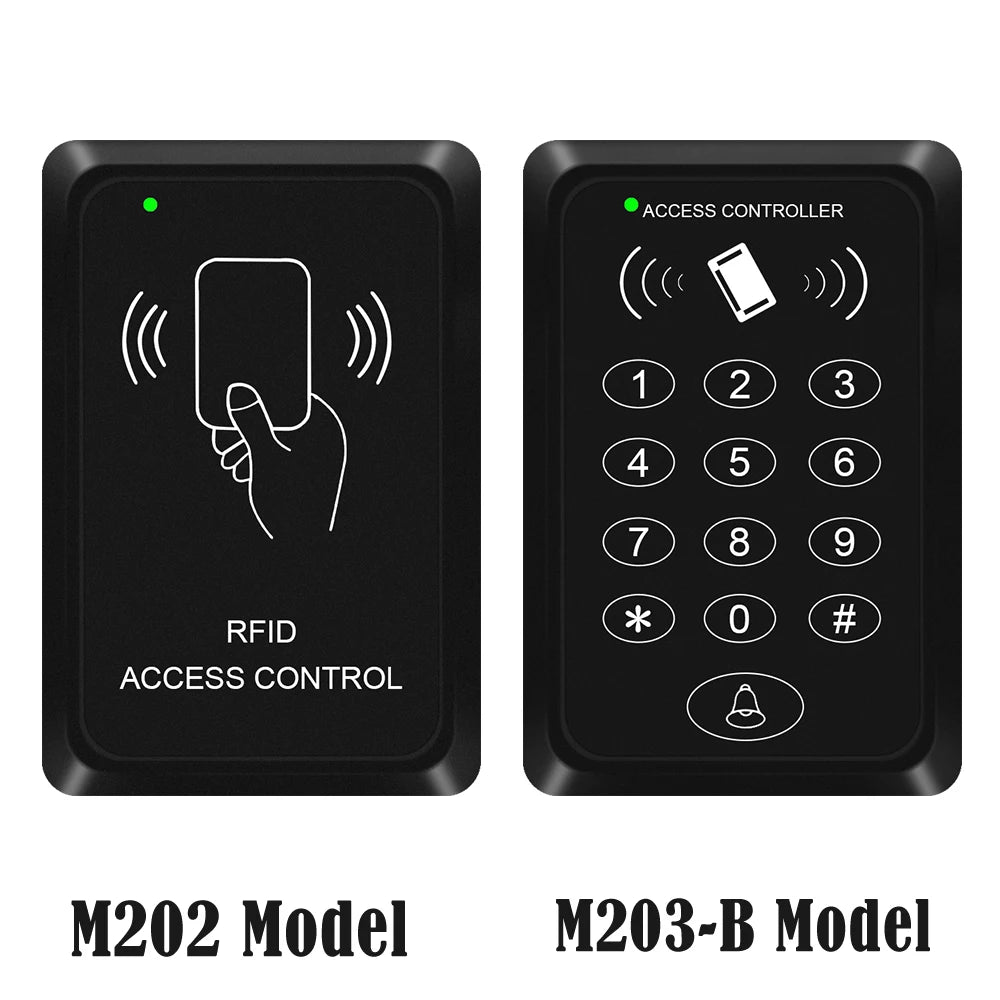

| Model | M202 / M203B |
| Card Type | EM (125kHz) |
| Working Frequency | 125kHz RFID |
| Reading Distance | 3–8 cm |
| User Capacity | Up to 1,500 users |

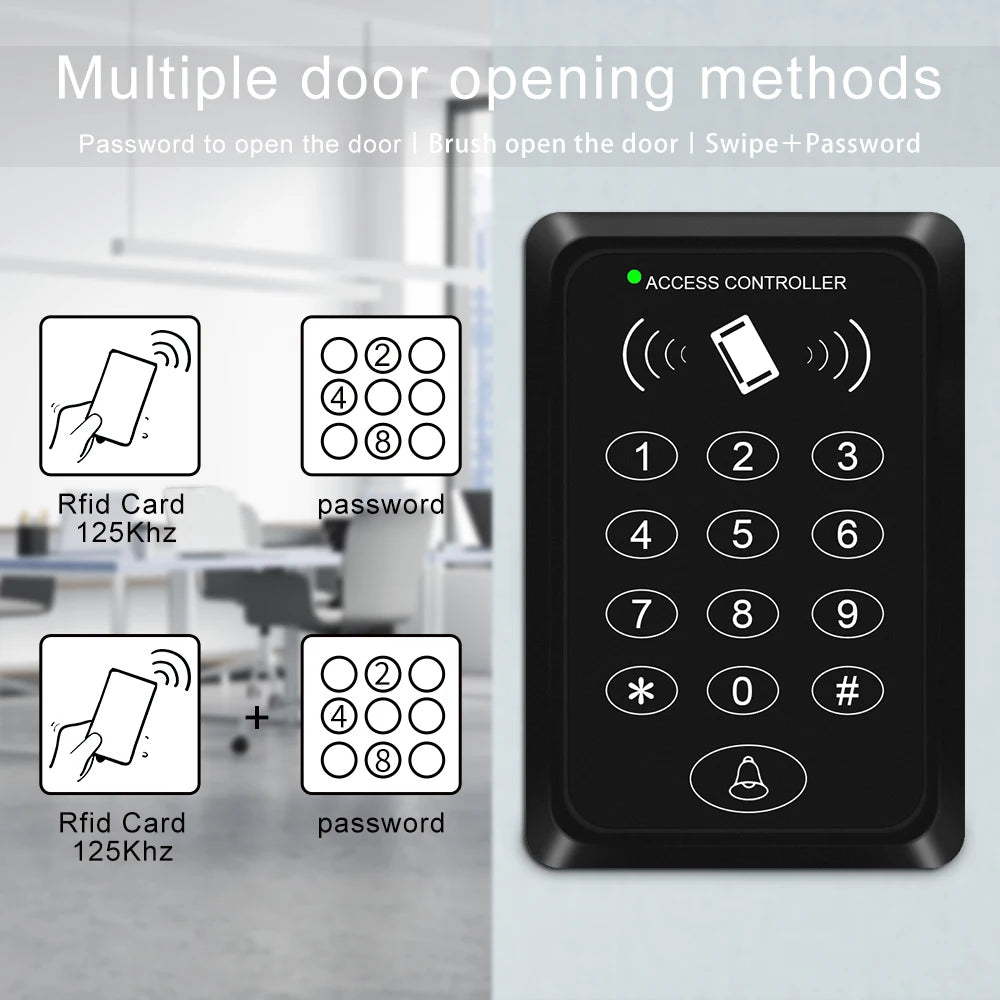

| Door Opening Methods | Password; Password + RFID Card |
| Working Voltage | 12V DC ± 10% |

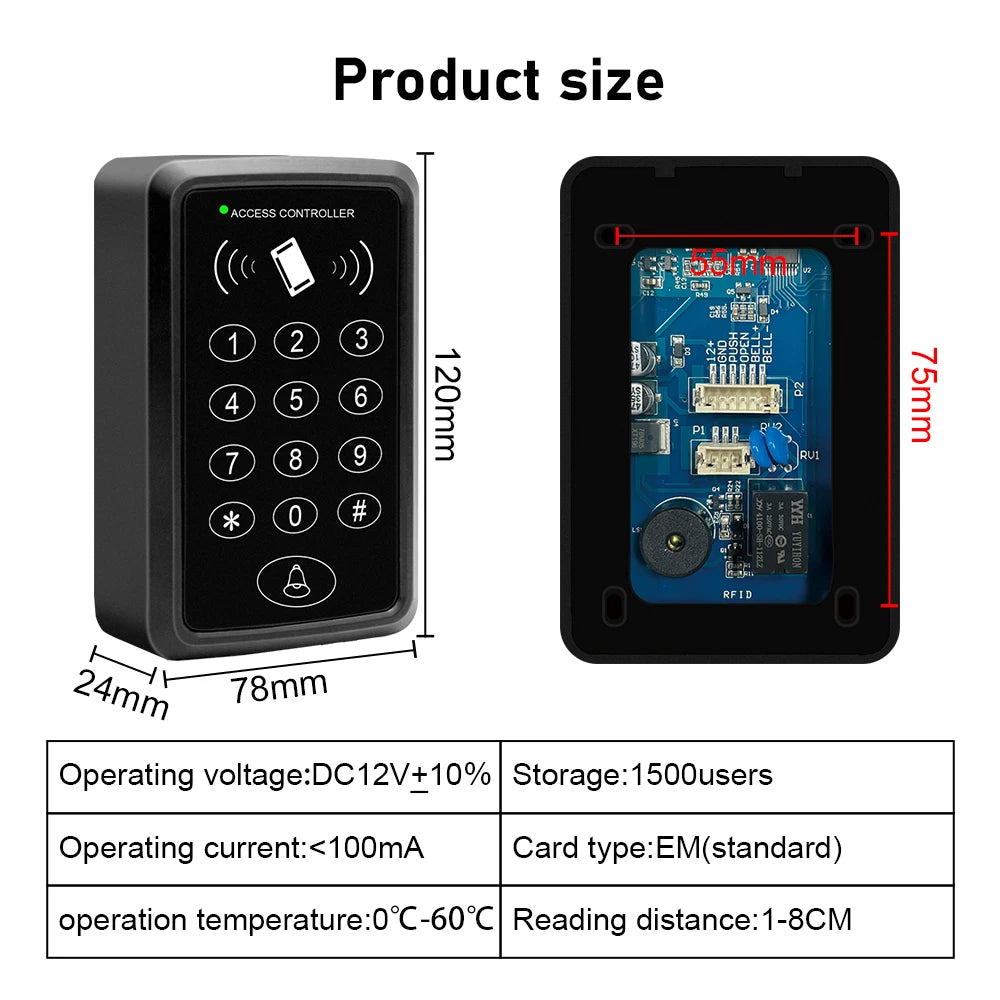

| Dimensions | 112 × 78 × 20 mm |
| Country of Origin | Made in Mainland China |
Who Is This For?
Whether you're securing a home office, managing access to a co-working space, or protecting a commercial facility, this access controller delivers a cost-effective, scalable solution. Its dual-authentication support ensures only authorized individuals can gain entry.
Security Best Practices
For guidance on physical access control standards and best practices in your facility, visit the U.S. Consumer Product Safety Commission (CPSC) for general product safety information.
Frequently Asked Questions
Q: How many users can the RFID access controller support?
A: This access controller supports up to 1,500 individual users, making it suitable for small businesses, offices, apartments, and other multi-user environments.
Q: What type of RFID cards are compatible with this access control system?
A: The system is compatible with EM-type 125kHz RFID cards and key fobs — one of the most widely available card formats. Cards must operate at 125kHz to work with this reader.
Q: Can I use a password and RFID card together for entry?
A: Yes! The controller supports a combined authentication mode — requiring both a valid RFID card and the correct password — for an added layer of security when needed.
Q: What power supply does this access controller require?
A: The unit requires a 12V DC power supply (±10%). This is a standard voltage used in most access control installations and is widely available.
Q: Is this access controller suitable for outdoor installation?
A: The product specifications do not include an IP weather-resistance rating, so it is best suited for indoor use or sheltered outdoor locations protected from direct rain and moisture.
