RFID Keypad Access Control IP67 Waterproof – Asia-Teco TF886
RFID Keypad Access Control IP67 Waterproof – Asia-Teco TF886
Asia-Teco TF886 Standalone RFID Access Control Keypad
Upgrade your entry security with the Asia-Teco TF886 Waterproof RFID Access Control Keypad — a sleek, all-in-one standalone controller built for offices, residential buildings, and commercial spaces. Combining a premium zinc alloy body with a durable tempered glass front panel, this IP67-rated unit delivers a professional, tamper-evident look without compromising performance.
Three versatile unlock methods — PIN password, 125KHz EM RFID card, and fingerprint — give you flexible, contactless entry management for up to 1,000 card users and 100 fingerprint records. With a lightning-fast recognition speed of ≤0.3 seconds, access is seamless for every authorized user.
Key Features
- IP67 Waterproof Rating — suitable for outdoor and exposed installations, operating in temperatures from -40°C to 60°C

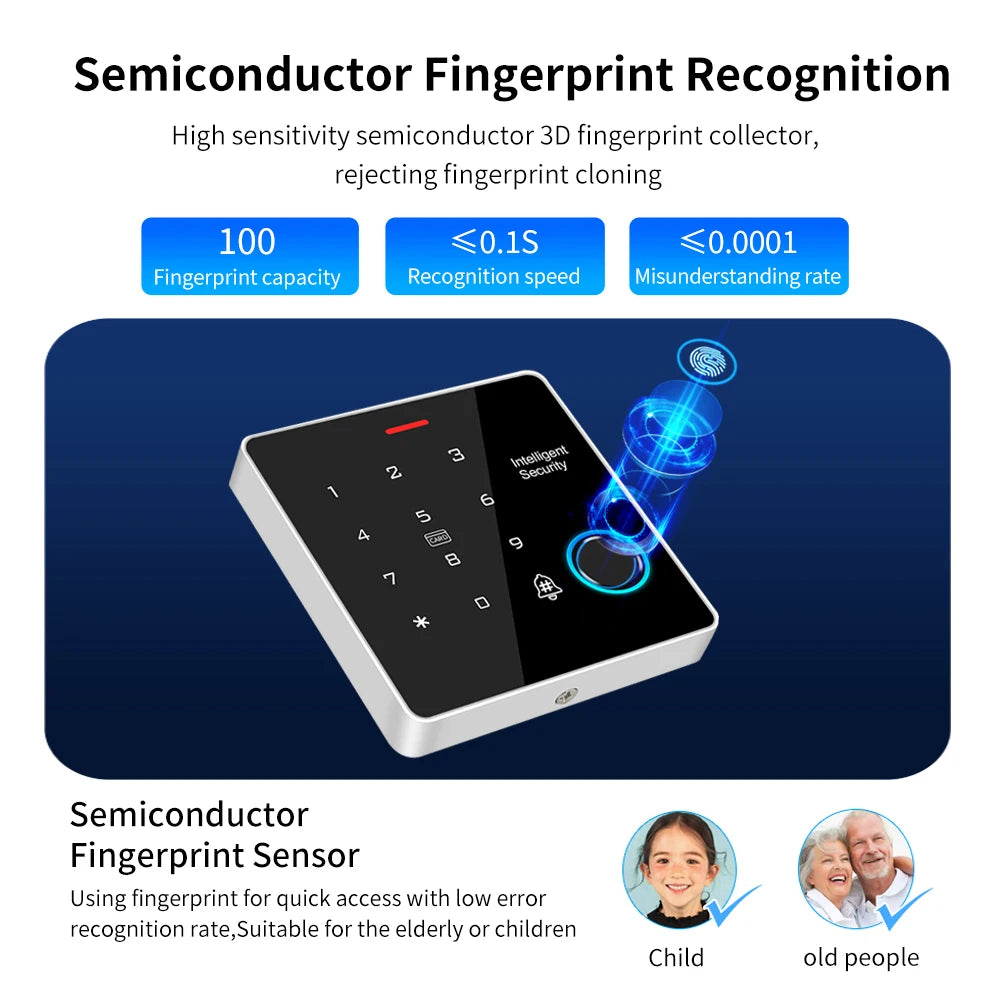

- Triple Unlock Methods — RFID card (125KHz EM), PIN password, or fingerprint
- Large User Capacity — stores up to 1,000 RFID cards and 100 fingerprints
- Adjustable Door Relay Time — set from 1 to 99 seconds to suit any door type
- Backlit Tempered Glass Keyboard — enables or disables backlight; easy night-time use
- Wiegand Output — supports 26-bit to 34-bit Wiegand format for integration with existing access systems

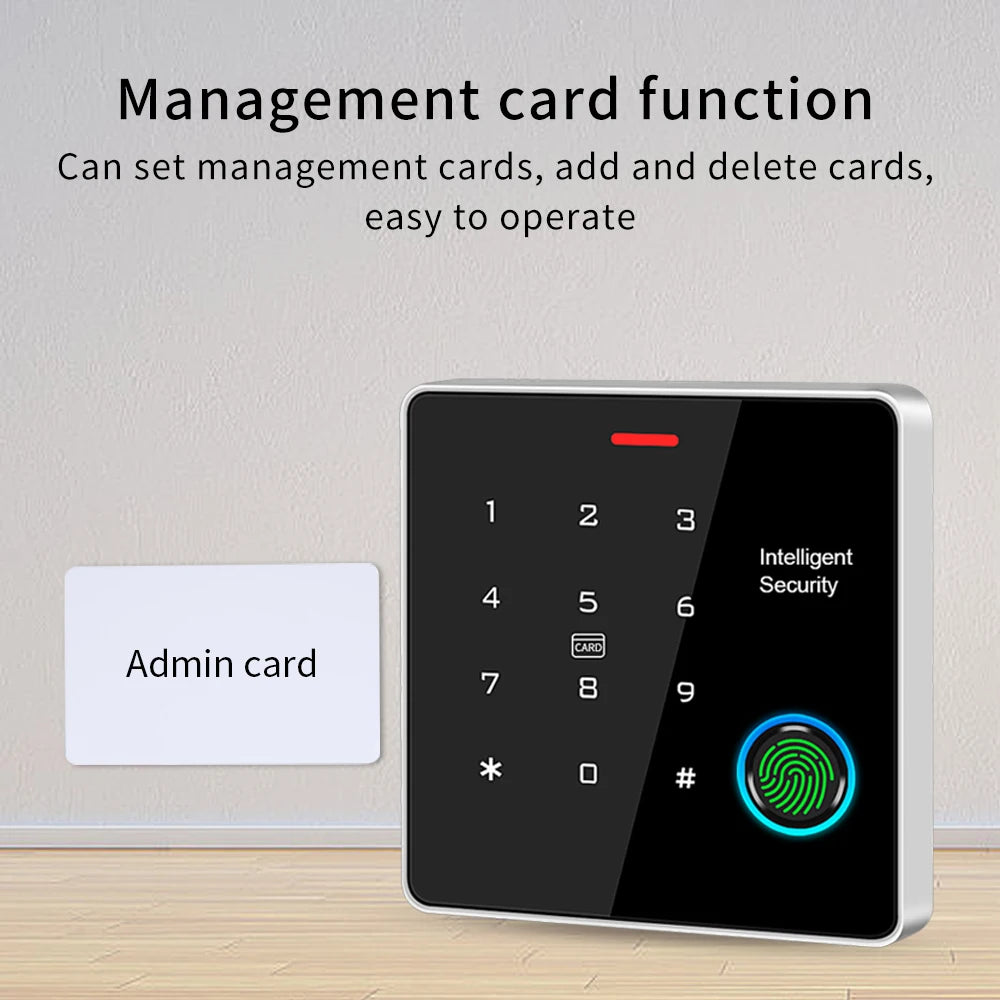

- Administrator Controls — configure MasterCard and Master Code for autonomous system management
- Zinc Alloy + Tempered Glass Build — tamper-evident, anti-interference design for high security
- CE & FCC Certified — meets international electronic safety standards
- Low Standby Power — standby current ≤30mA; operates on DC 12V
Technical Specifications
| Model | TF886 |
| Card Type | 125KHz EM Card |
| Card Capacity | 1,000 |
| Fingerprint Capacity | 100 |
| Card Reading Distance | 2–5 cm |
| Recognition Speed | ≤ 0.3 seconds |
| Wiegand Format | 26-bit to 34-bit |
| Door Relay Time | 1–99 seconds (adjustable) |
| Working Voltage | DC 12V |
| Standby Current | ≤ 30mA |
| Operating Temperature | -40°C to 60°C |
| Humidity | 10%–90% |
| Material | Zinc Alloy / Tempered Glass Panel |
| Dimensions | 86 × 86 × 13 mm |
| Certification | CE, FCC |
| Waterproof Rating | IP67 |
Ideal Applications
This standalone access controller is perfectly suited for:
- Office buildings and corporate entryways
- Residential complexes and apartment lobbies
- Warehouses and storage facilities
- Schools, gyms, and community centers
- Any indoor or outdoor door requiring secure, keyless entry
Made in Mainland China.
For guidance on physical security standards and best practices for access control systems, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Is the Asia-Teco TF886 RFID keypad suitable for outdoor installation?
A: Yes. The TF886 carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand immersion in water. It also operates across a wide temperature range of -40°C to 60°C, making it ideal for both indoor and exposed outdoor door installations.
Q: What RFID card frequency does this access control keypad support?
A: The TF886 supports 125KHz EM cards, one of the most widely used RFID frequencies for access control. It can store up to 1,000 cards and reads at a distance of 2–5 cm with a recognition speed of ≤0.3 seconds.
Q: Can I integrate this keypad with an existing access control system via Wiegand?
A: Absolutely. The TF886 supports Wiegand output formats from 26-bit to 34-bit, allowing seamless integration with most existing access control panels, door controllers, and security management systems.
Q: How do I program the administrator code and manage user cards?
A: The unit supports autonomous administrator settings using a MasterCard or Master Code, allowing you to add or remove user RFID cards and fingerprints directly from the keypad without requiring a separate computer or software.
