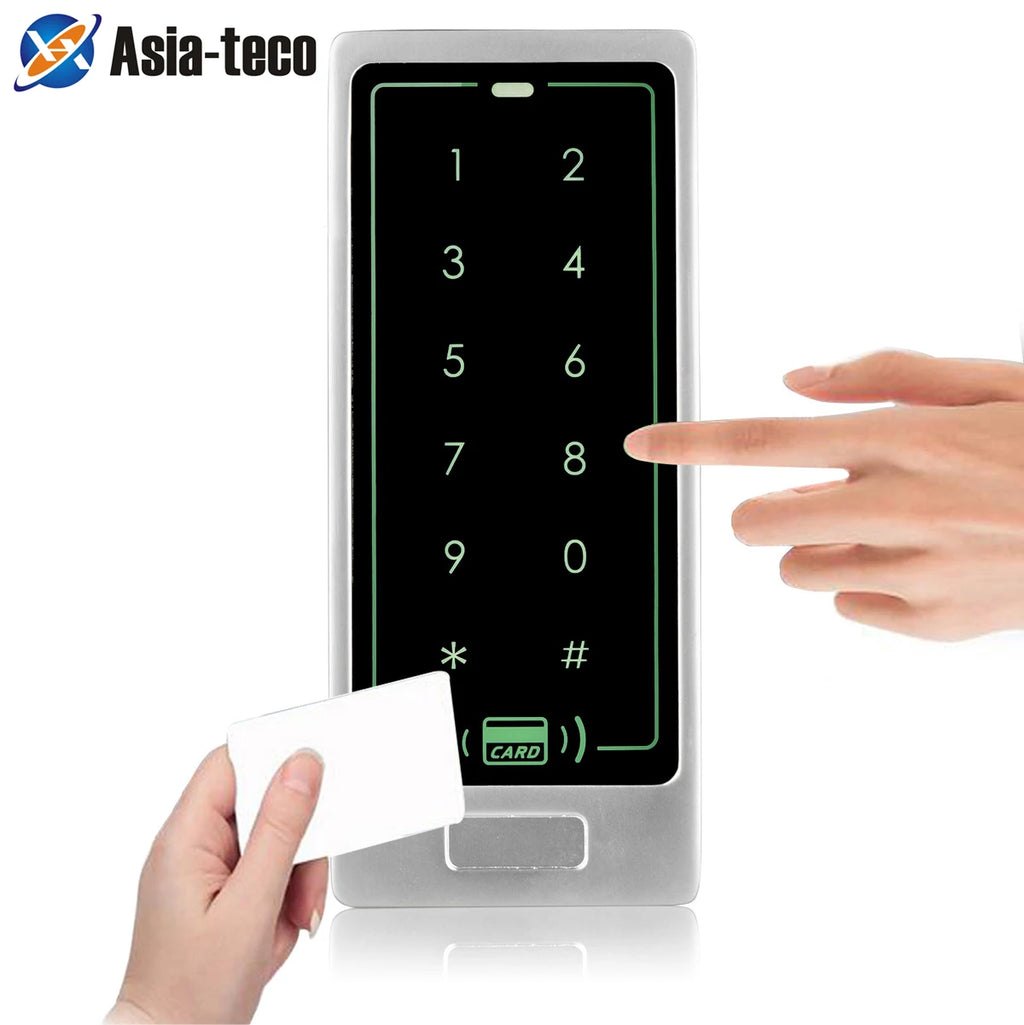

Asia-Teco LKC10 – Standalone RFID Touch Keypad Access Controller
Take full command of who enters your property with the Asia-Teco LKC10 Waterproof Metal RFID Access Control Keypad. Built for both residential and commercial use, this standalone controller supports up to 8,000 users via 125 kHz ID cards, PIN codes, or a combination of both — no PC required. Made in Mainland China.
Key Features
- Dual-Mode Entry: Supports card-only, password-only, or card + password authentication for flexible, layered access.
- Large User Capacity: Stores up to 8,000 user cards and passwords directly in onboard memory.
- Weatherproof Metal Housing: Rugged metal casing with backlit touch panel rated for outdoor use — operates in temperatures from -20°C to 70°C and humidity up to 95%.
- Standalone Operation: Fully programmable from the keypad itself; no computer or network connection needed.
- Wiegand WG26/34 Compatible: Works as a standalone controller or as a card reader with a separate panel via WG26/34 input/output interface.
- Contactless 125 kHz RFID: Reads EM and compatible proximity cards at a range of 5–10 cm.
- Management Card Support: Designate a master/management card for easy user enrolment and deletion without accessing a computer.
- Data Backup: Supports data copy and backup across devices in the same series.
- Doorbell Button Included: Built-in doorbell function for added convenience.
- Exit Button Connection: External release/exit button terminal for two-way access control.
- Fail-Safe with Signal: Imported double-point relay output with both active and passive lock signal options for reliable locking control.
- Adjustable Unlock Time: Opening delay is fully adjustable from 0 to 255 seconds.
Technical Specifications
| Model | LKC10 |
| Brand | Asia-Teco |
| Working Voltage | DC 12V |
| Unlock Relay | 12 VDC / 2A |
| User Capacity | 8,000 cards / passwords |
| Card Frequency | 125 kHz (EM or compatible) |
| Read Range | 5–10 cm |
| Interface | WG26 / WG34 |
| Opening Time | 0–255 seconds (adjustable) |
| Operating Temperature | -20°C to +70°C |
| Humidity Range | 0%–95% |
| Material | Metal |
| Security Mode | Fail Safe with Signal |
| Country of Origin | Made in Mainland China |
Ideal For
- Office and commercial building entry doors
- Apartment and residential gate systems
- Parking garage barriers and electric gates
- Warehouses, server rooms, and restricted areas
For guidance on physical security standards and access control best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does this RFID access control keypad require a computer or internet connection to operate?
A: No. The Asia-Teco LKC10 is a fully standalone access controller. All programming — including adding or deleting users, setting passwords, and configuring unlock time — is done directly from the keypad or via a management card. No PC, software, or internet connection is required.
Q: What types of RFID cards are compatible with this access control system?
A: The LKC10 operates at 125 kHz and is compatible with EM-format proximity ID cards and other 125 kHz EM-compatible cards. It does not support 13.56 MHz Mifare or HID iCLASS cards.
Q: Can I use this keypad as just a card reader connected to an existing access control panel?
A: Yes. The LKC10 supports both standalone controller mode and card reader mode. When used as a reader, it outputs data via WG26 or WG34 Wiegand interface to connect with a compatible third-party access control panel.
Q: Is this keypad suitable for outdoor installation?
A: Absolutely. The LKC10 features a waterproof touch panel and a durable metal housing designed to withstand outdoor conditions, operating reliably across temperatures from -20°C to +70°C and humidity up to 95%.
