RFID Keypad Access Control System IP67 Waterproof – 2000 Users

Asia-Teco RFID Touch Keypad Access Control System – 125KHz | IP67 | Wiegand | 2000 Users

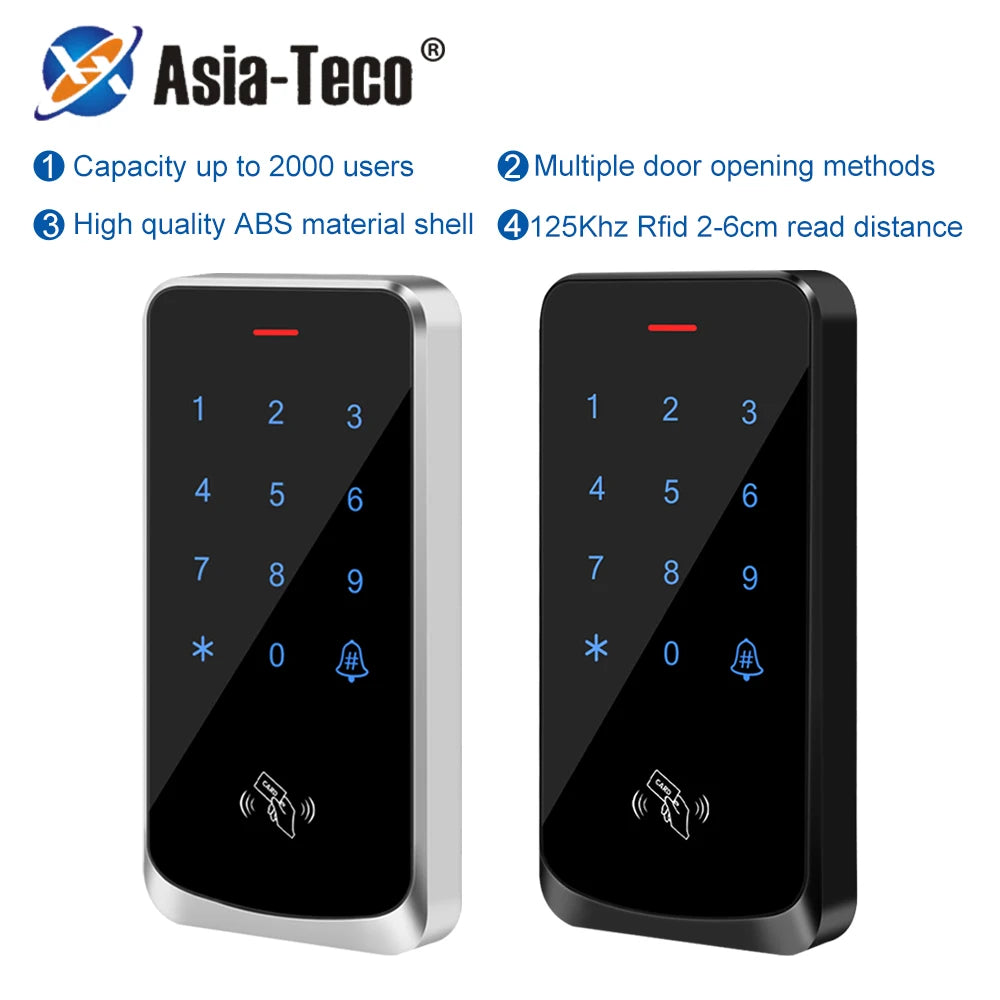

Upgrade your entry security with the Asia-Teco T9S-EM-W RFID Access Control Keypad — a professional-grade door access solution built for homes, offices, warehouses, and any environment demanding reliable, weatherproof entry management. Supporting up to 2,000 users, this system combines RFID card reading, PIN code entry, or a combined card + PIN method for flexible, multi-layer access control.

Key Features

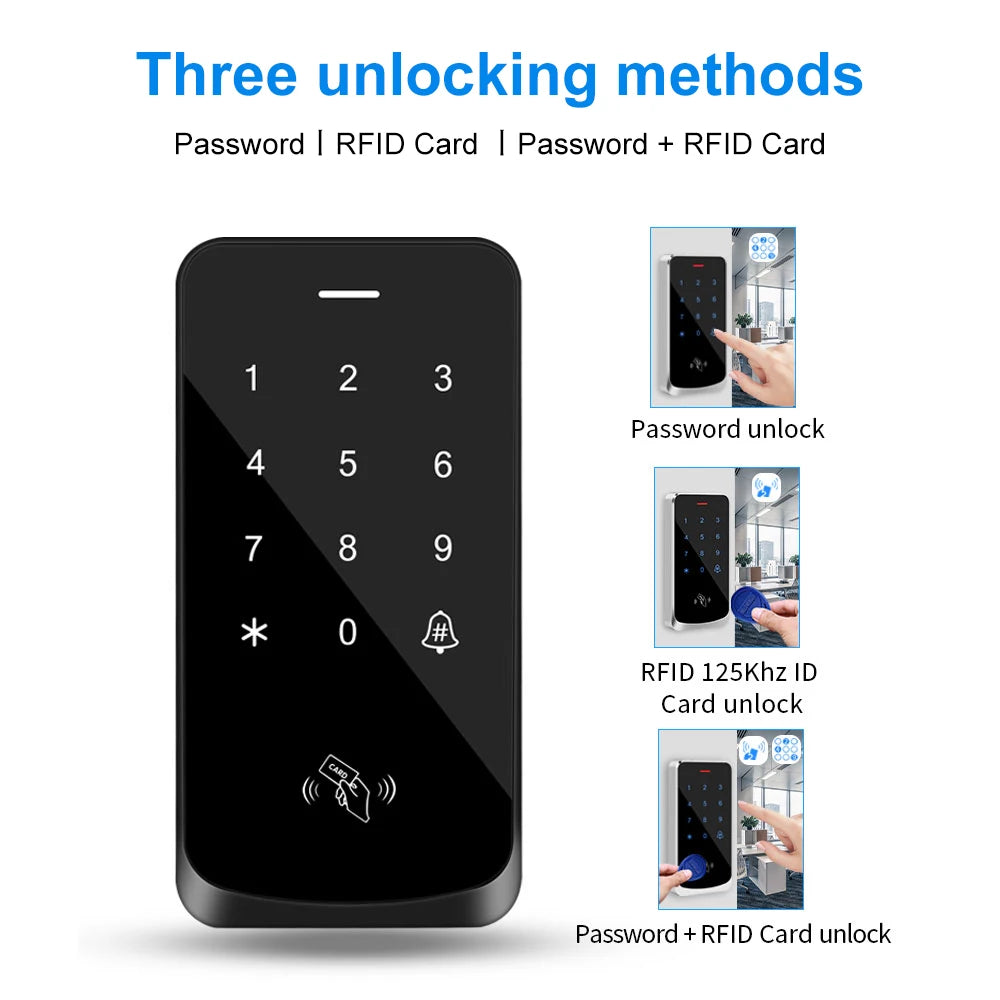

• Triple Identification Modes: Unlock via RFID card, PIN code, or card + PIN combined — you choose what suits your security needs.
• 125KHz RFID Technology: Compatible with standard EM ID cards and key fobs; reads at a convenient 2–6 cm distance.
• Backlit Touch Panel: Blue backlit touchscreen keypad for easy use in low-light or nighttime conditions.
• IP67 Waterproof Rating: Fully sealed against dust ingress and water immersion — ideal for outdoor gates, car parks, and exposed entranceways.
• Wiegand WG26/34 Input/Output: Seamlessly integrates with most existing access control infrastructure and third-party systems.
• 2,000 User Capacity: Stores credentials for large teams, residential complexes, or multi-unit buildings.
• Master Card Management: Add, delete, and manage user cards easily using the dedicated Master Card — no PC software required.
• Adjustable Door Delay: Configurable door open time from 0 to 99 seconds to suit any door-locking mechanism.

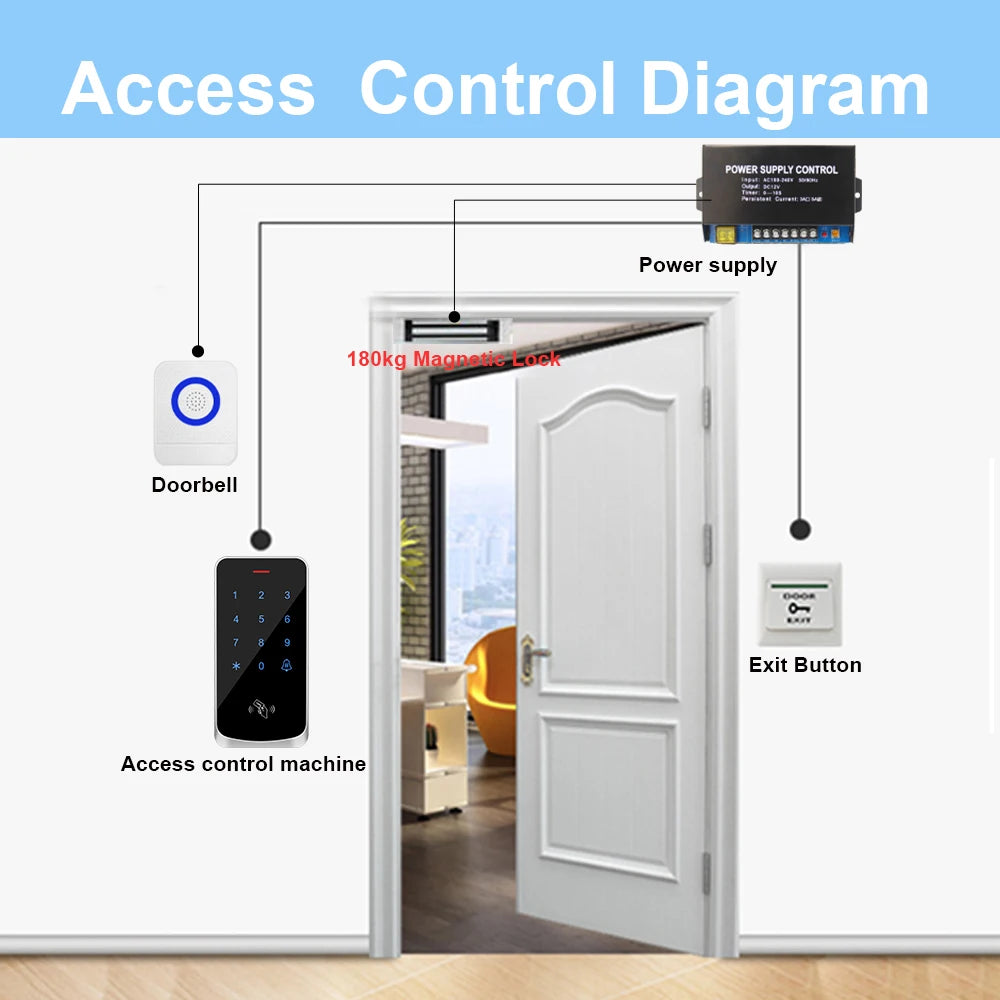

• External Doorbell Support: Built-in wired doorbell connection port for added convenience.
• Wide Operating Range: Functions reliably in temperatures from –40°C to +60°C and humidity from 10%–90% RH.
• Durable ABS Housing: Fire-retardant, impact-resistant, one-piece moulded shell — built to last in demanding environments.

Technical Specifications

Who Is This For?

Whether you're securing a small office, a multi-unit apartment building, a warehouse, a gym, or a gated property, the Asia-Teco T9S-EM-W delivers enterprise-level reliability in a slim, all-weather package. Its Wiegand compatibility means it slots right into most existing installations, while its Master Card programming makes user management straightforward — no laptop or specialist tools needed.

Safety & Standards Resource

For guidance on physical access control standards and security best practices for buildings, refer to the U.S. Consumer Product Safety Commission (CPSC) and relevant OSHA facility safety guidelines at OSHA.gov.

Frequently Asked Questions

Q: What types of cards are compatible with this RFID access control keypad?

A: The Asia-Teco T9S-EM-W operates at 125KHz and supports standard EM ID compatible cards and key fobs. It does not support MIFARE (13.56MHz) cards. Please confirm your existing cards are 125KHz EM ID format before purchase.

Q: Can this keypad be used outdoors in harsh weather?

A: Yes. The unit carries an IP67 waterproof rating, meaning it is fully protected against dust and can withstand temporary water immersion. It also operates across a wide temperature range of –40°C to +60°C, making it suitable for outdoor gates, car parks, and exposed walls.

Q: How do I add or remove users without a computer?

A: User management is handled via the included Master Card (management card). Simply present the Master Card to enter programming mode, then enrol new cards or delete existing ones directly at the keypad — no PC software or specialist equipment required.

Q: Is this compatible with my existing Wiegand-based access control system?

A: Yes. The keypad supports both WG26 and WG34 Wiegand input/output protocols, making it compatible with the vast majority of standard access control panels and third-party systems on the market.

Q: What is the maximum number of users this system can handle?

A: The system supports up to 2,000 individual user credentials, making it suitable for medium-to-large offices, residential complexes, gyms, warehouses, and similar facilities.
